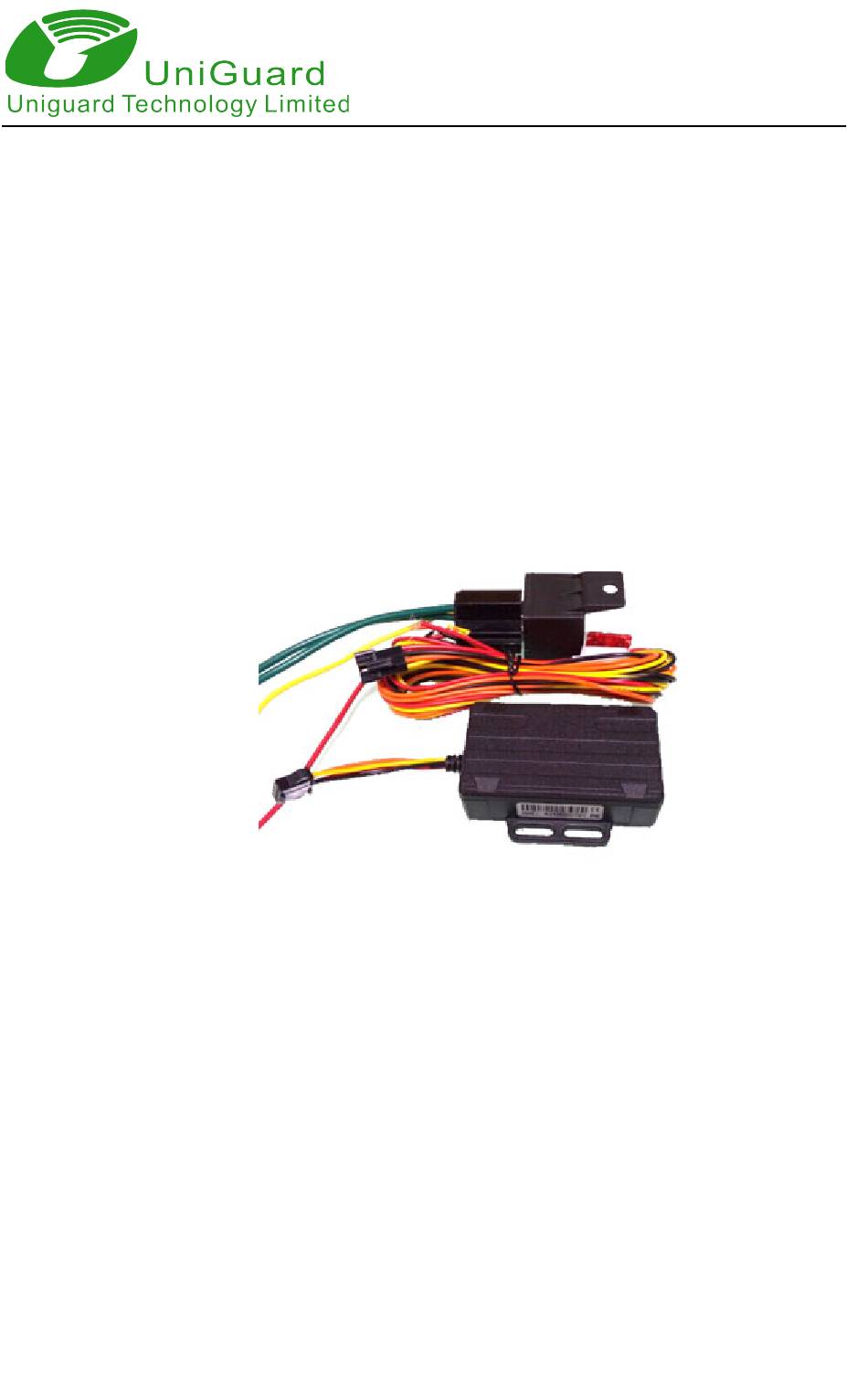

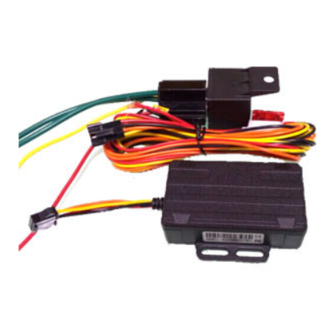

UniGuard Technology Limited 1 Product Instructions It is a mini GPS Tracker, built-in GPS Antenna and GSM Antenna, Size: 40*23*17mm, Weight: 90g, it can send vehicle location and status to mobile and Internet. It can track the vehicles remotely. Tracker the vehicle on the Internet and Mobile.
UniGuard Technology Limited GPS Accuracy Cold start 35-80s Time to first fix Warm start 35s Hot start 1s Working voltage 9-75V Battery Built-in 3.7V 370mA Storage Temperature -40°C to +85°C Working Temperature -20°C to +55°C Working Humidity 5%--95% non-condensing 1.2 Installation Figure 1.2.1 Check products to see if there is any accessory missing.
Page 4
UniGuard Technology Limited Don't insert the SIM card up-side-down. Make sure the SIM card with GPRS service. If the SIM card has been inserted, but it requires you to input SIM PIN, please close the SIM PIN function under the instruction of your mobile phone user ’s manual.
UniGuard Technology Limited 2.4 Arm/Disarm ARM Message format: 111 Reply: GSM: A/B/C/D. POWER: X. ARM Delay in XXS! (When vehicle stays static for 10 minutes, GPS Tracker goes to ARM mode. Open Auto Arm function, send command auto1, close Auto Arm function,...
Send move0, GPS tracker closes movement alarm. Reply: OK! Move alarm: OFF. Remark: when vehicle is parked over 10 minutes, UM210 will go to arm mode. Under Arm mode, if vehicle is moved over set distance (example, 300M), there will be SMS alert.
UniGuard Technology Limited e.g sleep123456 shock Reply: Sleep shock OK! When vehicle engine turns off and no shock in 5 minutes, GPS Tracker goes to sleep mode. GPS OFF, LED OFF. Shock or any operation can awake it. Turn Off: sleep123456 off 2.10 Restart Tracker...
UniGuard Technology Limited 3.2 Set the IP and Port SMS Command : adminip123456 104.243.132.242 8000 3.3 Set GPRS Interval When there is vibration, command : run,XX When there is no vibration, GPRS interval is fixed 300 secs. XX=10-180, unit is seconds e.g.
