Summary of Contents for UniGuard UM660

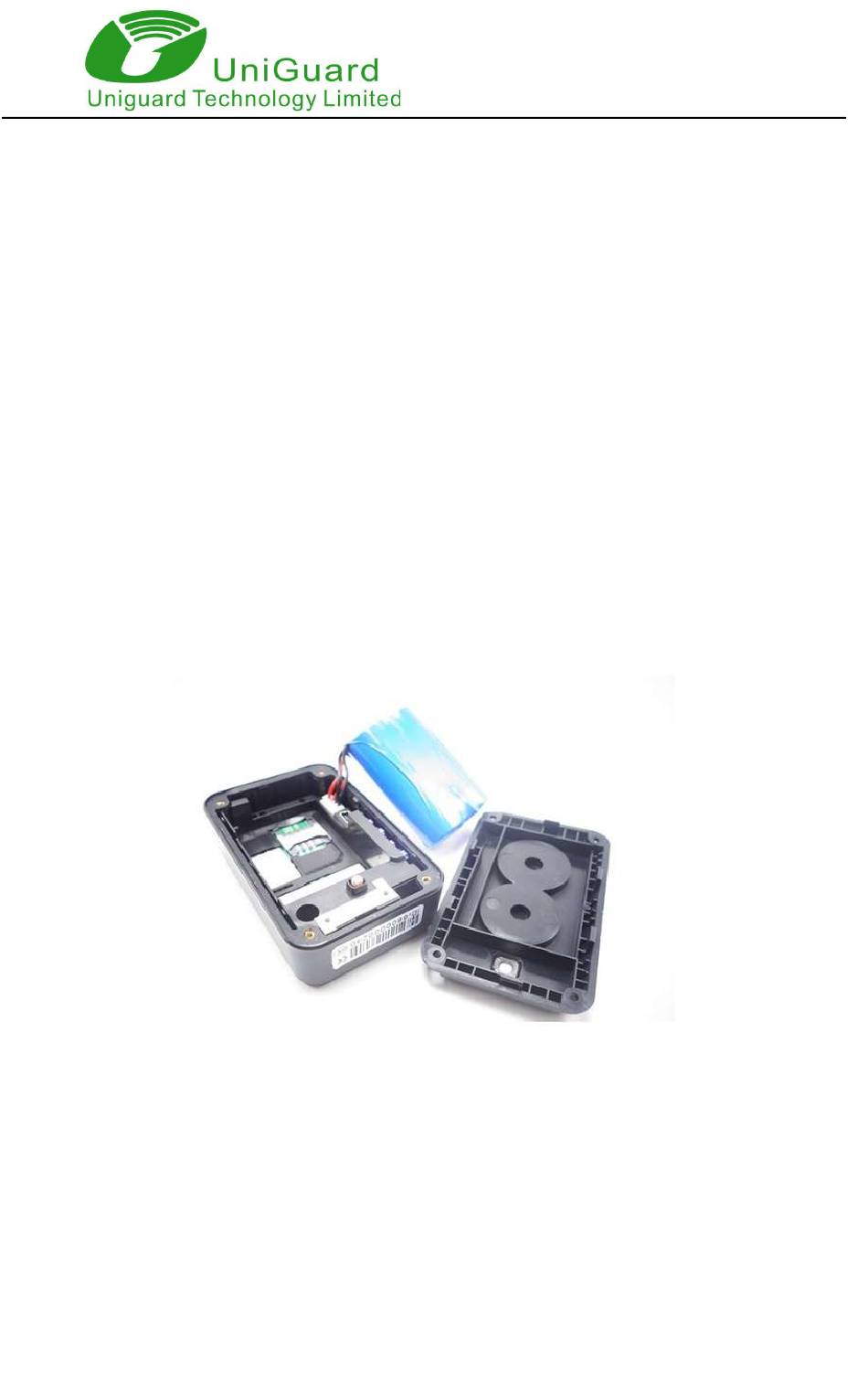

- Page 1 UniGuard Technology Limited Ma g neti c G PS Tr ack er Us er Man u al UM6 60 Attention: Charge is forbidden. 24Hrs per locate: 2 Years (Default) www.uniguardgps.com...
- Page 2 UniGuard Technology Limited 1 GPS Tracking System Introduction Portable GPS Tracker UM660 integrates GPS and GSM functions, which could send vehicle location and status to mobile and Internet. It utilizes GPS and LBS double locating. Its advantage is that the builtin battery can last 2 years at reporting interval every 24hrs.
-
Page 3: Product Description
UniGuard Technology Limited 2 Product Description 2.1 Specification Content Specifications Dimensions 75x 45 x 25mm Weight 105g Network GSM/GPRS Band 850/900/1800/1900Mhz GPS chip UBLOX-7 GSM Module MTK6260D GPS sensitivity -159dBm GPS accuracy Time to First Fix Cold status 45-120s Warm status 35s... - Page 4 UniGuard Technology Limited 2.2 Picture and main functions: www.uniguardgps.com...
-
Page 5: Usage Instructions

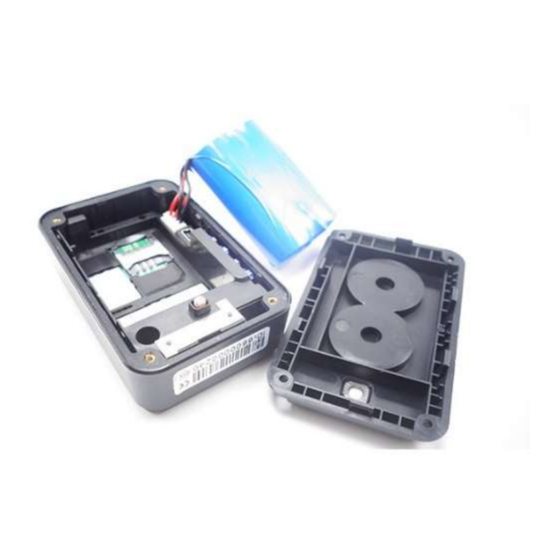

UniGuard Technology Limited 3 Usage Instructions 3.1 LED definition Note: In battery mode, the LED light will turn off after 3 mins. If the equipment is in sleep mode, press the wake button for 3 mins with the screwdriver tip, and then release, the device will work for five minutes then go to sleep mode again. - Page 6 UniGuard Technology Limited Open the back cover with screwdriver, insert a SIM card with GPRS/GSM/SMS network into the slot, and make sure the chip side is down. Refer to Picture 1 Plug the battery and GPS tracker will automatically turn on. The two LED indicators turn on.
-
Page 7: Set Ip And Port
UniGuard Technology Limited 4.2 Remove alarm 4.2.1 Open remove alarm (Default Open. Alarm type : Call and SMS alert) SMS Command : SO1, SOS2 or SOS3 4.2.2 Close Alarm SMS Command : SOS0 4.2.3 Type of alarm : SOS1 means calling only... -
Page 8: Web Tracking
UniGuard Technology Limited received, device will stay in this mode forever. 4.5.4 Cancel GPS Tracking mode, send SMS command : DW005 (Device will go to deep sleeping mode after 5 minutes.) 5 Web Tracking 5.1Login www.gpspos.net to start web tracking service with your own...
