UniGuard Technology Limited

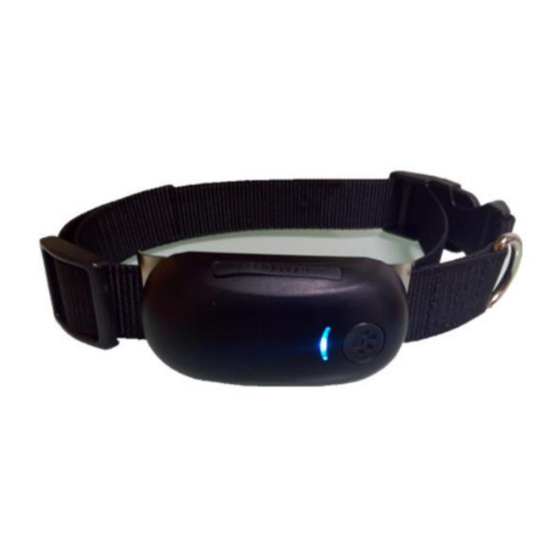

GPS Pet Tracker PT100
User Manual
Preface
Thank you for purchasing the tracker. This manual shows how to operate the device smoothly and
correctly. Make sure to read this manual carefully before using this product. Please note that
specification and information are subject to changes without prior notice in this manual. Any change
will be integrated in the latest release. The manufacturer assumes no responsibility for any errors or
omissions in this document.
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for UniGuard PT100
Summary of Contents for UniGuard PT100
- Page 1 UniGuard Technology Limited GPS Pet Tracker PT100 User Manual Preface Thank you for purchasing the tracker. This manual shows how to operate the device smoothly and correctly. Make sure to read this manual carefully before using this product. Please note that specification and information are subject to changes without prior notice in this manual.
- Page 2 UniGuard Technology Limited 1. Summary Working Based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets by SMS or internet. The most advanced technology of GPS and AGPS dual positioning. The waterproof level achieves IPX - 6.
- Page 3 UniGuard Technology Limited 4.Specs. Content Specs. 70mm x 35mm x 20mm Dim. Weight GSM/GPRS Network 850/900/1800/1900Mhz Band UBLOX GPS chip GPS sensitivity -159dBm GPS accuracy Cold status 35-80s Time To First Fix Warm status 35s Hot status 1s 110－220V input...
- Page 4 UniGuard Technology Limited Make sure that there is no call transfer and call display is on, and PIN code off. The SMS message must in Text format, can’t be identified for PDU format. 5.2.1 Open the waterproof plug, put the SIM card into the card slot.
- Page 5 UniGuard Technology Limited instruction.) In 10 or 40 seconds, the unit will begin to work and acquire the GSM signals as well as the GPS signals. The indicator will keep flashing every 3 seconds when the unit has received the signals.
- Page 6 UniGuard Technology Limited 5.5Change the password 5.5.1 Set Password: Send sms: “password+old password+space+new password” to the unit to change the password. For Example, pls send sms: “ password123456 000000” to terminal device, it will reply sms: “password OK”. New password 000000 changed in success.
- Page 7 UniGuard Technology Limited 5.7.2Single message inquires the latitude and longitude information, any telephone number can send instruction“where” to the equipment, then the equipment will reply the latitude and longitude informati on to this telephone. 5.7.3 When an authorized number dials up the unit, it will hang up and report a real-time Geo-info as...
- Page 8 UniGuard Technology Limited second latitude&longitude is the coordinate of the bottom right corner. 5.10.2 Cancel: Send SMS:” nostockade+password” to deactivate this function,tracker will reply “nostockade ok”. 5.11Movement alert 5.11.1 Set up: When the unit stays immobile in a place for 3-10 minutes, the user can send SMS: “move+password”...
- Page 9 UniGuard Technology Limited 5.13Low battery alert When GPS device battery is going to be about 3.7V, it will send SMS: “bat:l” at 30 minutes interval. 5.14Sleeping power-save mode On normal status, when the unit stoped over 10minutes, it will change to sleeping mode, on this mode, the power consumption is 4mah/h only.
- Page 10 UniGuard Technology Limited 5.16Restore factory settings Note: It is e uthorized number ffective sending by a Send SMS command “format”, the unit will reply “ The tracher will immediateiy restore the factory settings.All ” previous settings will be canceled. 5.17 GPRS setting User must send SMS via cell phone to set up IP, port and APN before starting GPRS.
- Page 11 UniGuard Technology Limited will cause unwanted situation. 7. Faults & The solutions Faults Solution Startup Fail Check the battery and see if it is fully charged or correctly installed. Hang up Fail In existence of an authorized number, an unauthorized number dials up the unit.
