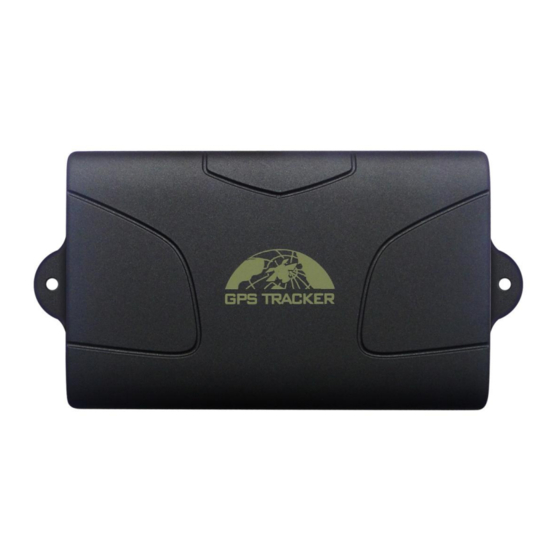

GSM/GPRS/GPS PORTABLE VEHICLE TRACKER
USER MANUAL
UM03
Preface
Thank you for purchasing the tracker. This manual shows how to operate the device
smoothly and correctly. Make sure to read this manual carefully before using this
product. Please note that specification and information are subject to changes without
prior notice in this manual.
Any change will be integrated in the latest release. The manufacturer assumes no
responsibility for any errors or omissions in this document.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for UniGuard UM03
Summary of Contents for UniGuard UM03
-

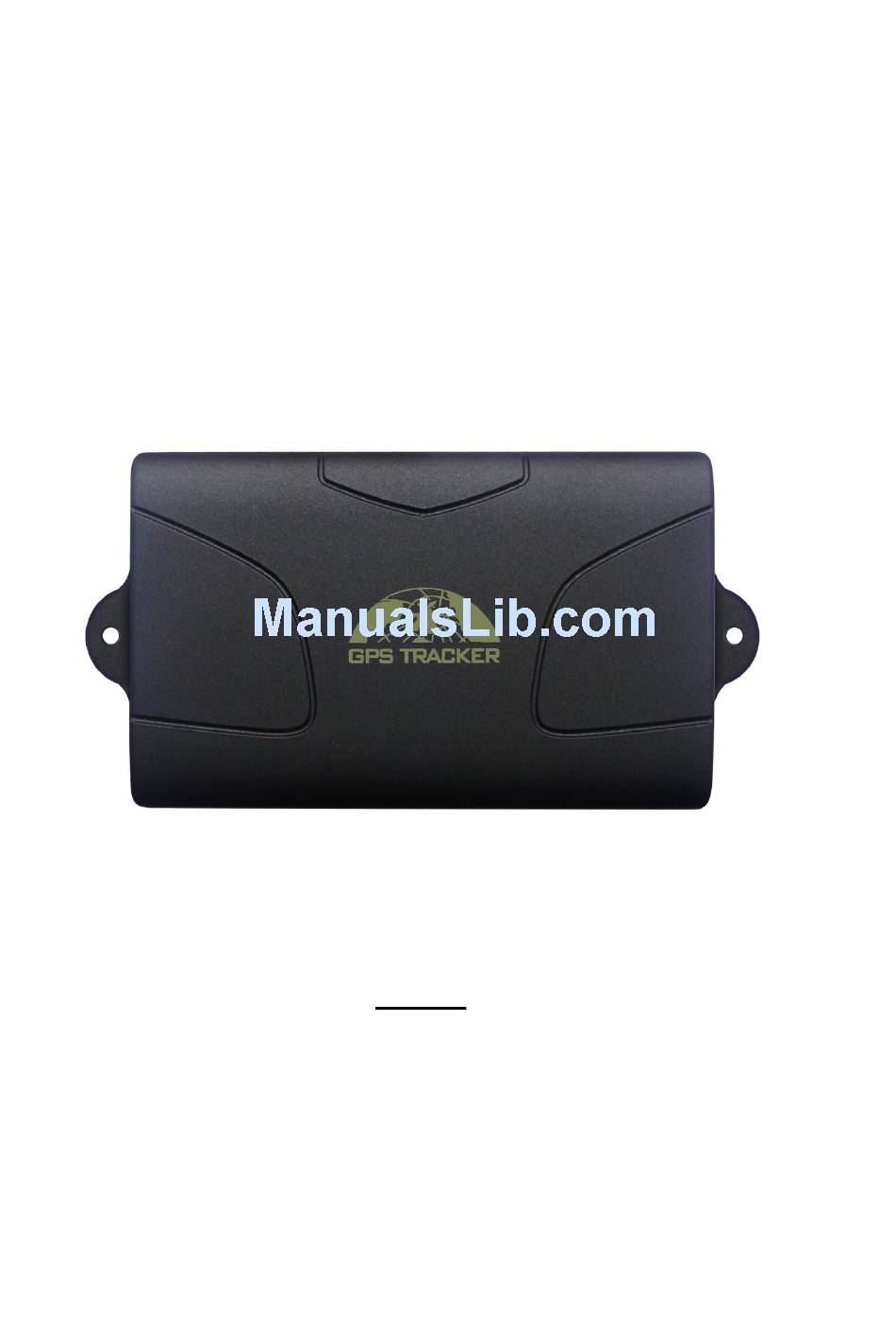

Page 1: User Manual
GSM/GPRS/GPS PORTABLE VEHICLE TRACKER USER MANUAL UM03 Preface Thank you for purchasing the tracker. This manual shows how to operate the device smoothly and correctly. Make sure to read this manual carefully before using this product. Please note that specification and information are subject to changes without prior notice in this manual. -
Page 2: Table Of Contents
UniGuard Technology Limited Contents Introduction ............................3 1. Main Features ..........................3 2. Applications............................3 3. Hardware Description ........................4 Accessories ........................... 5 Specifications ..........................6 Installation and operating ........................6 1. Production installation ........................6 2. SIM card installation ........................7 3. - Page 3 UniGuard Technology Limited 8. Low power alarm ........................... 15 GPRS Setting ............................. 15 1. Setting up APN ..........................15 2. GPRS User Name and password Setup ..................15 3. IP and Port Setup .......................... 16 4. Modes Switch between “SMS” and “GPRS” ................16 5.
-
Page 4: Introduction
UniGuard Technology Limited I. Introduction This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet. -
Page 5: Hardware Description
UniGuard Technology Limited 3. Hardware Description 3.1 Front face 3.2 Rear face Built-in GPS ANT Built-in Built-in powerful magnet & large Battery EXT. GSM ANT EXT. GPS ANT LED Indicator 灯 3.3 Side face SIM Slot MicroSD Slot ON/OFF EXT. Power, Relay 3.4 Side face... -
Page 6: Accessories
UniGuard Technology Limited Built-in shock sensor Built-in Mic 4. Accessories Pictures Name Specs AC Adapter Input: AC 110-220V， Output DC: 1.5A，12V Lighter car adapter Car 12V OR 24V power 3 meters GPS Antenna 2 meters GSM Antenna Harness 4PIN 12V/40A OR 24V/40A... -
Page 7: Specifications
UniGuard Technology Limited 5. Specifications Content specifications DIM. 94mm*60mm*38mm Weight 300g Network GSM/GPRS Band 850/900/1800/1900Mhz GPS Module SIRF3 chip GPS sensitivity -159dBm GPS Accuracy Cold status GPS Start time Hot status EXT. power DC 12 V -24V Sleep Current 2.5mA GSM operating Current 54mA±3mA... -
Page 8: Sim Card Installation
UniGuard Technology Limited Built-in GPS and GSM antenna, external antenna can be optional. The tracker is waterproof, but please still avoids the long-term placement in the places of water infiltration. If you need an external power supply, cut oil & power system and SOS feature, please find... -
Page 9: Basic Functions
UniGuard Technology Limited into 4-PIN socket, and then connect the other end to mains supply. 3.2 Car charge: Find the car lighter charger from the accessories and connect to car cigarette lighter. Note: Red LED ON means being charged, and LED OFF means fully charged, and then charging can be stopped. -
Page 10: Single Locating
UniGuard Technology Limited 4.3 Authorization: Send SMS “admin+password+space+cell phone number” to set up an authorized number, the other authorized numbers should be set by the first authorized number, “admin OK” will be returned after command executed. If you need to track the target tracker device when it enters into another country, you must add the country code before the cell phone number, for example, send SMS”... -
Page 11: Automatic Update Positions Of Vehicle Turns
UniGuard Technology Limited Note: the interval must not less than 20s. 6.3 Cancel: Send SMS “nofix+password” to the tracker device to cancel the “auto track”. 7. Automatic update positions of vehicle turns 7.1 The tracker will update the positions automatically to web server once the vehicle changing driving direction over pre set angle value to form a smooth trajectory consistent with the actual road, this function is only effective in GPRS mode. -
Page 12: Check Imei
UniGuard Technology Limited GSM Signal: 1-32 (The higher digit it shows; the stronger of GSM signals it receives.) Check IMEI Send SMS "imei+password" to the unit. For example, Send SMS "imei123456" to the tracker device, an IMEI number in 15 digits will be returned. -
Page 13: Data Load
UniGuard Technology Limited 15. Data Load Current date Load: Send SMS: “load+password” to tracker device, it will reply: “load ok” if the device is working well under GPRS mode; if not, it will reply “load fail! Please check gprs” that means device does not work under GPRS mode. -
Page 14: Alarm Function And Settings
UniGuard Technology Limited IV. Alarm Function and settings All the alarms will be send to all the authorized phone numbers once the alarms are triggered in SMS mode, if the tracker keep in triggered status and alarms are not be cancelled, tracker will keep sending alarms to authorized phone numbers every 3 minutes. -
Page 15: Movement Alarm
UniGuard Technology Limited 2.4 Activate multi-area management Send SMS command "area+password+space+on" to tracker, it will reply "Area on ok!", when tracker enter the pre set area, it will send SMS "area name+latitude & longitude" to all the authorized phone number, and send same SMS when goes out of the area. -
Page 16: Sos
UniGuard Technology Limited 6.3 Shock sensor sensitivity configuration: The sensitivity of the built-in shock sensor has three different level: First level: Alarm will be triggered after detect slight vibration, send command" sensitivity+password+space+1" . Second level: Alarm will be triggered after detect 8 times vibration in 2 seconds, send command"... - Page 17 UniGuard Technology Limited 3. IP AND PORT SETUP Send SMS “adminip+password+space+IP+space+port”, tracker will reply “adminip ok” if succeed. For example: send SMS “adminip123456 103.24.155.165 6905”, tracker will reply “adminip ok” if succeed. Note: 123456 is the password of tracker, and 103.24.155.165 is the ip, 6905 is the port.
- Page 18 UniGuard Technology Limited Fail to turn on Battery power is low Connect with charger 1.GSM Antenna is not connect 1.Check GSM antenna connection well NO GSM signals 2. check SIMCARD installation 2. SIM card is not properly or change SIMCARD.
