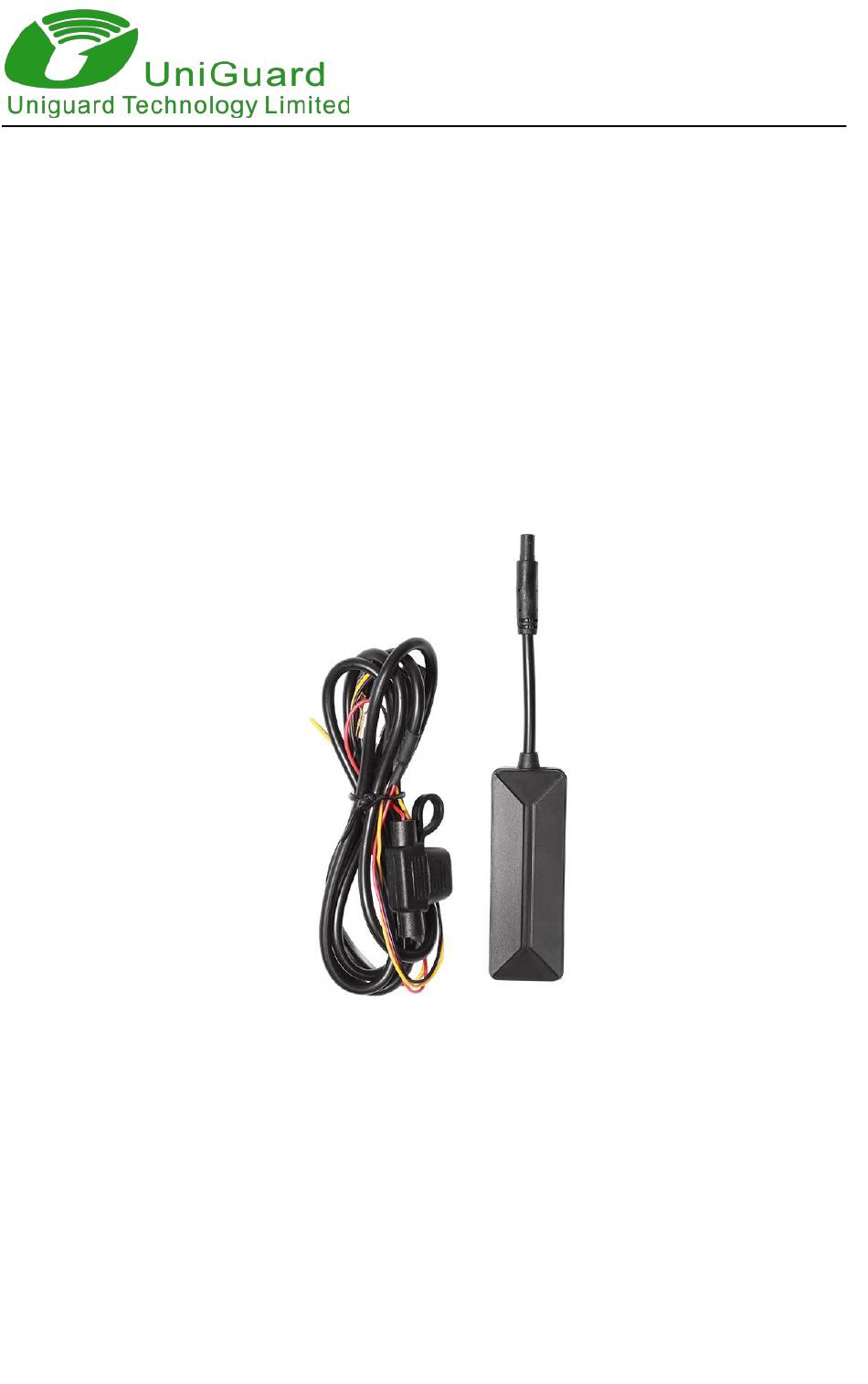

Page 1: User Manual

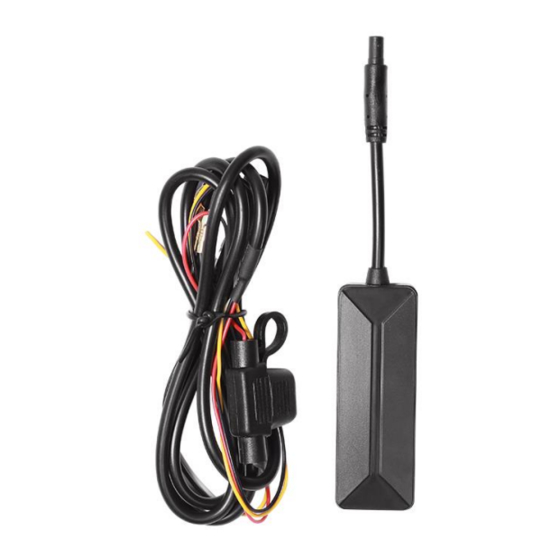

UniGuard Technology Limited Motorbike GPS Tracker User Manual UM710 www.uniguardgps.com... - Page 2 UniGuard Technology Limited 1 Product Instructions It is a mini GPS Tracker, built-in GPS Antenna and GSM Antenna, Size: 74*25*13mm, Weight: 30g, it can send vehicle location and status to mobile and Internet. It can track the vehicles remotely. Tracker the vehicle on the Internet and Mobile.
-
Page 3: Specifications
UniGuard Technology Limited 1.1 Specifications Item Descriptions Dimension 74*25*13mm Weight GSM Frequency 850/900/1800/1900Mhz GPS Module MTK2503 GPS Sensitivity -159dBm GPS Accuracy Cold start 35-80s Time to first fix Warm start 35s Hot start 1s Working voltage 9-75V Battery Built-in 3.7V 200mA Storage Temperature -40°C to +85°C... - Page 4 UniGuard Technology Limited 1.2.3 LED Indicator Status Explanation RED-Power Blink No Turn on Or Low Power GREEN-GSM Initialize GSM Signal Blink GPRS OK GSM Standby Blue-GPS Search GPS Signal Blink GPS OK GPS Not Working 1.2.4 Wiring Diagram ACC wire(Oragne) must be connected to ensure stable function.
- Page 5 UniGuard Technology Limited 2 SMS Operation Instruction ****** is default password 123456 2.1 Set Admin Number Message format: admin******+space+Tel e.g. admin123456 13800000000 Reply: admin okay. Delete admin Number Message format: noadmin******, e.g. noadmin123456, Reply: ADM! A1: 2.2 Change Password Message format: pwd****** NewPass e.g.
- Page 6 UniGuard Technology Limited 2.4 Arm/Disarm ARM Message format: 111 Reply: GSM: A/B/C/D. POWER: X. ARM Delay in XXS! (When vehicle stays static for 10 minutes, GPS Tracker goes to ARM mode. Open Auto Arm function, send command auto1, close Auto Arm function,...
-
Page 7: Gprs Settings
UniGuard Technology Limited Turn Off: sleep123456 off 2.7 Restart Tracker Message format: RST Reply: The tracker will immediately restart! 2.8 Restore Tracker Message format: format Reply: The tracker will immediately restore to factory settings. All previous settings will be canceled. -
Page 8: Set Gprs Interval
UniGuard Technology Limited 3.3 Set GPRS Interval When there is vibration, command : run,XX When there is no vibration, GPRS interval is fixed 300 secs. XX=10-180, unit is seconds e.g. run,60 4 GPS tracking system on website 4.1Login www.gpspos.net to start web tracking service with your own...
