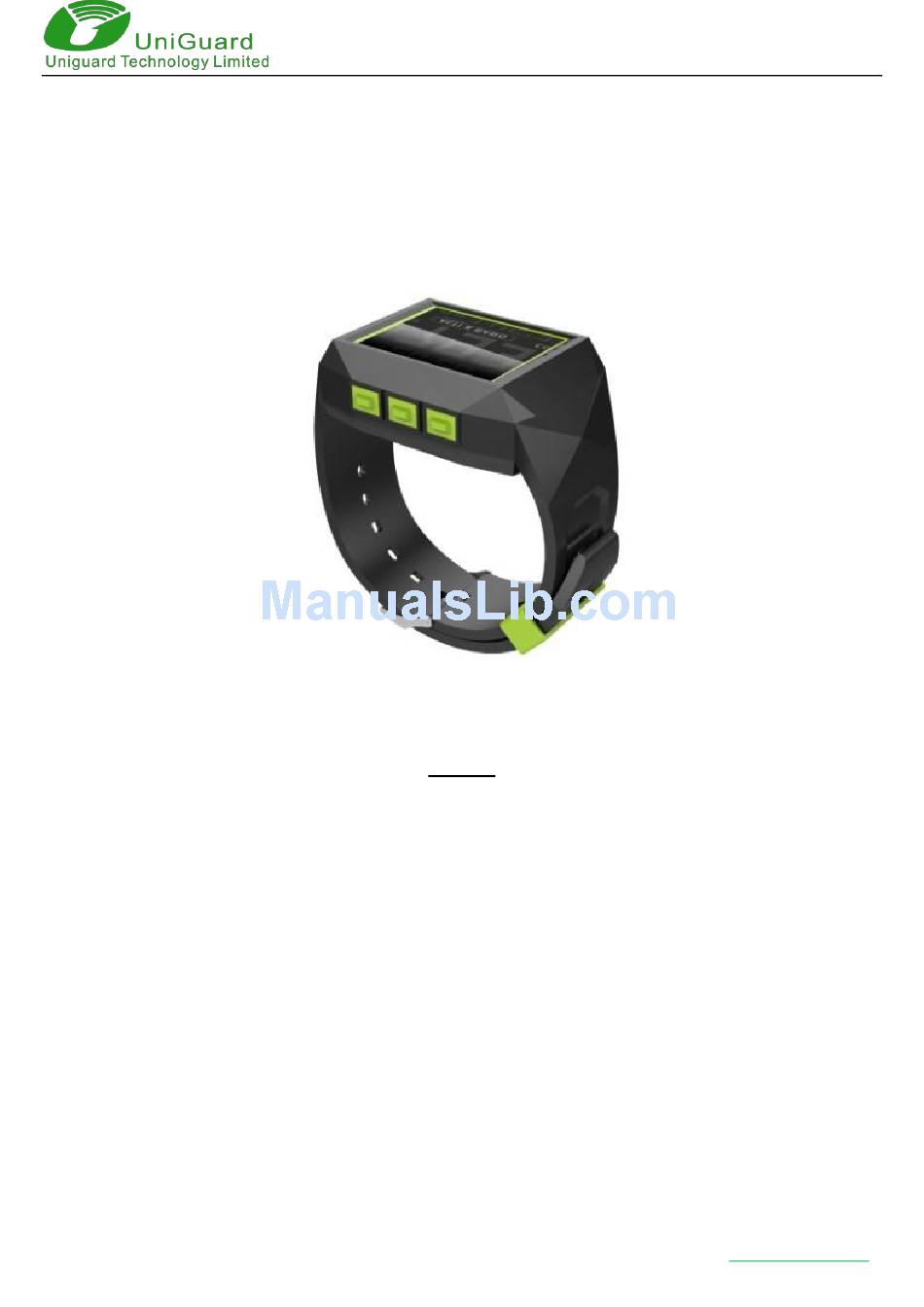

UniGuard Technology Limited

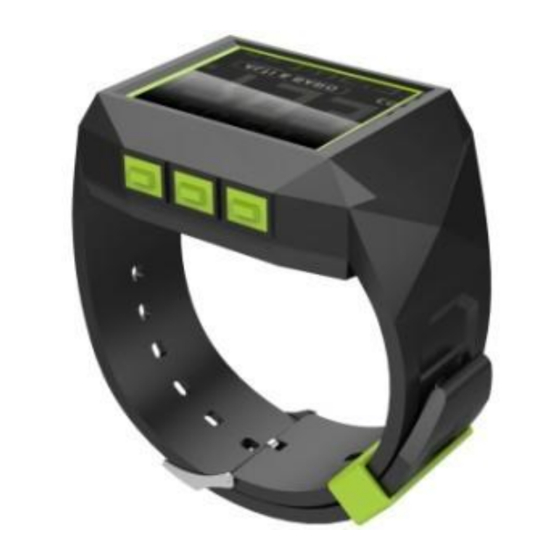

GPS Watch Tracker UP103
User Manual
Preface
Thank you for purchasing the tracker. This manual shows how to operate the device smoothly and
correctly. Make sure to read this manual carefully before using this product. Please note that
specification and information are subject to changes without prior notice in this manual. Any change
will be integrated in the latest release. The manufacturer assumes no responsibility for any errors or
omissions in this document.
www.uniguardgps.com
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for UniGuard UP103
Summary of Contents for UniGuard UP103
- Page 1 UniGuard Technology Limited GPS Watch Tracker UP103 User Manual Preface Thank you for purchasing the tracker. This manual shows how to operate the device smoothly and correctly. Make sure to read this manual carefully before using this product. Please note that specification and information are subject to changes without prior notice in this manual.
-
Page 2: Table Of Contents
UniGuard Technology Limited Contents Summary ....................................3 Applications ................................... 3 Hardware Description ................................3 Specifications ..................................3 Usage ..................................... 4 5.1 SIM card installation ..............................4 5.2 Battery and Charger ..............................4 5.3 Cautions: ..................................4 5.4Startup ....................................5 5.5 My Location ..................................5 5.6 Dial a Phone ................................... -
Page 3: Summary
UniGuard Technology Limited 1. Summary Working Based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets by SMS or internet. 2. Applications ● Protect child / the old / the disabled / pet etc ●... -
Page 4: Usage
UniGuard Technology Limited Network GSM/GPRS Band 850/900/1800/1900Mhz GPS sensitivity -159dBm GPS accuracy Cold status 45s Time To First Fix Warm status 35s Hot status 1s Charging Voltage Battery Chargeable changeable 3.7V 550mAh Li-ion battery Standby 100 hours Storage Temp. -40° C to +85° C Operation Temp. -
Page 5: Startup
UniGuard Technology Limited 5.4Startup Put the SIM card and battery in place. Turn on the unit outdoors by pressing the “on/off” button until the screen is on. For first use, please initialize the unit and restore it to default setting. -
Page 6: Text Message
UniGuard Technology Limited 5.6.2 Speaker mode is default .It will be automatically turned off when headphone is connected to gps device for phone calls. 5.6.3 Adjust volume: Under communication state, short press PAGE button to turn up volume and short press SOS button to turn it down. -
Page 7: Tracking Another Gps
UniGuard Technology Limited 5.9 Tracking another gps 5.9.1 This function is used to track another gps tracker’s direction & distance and display it on screen in order to approach it quickly. 5.9.2 Establishment of relations between Manager and managed device 5.9.2.1 For Manager device :send sms command “manager+password+space+ managed gps sim... -
Page 8: Change Password
UniGuard Technology Limited 50.11 Change Password 5.11.1 Send SMS “password+old password+space+new password” to the unit to change the password. For example: send SMS “password123456 888888” to the unit. If succeeded, “password ok” will reply to your cell phone from the device tracker. -
Page 9: Single Locating
UniGuard Technology Limited 5.14. Single Locating 5.14.1 Any number calls the tracker device, it will reply a SMS including the position of latitude and longitude if authorized number is not set. If authorized number has set successfully, the device won’t reply SMS including the positioning of latitude and longitude when the unauthorized number dials up it. -
Page 10: Track Mode
UniGuard Technology Limited Shenzhen, Guangdong, china. 5.17. Track mode Send SMS “tracker+password” to the unit, and it will reply “tracker ok!” and switch to “track” mode. The default mode is “track 5.18. Monitor Send SMS “monitor+password” to the unit, and it will reply “monitor ok!” , Show that switch to “monitor”... -
Page 11: Sos Alert
UniGuard Technology Limited 5.22 SOS Alert Press the SOS for 3 seconds, it will send SMS “help me!+ Geo-info” to all the authorized numbers and dial all the authorized numbers in turn . It will stop alert when any authorized number answer the call or reply SMS “help me”... -
Page 12: Low Battery Alarm
UniGuard Technology Limited configuration. Example: Send"rename123456 area01;school,800M", it means the new area name is "school", and covers area of a radius of 800 meters. 5.26.4 Activate multi-area management Send SMS command "area+password+space+on" to tracker, it will reply "Area on ok!", when tracker enter the pre-set area, it will send SMS "area name+latitude &... -
Page 13: Imei Checking
UniGuard Technology Limited 5.30 IMEI checking Send SMS command "imei+password" to the unit. E.g.: Send SMS command "imei123456" to the unit, an IMEI number in 15 digits will be replied to your cell phone. 5.31 Reset Send SMS “reset+password” to tracker, it will reply “ reset ok”, the GSM and GPS module of the tracker will be reset. -
Page 14: Cautions
UniGuard Technology Limited 5.40.2 Cancel: Send “nocenternum+password”. Note: If monitor center number doesn’t setup, auto track messages will be sent to the cell phone which send this command. 6 .Cautions Please comply with the instructions to extend the unit life: 6.1 Keep the unit dry.
