- Page 1 MEASUREMENT AND ASSEMBLY MANUAL EXTERIOR BLINDS Guidance – guiding channel - perpendicular Guidance – guiding channel – non perpendicular Validity of the manual: 05.08.2024...

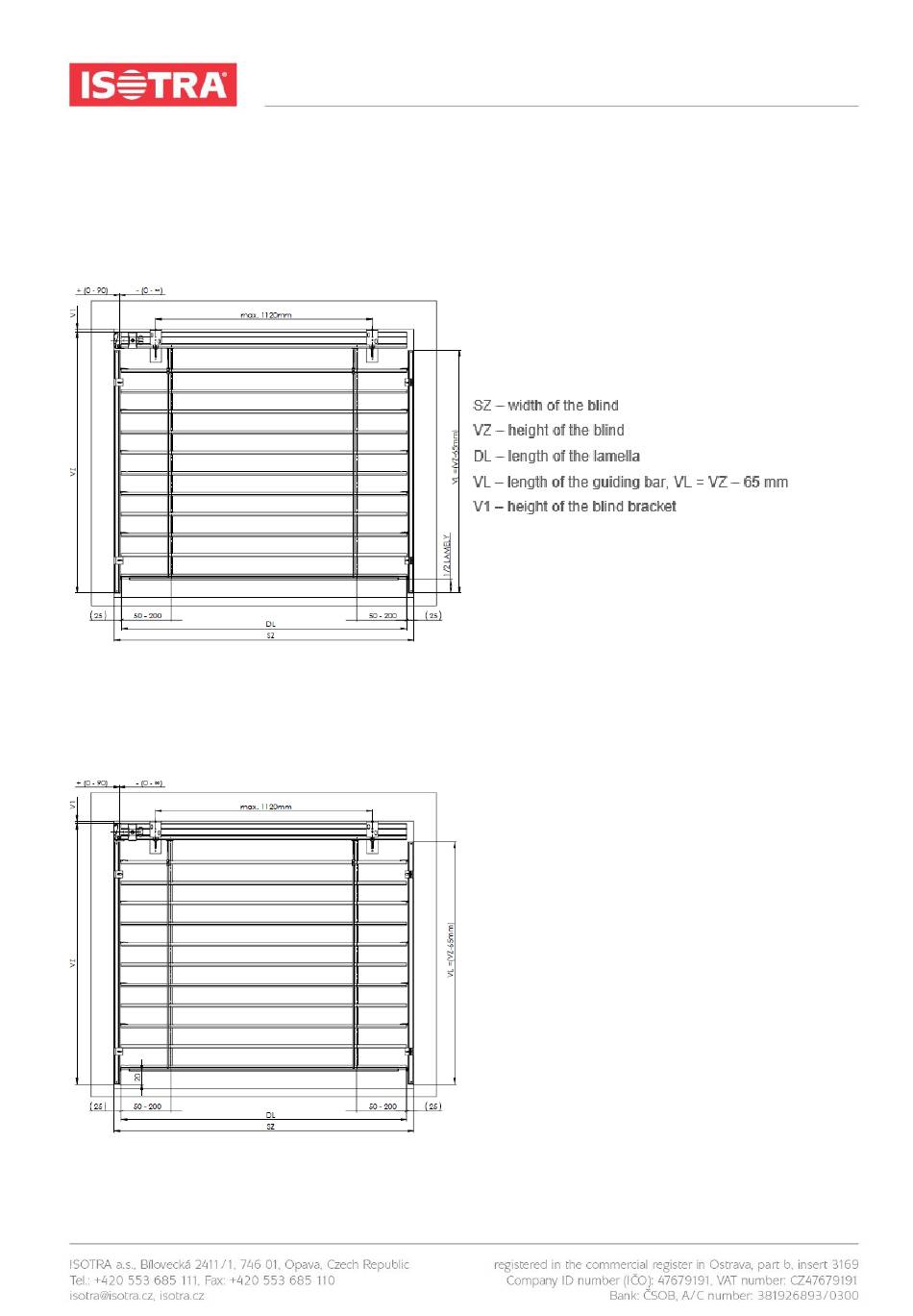

- Page 2 MEASUREMENT AND ASSEMBLY MANUAL Guidance – guiding channel Validity of the manual: 05.08.2024...
- Page 3 MEASUREMENT AND ASSEMBLY MANUAL Guidance – wire – perpendicular Guidance – wire – non perpendicular Validity of the manual: 05.08.2024...
- Page 4 MEASUREMENT AND ASSEMBLY MANUAL 1. MEASUREMENT OF THE STANDARD BLIND The height and the width are always measured in a minimum of three places. The manufacturing dimension is always the minimum measured value. Measurements are taken after the frame or window is fitted into the construction hole after completion of the outside and inside reveals, including parapets.
- Page 5 MEASUREMENT AND ASSEMBLY MANUAL RECOMMENDATION: It applies to Cetta blinds: C65, C80, C 80 Slim, C60F, C80F, C100F) In case the lower part of the blind does not fit, you can use a comb for shortening the ladders, which is included in the package. The comb is placed on the inside of the blind, on each ladder between the end slat and the last slat.
-
Page 6: Assembly Tools
MEASUREMENT AND ASSEMBLY MANUAL ASSEMBLY TOOLS: 1. Tape measure 2. Water gauge 3. Pencil 4. Hammer 5. Electric drill as per the source material 6. Cordless electric drill 7. Magnetic adapter 8. Bits PZ2, PH2, magnetic adapter on hexagonal head 8 and 10 9. - Page 7 MEASUREMENT AND ASSEMBLY MANUAL 6. From the inside passage attach the handle; if the drift is long, shorten it to the necessary length. Stretch the endless cord through the created hole. Attach the cover for the passage of the cord. 7.
- Page 8 MEASUREMENT AND ASSEMBLY MANUAL After building isolation or after cladding finishing the mounting of a blind progress according to the previous instruction starting from point 4. Note: For correct guiding wire tensioning follow the process below: 1. After choosing the correct position of wire guiding bracket and its screwing it is necessary to release the plastic housing with female screw up to edge of the tensioning screw thread (unscrew).
- Page 9 MEASUREMENT AND ASSEMBLY MANUAL ILLUSTRATIVE ASSEMBLY Validity of the manual: 05.08.2024...
- Page 10 MEASUREMENT AND ASSEMBLY MANUAL Validity of the manual: 05.08.2024...
- Page 11 MEASUREMENT AND ASSEMBLY MANUAL Validity of the manual: 05.08.2024...
- Page 12 MEASUREMENT AND ASSEMBLY MANUAL BASIC TYPES OF ASSEMBLY Assembly of the blind into the reveal on the Assembly of the blind into the reveal abowe the window (ceiling / wall) window frame (ceiling / wall) Assembly of the blind into the reveal on the expansion frame (ceiling / wall) Validity of the manual: 05.08.2024...
- Page 13 MEASUREMENT AND ASSEMBLY MANUAL ATTACHEMENT 1: Sloped blind – wire tensioning Using sloped blinds it is necessary to achieve correct wire tension to avoid its big undesirable sag while retracting the blind. Shorter side does not need non-standard tensioning – this is made by common tensioning mechanism.
- Page 14 MEASUREMENT AND ASSEMBLY MANUAL ATTENTION! In case of sloped blind with telescopic bottom rail in is necessary to regularly check the rail and avoid intrusion of undesirable elements (snow, ice, leaves, etc.) into the groove and mechanism of this telescopic bottom rail. Validity of the manual: 05.08.2024...
- Page 15 MEASUREMENT AND ASSEMBLY MANUAL MEASURING INSIDE THE SURROUND The figure presents a schematic view of the blind location. The blind is to be measured from the interior. A window surround is an architectural element, a lining of the wall apertures (for doors or windows), protruding above their surface, sometimes very significantly.
- Page 16 MEASUREMENT AND ASSEMBLY MANUAL B = width of the surround in the inclined part C = lower height of the surround Š = horizontal width of the surround V = upper height of the surround KRYCÍ PLECH – COVER SHEET / NAPÍNÁK LANKA – CORD STRAINER / RÁM OKNA – WINDOW FRAME Validity of the manual: 05.08.2024...
- Page 17 MEASUREMENT AND ASSEMBLY MANUAL MEASURING OUTSIDE THE SURROUND The figure presents a schematic view of the blind location. The blind is to be measured from the interior. B = width of the surround in the inclined part C = lower blind height without the cord strainer Š...
- Page 18 MEASUREMENT AND ASSEMBLY MANUAL B = width of the surround in the inclined part C = lower blind height without the cord strainer Š = horizontal width of the surround V = upper blind height without the cord strainer KRYCÍ PLECH – COVER SHEET / NAPÍNÁK LANKA – CORD STRAINER / RÁM OKNA – WINDOW FRAME Validity of the manual: 05.08.2024...
- Page 19 MEASUREMENT AND ASSEMBLY MANUAL MEASURING INSIDE THE SURROUND The figure presents a schematic view of the blind location. The blind is to be measured from the interior. B = width of the required division in the inclined part C = lower height of the surround Š...
- Page 20 MEASUREMENT AND ASSEMBLY MANUAL B = width of the required division in the inclined part C = lower height of the surround Š = width of the required division V = upper height of the surround Check value B = total width of the surround in the inclined part Check value Š...
- Page 21 MEASUREMENT AND ASSEMBLY MANUAL MEASURING OUTSIDE THE SURROUND The figure presents a schematic view of the blind location. The blind is to be measured from the interior. B = width of the required division in the inclined part C = lower blind height without the cord strainer Š...
- Page 22 MEASUREMENT AND ASSEMBLY MANUAL B = width of the required division in the inclined part C = lower blind height without the cord strainer Š = width of the required division V = upper blind height without the cord strainer Check value B = total width of the surround in the inclined part Check value Š...
- Page 23 MEASUREMENT AND ASSEMBLY MANUAL MEASURING INSIDE THE SURROUND The figure presents a schematic view of the blind location. The blind is to be measured from the interior. B = width of the surround in the inclined part C = lower height of the surround Š...
- Page 24 MEASUREMENT AND ASSEMBLY MANUAL MEASURING OUTSIDE THE SURROUND The figure presents a schematic view of the blind location. The blind is to be measured from the interior. B = width of the surround in the inclined part C = lower blind height without the cord strainer Š...
