MEASUREMENT AND ASSEMBLY MANUAL
SCREEN ZIP
1. MEASURE-TAKING
The SCREEN ZIP roller blinds can be placed into an opening or in front of it, and attached to the ceiling or wall.

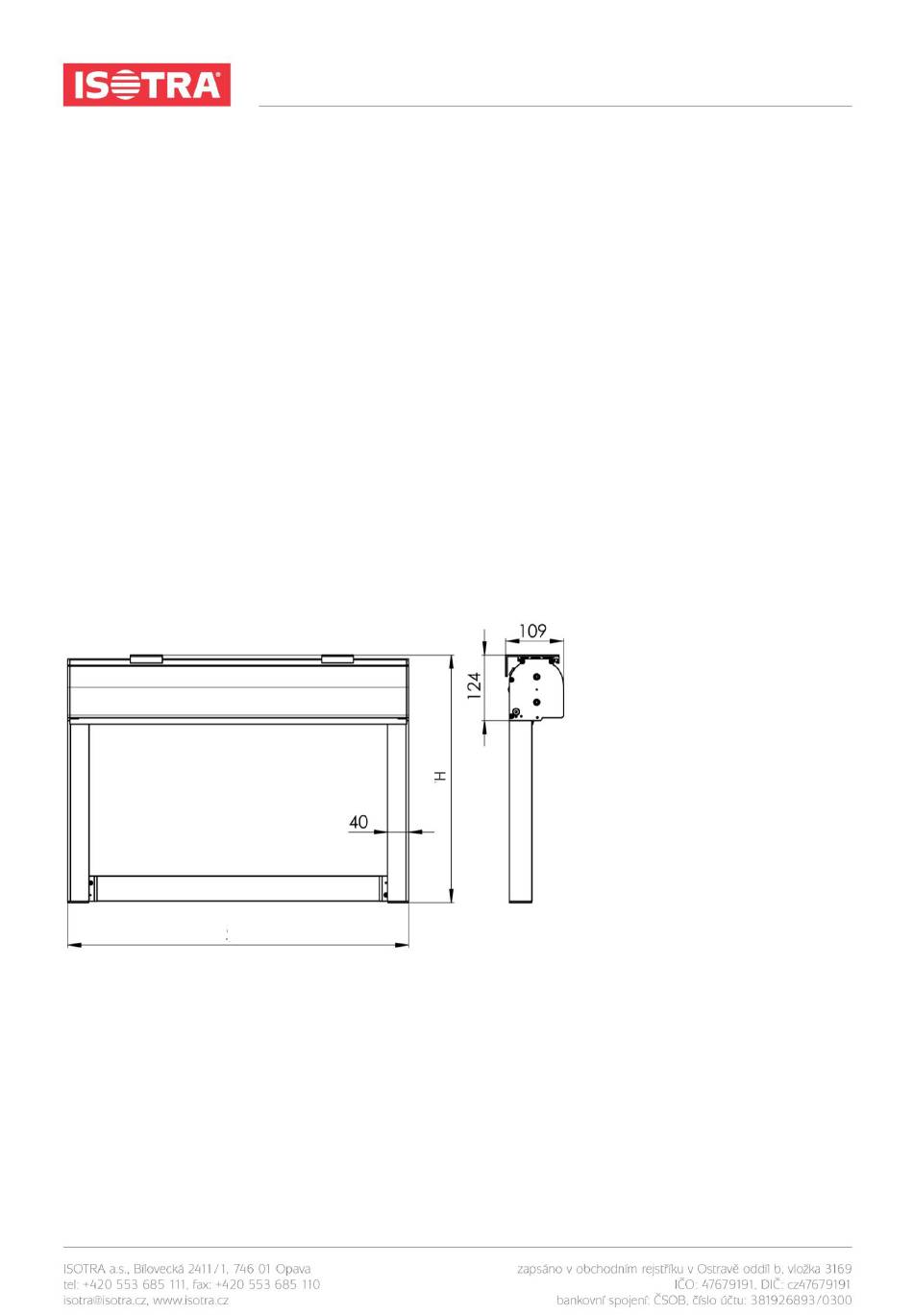

The screen roller blind width and height shall be measured as follows:
W ...... (width)
a) attachment into an opening:
Measure the actual opening width in three points, indicate the lowest
dimension measured in the order
form.
b) attachment in front of an opening:
As a rule, indicate the width of the opening which is to be shaded in the
order
form + 2 x 40 mm.
Dimensions outside the stipulated limits must be consulted with the manufacturer.
H ...... (height)
Measure the overall height including the roller blind upper section and holder.
W
Dimensions outside the stipulated limits must also be consulted with the manufacturer.
SIDE GUIDING:
The SCREEN ZIP roller blind is equipped with a special application for the attachment of the screen fabric by the ZIP
system, allowing its perfect attachment, tension and guiding in the guide bars. Thanks to this feature the roller blind is very
stable and wind-proof.
Instruction validity: as of 1 August 2013
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Isotra SCREEN ZIP
Summary of Contents for Isotra SCREEN ZIP
- Page 1 SCREEN ZIP 1. MEASURE-TAKING The SCREEN ZIP roller blinds can be placed into an opening or in front of it, and attached to the ceiling or wall. The screen roller blind width and height shall be measured as follows: W …… (width)
-
Page 2: Scope Of Use
Regular roller blind operation can be carried out by anybody. 3. TECHNICAL DESCRIPTION The SCREEN ZIP system is available in a motorised or a cranked version. The design parts of the roller blind can be defined as follows:... -
Page 3: General Safety Requirements
MEASUREMENT AND ASSEMBLY MANUAL The mechanical part consists of an extruded aluminium (winding) drum, which has a driving motor on one end (left or right) and axial cap on the other. Both the motor and the cap are installed on the side mounts (i.e. brackets in case of roller blinds without boxes, or side boards in case of roller blinds with boxes). -
Page 4: Installation
Do not use the roller blind, if maintenance is necessary. 5. UNPACKING The SCREEN ZIP system is supplied partially assembled, only the guide bars or cord, accessories and ceiling brackets are packed separately. After removing the packaging material, check the roller blind for completeness and eventual visible damage to the components (upper box, guide bars, etc.). - Page 5 NOTE: Faulty installation can lead to accidents. Observe instructions for the proper roller blind installation to prevent the risk of separation of the roller blind from a wall or window. ISOTRA a. s. shall not be held responsible for defects caused by faulty installation.
- Page 6 MEASUREMENT AND ASSEMBLY MANUAL for wider roller blinds, four brackets (two pairs) are necessary, one in a distance of 15–20 cm from each end and the second in a distance of 50–60 cm from the first one; if possible, the distance from the wall depends on the bracket attachment method, i.e. the position of wedges: front wedge: 52 mm;...
- Page 7 MEASUREMENT AND ASSEMBLY MANUAL 6.2.4 INSTALLATION TO WALL USING ANGLE-SECTION BRACKETS, BOX – CT105 Mark the position of angle-section brackets and holes to be drilled. For upper boxes having the width of max. 1.5 m, two brackets are sufficient, which must be installed in a distance of approximately 15–20 cm from each end. For wider roller blinds, four brackets (two pairs) are necessary, one in a distance of 15–20 cm from each end and the second in a distance of 50–60 cm from the first one.
- Page 8 MEASUREMENT AND ASSEMBLY MANUAL The ZIP guide bars consist of three parts: two aluminium rails and a plastic inner rail, in which the ZIP runs. A) aluminium guide bar; B) aluminium rail cover; C) plastic guide rail. 1. First, attach aluminium guide bar A) to the wall. 2.
- Page 9 MEASUREMENT AND ASSEMBLY MANUAL 6.2.5.2 INSTALLATION OF PLASTIC PARTS Handle the roller blind carefully and pull the fabric down by 20 cm. Slide lower section (5) to the side so that the fabric leaves the lateral slot on one side. Then insert inner rail (6) to the fabric and squeeze in ZIP (7).
- Page 10 MEASUREMENT AND ASSEMBLY MANUAL 7. WIRING OF SCREEN ZIP ROLLER BLIND Attach the motor switch (of type requiring the presence of operating staff) to a wall. The switch must be installed in a position providing to the user unobstructed view of the moving roller blind. Observe instructions indicated in the installation instructions for the motor supplied with this manual.
- Page 11 MEASUREMENT AND ASSEMBLY MANUAL RTS MOTOR: The motor cable has 3 conductors: blue = phase/neutral conductor, brown = phase/neutral conductor, yellow-green = ground. Motor switching can be installed in two different ways: either using a switch, or using a programming set (on request). The instructions for programming and adjustment of end switches are shown in a separate manual.
-
Page 12: Operation
All parts of the roller blind must be handed over to a local collecting centre for disposal. In case of replacement of the roller blind, it is possible to send the used roller blind to ISOTRA for disposal after a new roller blind has been ordered. -
Page 13: Maintenance
Wipe with a cloth damped in a solution of water and a SOLTIS 92 neutral detergent. Do not use alcohol-based stain removers. Do not scrub by force. SCREEN ZIP DEFECT POSSIBLE CAUSE SOLUTION Apply a distance layer (e.g. adhesive... - Page 14 IMPORTANT: Do not disassemble the motor, otherwise the loss of guarantee shall arise. In case of any discrepancy in operation the user should contact the dealer or directly the manufacturer, ISOTRA a. s. Any and all maintenance must be carried out solely by qualified personnel. If the fabric or motor replacement is necessary, follow instructions given in the installation manual.
