MEASUREMENT AND ASSEMBLY MANUAL
VERRA, VERRA METAL, VERRA SEMI FABRIC
ROLLER BLIND
1. MEASUREMENT
The blind can be positioned into or in front of the hole (on the ceiling or the wall).

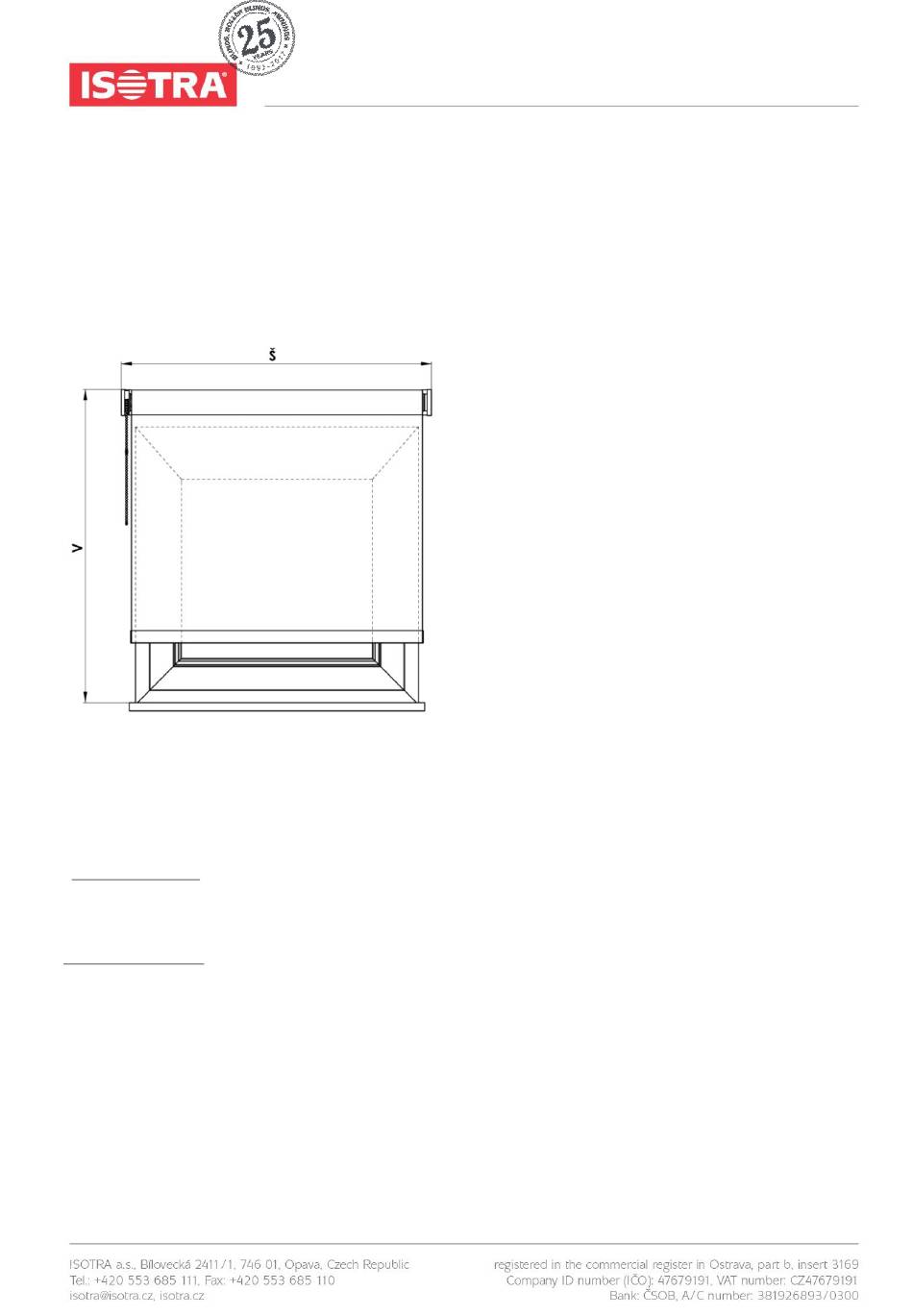

THE WIDTH AND HEIGHT ARE MEASURED IN THE FOLLOWING MANNER:
Š.... (width)
a) fitting into the hole
The real width of the hole is measured, the value less than 5 mm than the real width of the hole is recorded in the order
sheet.
b) fixation on the hole
The width greater than the real width of the hole by 200 mm is written into the order sheet.
V .... (height)
The total height, including the upper profile, is measured.
Validity of the manual: 1. 6. 2017
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Isotra VERRA
Summary of Contents for Isotra VERRA
- Page 1 MEASUREMENT AND ASSEMBLY MANUAL VERRA, VERRA METAL, VERRA SEMI FABRIC ROLLER BLIND 1. MEASUREMENT The blind can be positioned into or in front of the hole (on the ceiling or the wall). THE WIDTH AND HEIGHT ARE MEASURED IN THE FOLLOWING MANNER: Š..
-
Page 2: Additional Information
MEASUREMENT AND ASSEMBLY MANUAL Verra, Verra Metal, Verra Semi standard dimensions Fabrics weighing up to Min. width Max. width Max. height Max. area (mm) (mm) (mm) 170 g/m tube 28 2000 3000 tube 42 3000 3920 11,8 tube 50 3500... - Page 3 Control lenght: Unless stated in the order otherwise, 2/3 of the height of the blind is selected as the standard variant. The control length is equal to the desired height of roller blind for DAY/NIGHT fabrics. Informative: Calculation of the actual fabric width versus the total width of the roller blind: Verra Semi Verra with Verra Metal Verra...
- Page 4 MEASUREMENT AND ASSEMBLY MANUAL • To the assembled brackets on the side without the control mechanism, insert the tube pin of the roller blind (for Verra with marking plastic, for Verra Metal with marking metal). • Insert the tube with the fabric aside without the control mechanism on the inserted pin, and then insert the side with control mechanism into the bracket before we hear the click (be careful about the metal / plastic orientation).
- Page 5 MEASUREMENT AND ASSEMBLY MANUAL ASSEMBLY: Validity of the manual: 1. 6. 2017...
- Page 6 MEASUREMENT AND ASSEMBLY MANUAL Validity of the manual: 1. 6. 2017...
- Page 7 MEASUREMENT AND ASSEMBLY MANUAL Validity of the manual: 1. 6. 2017...
- Page 8 MEASUREMENT AND ASSEMBLY MANUAL ASSEMBLY WITH THE MOUNTING PROFILE: Validity of the manual: 1. 6. 2017...
- Page 9 MEASUREMENT AND ASSEMBLY MANUAL Disassembly: Validity of the manual: 1. 6. 2017...
- Page 10 MEASUREMENT AND ASSEMBLY MANUAL ATTENTION!!! Pursuant to the EN 13120:2014 standard, window blinds shall be installed in accordance with the following instructions: In the case of a disintegrating coupling, the chain length must be liminited as follows. 1) If assembly height (H0) is not specified, the chain length (H2) shall be less than or equal to 2/3 of the blind height (see Fig.
- Page 11 MEASUREMENT AND ASSEMBLY MANUAL If the winch is used, the roller blind must meet below mentioned requirements. In the fully extended position, the length of the cord (cords) must be limited (the winch must be positioned as follows): If the asembly height H0 is not specified, and i) if the aperture height H is less than or equal to 2,5 m, the length of the cord (cords) H2 must be less than or equal to (see picture): H2 ≤...
