MEASUREMENT AND ASSEMBLY MANUAL
ISOLITE, ISOLITE PLUS

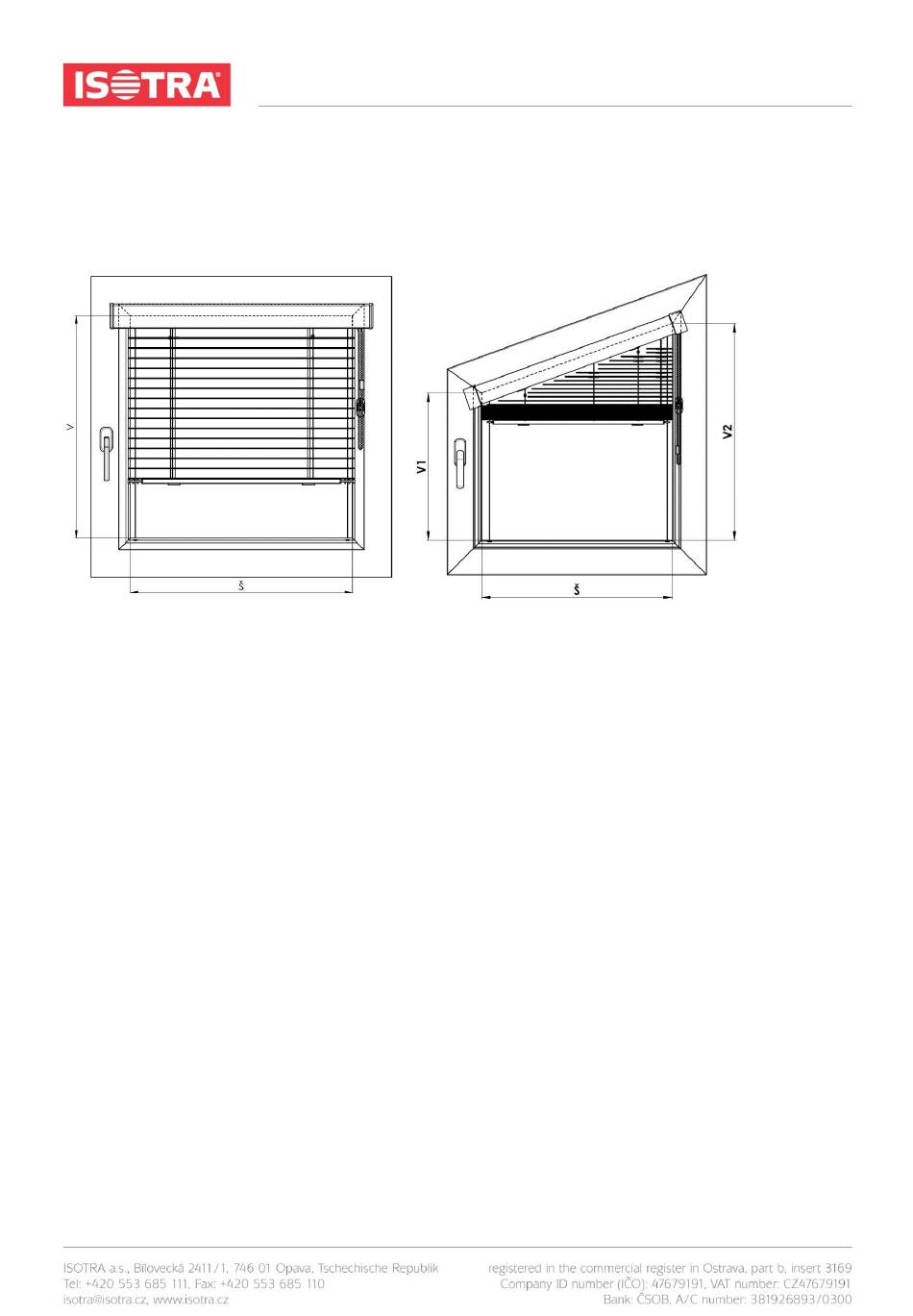

Rectangular window
Untypical window
1. MEASUREMENTS

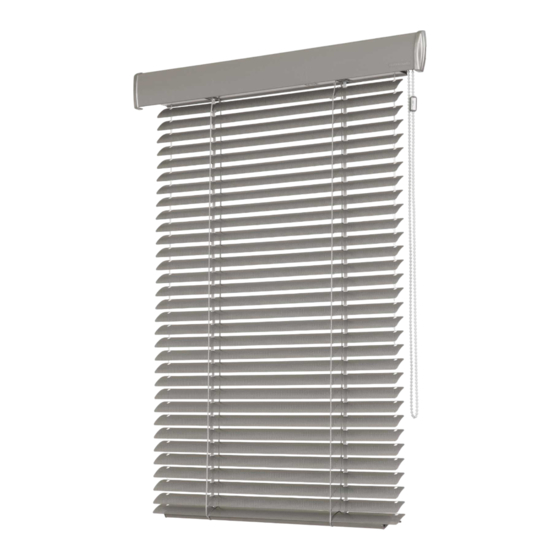

Isolite and Isolite Plus blinds are designed to be assembled into the window wing of plastic and wooden EURO windows.
THE WIDTH AND HEIGHT ARE MEASURED IN THE FOLLOWING MANNER:
w.... (width)
The measurement is taken at the glass from the left inside edge of the glazing bar to the right inside edge of the glazing
bar, including the rubber or silicon sealing in three places – up, middle and down. For manufacturing and ordering the
blind, the minimum measured dimension is stated.
The width of the blind is produced with the precision of millimetres from the width 300 mm to 2000 mm with a tolerance of
± 1 mm.
h .... (height)
The measurement is taken at the same depth of the glazing bars as the width of the blind, from the upper bar to the lower
bar.
The height of the blind is produced with the precision of millimetres from the height of 300 mm up to 2200 mm with a
tolerance of -3 / +27mm.
d .... (depth)
The depth of the glazing bar is measured in relation to the use of the distance bases under the side board for the blinds.
There are the left and the right base.
Validity of the manual: 1. 9. 2014
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Isotra ISOLITE PLUS
Summary of Contents for Isotra ISOLITE PLUS
- Page 1 Rectangular window Untypical window 1. MEASUREMENTS Isolite and Isolite Plus blinds are designed to be assembled into the window wing of plastic and wooden EURO windows. THE WIDTH AND HEIGHT ARE MEASURED IN THE FOLLOWING MANNER: w..(width) The measurement is taken at the glass from the left inside edge of the glazing bar to the right inside edge of the glazing bar, including the rubber or silicon sealing in three places –...
- Page 2 MEASUREMENT AND ASSEMBLY MANUAL Depth of the glazing bar: 19 and more mm – no base 15 - 19 mm one base on each side 11 - 15 mm two bases on each side Maximum guaranteed area: 2.5 m For dimensions outside the stated limits, it is recommended to consult with the manufacturer. The ideal measurements of the blind are in the diagram.
- Page 3 MEASUREMENT AND ASSEMBLY MANUAL INSPECTION: • We recommend inspecting all the parts of the goods after the delivery to prevent any problems before assembly. Any defects or comments concerning the assembly or blinds must be notified to the manufacturer ASSEMBLY •...
- Page 4 MEASUREMENT AND ASSEMBLY MANUAL Chain: If a breakaway coupler is used: The chain length must be limited as follows: 1) If installation height (H0) is not specified, the chain length (H2) shall be less than or equal to 2/3 of the blind height (see Fig.): H2 ≤...
- Page 5 MEASUREMENT AND ASSEMBLY MANUAL 2) If installation height (H0) is specified, the distance from the floor to the bottom part of the pull cord(s) (H1) shall be at least 1.5 m (see Fig.): H1 > 1.5 m. b) The distance between two loop strands shall not exceed 50 mm at the output from the fixed tensioning device. THE PULLEY POSITION SHALL PREVENT EXCESSIVE CHAIN TENSIONING AND THE CHAIN MUST NOT COME OFF! WHEN PULLED APART, THE GAP BETWEEN THE CHAIN STRANDS SHALL NOT EXCEED 50 mm!
- Page 6 MEASUREMENT AND ASSEMBLY MANUAL ILLUSTRATIVE ASSEMBLY Validity of the manual: 1. 9. 2014...
