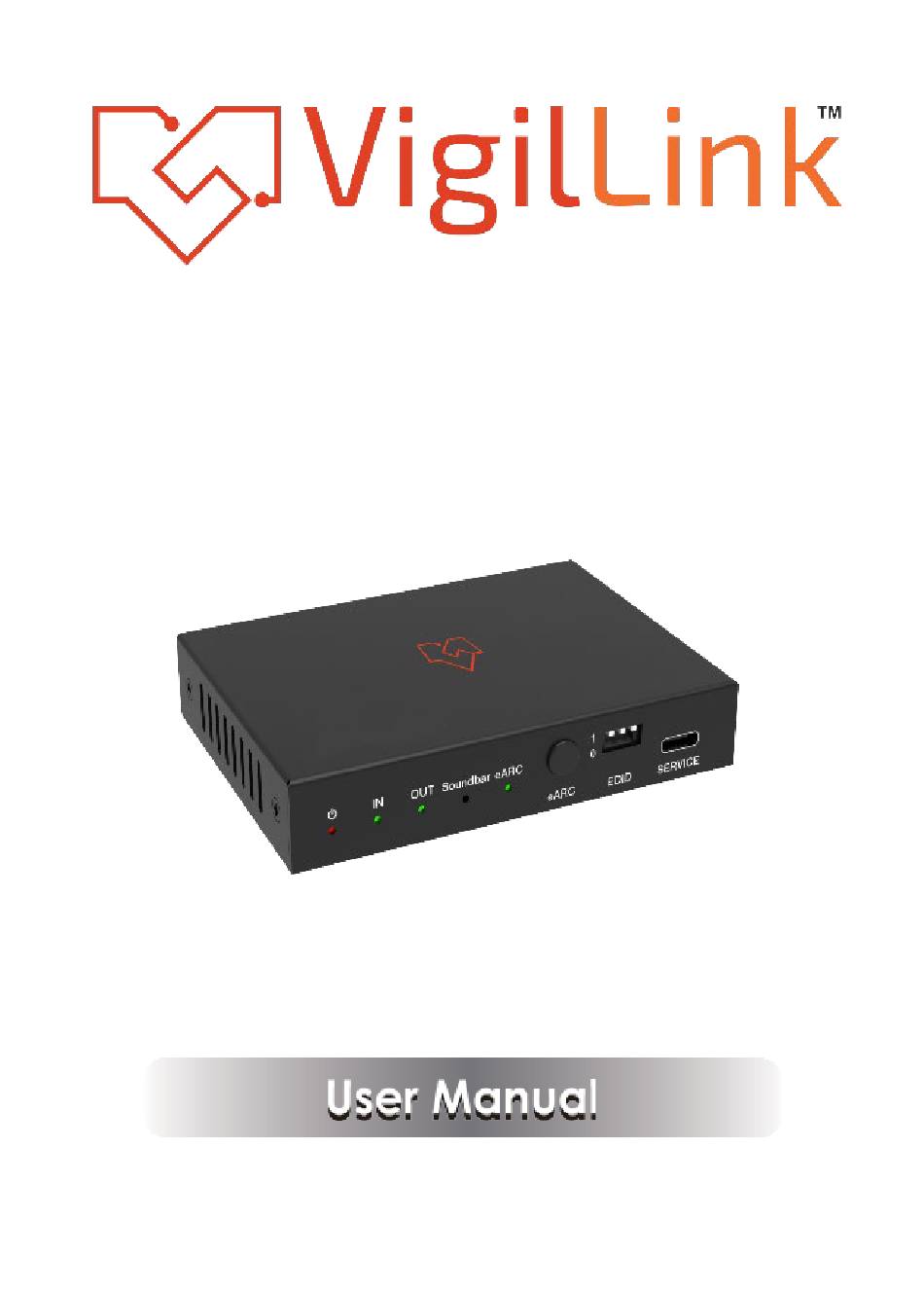

- Page 1 40Gbps HDMI Audio Embedder VLHA-H21EMR VER 1.0...
-
Page 2: Table Of Contents
Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
1. Introduction Introducing our HDMI eARC Audio to Soundbar Adapter, meticulously crafted for seamlessly extracting audio signals from HDMI sources or ARC/eARC-enabled TVs to transmit HDMI audio to your Soundbar. With support for data rates up to 48Gbps, compliant with HDMI 2.1 and HDCP 2.3 standards, it effortlessly manages UHDTV 8K@60Hz resolutions. -
Page 4: Package Contents
2. Package Contents ① 1 × 48Gbps HDMI eARC Audio to Soundbar Adapter ② 1 × 5V/1A Multinational Power Supply ③ 1 × User Manual 3. Specifications Technical HDMI Compliance HDMI 2.1 HDCP Compliance HDCP 2.3 Video Bandwidth 48Gbps FRL and 18Gbps TMDS Video Resolution Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit Audio Latency... - Page 5 Connection Input 1 × Source IN [HDMI Type A, 19-pin female] 1 × TV(eARC) OUT [HDMI Type A, 19-pin female] Output 1 × Soundbar eARC OUT [HDMI Type A, 19-pin female] Control 1 × SERVICE [USB Type C, Update port] Mechanical Housing Metal Enclosure...
-
Page 6: Operation Controls And Functions
4. Operation Controls and Functions Front Panel OUT Soundbar eARC eARC EDID SERVICE Name Function Description When the device is powered on, the red LED will be on. Power LED When the input signal is detected, the green LED will be on. IN LED When the OUT port connects to a TV, the green LED will be on. - Page 7 Rear Panel eARC OUT TV(eARC) Soundbar Source DC 5V Function Description Name Source IN HDMI signal input port, connected to HDMI source device such as DVD, PS5 or 8K computer host with an HDMI cable. port HDMI signal output port, connected to TV (ARC/eARC) with an TV(eARC) HDMI cable.
-
Page 8: Application Example
5. Application Example Soundbar Source DC 5V Power Supply 8K TV with eARC Note: When eARC function is turned on, the audio signal of Soundbar is the audio returned from 8K TV. When eARC function is turned off, the audio signal of Amplifier is from the HDMI input source.
