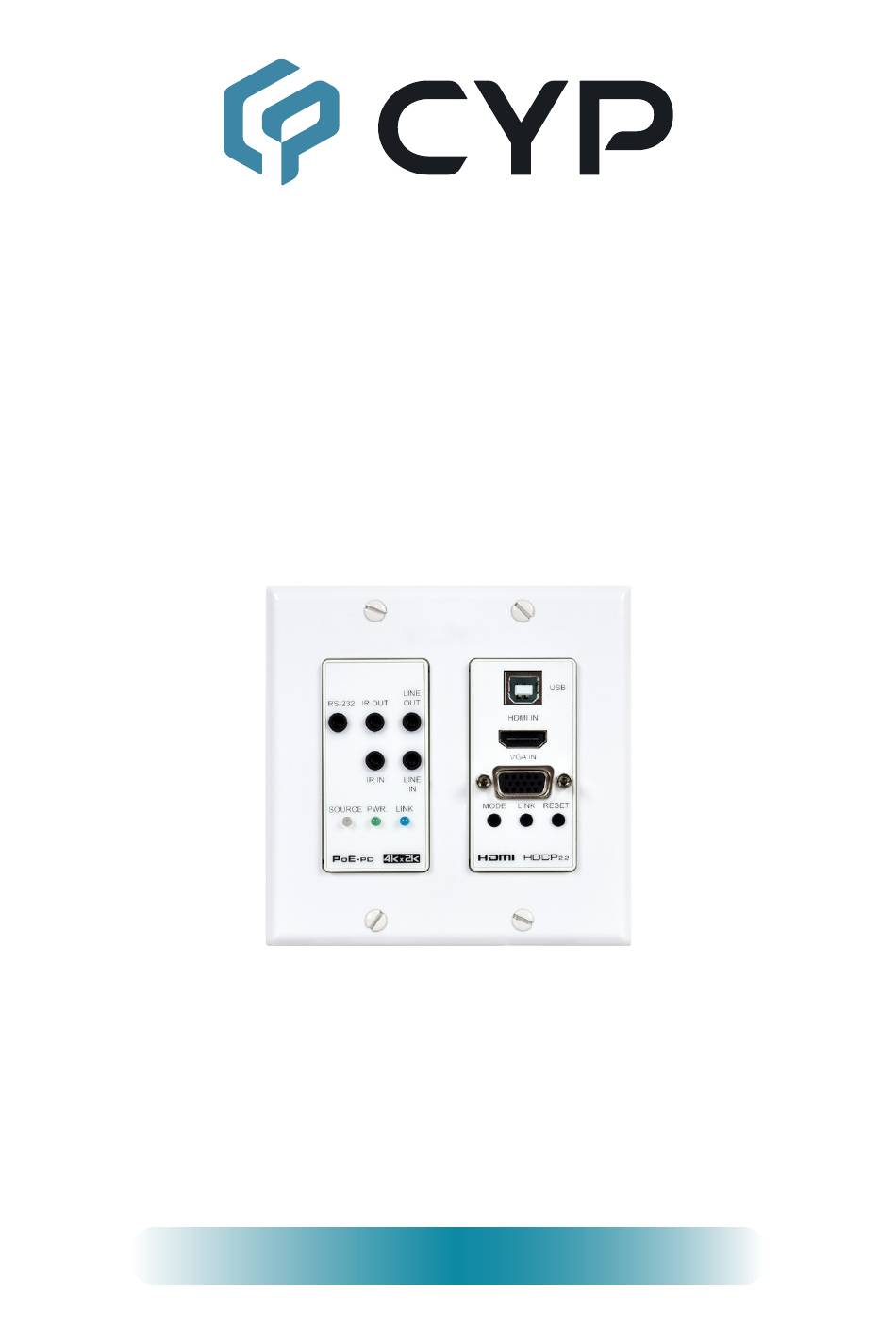

- Page 1 CH-U331TXWPUD UHD HDMI/VGA AV over IP Transmitter with USB/KVM (2Gang US) Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ............1 2. Applications ............. 1 3. Package Content ..........2 4. System Requirements ........2 5. Features............3 6. Operation Controls and Functions ....4 6.1 Front Panel ..........4 6.3 IR Cable Pinouts.......... 7 6.4 RS-232 Pinout and Defaults ......7 6.5 WebGUI Control .......... -
Page 6: Introduction
1. INTRODUCTION The AVoIP wall plate transmitter forms a part of a 4K UHD multi-function extension system that is able to extend HDMI or VGA signals along with analog audio, USB 2.0, IR and serial data using the TCP/IP protocol over regular Gigabit Ethernet networks. -
Page 7: Package Content
3. PACKAGE CONTENT • 1× UHD HDMI/VGA AV over IP Transmitter with USB/KVM (US 2-Gang) • 1× IR Extender Cable • 1× IR Blaster Cable • 1× Operation Manual 4. SYSTEM REQUIREMENTS • HDMI or VGA source equipment such as media players, video game consoles, PCs, or set-top boxes. -
Page 8: Features
5. FEATURES • HDMI 2.0 and DVI 1.0 compliant • HDCP 1.4 & 2.2 compliant • 1×HDMI input & 1×VGA input • Video, audio and control transmission over TCP/IP in Unicast (point-to- point) or Multicast (single-to-many) modes • Multi-monitor video wall support with 180° and 270° rotation options •... -
Page 9: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel LINE RS-232 IR OUT HDMI IN VGA IN IR IN LINE MODE LINK RESET SOURCE PWR. LINK 8 12 13 14 RS-232 Port: Connect directly to your PC/laptop to send commands to RS-232 devices connected to the linked receiver. The baud rate is configurable, but the default baud rate is 115200. - Page 10 IR IN Port: Connect to the provided IR Extender to extend the IR control range of remotely located devices. Ensure that the remote being used is within direct line-of-sight of the IR Extender. Note: When the transmitter is in multicast mode the IR signal is sent to all associated receivers.
- Page 11 LINK Button: Press the button to enable or disable the Video Link. When the link is disabled and the receiver is connected to a display it will show the system’s current IP and firmware information. Note: Press and hold this button when powering the unit on until both the POWER and LINK lights are blinking.
-
Page 12: Ir Cable Pinouts
6.3 IR Cable Pinouts IR Extender IR Blaster Cable Cable Power Infrared Infrared Power Not Used Ground 6.4 RS-232 Pinout and Defaults Serial Port Default Settings Baud Rate 115200 Data Bits Parity Bits None Stop Bits Flow Control None 3.5mm to DE-9 Adapter Cable... -
Page 13: Webgui Control
6.5 WebGUI Control • Device Discovery Please obtain the “Device Discovery” software from your authorized dealer and save it in a directory where you can easily find it. Connect the unit and your PC/Laptop to the same active network and execute the “Device Discovery”... - Page 14 • WebGUI Overview All major functions of this unit, including status, streaming method, streaming channel selection, output resolution, video wall configuration, EDID management, Ethernet settings, and reset/firmware functions are controllable via multiple tabs in the WebGUI interface allowing for reasonably intuitive operation.
-
Page 15: System Tab
6.5.1 System Tab The System tab contains 4 windows that provide access to firmware version information, a firmware update interface, utilities for rebooting and resetting the unit, basic EDID management, Telnet command entry, and a variety of statistics and information about the operational state of the unit. 1) Version Information Window: This window displays detailed information about the current firmware version. - Page 16 3) Utilities Window: The Utilities window allows users to reset the unit back to the factory defaults by clicking “Factory Default”. The unit may be rebooted (without resetting settings) by pressing the “Reboot” button. If requested by technical support, you may also enable logging by clicking the “Log Message”...
- Page 17 4) Statistics Window: The Statistics window shows all available information about the operational status of the unit, including the current host name, serial number, Ethernet information, MAC address, unicast/ multicast mode, link status and mode.
-
Page 18: Video Wall Tab
6.5.2 Video Wall Tab The Video Wall tab allows users to design, edit and manipulate a video wall system created using multiple receiver units connected to identical displays. The bezel and video size of the displays being used, as well as the horizontal and vertical monitor count, is defined here. - Page 19 „ OW (Outer Width): This is the horizontal measurement of the display’s outer case. „ OH (Outer Height): This is the vertical measurement of the display’s outer case. „ VW (Video Width): This is the horizontal measurement of the display’s video screen.
- Page 20 „ Horizontal Monitor Count: Define the number of displays in the video wall, measured horizontally. (Maximum is 16 displays) „ Row Position: Set the vertical location of the currently controlled display. (Counts top to bottom, from 0 to 15) „ Column Position: Set the horizontal location of the currently controlled display.
-
Page 21: Network Tab
6.5.3 Network Tab The Network tab provides control over the transmitter’s broadcast channel, IP configuration, and network broadcast mode. Changes made to the network settings will require a reboot of the unit. After clicking on “Apply” please follow the reboot instructions in the WebGUI. Note: If the IP address is changed then the IP address required for WebGUI access will also change accordingly. - Page 22 and gateway address. Click the “Apply” button to save changes made to the IP Mode or Configuration. Note: The default network setting for this unit is “Auto IP” „ Find Your Device: Selecting “Show Me” will cause the unit to immediately begin flashing the LEDs on the front of the unit to make it easy to find.
-
Page 23: Functions Tab
6.5.4 Functions Tab The Functions tab provides control over the unit’s AV source management, and streaming bandwidth/quality settings, as well as defining how USB and serial signals are handled. Changes made to these settings typically require a reboot of the unit. After clicking on “Apply” please follow the reboot instructions in the WebGUI, if necessary. - Page 24 2) Audio over IP: The audio source to embed with the current video source in the outbound AVoIP stream is selected here. Selecting “Auto” will automatically switch to the detected audio source. Selecting “HDMI’ will embed the current HDMI video’s audio source, selecting “Line In” will embed the Line In audio source.
- Page 25 4) Serial over IP: This section provides controls for the serial over IP extension functionality, including setting the RS-232 data configuration. „ Serial Settings: Set the desired baud rate, data bits, parity, and stop bits for the RS-232 signal to extend. Note: The transmitter and receiver must have the same serial settings.
-
Page 26: Telnet Control
6.6 Telnet Control Before attempting to use Telnet control, please ensure that both the unit and the PC are connected to the same active networks. Start your preferred Telnet/Console client, or use the built in client provided by most modern computer operating systems. After starting the client, connect by using the current IP address of the unit and port 23 (if the communication port number used by the unit has not been changed previously). - Page 27 COMMAND Description and Parameters factory_reset N1 Perform a factory reset on the unit and select the IP mode after the reset completes. Available values for N1: [Reset into Static IP mode] [Reset into Auto IP mode] reboot Reboot the unit. get_ipconfig...
- Page 28 COMMAND Description and Parameters set_gateway N1 Set the unit’s IP gateway address. N1 = X.X.X.X [X = 2~255, Gateway address] get_gateway Show the unit’s current gateway address. set_net_mode N1 Set the unit’s network broadcast mode. Available values for N1: [Unicast mode] [Multicast mode] get_net_mode...
- Page 29 COMMAND Description and Parameters get_auto_scan Show the current state of the auto scan setting. set_showme N1 Enable or disable Hello Mode. Hello Mode will cause the unit’s LEDs to blink and visually identify the unit. Available values for N1: [Enable] [Disable] get_showme...
- Page 30 COMMAND Description and Parameters set_usb_mouse N1 Enable/disable USB mouse compatibility support. Available values for N1: [High resolution mode] [Compatibility mode] get_usb_mouse Show the current USB mouse compatibility support state. set_bandwidth N1 Set the broadcast stream bandwidth maximum. Available values for N1: [50 Mbps] [100 Mbps] [200 Mbps]...
- Page 31 COMMAND Description and Parameters set_vw_layout N1 N2 {N3} Set the video wall total horizontal and vertical display count for the specified receiver. N1 = 1~16 [Horizontal display count] N2 = 1~16 [Vertical display count] N3 = 0~255 [Target receiver ID {Optional}] Note: The target receiver ID number can be obtained by turning on the Video Wall OSD.
- Page 32 COMMAND Description and Parameters set_vw_hscale N1 {N2} Set the video wall display horizontal zoom amount for the specified receiver. N1 = 0~99999 [Zoom amount in 1 pixel units] N2 = 0~255 [Target receiver ID {Optional}] Note: The target receiver ID number can be obtained by turning on the Video Wall OSD.
- Page 33 COMMAND Description and Parameters set_serial_baud N1 Set the serial baud rate. Available values for N1: [300 baud] [600 baud] [1200 baud] [2400 baud] [4800 baud] [9600 baud] [19200 baud] [38400 baud] [57600 baud] [115200 baud] get_serial_baud Show the current serial baud rate. set_serial_bits N1...
- Page 34 COMMAND Description and Parameters set_serial_stop N1 Set the serial stop bits. Available values for N1: [1 bit] [2 bits] get_serial_stop Show the current number of serial stop bits. A N1 Set the audio input source to broadcast with the currently selected video source.
-
Page 35: Connection Diagram
7. CONNECTION DIAGRAM 1.5m 60° IR Output Analog Stereo Output Powered Speakers DVD/Blu-ray Player LINE RS-232 IR OUT HDMI IN VGA IN HDMI Input IR IN LINE MODE LINK RESET SOURCE PWR. LINK IR Input VGA Input 60° Analog Stereo Input RS-232 PC/Laptop Network... -
Page 36: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 10.2Gbps VGA Bandwidth 165MHz Ethernet Bandwidth 1Gbps Input Ports 1×HDMI (Type-A) 1×VGA (HD-15) 1×Stereo Audio (3.5mm) Output Port 1×Stereo Audio (3.5mm) Output/Control Port 1×LAN (RJ-45) Pass-through Ports 1×IR Extender (3.5mm) 1×IR Blaster (3.5mm) 1×RS-232 (3.5mm) 1×USB 2.0 (Type-B) IR Frequency... -
Page 37: Video Specifications
8.2 Video Specifications Input Output Supported Resolutions (Hz) HDMI 720×400p@70/85 640×480p@60/72/75/85 720×480i@60 720×480p@60 720×576i@50 720×576p@50 800×600p@56/60/72/75/85 848×480p@60 ... - Page 38 Input Output Supported Resolutions (Hz) HDMI 2560×1440p@60RB 2560×1600p@60RB 2048×1080p@24/25/30 2048×1080p@50/60 3840×2160p@24/25/30 3840×2160p@50/60 (4:2:0) 3840×2160p@24, HDR10 3840×2160p@50/60 (4:2:0), HDR10 ...
-
Page 39: Audio Specifications
8.3 Audio Specifications 8.3.1 Digital Audio HDMI Input LPCM Max Channels 8 Channels Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 Bitstream Supported Formats Standard AVoIP Transmission LPCM Max Channels 8 Channels Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 Bitstream Supported Formats Standard... -
Page 40: Analog Audio
8.3.2 Analog Audio Analog Input Max Audio Level 2Vrms Impedance 48.2kΩ Type Unbalanced Analog Output Max Audio Level 2Vrms THD+N < −86dB@0dBFS 1kHz (A-wt) > 96dB@0dBFS Frequency Response < ±46dB@20Hz~20kHz Crosstalk < −60dB@10kHz Impedance 470Ω Type Unbalanced... -
Page 41: Avoip Audio Availability
8.3.3 AVoIP Audio Availability Unicast Data Transmission Mode: Connected Audio Sources Audio Source Output HDMI IN LINE IN MIC IN HDMI OUT LINE OUT LINE OUT (TX) (TX) (RX) (RX) (TX) (RX) ● ● ● ■ ■ ■ ● ■... -
Page 42: Cable Specifications
8.4 Cable Specifications 1080p 4K30 4K60 (4:4:4) (4:4:4) Cable Length 8-bit 12-bit 8-bit 8-bit High Speed HDMI Cable HDMI Input VGA Cable VGA Input Ethernet Cable Cat.5e/6 100m Cat.6A/7 100m Bandwidth Category Examples: • 1080p (FHD Video) - Up to 1080p@60Hz, 12-bit color - Data rates lower than 5.3Gbps or below 225MHz TMDS clock •... -
Page 43: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Analog-to-Digital Converter ASCII American Standard Code for Information Interchange AVoIP Audio/Video over IP Cat.5e Enhanced Category 5 cable Cat.6 Category 6 cable Cat.6A Augmented Category 6 cable Cat.7 Category 7 cable Command-Line Interface Digital-to-Analog Converter Decibel DHCP Dynamic Host Configuration Protocol... - Page 44 ACRONYM COMPLETE TERM MJPEG Motion JPEG Megahertz On-Screen Display Powered Device Power over Ethernet Signal-to-Noise Ratio Transmission Control Protocol THD+N Total Harmonic Distortion plus Noise TMDS Transition-Minimized Differential Signaling 4K UHD 4K Ultra-High-Definition (10.2Gbps max) 4K UHD 4K Ultra-High-Definition (18Gbps max) Universal Serial Bus Video Graphics Array VoIP...
- Page 48 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
