- Page 1 CH-1602TXR & CH-1602RXR HDMI over HDBaseT Transmitter and Receiver with Optical Audio Return (OAR) Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ............1 2. Applications .............1 3. Package Contents ..........1 4. System Requirements ........2 5. Features ............2 6. Operation Controls and Functions ....3 6.1 Transmitter's Front Panel ......3 6.2 Transmitter's Side Panels ......4 6.3 Receiver's Front Panel....... 5 6.4 Receiver's Side Panels ...... -
Page 6: Introduction
1. INTRODUCTION This HDBaseT 2.0 Transmitter and Receiver set can send uncompressed UHD video and audio over a single Cat.5e/6/7 cable up to 100m. It has the added benefit of extending control and communication signals through the built-in Ethernet, RS-232 and IR ports. Independent external digital and analog audio transmission capability gives users the extra convenience of additional audio connections. -
Page 7: System Requirements
4. SYSTEM REQUIREMENTS • HDMI input source equipment such as media players, video game consoles, PCs or set-top boxes. • HDMI receiving equipment such as HDTVs, monitors or audio amplifiers. • The use of “Premium High Speed HDMI” cables is highly recommended. -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter's Front Panel DC 48V POWER AUDIO IN IR IN2 IR OUT1 RS-232 IN UPDATE 2 3 4 DC 48V & POWER LED: Plug the 48V DC power adapter into this port and connect it to an AC wall outlet for power. The LED will illuminate to indicate the unit is on and receiving power. -

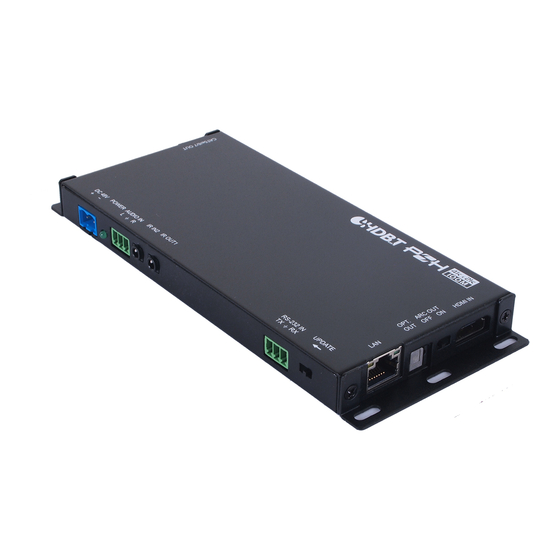

Page 9: Transmitter's Side Panels
6.2 Transmitter's Side Panels OPT. ARC OUT OFF ON HDMI IN CAT5e/6/7 OUT LAN: Connect to an Ethernet supporting device or to your local network as appropriate. The yellow LED will illuminate to indicate a successful LAN connection between the Transmitter and Receiver and will blink to indicate a data transmission. -
Page 10: Receiver's Front Panel
6.3 Receiver's Front Panel POWER AUDIO OUT IR IN1 IR OUT2 RS-232 OUT UPDATE 1 2 3 4 POWER LED: This LED will illuminate when the device is receiving power. AUDIO OUT: Connect to powered speakers or an amplifier for stereo analog audio output. -
Page 11: Receiver's Side Panels
6.4 Receiver's Side Panels OPT. OPT. HDMI OUT CAT5e/6/7 IN LAN: Connect to an Ethernet supporting device or to your local network as appropriate. The yellow LED will illuminate to indicate a successful LAN connection between the Transmitter and Receiver and will blink to indicate a data transmission. -
Page 12: Ir Cable Pin Assignment
6.5 IR Cable Pin Assignment IR Blaster Power IR Signal IR Extender IR Signal Power Ground... -
Page 13: Connection Diagram
7. CONNECTION DIAGRAM DVD/Blu-ray Player IR In HDMI Input & Analog Stereo Input IR Out 1.5m AV Receiver 60° Internet 60° Connected Router Optical Audio Output (OAR) RS-232 RS-232 Equipped Powered Speakers PC/Laptop CAT5e/6/7 OUT Power Supply CAT5e/6/7 Cable Analog Stereo Output OPT. -
Page 14: Specifications
8. SPECIFICATIONS Video Bandwidth 340MHz/10.2Gbps Transmitter Input Ports 1×HDMI, 1×Stereo Audio (Terminal Block), 1×LAN (RJ45),1×IR Extender (3.5mm), 1×RS- 232 (Terminal Block) Output Ports 1×Cat.5e/6/7, 1×Optical Audio (TOSLINK), 1×IR Blaster (3.5mm) Receiver Input Ports 1×Cat.5e/6/7, 1×Optical Audio (TOSLINK), 1×IR Extender (3.5mm) Output Ports 1×HDMI, 1×Stereo Audio (Terminal Block), 1×LAN (RJ45), 1×IR Blaster... -
Page 15: Acronyms
Dimensions 180mm×16mm×80mm (W×H×D) [Case Only] (Both) 180mm×16mm×80mm (W×H×D) [All Inclusive] (Both) Weight 354g (TX), 356g (RX) Chassis Material Metal Silkscreen Color Black Operating Temperature 0˚C - 40˚C/32˚F - 104˚F Storage Temperature −20˚C - 60˚C/−4˚F - 140˚F Relative Humidity 20 - 90% RH (Non-condensing) Power Consumption 15.5W 9. - Page 16 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
