Summary of Contents for CYP CH-1529TXPLV

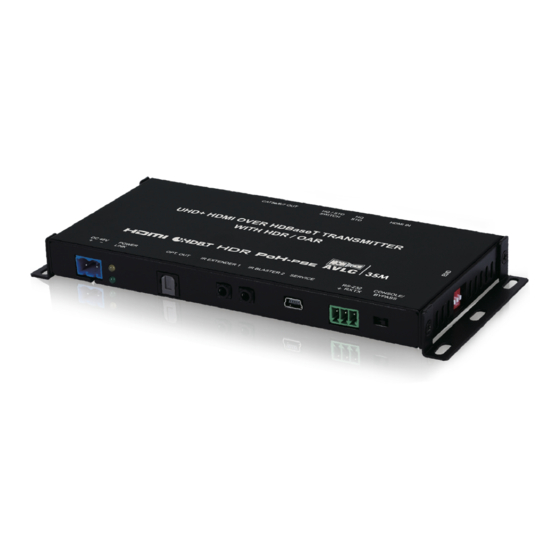

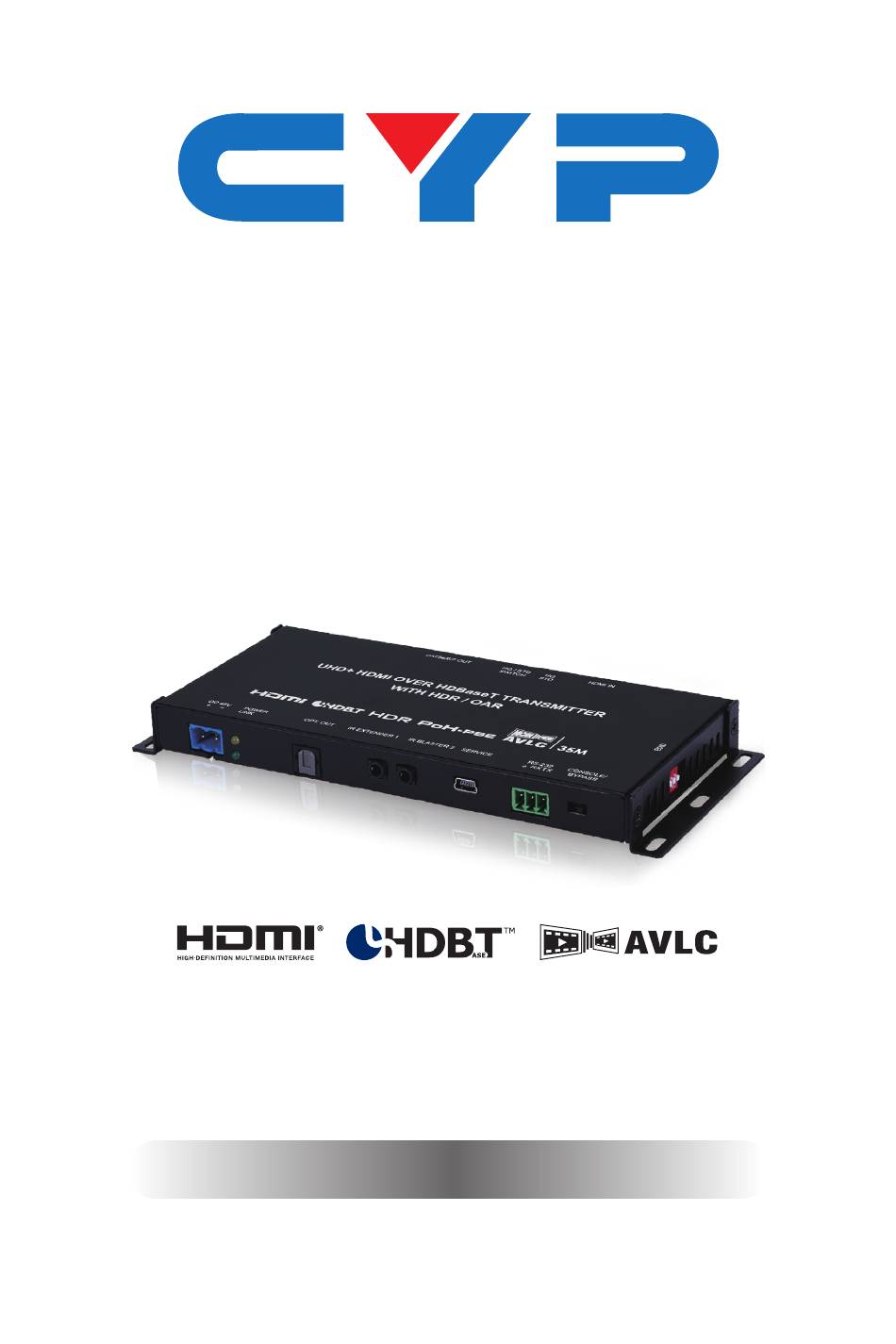

- Page 1 CH-1529TXPLV 4K UHD HDMI over HDBaseT Transmitter with HDR & OAR Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ............1 2. Applications .............1 3. Package Contents ..........2 4. System Requirements ........2 5. Features ............2 6. Operation Controls and Functions ....3 6.1 Front Panel ..........3 6.2 Rear Panel ..........5 6.3 Right Panel ..........6 6.4 IR Cable Pinouts ........6 6.5 RS-232 Control ........... -
Page 6: Introduction
1. INTRODUCTION This HDMI over single Cat.5e/6/7 Transmitter is a great solution for extending HD audio and video as well as Ethernet and control via a single run of Cat.5e/6/7 cable over distances of up to 70 meters. Multiple data and control interfaces are provided, including IR and RS-232 connections. -
Page 7: Package Contents
3. PACKAGE CONTENTS • 1×HDMI over HDBaseT Transmitter with HDR & OAR • 1×48V/0.83A DC Power Adapter • 1×Power Cord • 1×3.5mm to IR Blaster Cable • 1×3-pin Terminal Block to 9-pin D-sub Adapter Cable • 1×Rackmount Ears (Set of 2) •... -
Page 8: Operation Controls And Functions
• Integrated AVLC (Adaptive Visually Lossless Compression) activates when the bandwidth requirements of the source are beyond 10.2Gbps (340MHz) allowing for sources up to 18Gbps (600MHz) to be sent to a compatible Receiver with no loss of visual quality • The AVLC feature allows manual selection between High Quality Mode (Full bandwidth) and Standard Mode (Lower bandwidth, useful for longer cable runs with 4K sources) •... - Page 9 DC 48V: Plug the 48V DC power adapter into this port and connect it to an AC wall outlet for power. Note: Please be sure to follow the polarity labels on the unit and the adapter’s wires. POWER LED: This LED will illuminate to indicate the unit is on and receiving power.
-
Page 10: Rear Panel
6.2 Rear Panel HDMI IN: Connect to HDMI source equipment such as a media player, game console or set-top box. HQ & STD LEDs: These LEDs illuminate to indicate which AVLC mode will be used when AVLC is required. The lower green LED indicates that AVLC will use HQ (High Quality) mode. -
Page 11: Right Panel
6.3 Right Panel EDID EDID: The EDID dipswitch block provides a way to select the EDID to use with the connected source. By using a combination of on and off settings for the dipswitches, there are a total of 16 possible EDID selections across 3 different operation modes. -
Page 12: Rs-232 Control
6.5 RS-232 Control Terminal Block Controlling PC Serial Port Settings Definition Definition Baud Rate 19200 Data Bits Parity Bit None Stop Bits Flow Control None 6.6 RS-232 Commands COMMAND Description and Parameters HELP Show the full command list. ? Show the full command list. GET FW VER... - Page 13 COMMAND Description and Parameters SET SYSTEM REBOOT Reboot the unit. GET IN 1 SYNC STATUS Show the current input sync state. GET OUT A SYNC STATUS Show the current output sync state. GET IN 1 EDID Show the input’s current EDID source. GET IN EDID LIST...
-
Page 14: Edid Management
6.7 EDID Management 6.7.1 EDID Dipswitch Settings The EDID dipswitch block provides a way to select the EDID to use with the connected source. By using a combination of on and off settings for the dipswitches, there are a total of 16 possible EDID selections across 3 different operation modes. - Page 15 Detailed EDID information: • Internal EDID (1–6) There are a total of 6 built-in internal EDID slots covering many standard display configurations. These EDIDs can’t be modified. They are defined as follows: EDID Video Content Audio Content FHD/2 channel 1080p@60Hz, 8-bit LPCM 2.0 (148MHz) FHD/Multi-channel 1080p@60Hz, 8-bit...
-
Page 16: Edid Management Tool
6.7.2 EDID Management Tool This unit uses an EDID Management application which allows the user to copy the EDID from an attached display, edit an existing EDID file stored on the PC or create a basic EDID from scratch. The EDID can then be uploaded to the unit for use. - Page 17 A. EDID Controller Tab • Mode Select: Under the EDID Controller tab you will see the currently selected EDID slot (based on dipswitch position). The software can’t change this selection, only monitor it. • Save/Upload/Analysis: EDIDs may be saved, uploaded or analyzed: - Save: Any EDID from the unit or a connected HDMI display can be saved to your PC as a *.bin file by selecting the EDID source from the drop down menu and then clicking the “Save”...
- Page 18 B. EDID Creator Tab • Select: Click on the EDID Creator tab to begin designing a new EDID from scratch (select the “New” icon), to modify an existing EDID stored on the PC as a *.bin file (select the “Load” icon) or to edit an EDID copied from the unit via the EDID Analyzer’s edit option.
- Page 19 • Edit: The following tabs provide access to a wide range of EDID information which can be edited: - Descriptor: This tab allows for the editing of various description and information fields within the EDID file such as Manufacturer Name, Monitor Name, etc. - PC Timing &...
-
Page 20: Connection Diagram
7. CONNECTION DIAGRAM Game Console IR In & Out HDMI Input 1.5m RS-232 Equipped PC/Laptop 60° AV Receiver Optical Audio 60° Retun (OAR) RS-232 Power Supply Router Cat.5e/6/7 Cable RS-232 RS-232 Controlled Device 60° Optical Audio HDMI 60° Return (OAR) Output 1.5m IR In &... -
Page 21: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 600MHz/18Gbps HDBaseT Bandwidth 340MHz/10.2Gbps Input Port 1×HDMI Output Ports 1×HDBaseT (RJ45) 1×S/PDIF (TOSLINK) Pass-through Ports 1×IR Extender (3.5mm) 1×IR Blaster (3.5mm) Control Port 1×USB (Mini-B) Pass-through/Control Port 1×RS-232 (3-pin Terminal Block) IR Frequency 30–50kHz (30–60kHz under ideal conditions) Baud Rate... -
Page 22: Video Specifications
8.2 Video Specifications HDMI HDBaseT Supported PC Resolutions (Hz) Input Output 640×480 60, 72, 75, 85 720×400 70, 85 800×600 56, 60, 72, 75, 85 1024×768 60, 70, 75, 85 1152×864 ... -
Page 23: Audio Specifications
HDMI HDBaseT Supported TV Resolutions (Hz) Input Output 720×480i 59.94, 60 720×576i 720×480p 59.94, 60 720×576p 1280×720p 50, 59.94, 60 1920×1080i 50, 59.94, 60 1920×1080p 50, 59.94, 60 ... -
Page 24: Cable Specifications
8.4 Cable Specifications 1080p HDMI Cable Length 8-bit 12-bit 8-bit Input Cat. Cable Length 1080p Cat.5e Cat.6 Cat.7 • Full HD Video (1080p) - Up to 1080p@60Hz, 12-bit color - Data rates lower than 5.3Gbps or below 225MHz TMDS clock •... -
Page 25: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM AVLC Adaptive Visually Lossless Compression Cat.5e Category 5 (enhanced) cable Cat.6 Category 6 cable Cat.7 Category 7 cable Consumer Electronics Control Digital Visual Interface EDID Extended Display Identification Data High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface High Dynamic Range... - Page 28 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
