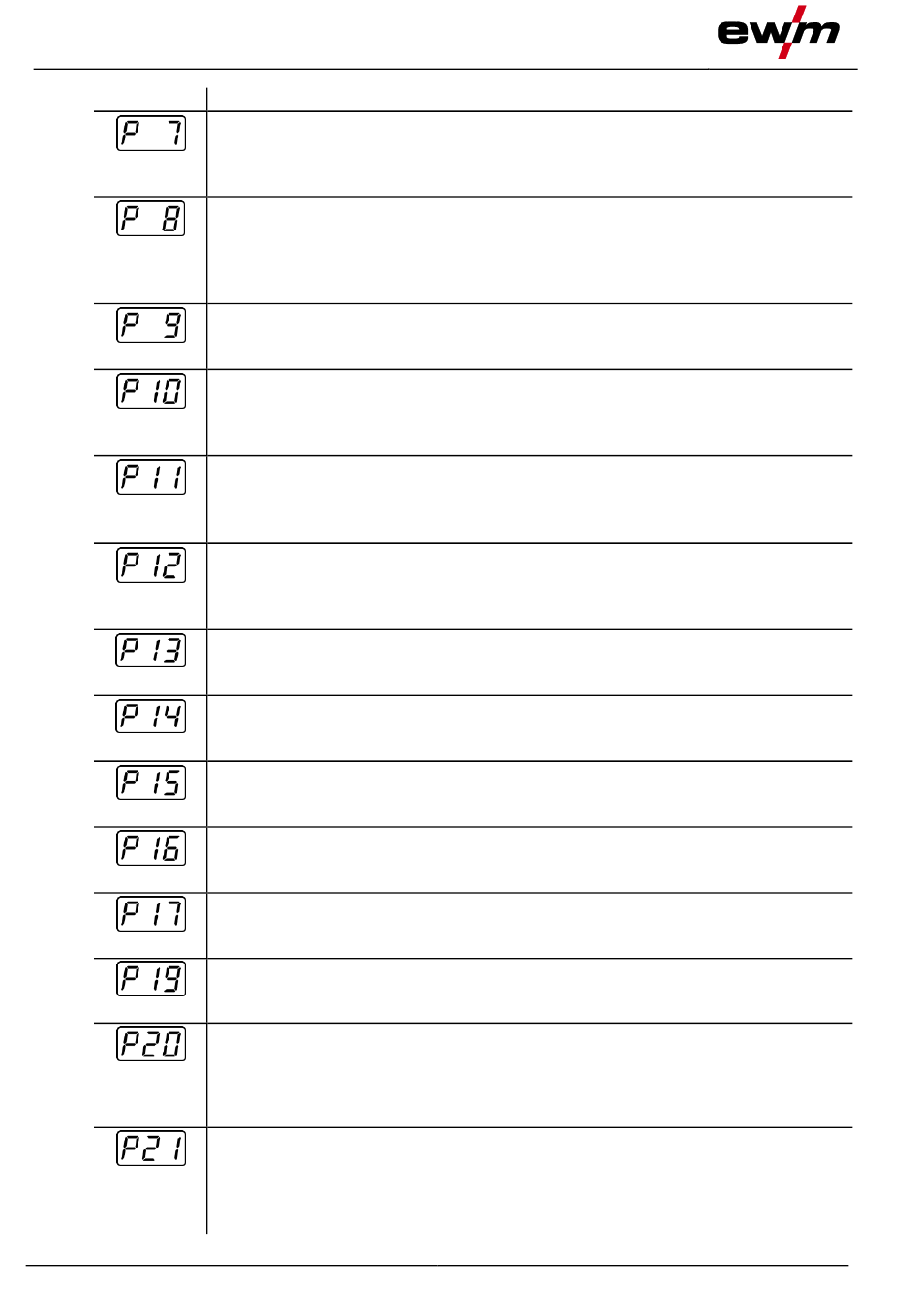

Functional characteristics
Special parameters (advanced settings)
Display
58
Setting/selection
Correction operation, threshold value setting
0 = -------- correction operation switched off (Ex works)
1 = -------- correction operation on
"Main program (PA)" flashing
Program switching with standard welding torch
0 = No program switching (factory setting)
1 = -------- Special latched
2 = -------- Special latched (n-cycle active)
3 = -------- Special latched (n-cycle sequence from any program)
Tapping start for latched and special latched operation
0 = -------- no 4-cycle inching start
1 = -------- 4-cycle inching start possible (ex works)
One or two-wire feed operation
0 = -------- single operation (Ex works)
1 = -------- dual operation, this unit is the "master"
2 = -------- dual operation, this unit is the "slave"
Special latched tapping time
0 = tapping function switched off
1 = 300ms (Ex works)
2 = 600ms
JOB list changeover
0 = -------- task-oriented JOB list
1 = -------- actual JOB list (Ex works)
2 = -------- actual JOB list, JOB changeover activated via accessories
Lower limit remote JOB switching
JOB range of the function torches (PM 2U/D, PM RD2)
Lower limit: 129 (ex works)
Upper limit remote JOB switching
JOBarea of the function torch (PM 2U/D, PM RD2)
Upper limit: 169 (ex works)
HOLD function
0 = -------- HOLD values are not displayed
1 = -------- HOLD values are displayed (Ex works)
Block JOB mode
0 = -------- Block JOB mode not enabled (Ex works)
1 = -------- Block JOB mode enabled
Program selection with standard torch trigger
0 = -------- no program selection (Ex works)
1 = -------- program selection possible
Average value display for superPuls
0 = -------- Function switched off.
1 = -------- Function switched on (ex factory).
Predefined pulse arc welding process in the PA program
0 = -------- Predef ined pulse arc welding process in the PA program is disabled.
1 = -------- If the superPuls and welding process switching functions are available and acti-
vated, the pulse arc welding process is always executed in the main program
PA (ex f actory).
Predefined absolute value for relative programs
Start program (P ), down-slope program (P
START
lative to the main program (P
0 = -------- Relative parameter setting (ex factory)
1 = -------- Absolute parameter setting
) and end program (P
B
) or in an absolute manner, as desired.
A
) can be set re-
END
