5.8 Machine configuration menu
5.8.1

Selecting, changing and saving parameters

Changes to the welding parameters are only possible if the key switch is set to key position
If the Xbutton function is activated, the key switch function is deactivated (see corresponding
operating instructions "Control").
Display
54
A
B
Setting/selection
Lead resistance 1
Lead resistance for the first welding circuit 0 mΩ–60 mΩ (8 mΩ ex works).
Lead resistance 2
Lead resistance for the second welding circuit 0 mΩ–60 mΩ (8 mΩ ex works).
Only qualified service personnel may change the parameters!
Only qualified service personnel may change the parameters!
Time-based power-saving mode > see 5.8.1.2 chapter
Time to activation of the power-saving mode in case of inactivity.
Setting = disabled or numerical value 5-60 min..
Service menu
Modifications to the service menu may only be carried out by authorised maintenance
staf f!
+
B
A
B
A
B
A
B
A
B
A
B

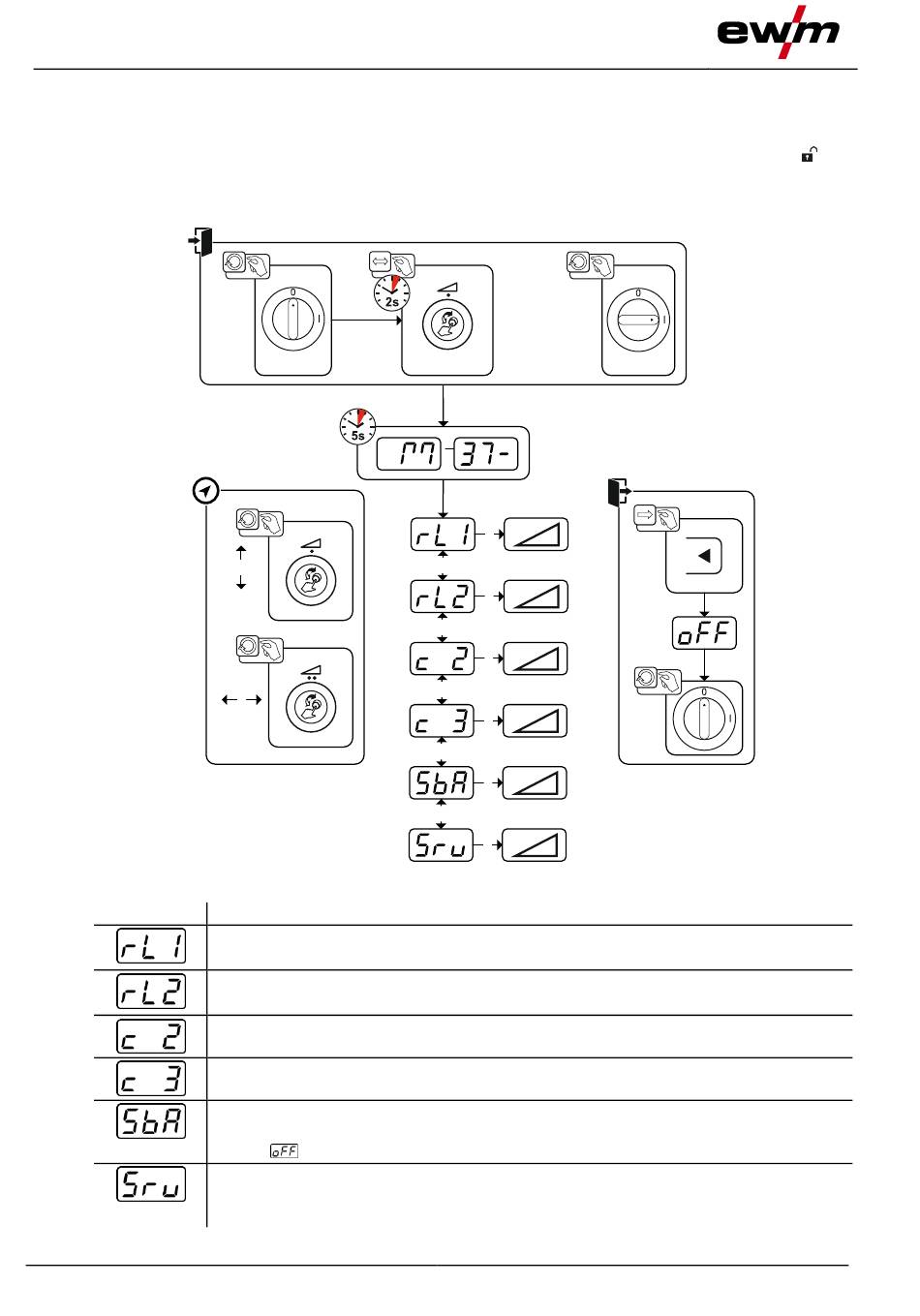

Figure 5-42
.
