Functional characteristics
MIG/MAG welding
5.2.2

Wire return

The wire return f unction is used to retract the wire electrode without tension and protection gas. By simul-
taneously pressing and holding the wire inching and gas test buttons, the wire return speed increases in a
ramp f unction (special parameter P1 > see 5.9.3.1 chapter) from 1 m/min to the set maximum value. The
maximum value is set by simultaneously pressing the wire inching button and turning the left click wheel.
During the process, the wire spool must be turned by hand clockwise to wind up the wire electrode again.
26
+

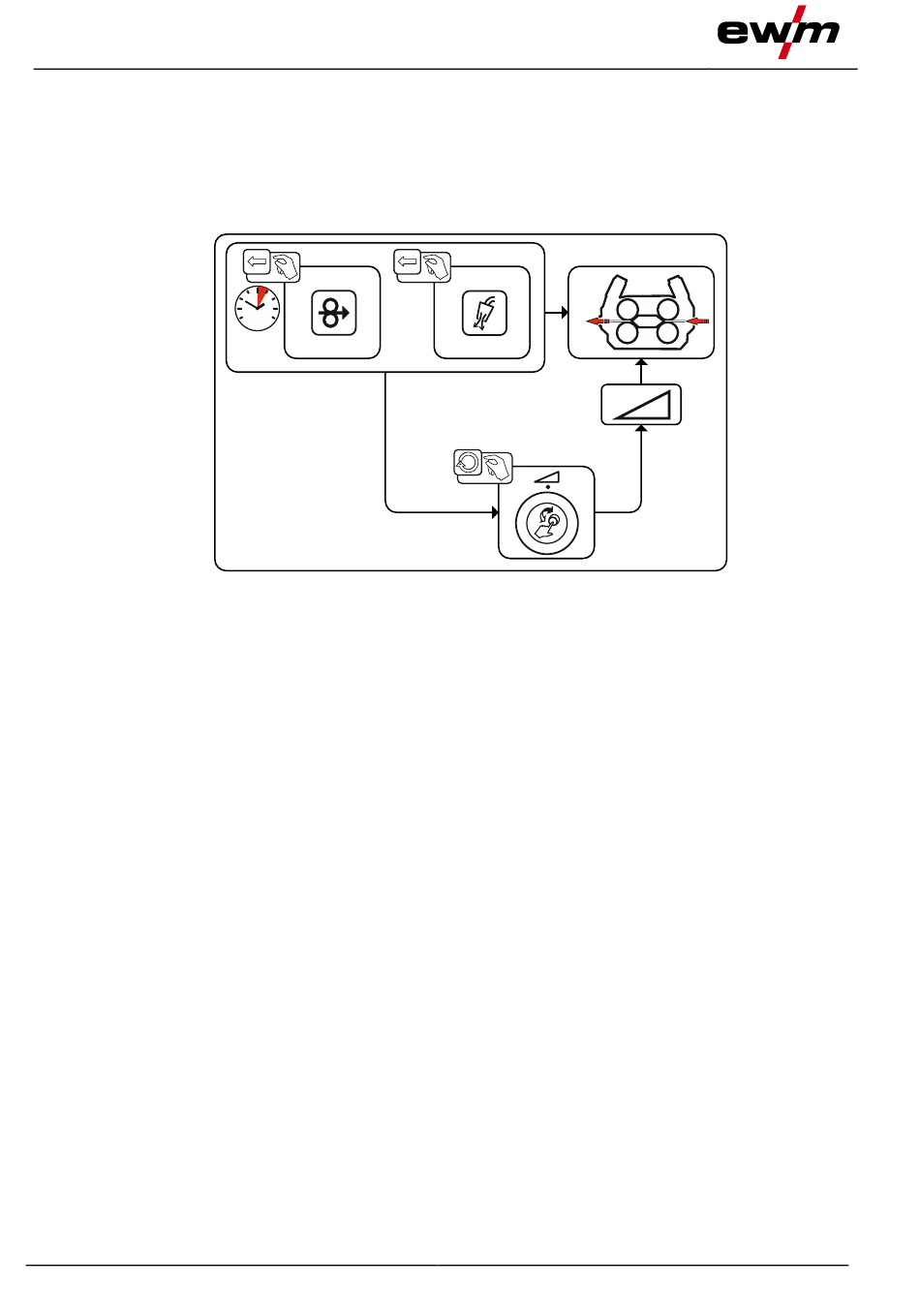

Figure 5-4
