EWM M3.7X-O Operating Instructions Manual page 33

M3.7 – I/J
Wire f eeder control
PC 300.NET
Sof tware
MT Up/Down
Welding torch
MT 2 Up/Down
Welding torch
MT PC 1
Welding torch
MT PC 2
Welding torch
PM 2 Up/Down
Welding torch
PM RD 2
Welding torch
PM RD 3
Welding torch
[1] Does not apply in conjunction with wire feeders of the Drive XQ IC 200 series. These machines
can only switch the wire feed speed and voltage correction in stored programs.

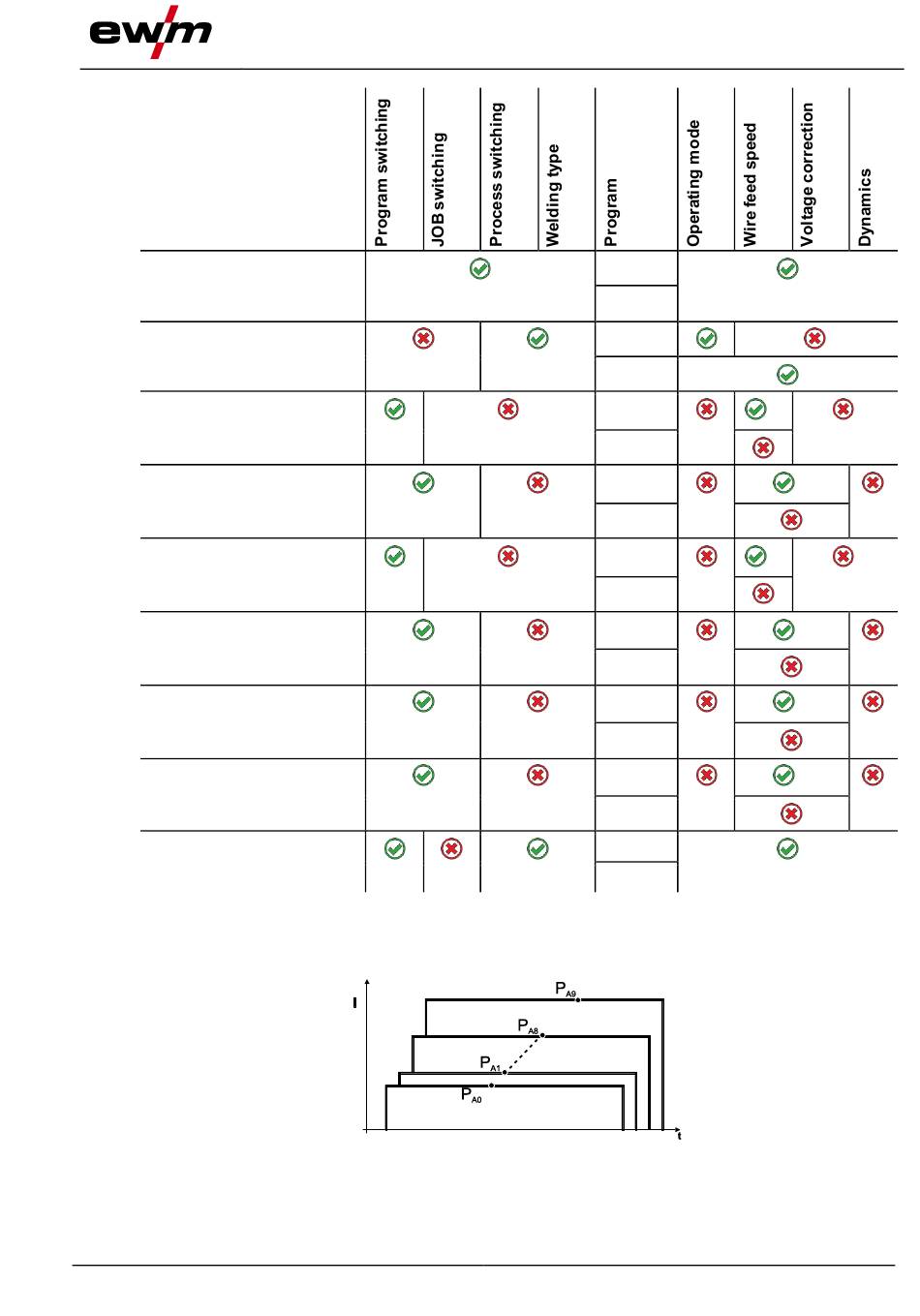

Example 1: Welding workpieces with different sheet metal thicknesses (non-latched)
099-5TLPXQ-EW501
15.12.2022
Functional characteristics
P0
P1-15
P0
P1-15
P0
P1-9
P0
P1-15
P0
P1-15
P0
P1-15
P0
P1-15
P0
P1-15
P0
P1-15
Figure 5-14
MIG/MAG welding
[1]
[1]
[1]
[1]
[1]
[1]
33
