Machine control – Operating elements
Overview of control sections
4.1.2

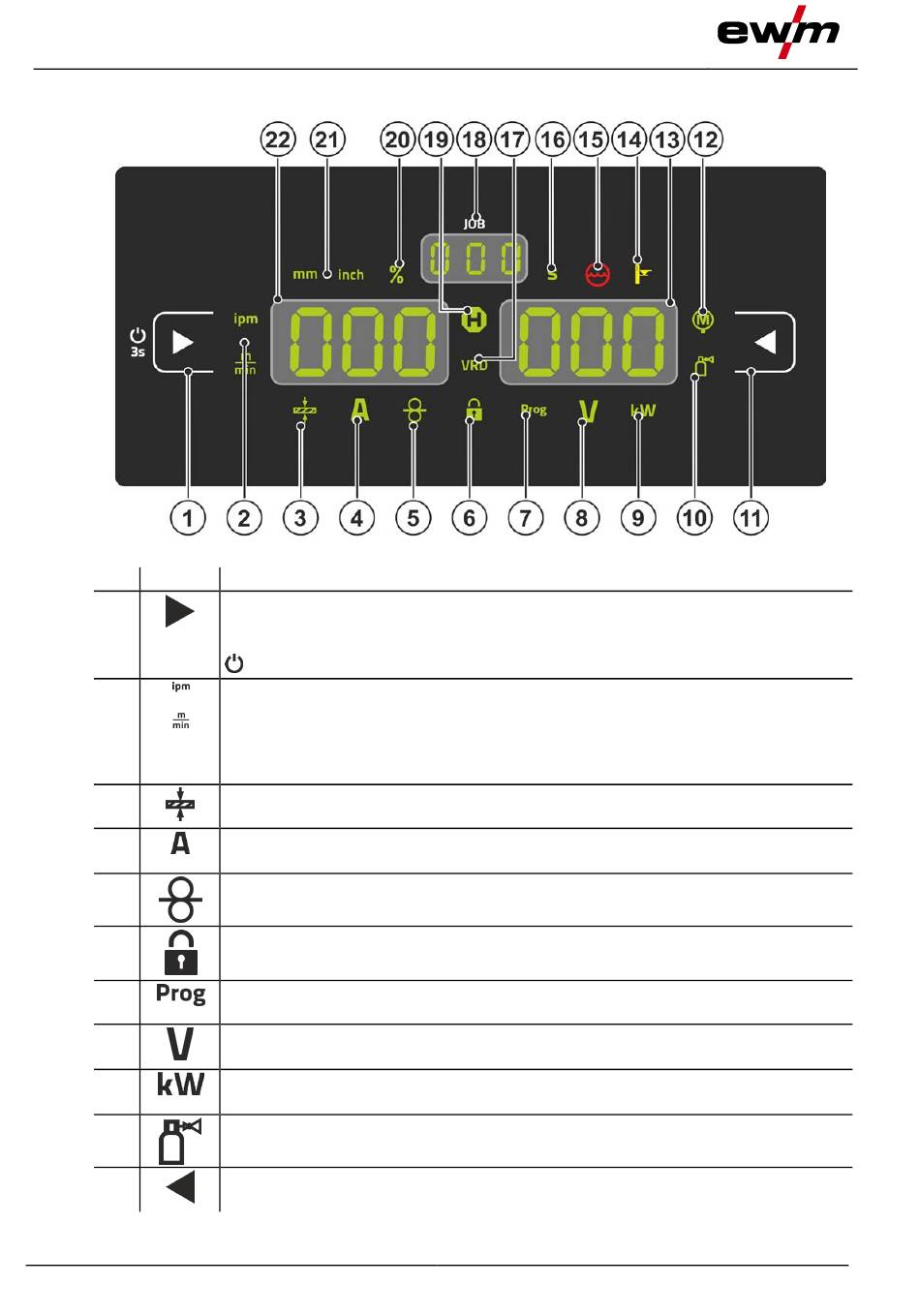

Control section B

Item Symbol
1
2
3
4
5
6
7
8
9
10
11
18
Description 0
Display left / Lock function push-button
Switching the device display between various welding parameters. Signal lamps show
the selected parameter.
--------- Press f or 3 s to put the machine into lock function > see 4.3.4 chapter.
Wire feed speed unit signal light
m/min --- Parameter value is displayed in meters per minute.
ipm------- Parameter value is displayed in inches per minute.
Switching between metric or imperial system via special parameters
"P29" > see 5.9 chapter.
Material thickness signal light
Indication of the selected material thickness.
Welding current signal light
Display of the welding current in amperes.
Signal light, Wire speed
Lights when the wire speed is shown on the display.
Lock function signal light
Use display left / lock function push-button to switch on and off.
Signal light for the welding program > see 5.2.8 chapter
Display of the current program number in the welding data display.
Correction voltage arc length signal light
Display of correction voltage arc length in volts.
Welding power signal light
Display of welding power in kilowatts.
Electronic gas flow control signal light OW DGC > see 5.5.1 chapter
Shows the gas flow rate in the device display.
Display push-button, right
Primary display of arc length correction and other parameters and their values.
Figure 4-3
