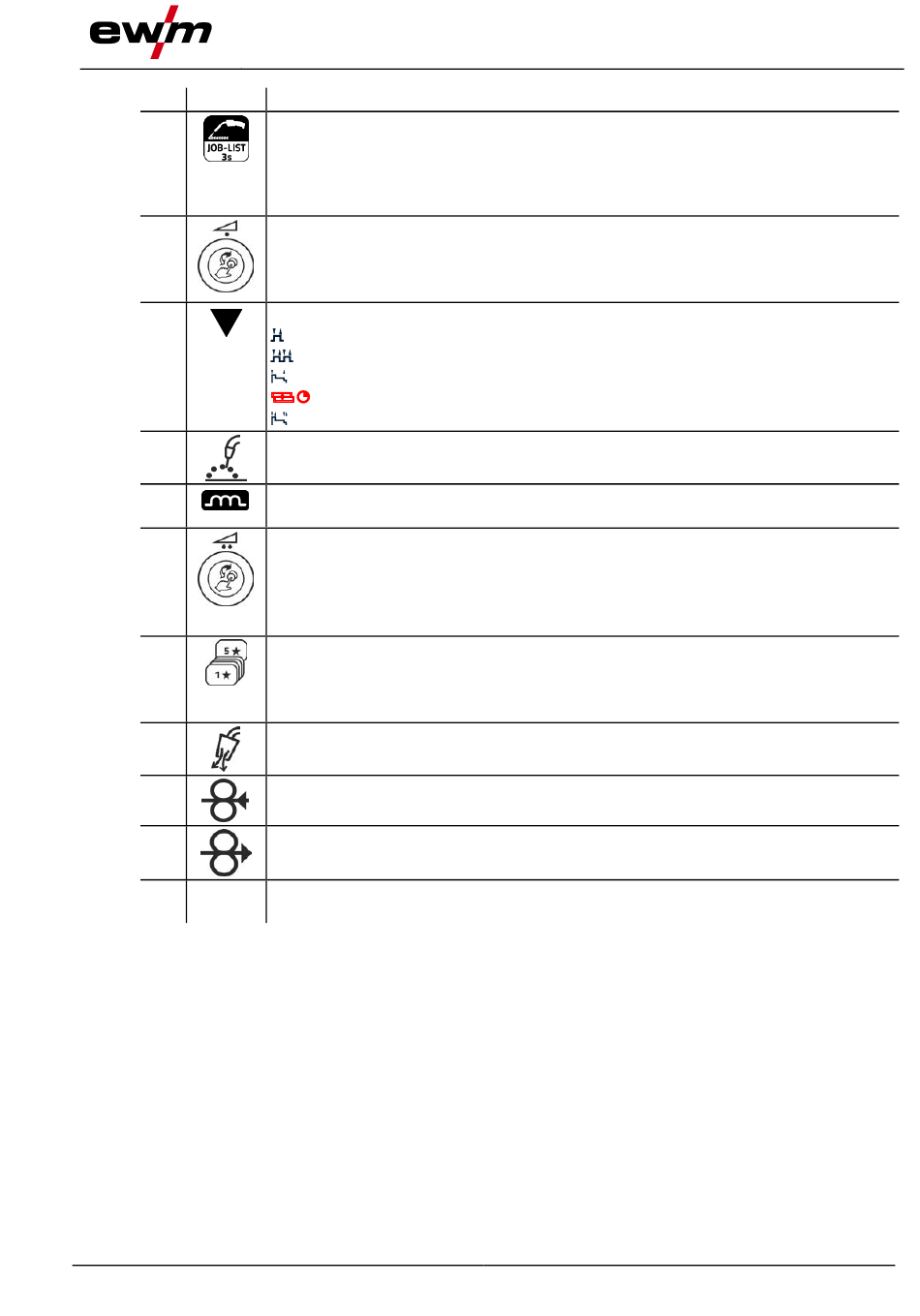

Machine control – Operating elements
Description 0
Welding task push-button (JOB)
• ----------- Pressing the pushbutton briefly: Fast switching of the available welding proce-
dures in the selected basic parameters (material/wire/gas).
• ----------- Pressing the pushbutton longer: Select the welding task (JOB) from the
welding task list (JOB-LIST) > see 5.2.3 chapter.
Rotary knob (click wheel ) for welding power
• ----------- Setting the welding power > see 5.2.7 chapter
• ----------- Setting various parameters values depending on the preselection.
(Settings can be made when the backlight is activated.)
Operating modes push-button (functional sequences) > see 5.2.9 chapter
--------- Non-latched
------- Latched
--------- Signal light turns green: Special non-latched
----- Signal light turns red: MIG spots
--------- Special latched
Welding type push-button > see 5.2.6 chapter
Display of arc dynamics
The height and orientation of the set arc dynamics are displayed.
Correction of arc length with click wheel
• ----------- Setting the correction of arc length > see 5.2.7.2 chapter
• ----------- Setting the arc dynamics > see 5.2.7.3 chapter
• ----------- Setting various parameter values depending on the preselection.
Settings can be made when the backlight is activated.
push-button - JOB Favourites > see 4.3.5 chapter
•-----------Pressing the push-button briefly: Loading Favourites
•-----------Press and hold the push-button (>2 s): Saving as a Favourite
•-----------Press and hold the push-button (>12 s): Deleting a Favourite
Push-button gas test / rinse hose package > see 5.1.1 chapter
Wire return > see 5.2.2 chapter
Potential and gas-free return of the wire electrode.
Wire inching push-button
Potential and gas-free inching of the wire electrode > see 5.2.1 chapter.
Signal light wire reserve sensor (ex works option) > see 5.5.2 chapter
Lights up when the welding wire is less than approx. 10% residual quantity.
