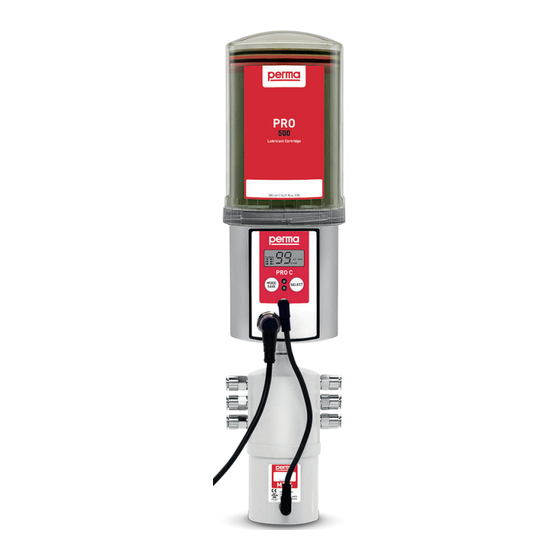

- Page 1 PRO MP-6 perma PRO C MP-6 Installation Guide The Expert in Lubrication Solutions...
- Page 2 © 2024 perma-tec GmbH & Co. KG The content of this document has been compiled by perma-tec with meticulous care. Nevertheless, we cannot rule out deviations and reserve the right to make technical changes to the product without any advance notice. We do not assume any judicial responsibility or liability for any damages which may ensue as a result.
- Page 3 The lubrication system perma PRO | PRO C used with the distributor MP-6 requires grease lines. perma recommends a flexible hose (PA up to 100 °C operating temperature) with an inner diameter of at least 5 mm (Art. No. 101569 Tube up to +100 °C oØ...
-
Page 4: Mounting Types
Art. No. 101550 (1500 mm) Art. No. 104868 Art. No. 116624 Art. No. 116291 (14 mm) Art. No. 116292 (30 mm) Art. No. 104879 Art. No. 104875 Art. No. 104877 Art. No. 104876 For more connecting parts please see our perma catalog at www.perma-tec.com... - Page 5 Art. No. 111153 Mounting Mounting bracket PRO 101568 can be used to secure a perma PRO MP-6 | PRO C MP-6, perma PRO | PRO C or a perma distributor PRO MP-6. perma PRO should be mounted in vertical position.
- Page 6 Direct vs separate mounting of PRO MP-6 distributor to lubrication system Tube length max. 2 m Tube length Tube length total max. 5 m max. 5 m per outlet Tube length max. 3 m per outlet...
- Page 7 Art. No. 110374 3. Insert reducer and install tube and necessary accessory parts. All metal to metal connections must be glued together with Loctite® 243™ © 2024 | perma-tec GmbH & Co. KG | www.perma-tec.com |...
- Page 8 4. Lubrication point, accessory parts and tubes must be pre-filled with lubricant. This enables the lubricant to immediately reach the lubrication point. Grease gun (101455) Hose with rotary joint, slide and hydraulic coupling for grease gun (110199) Tube prefill adapter 5.
-
Page 9: Pressure Testing
For pressure testing please use perma PRO | perma PRO C with Accessory Set for pressure test (101480). Be sure to use the same lubricant for both, prefilling and LC of perma PRO | perma PRO C. Accessory Set for pressure test (101480) (order lubrication system separately) ©... - Page 10 Screw reducer onto lube point and connect pressure testing set. Connect perma PRO | perma PRO C to the open outlet. Turn machines on to ensure that lube point is in use and measuring of corresponding counter pressure is possible (Caution: Observe accident prevention regulations).
-
Page 11: Settings And Display
250 cm³ / 8.45 fl.oz. (US) Art. No. | Serial number Installation date and exchange date (to be added by operator) (product designation - year / week of manufacture - internal no.) Lubricant designation © 2024 | perma-tec GmbH & Co. KG | www.perma-tec.com |... - Page 12 GmbH & Co. KG Hammelburger Str. 21 97717 Euerdorf GERMANY Tel.: +49 9704 609 - 0 info@perma-tec.com www.perma-tec.com...
