Perma PRO C LINE Quick Start Manual

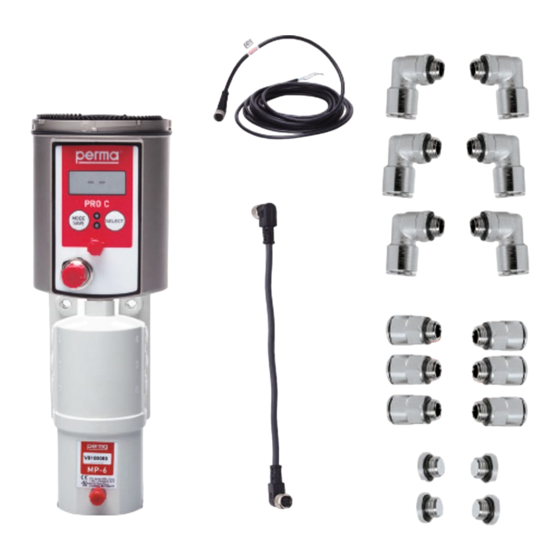

perma PRO C LINE
Quick Start Guide

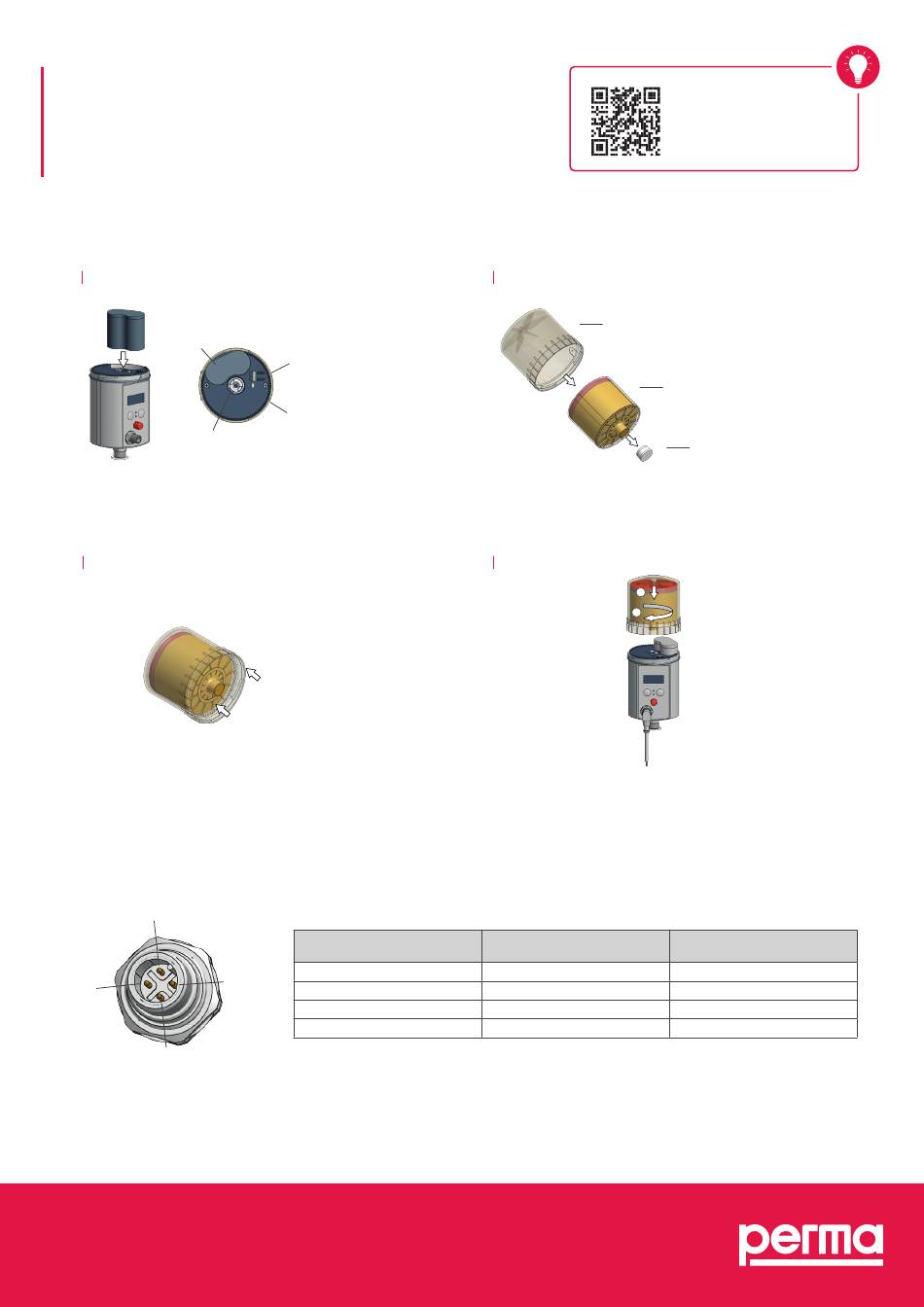

Assembly
1 INSERT BATTERY
Battery PRO B
(Back-up battery)
Catch
Insert the battery PRO B into the drive unit (according to
the direction of the arrow on the label).
3 DISCHARGE OPENING
Push the PRO LC into the protection cover until
lubricant comes out of the opening
Anschließen des Anschlusskabels
2
3
4
Connect the four strands of the connecting cable to the control system of your equipment. Pay attention to the pin assignment of
the connector on the lubricator. Insulate the connected strands correctly. Insert the 4-pole connecting cable into the connector
of the PRO C LINE Drive. Screw tight the connector socket of the connecting cable to the connector of the PRO C LINE Drive.
The Expert in Lubrication Solutions
No function!
Setting of PRO LC size
is done via menu on
the display.
Gear theeth
Pin no. of the connector
on the lubricator
1
1
2
3
4
2 COVER FOR PRO LC & PLUG
Protection cover for PRO LC
Place the PRO LC inside the protection cover and remove
the plug of the PRO LC.
4 DRIVE
1
2
Place the PRO LC with its protection cover on the drive unit.
Turn the cover clockwise until the bayonet catch locks.
Strand color of the
standard cable
brown
white
blue
black
*Error signal is low-active! (negative logic)
Scan the QR code
for a video tutorial.
PRO LC
Plug
Function
Not assigned
Malfunction*
Ground
Voltage (15 V to 30 V - DC)
