B.Well TH-75 Instructions For Use Manual

Digital upper arm blood pressure monitor
Hide thumbs Also See for TH-75:

Advertisement

Quick Links

Download this manual
EN
Instructions for Use
ES
Instrucciones de uso
FR
Consignes d'utilisation
MN
Ашиглах зааварчилгаа
VI
Hướng dẫn sử dụng
EN
Instructions for Use
EN
Instructions for Use
ES
Instrucciones de uso
FR
Consignes d'utilisation
‫ﺗﻌﻠﯿﻤﺎت اﻻﺳﺘﺨﺪام‬
AR
TH-75
Digital Upper Arm Blood Pressure Monitor
Digital Upper Arm Blood Pressure Monitor
Digital Upper Arm Blood Pressure
Monitor
Digital Upper Arm Blood Pressure Monitor
Digital Upper Arm Blood Pressure Monitor
Digital Upper Arm Blood Pressure Monitor
Digital Upper Arm Blood Pressure Monitor
Digital Upper Arm Blood Pressure Monitor
Digital Upper Arm Blood Pressure Monitor
Digital Upper Arm Blood Pressure Monitor
Digital Upper Arm Blood Pressure
Monitor

Advertisement

loading
Need help?

Need help?

Do you have a question about the TH-75 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for B.Well TH-75

Summary of Contents for B.Well TH-75

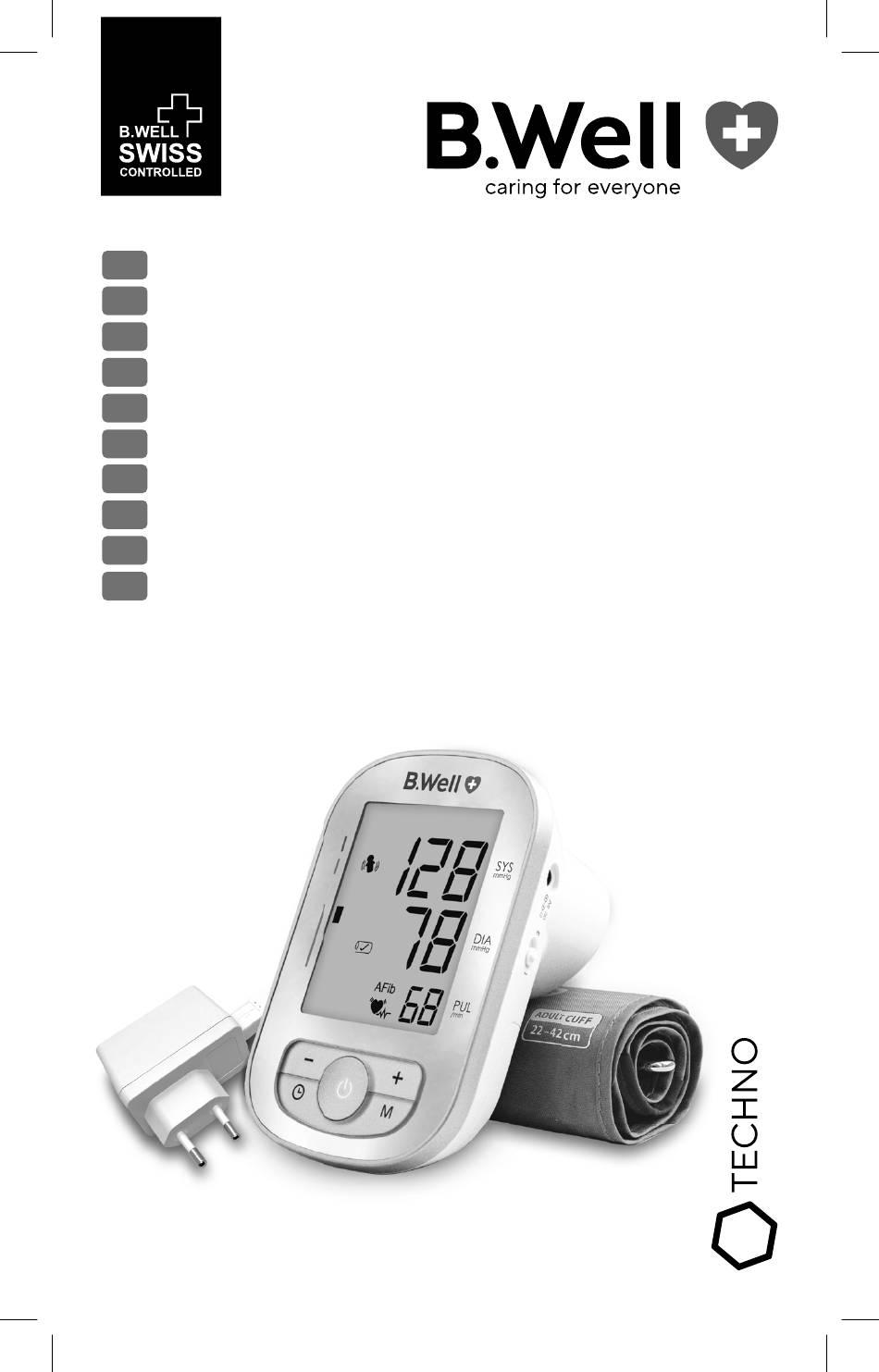

  • Page 1 Instructions for Use Instrucciones de uso TH-75 Consignes d’utilisation Ашиглах зааварчилгаа Digital Upper Arm Blood Pressure Monitor Hướng dẫn sử dụng Digital Upper Arm Blood Pressure Monitor Digital Upper Arm Blood Pressure Instructions for Use Monitor Instructions for Use Digital Upper Arm Blood Pressure Monitor...
  • Page 2 Instrucciones de uso ............14 Instructions for Use ........69 Consignes d’utilisation ..........25 Instrucciones de uso ........80 Ашиглах зааварчилгааn ..........36 Consignes d’utilisation ......91 Hướng dẫn sử dụng ............47 ‫ﺗﻌﻠﯿﻤﺎت اﻻﺳﺘﺨﺪام‬ Model TH-75 2-12 2-10 2-11 1-2 cm 1-2 cm...
  • Page 3 13-1 10-5 1. INTRODUCTION Thank you for purchasing the B.Well upper arm blood pressure monitor TH-75 NORMAL BLOOD PRESSURE (BP) FLUCTUATION: All physical activity, excitement, stress, eating, drinking, smoking, body posture and many other activities or factors (including taking a blood pressure measurement) will influence blood pressure value.
  • Page 4 TH-75 Instructions for Use 2. CONTENTS AND DISPLAY INDICATORS Model TH-75 AFib symbol Multiple mode symbol Irregular heartbeat symbol Low battery symbol Deflate the remanant air Systolic Pressure Cuff binding symbol Body Move symbol Buzzer switch symbol Diastolic Pressure Memory symbol Users [1&2]...
  • Page 5 TH-75 Instructions for Use limits prescribed by the American National Standard Institute, Electronic or automated sphygmomanometers. 2. This automatic blood pressure monitor is not clinically validated for pregnant women. Consult your physician or other health care professionals before use on pregnants.
  • Page 6 TH-75 Instructions for Use 6.2 Using a mains adapter Connect the AC Adapter a) Connect the power cable to the adapter; b) Plug the adapter to AC outlet; c) Then put the connector plug of the power cable into the device outlet.
  • Page 7 TH-75 Instructions for Use c) If you place the cuff around left arm, position the air tube in the middle of your arm in line with your middle finger. Pic 6-2 If you place the cuff around right arm, apply the cuff so that the air tube is at the side of your elbow.
  • Page 8 TH-75 Instructions for Use Press “M” button can switch the group. Confirm your selection by pressing “+” or “-” button. The current bank can also be confirmed automatically after 3 seconds with no operation. 6.9 Measurement mode selection Select single or 3check mode [Afib screening mode] The “3сheck”...
  • Page 9 TH-75 Instructions for Use If the monitor detects Afib, an “Afib” symbol is displayed on the LCD. Pic 10-5 Please consult a health care professional for interpretation of pressure measurements. 6.11 Pulse Arrhythmia Detection Irregular Heartbeat (IHB) by common arrhythmias (single mode measur.) If IHB brought by common arrhythmias is detected in the procedure of blood pressure measurement, a signal of arrhythmias will be displayed.
  • Page 10 TH-75 Instructions for Use Depending on the height of the indicator, the readout value is either within the normal (green), borderline (yellow and orange) or hazardous (red) range. If the systole and diastole values fall into two different categories (e.g., systole in the High Normal category and diastole in the Normal category), the display always shows the higher category.
  • Page 11 It is recommended the performance should be checked every 2 years of regular use or after dropping/damaging. Please contact an authorized service center. Only use B.Well original spare parts 7.3 Maintenance (cleaning) Clean the monitor with a dry, soft cloth or a soft cloth squeezed well after moistened with water, diluted disinfectant alcohol, or diluted detergent.
  • Page 12 Environmental pressure: 80kPa-105kPa Note: These specifications are subject to change without notice. 9. PACKAGE CONTENTS Upper arm blood pressure monitor TH-75 M-L size’s fan shape cuff (upper arm circumference 22-42 cm) AAA batteries – 4 pieces, Instruction manual Storage bag (depending on the set)
  • Page 13 TH-75 Instructions for Use 10. SYMBOL INFORMATION READ INSTRUCTION BEFORE USE POLARITY IF D.C. POWER CONNECTOR WARNING SERIAL NUMBER USER ATTENTION HOUSING INGRESS: TYPE BF APPLIED PARTS WATER INGRESS PROTECTION RATE 21 (The cuff is type BF applied part) MR UNSAFE...
  • Page 14 TH-75 Instrucciones de uso 1. INTRODUCTION Thank you for purchasing the B.Well upper arm blood pressure monitor TH-75 NORMAL BLOOD PRESSURE (BP) FLUCTUATION: All physical activity, excitement, stress, eating, drinking, smoking, body posture and many other activities or factors (including taking a blood pressure measurement) will influence blood pressure value.
  • Page 15 TH-75 Instrucciones de uso 4. CONTRAINDICATION People with a pronounced/fierce/severe arrhythmia combined with a constant irregular heart rhythm are not recommended to use this device, as the digital blood pressure monitor is based on the oscillometric method of measuring pressure.
  • Page 16 TH-75 Instrucciones de uso 3. Please do not use the cuff other than supplied by the manufacturer, otherwise it may bring biocompatible hazard and might result in measurement error. 4. Medical AC adapter which output is DC 5.0V 1A and complied with IEC 60601-1/EN 60601-1/UL 60601-1 and IEC 60601-1-2/EN 60601-1-2/UL 60601-1-2 is suitable for this monitor, such as input: AC 100-240V, 50/60Hz, 0.2A;...
  • Page 17 TH-75 Instrucciones de uso pressing “START” button. Once you change the batteries, you should readjust the time and date, the default time is the time of the latest memory. 6.4 Beep sound setting a) In Standby Mode, press the “+” and “CLOCK” button simultaneously for 3 seconds. A beep will be heard (if buzzer is on) and the monitor will be in Beep Sound Setting Mode.
  • Page 18 TH-75 Instrucciones de uso During measurement, neither speak nor move your body and arm. Measure always on the same arm. Measurement in sitting position a) Sit down and place your feet flat on the floor, don’t cross your legs or bend them under you.
  • Page 19 ‫ﺗﻌﻠﯿﻤﺎت اﻻﺳﺘﺨﺪام‬ TH-75 Instrucciones de uso calculated and displayed on the LCD. If the monitor detects body movement during measurement, the LCD displays the “BodyMove” symbol. Pic 10-3. If there is no problem with the cuff binding, the “cuff OK” symbol is displayed on the LCD.
  • Page 20 TH-75 Instrucciones de uso 6.12 Blood Pressure levels assessing The following guideline for assessing high blood pressure (without regard to age or gender) has been established by the World Health Organization (WHO). Please note that other factors (e.g. diabetes, obesity, smoking, etc.) need to be taken into consideration.
  • Page 21 TH-75 Instrucciones de uso SPECIFICATIONS. In this case, you should consult a physician or check if your operation violated the instructions. The technical alarm condition (outside the rated range) is preset in the factory and cannot be adjusted or inactivated.
  • Page 22 It is recommended the performance should be checked every 2 years of regular use or after dropping/damaging. Please contact an authorized service center. Only use B.Well original spare parts 7.3 Maintenance (cleaning) Clean the monitor with a dry, soft cloth or a soft cloth squeezed well after moistened with water, diluted disinfectant alcohol, or diluted detergent.
  • Page 23 Environmental pressure: 80kPa-105kPa Note: These specifications are subject to change without notice. 9. PACKAGE CONTENTS Upper arm blood pressure monitor TH-75 M-L size’s fan shape cuff (upper arm circumference 22-42 cm) AAA batteries – 4 pieces, Instruction manual Storage bag (depending on the set)
  • Page 24 TH-75 Instrucciones de uso batteries, bags, and package of the item. When a manufacturing defect is revealed during the warranty period a faulty unit would be repaired or, if repairing is impossible, replaced with another one. The manufacturer may change units partially or completely if necessary, without prior notice.
  • Page 25 TH-75 Consignes d’utilisation...
  • Page 26 TH-75 Consignes d’utilisation...
  • Page 27 TH-75 Consignes d’utilisation...
  • Page 28 TH-75 Consignes d’utilisation...
  • Page 29 TH-75 Consignes d’utilisation...
  • Page 30 TH-75 Consignes d’utilisation...
  • Page 31 TH-75 Consignes d’utilisation...
  • Page 32 MED-420 ‫ﺟﮭﺎز ﺗﺪﻟﯿﻚ ﻛﮭﺮﺑﺎﺋﻲ‬ ‫ ﻣﻊ وظﯿﻔﺔ‬B.Well MED-420 ‫اﻟﺘﺪﻓﺌﺔ اﻟﮭﺎدﺋﺔ‬ ‫ﺗﻌﻠﯿﻤﺎت اﻻﺳﺘﺨﺪام‬ B.Well Swiss AG, Bahnhofstrasse 24, 9443 Widnau, Switzerland www.bwell-swiss.ch...
