2. Getting started

The usual functions (display force or torque, display maximum, zero and change units) can be
accessed simply by using the keys on the keypad.
2.1.
Connect the AC adapter to the micro-USB connector on the left-hand side of your instrument. The
green LED on the front panel lights up when the battery is charging. When charging is complete, the
LED goes out.
2.2.

2.2.1. External sensor force gauge type S2 or S9

Mounting precautions for S2 and S9 wireless load cell force gauges are :
•
S2 and S9 force load cells are fitted with strain gauges. These are protected by white silicone.
Your accessories, screws, etc. must not come into contact with this silicone. This would prevent
measurement and risk destroying the sensor.
•
Torsion, bending and shear loads are disruptive factors and should be avoided.
S2 sensor :
Maximum tightening torque for mounting and accessories: 15Nm.

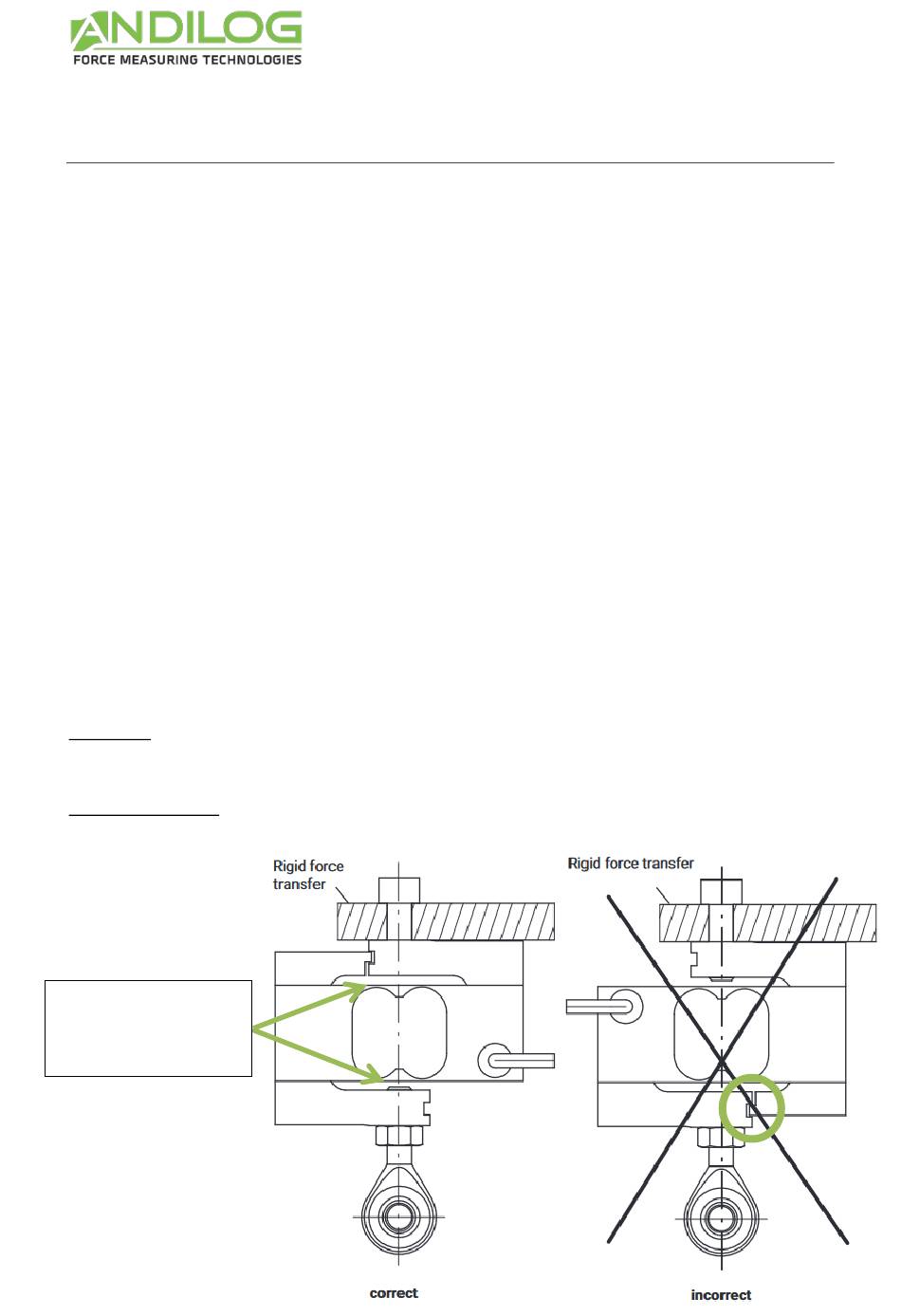

Mounting direction:
The screws must not
come into contact with
the white silicone.

Battery charging

Accessories assembly
