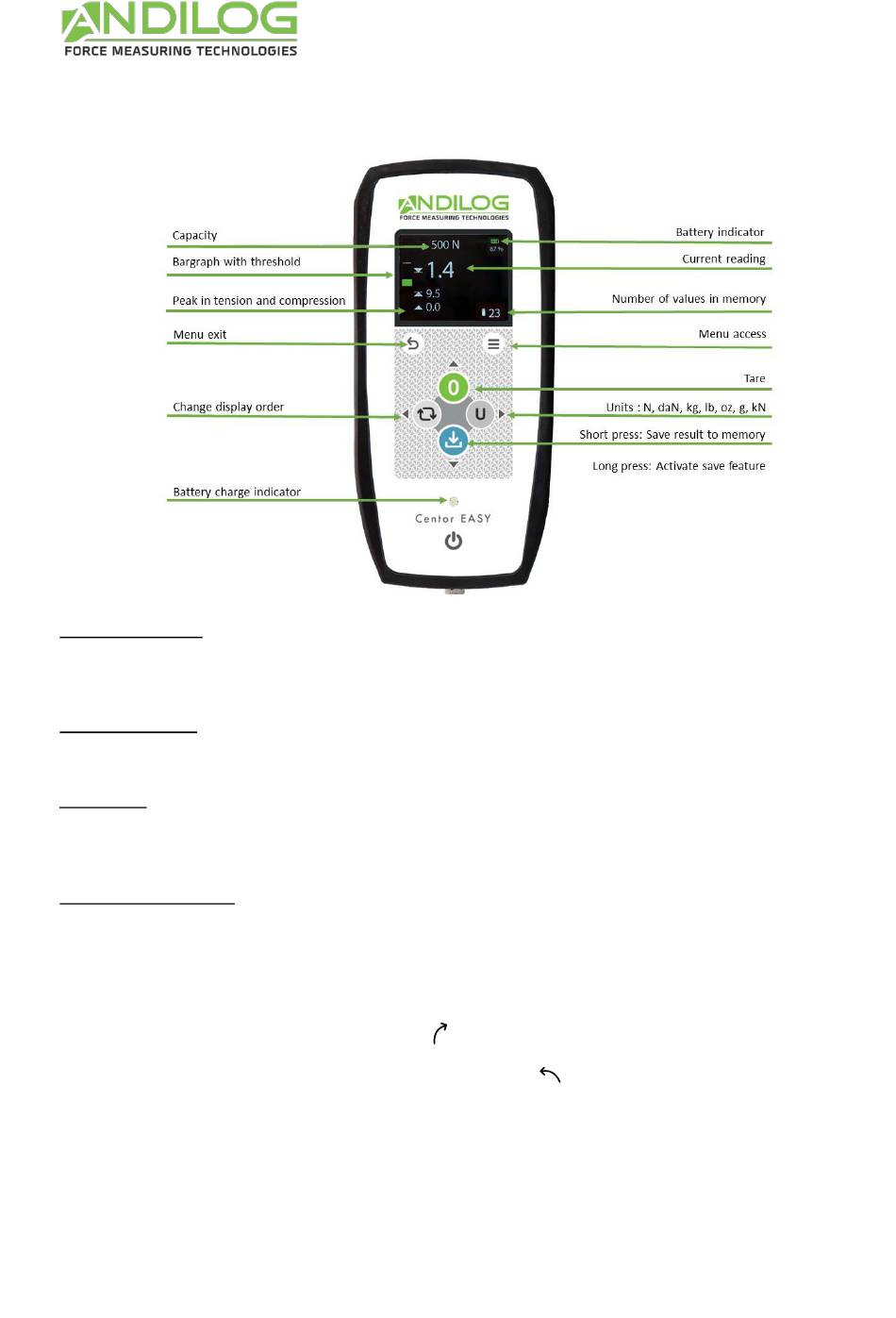

Battery indicator: varies between 0% and 100% to show battery life. When the battery is new, it will
last approximately 15h in continuous use. When the battery percentage reaches 0%, the force gauge
switches off.
: indicates the capacity of the sensor installed in the instrument, as well as the unit of
Capacity display
measurement.
Bar graph: The bar graph shows the operator how much force is being applied relative to the load
cell's maximum capacity. When a compressive force is applied, the bar graph fills upwards. When a
tensile force is applied, the bar graph fills in downwards.
Measurement display:
A force applied in traction will be preceded by the symbol ▼
A force applied in compression is preceded by the symbol ▲
Clockwise torque is preceded by the symbol
A counterclockwise torque will be preceded by the symbol

Measurement screen
