SPX Corporation
5885 11th Street
Rockford, IL 61109-3699 USA
Internet Address:
http://www.powerteam.com
NOTE:
● ● Read and carefully follow these instructions. Most problems with new equipment are caused by improper
operation or installation.
WARNING: To help avoid personal injury,
Hydraulic Hose
● ● Before operating the pump, all hose connections must be tightened with the proper tools. Do not
overtighten. Connections should only be tightened securely and leak-free. Overtightening can cause
premature thread failure or high pressure fittings to split at pressures lower than their rated capacities.
● ● Should a hydraulic hose ever rupture, burst, or need to be disconnected, immediately shut off the pump
and shift the control valve twice to release all pressure. Never attempt to grasp a leaking hose under
pressure with your hands. The force of escaping hydraulic fluid could cause serious injury.
● ● Do not subject the hose to potential hazard such as fire, sharp surfaces, extreme heat or cold, or heavy
impact. Do not allow the hose to kink, twist, curl, or bend so tightly that the oil flow within the hose is
blocked or reduced. Periodically inspect the hose for wear, because any of these conditions can damage
the hose and result in personal injury.
● ● Do not use the hose to move attached equipment. Stress can damage the hose and cause personal
injury.
● ● Hose material and coupler seals must be compatible with the hydraulic fluid used. Hoses also must not
come in contact with corrosive materials such as creosote-impregnated objects and some paints.
Consult the manufacturer before painting a hose. Never paint the couplers. Hose deterioration due to
corrosive materials can result in personal injury.
Pump
● ● Do not exceed the PSI hydraulic pressure rating noted on the pump nameplate or tamper with the internal
high pressure relief valve. Creating pressure beyond rated capacities can result in personal injury.
● ● Before replenishing the oil level, retract the system to prevent overfilling the pump reservoir. An overfill
can cause personal injury due to excess reservoir pressure created when cylinders are retracted.
Cylinder
● ● Do not exceed rated capacities of the cylinders. Excess pressure can result in personal injury.
● ● Do not set poorly-balanced or off-center loads on a cylinder. The load can tip and cause personal injury.
Tech. Services: (800) 477-8326
Fax: (800) 765-8326
Order Entry: (800) 541-1418
Fax: (800) 288-7031

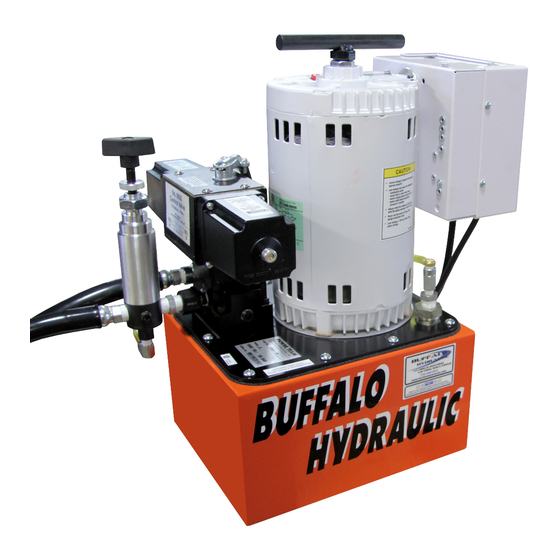

ELECTRIC
TWO-STAGE HYDRAULIC PUMP
SAFETY PRECAUTIONS
®
Operating Instructions for:
Next
Page
Form No. 102560
1U-5555
4057-50-220
1U-5565
PE460A-50-220
4055-50-110
PE462-50-220
4055-50-220
PE464-50-220
4056-50-110
PE464S
4057-50-110
Sheet No.
1 of 4
Issue Date:
Rev. 1-15-95
Advertisement
Table of Contents
Related Manuals for SPX POWER TEAM 1U-5555
Summary of Contents for SPX POWER TEAM 1U-5555
- Page 1 Form No. 102560 ® Operating Instructions for: 1U-5555 4057-50-220 SPX Corporation Tech. Services: (800) 477-8326 1U-5565 PE460A-50-220 5885 11th Street Fax: (800) 765-8326 4055-50-110 PE462-50-220 Rockford, IL 61109-3699 USA Order Entry: (800) 541-1418 4055-50-220 PE464-50-220 Fax: (800) 288-7031 4056-50-110 PE464S...
-
Page 2: Operating Procedure
Operating Instructions, Form No. 102560, Back sheet 1 of 4 WARNING cont'd Power Supply (Electric) ● ● Do not use an ungrounded (two-prong) extension cord with this unit. ● ● Avoid any conditions that could create an electrical hazard. ● ● Any electrical work must be done by a qualified electrician. ●... - Page 3 Form No. 102560 Operating Instructions Pump Operation When operating the pump for the first time: 1. All valve and hose connections should be secure, and the reservoir should be filled to the proper level. Connect the power supply. 2. Activate the pump, and advance the cylinder(s) by pushing the UP button on the remote control switch. The motor shuts off when the UP button is released, and system pressure is held.
-
Page 4: Preventive Maintenance
Operating Instructions, Form No. 102560, Back sheet 2 of 4 PREVENTIVE MAINTENANCE WARNING: To help prevent personal injury, ● ● Disconnect the pump from the power source before performing maintenance or repair procedures. ● ● Repairs or maintenance must be performed in a dust-free area by a qualified technician. Bleeding Air from the System Upon initial start up or after prolonged use, air can accumulate within the hydraulic system. -
Page 5: Troubleshooting
Form No. 102560 Operating Instructions TROUBLE-SHOOTING WARNING: To help prevent personal injury, any repair work or trouble-shooting must be done by qualified personnel familiar with this equipment. North American & International Color Codes Conductors North American International Next Line ......Black....Brown Page Neutral .......White ....Blue Ground ......Green ....Green/Yellow... - Page 6 Operating Instructions, Form No. 102560, Back sheet 3 of 4 PROBLEM CAUSE SOLUTION Electric motor does not run. 1. Unit is not plugged in. 1. Plug in unit. 2. No voltage supply. 2. Check line voltage. Check reset button on power panel. 3.
- Page 7 Form No. 102560 Operating Instructions PROBLEM CAUSE SOLUTION Pump builds pressure but cannot 1. Check to see if there are any 1. Reseal leaking pipe fittings with maintain pressure. external leaks. If no oil leakage pipe sealant. is visible, the problem is internal. 2.
- Page 8 Operating Instructions, Form No. 102560, Back sheet 4 of 4 PROBLEM CAUSE SOLUTION Pump delivers excess oil pressure 1. Check pressure gauge. 1. Calibrate gauge. 2. Relief valve not properly set. 2. Reset the relief valve. Automatic valve will not build full 1.
