SPX Corporation
5885 11th Street
Rockford, IL 61109-3699 USA
Internet Address:
http://www.powerteam.com
Tech. Services: (800) 477-8326
Fax: (800) 765-8326
Order Entry: (800) 541-1418
Fax: (800) 288-7031
NOTE:
•
Read and carefully follow these instructions. Most problems with new equipment are caused by improper
operation or installation.
WARNING:
To help avoid personal injury,
Hydraulic Hose
•
Before operating the pump, all hose connections must be tightened with the proper tools. Do not
overtighten. Connections should only be tightened securely and leak-free. Overtightening can cause
premature thread failure or high pressure fittings to split at pressures lower than their rated capacities.
•
Should a hydraulic hose ever rupture, burst, or need to be disconnected, immediately shut off the pump
and shift the control valve twice to release all pressure. Never attempt to grasp a leaking hose under
pressure with your hands. The force of escaping hydraulic fluid could cause serious injury.
•
Do not subject the hose to potential hazard such as fire, sharp surfaces, extreme heat or cold, or heavy
impact. Do not allow the hose to kink, twist, curl, or bend so tightly that the oil flow within the hose is
blocked or reduced. Periodically inspect the hose for wear, because any of these conditions can damage
the hose and result in personal injury.
•
Do not use the hose to move attached equipment. Stress can damage the hose and cause personal injury.
•
Hose material and coupler seals must be compatible with the hydraulic fluid used. Hoses also must not
come in contact with corrosive materials such as creosote-impregnated objects and some paints. Consult
the manufacturer before painting a hose. Never paint the couplers. Hose deterioration due to corrosive
materials can result in personal injury.
Pump
•
Do not exceed the PSI hydraulic pressure rating noted on the pump nameplate or tamper with the internal
high pressure relief valve. Creating pressure beyond rated capacities can result in personal injury.
•
Before replenishing the oil level, retract the system to prevent overfilling the pump reservoir. An overfill
can cause personal injury due to excess reservoir pressure created when cylinders are retracted.
Cylinder
•
Do not exceed rated capacities of the cylinders. Excess pressure can result in personal injury.
•
Do not set poorly-balanced or off-center loads on a cylinder. The load can tip and cause personal injury.
© SPX Corporation
®
®
SPX Corporation
655 Eisenhower Drive
Owatonna, MN 55060-0995 USA
Phone: (507) 455-7000
Tech. Services: (800) 533-6127
Fax: (800) 955-8329
Order Entry: (507) 455-1480
Fax: (800) 283-8665
International Sales: (507) 455-7223
Fax: (507) 455-7746

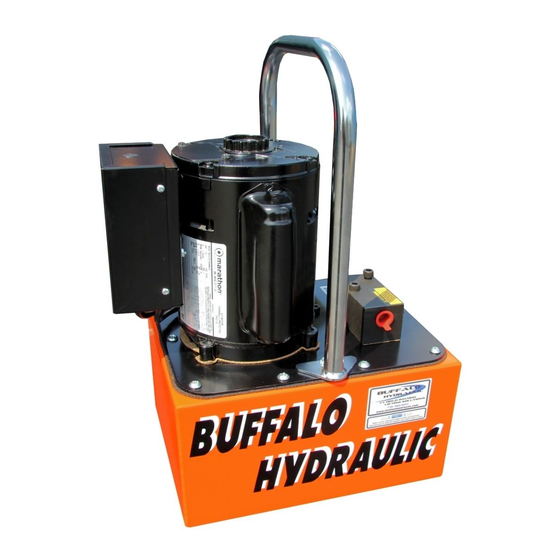

ELECTRIC
TWO-STAGE HYDRAULIC PUMP
SAFETY PRECAUTIONS
Form No. 102637
Operating Instructions for:
4055
PE462A
4056
PE462A-ACE
4057
PE462A-PARK
PE46-CIV
PE462S
PE462
PE462S-CL
Sheet No.
Rev. 4
PE462S-HWBODY
PE462S-HWMAX
PE464
PE464-230
PE464S
PE464S-230
1 of 4
Date: 25 Aug. 2000
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SPX POWER TEAM 4055
Summary of Contents for SPX POWER TEAM 4055
- Page 1 ® ® Operating Instructions for: SPX Corporation SPX Corporation 5885 11th Street 655 Eisenhower Drive PE462S-HWBODY Rockford, IL 61109-3699 USA Owatonna, MN 55060-0995 USA 4055 Phone: (507) 455-7000 PE462S-HWMAX PE462A Internet Address: Tech. Services: (800) 533-6127 4056 PE464 PE462A-ACE http://www.powerteam.com Fax: (800) 955-8329 Tech.
-
Page 2: Operating Procedure
Operating Instructions, Form No. 102637, Back sheet 1 of 4 WARNING: cont'd Power Supply (Electric) • IMPORTANT: In order to meet cer tain electrical safety requirements, pumps in this series wired for 115 Volt AC 60 Hz are required to contain a 20 AMP plug as shown to the right. Plug unit into the appropriate 20 AMP electrical female 20 AMP receptacle. - Page 3 Operating Instructions Form No. 102637 Hydraulic Connections 1. Clean all the areas around the oil ports of the pump and cylinder(s). 2. Inspect all threads and fittings for signs of wear or damage, and replace as needed. 3. Clean all hose ends, couplers, or union ends. 4.
-
Page 4: Preventive Maintenance
Operating Instructions, Form No. 102637, Back sheet 2 of 4 PREVENTIVE MAINTENANCE WARNING: To help prevent personal injury, • Disconnect the pump from the power source before performing maintenance or repair procedures. • Maintenance and repairs must be performed in a dust-free area by a qualified technician. Bleeding Air from the System Upon initial start up or after prolonged use, air can accumulate within the hydraulic system. -
Page 5: Troubleshooting
Operating Instructions Form No. 102637 TROUBLE-SHOOTING WARNING: To help prevent personal injury, any repair work or trouble-shooting must be done by qualified personnel familiar with this equipment. North American & International Color Codes Conductors North American International Line ......Black....Brown Neutral .......White ....Blue Ground ......Green ....Green/Yellow NOTE: •... - Page 6 Operating Instructions, Form No. 102637, Back sheet 3 of 4 PROBLEM CAUSE SOLUTION Electric motor does not run. 1. Unit is not plugged in. 1. Plug in unit. 2. No voltage supply. 2. Check line voltage. Check reset button on power panel. 3.
- Page 7 Operating Instructions Form No. 102637 PROBLEM CAUSE SOLUTION Pump builds pressure but 1. Check to see if there are 1. Reseal leaking pipe fittings with cannot maintain pressure. any external leaks. If no oil pipe sealant. leakage is visible, the problem is internal.
- Page 8 Operating Instructions, Form No. 102637, Back sheet 4 of 4 PROBLEM CAUSE SOLUTION Pump delivers excess oil 1. Check pressure gauge. 1. Calibrate gauge. pressure 2. Relief valve not properly set. 2. Reset the relief valve. Automatic valve will not build full 1.
