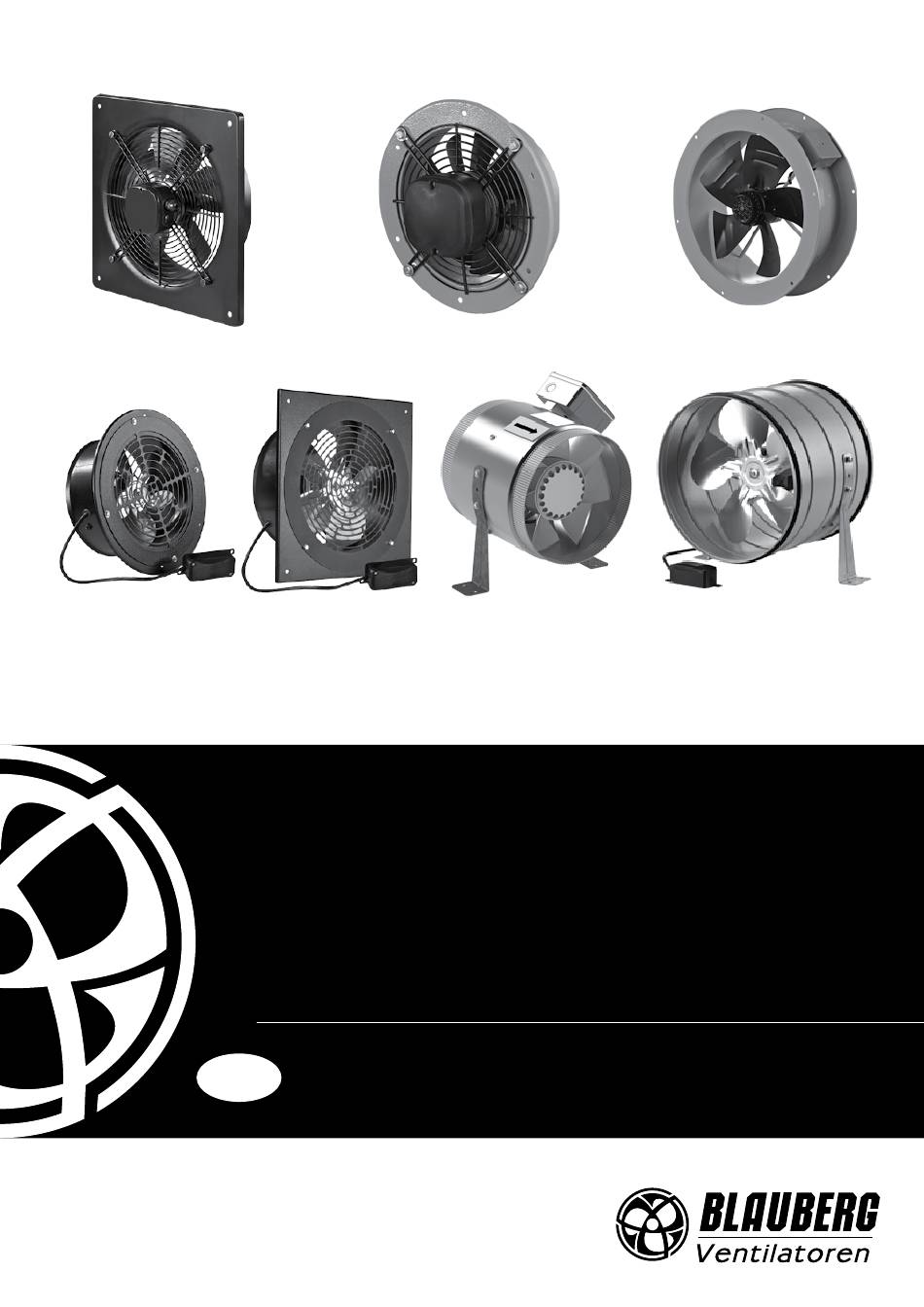

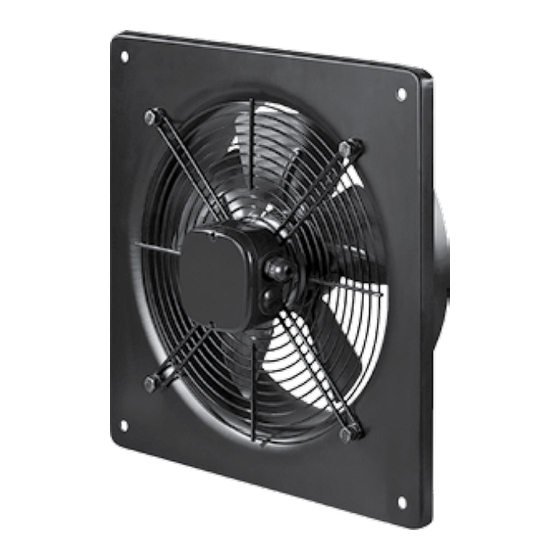

  • Page 1 ElEctric axial fans Axis-Q Axis-QRA Axis-QR Tubo-F Axis-F Tubo-M(Z) Axis-QA Tubo-MA(Z) USER’S MANUAL...
  • Page 2: Table Of Contents

    The manual contains information about purpose, technical details, operating principle, design, and installation of the Axis-Q / Axis-QR / Axis-F / Axis-QA / Axis-QRA / Tubo-F / Tubo-M(Z) / Tubo-MA(Z) unit and all its modifications. Technical and maintenance staff must have theoretical and practical training in the field of ventilation systems and should be able to work in accordance with workplace safety rules as well as construction norms and standards applicable in the territory of the country.
  • Page 3 / axis-Qr / axis-f / axis-Qa / axis-Qra / tubo-f / tubo-M(Z) / tubo-Ma(Z) www.blaubergventilatoren.de The information in this user’s manual was correct at the time of the document’s preparation. The Company reserves the right to modify the technical characteristics, design, or configuration of its products at any time in order to incorporate the latest technological developments.
  • Page 4: Purpose

    / axis-Qr / axis-f / axis-Qa / axis-Qra / tubo-f / tubo-M(Z) / tubo-Ma(Z) www.blaubergventilatoren.de PURPOSE Electric axial fans are designed for direct extraction of indoor air outdoors and supply of fresh outdoor air into the premises. The unit is a component part and is not designed for stand-alone operation.
  • Page 5: Designation Key

    / axis-Qr / axis-f / axis-Qa / axis-Qra / tubo-f / tubo-M(Z) / tubo-Ma(Z) www.blaubergventilatoren.de DESIGNATION KEY Axis-Q 200 4Е Designation example: Model Axis-Q: axial fans with a square plate Axis-QR: axial fans with a round plate Axis-F: duct axial fan with a connection flange...
  • Page 6 / axis-Qr / axis-f / axis-Qa / axis-Qra / tubo-f / tubo-M(Z) / tubo-Ma(Z) www.blaubergventilatoren.de Dimensions [mm] Weight Model [kg] Ø D Ø d Axis-Q 200 2E Axis-Q 250 2E / Axis-Q 250 2D Axis-Q Axis-Q 250 4E / Axis-Q 250 4D Axis-Q 300 4E / Axis-Q 300 4D 6.1 / 5.4...
  • Page 7 / axis-Qr / axis-f / axis-Qa / axis-Qra / tubo-f / tubo-M(Z) / tubo-Ma(Z) www.blaubergventilatoren.de Dimensions [mm] Weight Model [kg] Ø D Ø D1 Ø D2 Ø d Axis-F 200 2E Axis-F 250 2E/Axis-F 250 2D Axis-F Axis-F 250 4E/Axis-F 250 4D Axis-F 300 2E/Axis-F 300 2D 6.2 / 5.7...
  • Page 8 / axis-Qr / axis-f / axis-Qa / axis-Qra / tubo-f / tubo-M(Z) / tubo-Ma(Z) www.blaubergventilatoren.de Tubo-F Dimensions [mm] Weight Model [kg] Ø D Tubo-F 200 2E Tubo-F 250 2E Tubo-F 250 4E Tubo-F 300 2E Tubo-F 300 4E Tubo-F 350 4E...
  • Page 9 / axis-Qr / axis-f / axis-Qa / axis-Qra / tubo-f / tubo-M(Z) / tubo-Ma(Z) www.blaubergventilatoren.de RSM(Z) Tubo-M(Z) RSM(Z) fans are equipped with (polymer-coated steel, galvanized steel) reducers for connection to 150 mm, 200 mm and 250 mm air ducts. The reducers are not included in the delivery set and must be ordered separately.
  • Page 10: Unit Design And Operating Principle

    / axis-Qr / axis-f / axis-Qa / axis-Qra / tubo-f / tubo-M(Z) / tubo-Ma(Z) www.blaubergventilatoren.de UNIT DESIGN AND OPERATING PRINCIPLE Axis-Q Axis-QR fans consist of a casing 1 with a square or a round flange with a grille fixed with bolts 4 and complete with an electric motor and impeller 5.
  • Page 11: Mounting And Set-Up

    / axis-Qr / axis-f / axis-Qa / axis-Qra / tubo-f / tubo-M(Z) / tubo-Ma(Z) www.blaubergventilatoren.de Tubo-F, Tubo-M(Z), Tubo-MA(Z) fans The brackets 2 are attached to the casing with bolts 1. The electric motor with the impeller 4 is mounted on the bracket 3 inside the Tubo-F casing.
  • Page 12 / axis-Qr / axis-f / axis-Qa / axis-Qra / tubo-f / tubo-M(Z) / tubo-Ma(Z) www.blaubergventilatoren.de Axis-Q fan installation Axis-QR fan installation...
  • Page 13 / axis-Qr / axis-f / axis-Qa / axis-Qra / tubo-f / tubo-M(Z) / tubo-Ma(Z) www.blaubergventilatoren.de Axis-QA and Axis-QRA fan installation...
  • Page 14 / axis-Qr / axis-f / axis-Qa / axis-Qra / tubo-f / tubo-M(Z) / tubo-Ma(Z) www.blaubergventilatoren.de Axis-F fan installation The fans are installed into air ducts by means of connection flanges. The fan must be installed in such a way so that the direction of the arrow shown on the casing matches the direction of air flow in the system.
  • Page 15 / axis-Qr / axis-f / axis-Qa / axis-Qra / tubo-f / tubo-M(Z) / tubo-Ma(Z) www.blaubergventilatoren.de Tubo-M(Z) fan installation RSM(Z) The fans are installed into air duct by means of an reducer which enables joining different diameter ducts. Once done, the Tubo-M(Z) assembly is secured with clamps.
  • Page 16: Connection To Power Mains

    / axis-Qr / axis-f / axis-Qa / axis-Qra / tubo-f / tubo-M(Z) / tubo-Ma(Z) www.blaubergventilatoren.de CONNECTION TO POWER MAINS DISCONNECT THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. CONNECTION OF THE UNIT TO POWER MAINS IS ALLOWED BY A QUALIFIED ELECTRICIAN WITH A WORK PERMIT FOR THE ELECTRIC UNITS UP TO 1000 V AFTER CAREFUL READING OF THE PRESENT USER’S MANUAL.
  • Page 17 / axis-Qr / axis-f / axis-Qa / axis-Qra / tubo-f / tubo-M(Z) / tubo-Ma(Z) www.blaubergventilatoren.de Axis-Q and Axis-QR fan connection Axis-QA fan connection...
  • Page 18 / axis-Qr / axis-f / axis-Qa / axis-Qra / tubo-f / tubo-M(Z) / tubo-Ma(Z) www.blaubergventilatoren.de Axis-F, Tubo-M(Z), Tubo-MA(Z) fan connection Tubo-F fan connection...
  • Page 19: Technical Maintenance

    / axis-Qr / axis-f / axis-Qa / axis-Qra / tubo-f / tubo-M(Z) / tubo-Ma(Z) www.blaubergventilatoren.de TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! MAKE SURE THE UNIT IS DISCONNECTED FROM POWER MAINS BEFORE REMOVING THE PROTECTION All the operations specific to the technical maintenance must be performed upon disconnecting the fan from power mains.
  • Page 20 / axis-Qr / axis-f / axis-Qa / axis-Qra / tubo-f / tubo-M(Z) / tubo-Ma(Z) www.blaubergventilatoren.de Axis-QA and Axis-QRA technical maintenance Tubo-F, Tubo-M(Z), Tubo-MA(Z) technical maintenance...
  • Page 21: Troubleshooting

    / axis-Qr / axis-f / axis-Qa / axis-Qra / tubo-f / tubo-M(Z) / tubo-Ma(Z) www.blaubergventilatoren.de TROUBLESHOOTING PROBLEM POSSIBLE REASONS TROUBLESHOOTING Check the electrical connections and the power No electric power. switch status. The fan will not start on power-up.
  • Page 22: Manufacturer's Warranty

    / axis-Qr / axis-f / axis-Qa / axis-Qra / tubo-f / tubo-M(Z) / tubo-Ma(Z) www.blaubergventilatoren.de MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC.
  • Page 23: Certificate Of Acceptance

    / axis-Qr / axis-f / axis-Qa / axis-Qra / tubo-f / tubo-M(Z) / tubo-Ma(Z) www.blaubergventilatoren.de CERTIFICATE OF ACCEPTANCE Unit Type Electric axial fans Model Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual.
  • Page 24 www.blaubergventilatoren.de B03EN-13...
