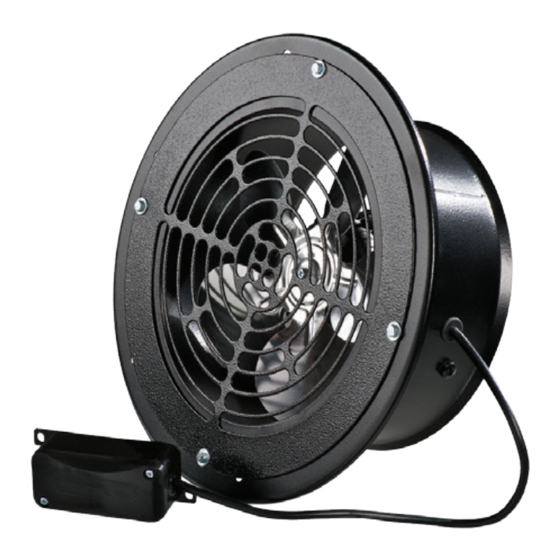

- Page 1 TUBO-M/MZ AXIS-QA AXIS-Q TUBO-F AXIS-QR AXIS-F AXIS-QRA AXIS-QA G AXIAL FANS Axis / Tubo OPERATION MANUAL...
-
Page 2: Table Of Contents
Axis / Tubo www.blaubergventilatoren.de CONTENT Introduction General Safety rules Transport and storage requirements Manufacturer's warranty Fan design Delivery set Modifications and options Technical data Mounting and operation guidelines Mounting sequence Installation and connection to power mains Maintenance Warranty card... -
Page 3: Introduction
BLAUBERG Company is happy to offer your attention the new high-quality equipment to prevent back drafting. The maximum permitted pressure axial fans Blauberg Axis and Blauberg Tubo. The solid team of high-qualified difference per living units is 4 Pa. professionals with many years of working experience, technological... -
Page 4: Fan Design
Axis / Tubo www.blaubergventilatoren.de AXIS-Q / AXIS-QR / AXIS-QA / AXIS-QRA FAN DESIGN DELIVERY SET casing fan – 1 item; operation manual. cover flange flange MODIFICATIONS AND OPTIONS terminal AXIS-Q block Fan with a square mounting plate impeller AXIS-QR Fan with a round mounting plate Fig. -
Page 5: Technical Data
Axis / Tubo www.blaubergventilatoren.de TECHNICAL DATA AXIS-Q / AXIS-QR / AXIS-F Technical data Axis-Q / Axis-QR / Axis-F Axis-Q / Axis-QR / Axis-F Axis-Q / Axis-QR / Axis-F Axis-Q / Axis-QR / Axis-F 200 2E 250 2E 250 4E 300 2E Voltage 1~ 220-240 1~ 220-240... - Page 6 Axis / Tubo www.blaubergventilatoren.de Axis-Q / Axis-QR / Axis-F Axis-Q / Axis-QR / Axis-F Axis-Q / Axis-QR / Axis-F Axis-Q / Axis-QR / Axis-F 250 2D 250 4D 300 2D 300 4D Voltage 3~ 400 3~ 400 3~ 400 3~ 400 Frequency [Hz] Power [W] 0.22...
- Page 7 Axis / Tubo www.blaubergventilatoren.de Overall dimensions Axis-QR Dimensions [mm] Weight Type [kg] Ø D Ø D1 Ø D2 Ø d Axis-QR 200 2E Axis-QR 250 2E / Axis-QR 250 2D Axis-QR 250 4E / Axis-QR 250 4D Axis-QR 300 2E Axis-QR 300 2D Axis-QR 300 4E Axis-QR 300 4D...
- Page 8 Axis / Tubo www.blaubergventilatoren.de AXIS-QA / AXIS-QRA / TUBO-MZ / TUBO-F Technical data Tubo-F Tubo-F Tubo-F Tubo-F Tubo-F Tubo-F 200 2E* 250 2E* 250 4E* 300 2E 300 4E* 350 4E Voltage, 50 Hz [V] Power [W] Current [A] 0.26 0.22 0.66 0.35...
- Page 9 Axis / Tubo www.blaubergventilatoren.de Axis-QRA Dimensions [mm] Weight Type [kg] Ø D Ø D1 Ø D2 Ø d Axis-QRA 150 Axis-QRA 200 Axis-QRA 250 Axis-QRA 315 Fig. 8 Tubo-M / Tubo-MZ Dimensions [mm] Weight Type [kg] Ø D Tubo-M 150 / Tubo-MZ 150 Tubo-M 200 / Tubo-MZ 200 Tubo-M 250 / Tubo-MZ 250 Tubo-M 315 / Tubo-MZ 315...
-
Page 10: Mounting And Operation Guidelines
Axis / Tubo www.blaubergventilatoren.de MOUNTING AND OPERATION GUIDELINES The air motion direction in the system must match the pointer on the fan casing. Install the fan to ensure sufficient and quick access for servicing and repair operations. The fan must be grounded. While mounting protect the fan against water ingress in the following way: Fig. -
Page 11: Installation And Connection To Power Mains
Axis / Tubo www.blaubergventilatoren.de MOUNTING SEQUENCE MOUNTING SEQUENCE AXIS-F TUBO-M / TUBO-MZ Fig. 28 Fig. 29 Fig. 32 Fig. 33 Fig. 30 Fig. 31 Fig. 34 Fig. 35 Fig. 36 Fig. 37 INSTALLATION AND CONNECTION TO POWER MAINS Connection of the fan to power mains is allowed by a qualified electrician AXIS-Q only. - Page 12 Axis / Tubo www.blaubergventilatoren.de INSTALLATION AND CONNECTION TO POWER MAINS AXIS-Q AXIS-QR Fig. 43 Fig. 44 Fig. 42 Fig. 45 AXIS-F Fig. 46 Fig. Fig. 47 Fig. 49 Fig. 48 Abb. Fig. AXIS-QA AXIS-QRA AXIS-QA G Fig. 51 Fig. 53 Fig.
-
Page 13: Maintenance
Axis / Tubo www.blaubergventilatoren.de MAINTENANCE Regular technical supervision and maintenance of the fan are required to Maintenance of the fan is required and means cleaning the fan surfaces from ensure the product long service life and non-stop operation. dust and dirt. Maintenance includes regular cleaning, control of the impeller, Disconnect the fan from power mains prior to any maintenance operations, motor, impeller blades. -
Page 14: Warranty Card
TUBO___________ is connected to power mains in compliance with the operation manual requirements by the professional: Company: Expert’s Full Name Date Signature WARRANTY CARD Axis___________ TUBO___________ SELLER PURCHASE DATE REPRESENTATIVE IN EU BLAUBERG Ventilatoren GmbH Aidenbachstr. 52 D-81379 Munich, Germany... - Page 15 Axis / Tubo www.blaubergventilatoren.de...
- Page 16 www.blaubergventilatoren.de BL_AXIS_4(8)_EN...
