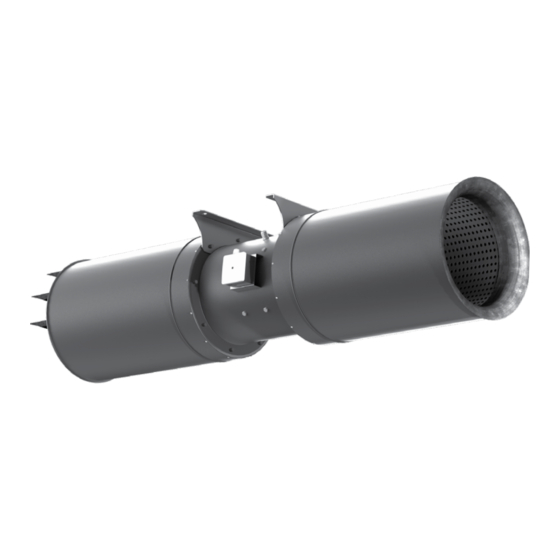

- Page 1 Jet axial fan axis-Jet USER’S MANUAL...
-
Page 2: Table Of Contents
axis-Jet www.blaubergventilatoren.de CONTENTS Safety requirements ..................................2 Purpose ........................................ 4 Delivery set ......................................4 Designation key ....................................4 Technical data ....................................5 Design and operating principle ............................10 Mounting and set-up .................................. 11 Connection to power mains ..............................12 Commissioning ....................................14 Technical maintenance ................................ - Page 3 axis-Jet www.blaubergventilatoren.de • Do not change the power cable length at your own discretion. • Do not bend the power cable. • Do not lay the power cable of the unit in • Avoid damaging the power cable. close proximity to heating equipment. •...
-
Page 4: Purpose
axis-Jet www.blaubergventilatoren.de PURPOSE THE UNIT SHOULD NOT BE OPERATED BY CHILDREN OR PERSONS WITH REDUCED PHYSICAL, MENTAL, OR SENSORY CAPACITIES, OR THOSE WITHOUT THE APPROPRIATE TRAINING. THE UNIT MUST BE INSTALLED AND CONNECTED ONLY BY PROPERLY QUALIFIED PERSONNEL AFTER THE APPROPRIATE BRIEFING. THE CHOICE OF UNIT INSTALLATION LOCATION MUST PREVENT UNAUTHORIZED ACCESS BY UNATTENDED CHILDREN. -
Page 5: Technical Data
axis-Jet www.blaubergventilatoren.de TECHNICAL DATA The unit is rated as a Class I electrical appliance. Ingress protection rating against access to hazardous parts and water ingress is IP55 for the motor and IP54 for the unit. The fan design is constantly being improved, thus some models may be slightly different from those described in this manual. UNIDIRECTIONAL FAN REVERSIBLE FAN Dimensions [mm]... - Page 6 axis-Jet www.blaubergventilatoren.de Number Max. Thrust Operating Ø, Air flow Voltage Frequency Power Air speed Fire Model air flow (Impulse) temperature direction [Hz] [kW] [m/s] [min resistance speeds [m3/h] [°C]* -25...+55 °C 55 °C Axis-Jet-KI-315-2-U-... 200 °C/2 h F200 Axis-Jet-KI-315-2-U-...-200/2 3 ~ 400 0.55 4000 14.3...
- Page 7 axis-Jet www.blaubergventilatoren.de Number Max. Thrust Operating Ø, Air flow Voltage Frequency Power Air speed Fire Model air flow (Impulse) temperature direction [Hz] [kW] [m/s] [min resistance speeds [m3/h] [°C]* -25...+55 °C 55 °C Axis-Jet-KI-400-2-U-... Axis-Jet-KI-400-2-U-...-200/2 200 °C/2 h F200 3 ~ 400 8500 18.8 2880...
- Page 8 axis-Jet www.blaubergventilatoren.de Number Max. Thrust Operating Ø, Air flow Voltage Frequency Power Air speed Fire Model air flow (Impulse) temperature direction [Hz] [kW] [m/s] [min resistance speeds [m3/h] [°C]* -25...+55 °C 55 °C Axis-Jet-KI-450-2-U-... Axis-Jet-KI-450-2-U-...-200/2 200 °C/2 h F200 3 ~ 400 10700 18.7 2880...
- Page 9 axis-Jet www.blaubergventilatoren.de Number Max. Thrust Operating Ø, Air flow Voltage Frequency Power Air speed Fire Model air flow (Impulse) temperature direction [Hz] [kW] [m/s] [min resistance speeds [m3/h] [°C]* -25...+55 °C 55 °C Axis-Jet-KI-500-2/4-U-... Axis-Jet-KI-500-2/4-U-...-200/2 200 °C/2 h F200 16600/ 23.6/ 2880/ 3 ~ 400...
-
Page 10: Design And Operating Principle
axis-Jet www.blaubergventilatoren.de DESIGN AND OPERATING PRINCIPLE Louvre shutters Silencer 2 Mounting brackets Casing Nozzle Terminal box Silencer 1 Protective grille Casing The fans are supplied in an all-welded metal casing with rolled flanges. All the casing components are powder coated for improved protection against the environmental effects. -
Page 11: Mounting And Set-Up
axis-Jet www.blaubergventilatoren.de MOUNTING AND SET-UP BEFORE MOUNTING MAKE SURE THE CASING DOES NOT CONTAIN ANY FOREIGN OBJECTS (E.G. FOIL, PAPER). WHILE INSTALLING THE UNIT ENSURE CONVENIENT ACCESS FOR SUBSEQUENT MAINTENANCE AND REPAIR. Wall or ceiling mounting with fixing brackets. Installation is carried out at 4 points using dowels or mounting studs. The specially designed anti-vibration mounts (specially ordered accessories) are recommended for vibration absorption. -
Page 12: Connection To Power Mains
axis-Jet www.blaubergventilatoren.de CONNECTION TO POWER MAINS DISCONNECT THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. CONNECTION OF THE UNIT TO POWER MAINS IS ALLOWED BY A QUALIFIED ELECTRICIAN WITH A WORK PERMIT FOR THE ELECTRIC UNITS UP TO 1000 V AFTER CAREFUL READING OF THE PRESENT USER’S MANUAL. - Page 13 axis-Jet www.blaubergventilatoren.de MAKE SURE THAT THE FAN IMPELLER ROTATES IN THE DIRECTION MARKED BY THE ARROW ON THE FAN CASING. IF NECESSARY, CHANGE THE IMPELLER ROTATION DIRECTION BY ALTERING THE PHASE SEQUENCE ON THE ELECTRIC MOTOR TERMINALS. ASYNCHRONOUS ELECTRIC MOTOR STARTING METHODS There are several methods for starting asynchronous squirrel-cage electric motors.
-
Page 14: Commissioning
axis-Jet www.blaubergventilatoren.de Problems associated with DOL starting The problems caused by DOL starting may be divided into two groups: An abrupt start causes mechanical shock, jolts in the mechanism, shock removal of free play etc. A heavy start cannot be completed. Let us review three variations of a heavy start: 1. -
Page 15: Technical Maintenance
axis-Jet www.blaubergventilatoren.de TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! PRIOR TO COMMENCING ANY TECHNICAL MAINTENANCE PUT UP A PROHIBITORY SIGN ON THE FAN STARTING PANEL: “DO NOT SWITCH ON! MEN AT WORK!” AVOID LIQUID SPILLS ON THE MOTOR! DO NOT USE AGGRESSIVE SOLVENTS AND SHARP OBJECTS FOR CLEANING! The technical maintenance of the fan includes periodic cleaning of the surfaces from dust and dirt and replacement of fan or motor parts. -
Page 16: Troubleshooting
axis-Jet www.blaubergventilatoren.de While performing technical maintenance: • Check the grounding screw terminals and electric connectors for proper tightness and tighten them up if necessary. • Check the casing fastening screws for tightness and tighten them up if necessary. • Check the bolt connecting the motor shaft to the hub for proper tightness and tighten it up if necessary. •... -
Page 17: Storage And Transportation Regulations
axis-Jet www.blaubergventilatoren.de The fan supplies less air than Wrong choice of the fan. Re-calculate the parameters and select the right fan. expected. Wrong direction of the impeller rotation If necessary, change the impeller rotation direction by direction. changing the phase sequence on the electric motor terminals (see the "Commissioning"... -
Page 18: Manufacturer's Warranty
axis-Jet www.blaubergventilatoren.de MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC. -
Page 19: Certificate Of Acceptance
axis-Jet www.blaubergventilatoren.de CERTIFICATE OF ACCEPTANCE Unit Type Jet axial fan Model Axis-Jet-KI-__________________________________ Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. - Page 20 www.blaubergventilatoren.de B114EN-02...
