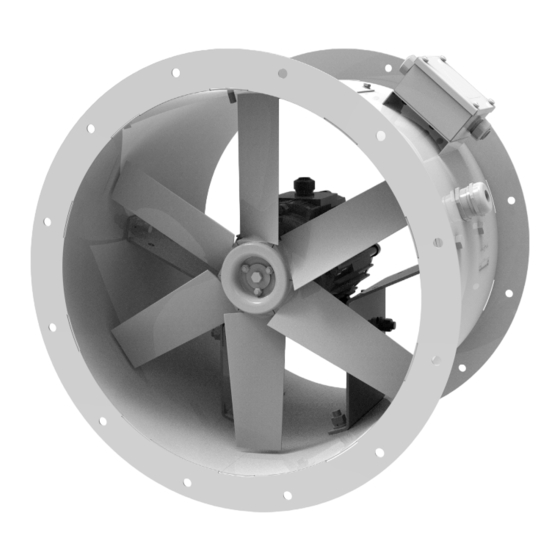

- Page 1 AxiAl smoke extrAction fAn Axis-fP USER’S MANUAL...
-
Page 2: Table Of Contents
Axis-fP www.blaubergventilatoren.de CONTENTS Safety requirements ..................................3 Purpose ........................................ 5 Delivery set ......................................5 Designation key ....................................6 Technical data ....................................7 Unit design and operating principle ..........................8 Installation and set-up................................9 Connection to power mains ..............................11 Commissioning ....................................13 Technical maintenance ................................ -
Page 3: Safety Requirements
Axis-fP www.blaubergventilatoren.de SAFETY REQUIREMENTS • Please read the user’s manual carefully prior to installing and operating the unit. • All user’s manual requirements as well as the provisions of all the applicable local and national construction, electrical, and technical norms and standards must be observed when installing and operating the unit. - Page 4 Axis-fP www.blaubergventilatoren.de • Do not touch the unit controls • Do not wash the unit with with wet hands. Do not water. Protect the electric carry out the installation and parts of the unit against maintenance operations with ingress of water. wet hands.
-
Page 5: Purpose
Axis-fP www.blaubergventilatoren.de PURPOSE The Axis-FP axial smoke extraction fan is designed for removal of smoke from the source of ignition and heat removal outside premises or buildings, as well as to create a microclimate outside the source of fire, enabling firefighting personnel perform their duties in a manner designed for maximum efficiency, effectiveness and safety. -
Page 6: Designation Key
Axis-fP www.blaubergventilatoren.de DESIGNATION KEY Casing Motor Impeller Modification Ax i s - F P 6 3 0 K - 2 D / 5 .5 - 8 / 3 5 / A L - U 1 - X Axis-FP – axial smoke extraction fan Standard size (air duct size) [mm] Casing design: _ –... -
Page 7: Technical Data
Axis-fP www.blaubergventilatoren.de TECHNICAL DATA • Transported air temperature depends on the applied climatic category (see the designation key). • The maximum permissible concentration of solids and dust in the handled air is 10 mg/m3. • The unit is rated as a Class I electrical appliance. •... -
Page 8: Unit Design And Operating Principle
Axis-fP www.blaubergventilatoren.de UNIT DESIGN AND OPERATING PRINCIPLE Impeller Access door VK-AF* SZ-AF* inlet ring protective mesh Terminal box Casing Motor O-AF* carrier *Not included in the delivery set and can be ordered separately. The all-welded metal casing with rolled flanges helps achieve outstanding rigidity and minimum clearances between the casing and the blades. -
Page 9: Installation And Set-Up
Axis-fP www.blaubergventilatoren.de INSTALLATION AND SET-UP ALL OPERATIONS DESCRIBED IN THIS USER’S MANUAL MUST BE PERFORMED BY QUALIFIED PERSONNEL ONLY, PROPERLY TRAINED AND QUALIFIED TO INSTALL AND MAINTAIN VENTILATION EQUIPMENT. DO NOT ATTEMPT TO INSTALL THE PRODUCT YOURSELF. IT IS UNSAFE AND IMPOSSIBLE WITHOUT SPECIAL KNOWLEDGE. WHILE INSTALLING THE UNIT ENSURE CONVENIENT ACCESS FOR SUBSEQUENT MAINTENANCE AND REPAIR. - Page 10 Axis-fP www.blaubergventilatoren.de Fan installation with no upstream ducting Obstructed space installation If the ductwork is not available at the fan inlet, the inlet cone VK-AF must To ensure normal operation of the fan in an obstructed space, make sure be installed to improve aerodynamic parameters of the air flow. to provide for a sufficient distance between the inlet and outlet flanges and the floor, walls, bulky equipment and obstacles.
-
Page 11: Connection To Power Mains
Axis-fP www.blaubergventilatoren.de CONNECTION TO POWER MAINS DISCONNECT THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. CONNECTION OF THE UNIT TO POWER MAINS IS ALLOWED BY A QUALIFIED ELECTRICIAN WITH A WORK PERMIT FOR THE ELECTRIC UNITS UP TO 1000 V AFTER CAREFUL READING OF THE PRESENT USER’S MANUAL. - Page 12 Axis-fP www.blaubergventilatoren.de ASYNCHRONOUS ELECTRIC MOTOR STARTING METHODS There are several methods for starting asynchronous squirrel-cage electric motors. The most common methods are: direct-on-line (DOL), with a soft starter (SS) or with a frequency converter (FC). Direct-on-line starting In case of direct-on-line starting (i.e. by connecting the motor to the electric mains with a simple line contactor), the motor starting time significantly increases due to high inertia of the impeller, which, in turn, results in high in-rush starting currents in the circuit.
-
Page 13: Commissioning
Axis-fP www.blaubergventilatoren.de Problems associated with DOL starting The problems caused by DOL starting may be divided into two groups: An abrupt start causes mechanical shock, jolts in the mechanism, shock removal of free play etc. A heavy start cannot be completed. Let us review three variations of a heavy start: 1. -
Page 14: Technical Maintenance
Axis-fP www.blaubergventilatoren.de TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! PRIOR TO COMMENCING ANY TECHNICAL MAINTENANCE PUT UP A PROHIBITORY SIGN ON THE FAN STARTING PANEL: “DO NOT SWITCH ON! MEN AT WORK!” AVOID LIQUID SPILLS ON THE MOTOR! DO NOT USE AGGRESSIVE SOLVENTS AND SHARP OBJECTS FOR CLEANING! Prior to performing any technical maintenance and repair disconnect the fan from the electric mains and wait until its rotating parts come to a complete stop. - Page 15 Axis-fP www.blaubergventilatoren.de The fan fails to reach the Fan motor overloaded. Eliminate the overload. required rotation speed due to Improper fan starting method. Use a soft starter or frequency converter to start the motor serious overheating of the fan (see “Asynchronous Electric Motor Starting Methods” motor.
-
Page 16: Storage And Transportation Regulations
Axis-fP www.blaubergventilatoren.de STORAGE AND TRANSPORTATION REGULATIONS • Store the unit in the manufacturer’s original packaging box in a dry closed ventilated premise with temperature range from +5 °C to + 40 °C and relative humidity up to 70 %. • Storage environment must not contain aggressive vapors and chemical mixtures provoking corrosion, insulation, and sealing deformation. -
Page 17: Manufacturer's Warranty
Axis-fP www.blaubergventilatoren.de MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Council Directive 2014/30/EU, Low Voltage Directive 2014/35/ EU and CE-marking Directive 93/68/EEC. - Page 18 Axis-fP www.blaubergventilatoren.de...
-
Page 19: Certificate Of Acceptance
Axis-fP www.blaubergventilatoren.de CERTIFICATE OF ACCEPTANCE Unit Type Axial smoke extraction fan Model Axis-FP _______________________ Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. - Page 20 www.blaubergventilatoren.de B118-1EN-01...
