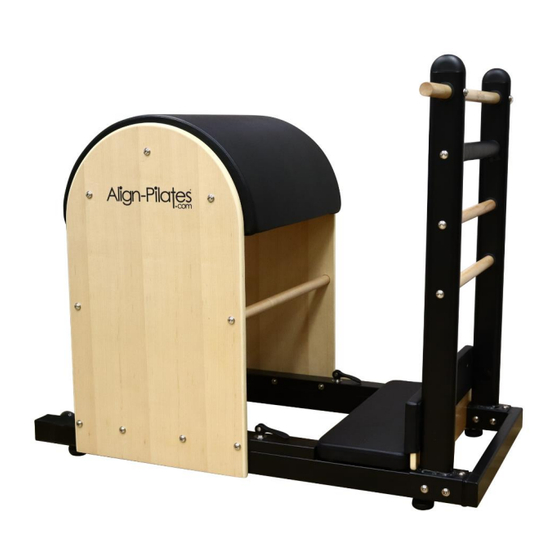

Thank you for purchasing an Align-Pilates Ladder barrel, we trust that this will prove to be a valued
addition to your Pilates Studio. We have strived to make our ladder barrel as flexible as possible,
designing the barrel to open widely and close tightly which combined with the inclusion of two
padded standing platforms for free, making the apparatus suitable for people of all shapes and
sizes.
Content
1. Unpacking the Ladder Barrel
2. Ladder Barrel parts list
3. Tools and components diagram
4. Assembly Instructions
5. Before First Use
6. Warranty
7. Exploded diagram
1. Unpacking the ladder barrel
Please note these assembly instructions are not exhaustive. At all times you are responsible for your own
safety.
Please unpack the equipment in a clear, clean & dry environment on a level floor surface.
Ladder Barrel RC Assembly Instructions
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Align-Pilates Ladder Barrel RC
Summary of Contents for Align-Pilates Ladder Barrel RC

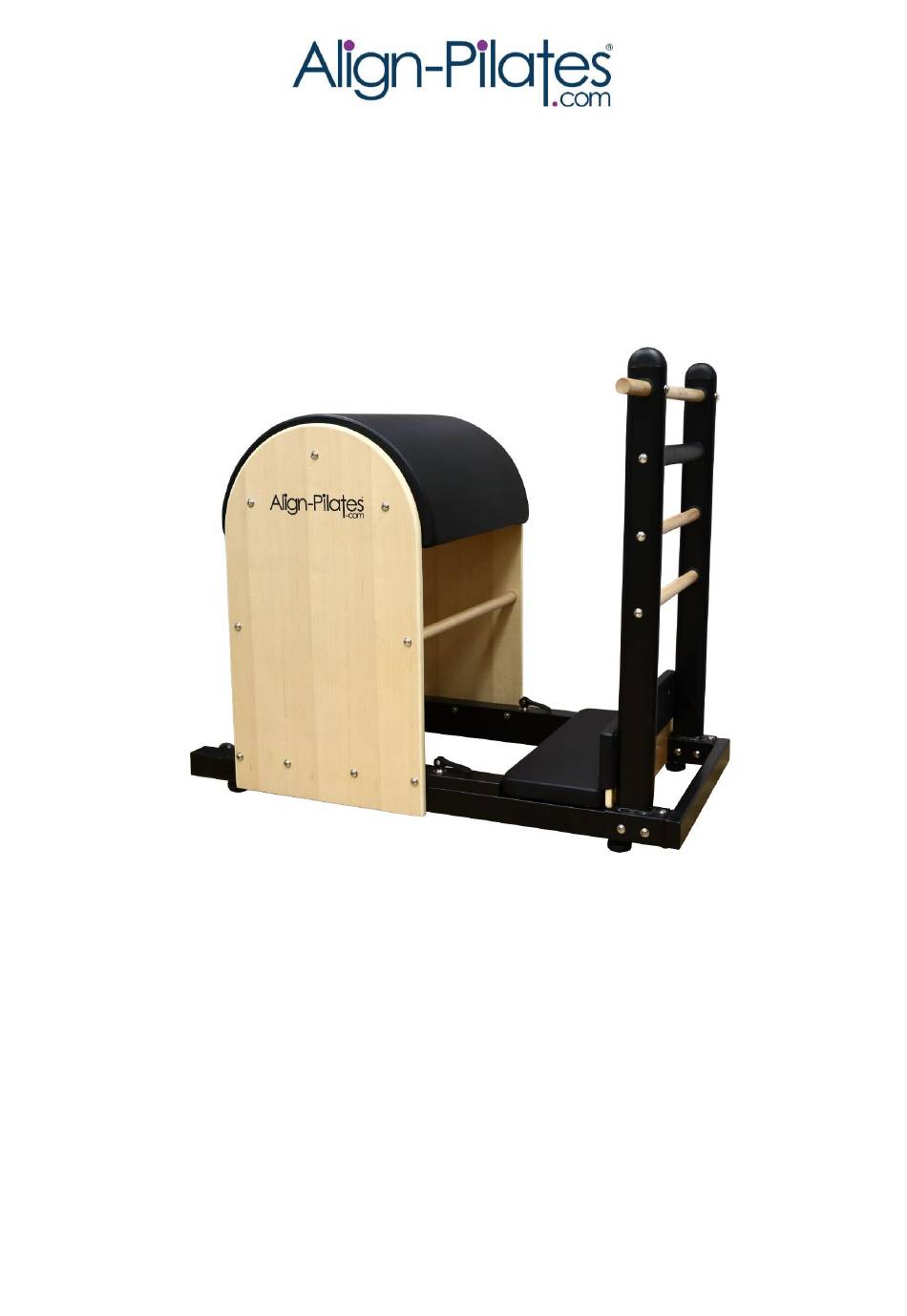

- Page 1 Ladder Barrel RC Assembly Instructions Thank you for purchasing an Align-Pilates Ladder barrel, we trust that this will prove to be a valued addition to your Pilates Studio. We have strived to make our ladder barrel as flexible as possible,...
- Page 2 Ladder Barrel RC Thank you for buying an Align-Pilates Ladder Barrel RC. In order to set up your reformer we recommend you watch our YouTube assembly video prior to assembling and using your reformer. On our YouTube channel you will also find a host of useful information on using, servicing and maintaining your reformer, as well as Pilates workouts and detailed breakdowns of individual Pilates exercises.
- Page 3 Translations Français Téléchargez votre document traduit ici, scannez ce code QR Deutsch Laden Sie hier Ihr übersetztes Dokument herunter, scannen Sie diesen QR-Code Español Descarga tu documento traducido aquí, escanea este código QR ת י ִר ב ִע -ה דוק תא קורס ,ןאכ ךלש םגרותמה ךמסמה תא דרוהQR הזה 中国人...
- Page 4 2. Ladder Barrel Parts List 3. Tools and Components Diagram...
- Page 5 4. Assembly Instructions • Take out the side panels and lay on a soft surface to not scratch the wood. Attach the side panels to the barrel top using x 3 M8 45mm bolts washers and nut, ensure a washer is used on each side - the nut goes on the inside of the barrel (Fig.
- Page 6 • Next slide the barrel top and sides over the frame. Lift the barrel slightly to line up the holes on the side panel with the sliders attached to the frame (Fig. 4). Thread through 4 x M8 90mm bolts on one side panel, from the outside (using a washer on both sides) and attach nut so it is hand tight.
- Page 7 Use a spirit level and fine tune with the adjustable feet until flat in both planes. The equipment is only suitable for indoor use on a level floor. Congratulations! You have now completed the assembly of your Align-Pilates Ladder Barrel. Before first use please read the below information on proper use and safety.
- Page 8 Pilates professional. If you have any queries regarding the assembly of your Align-Pilates Ladder Barrel please call our UK customer service team on +44 (0)1386 425 920 or email customercare@align-pilates.com. If outside the UK...
- Page 9 Upholstery The upholstery fabric on Align-Pilates equipment will be replaced if it fails to give normal wear for 90 days from the date of delivery. Proof of damage may be required. This warranty does not cover cuts, scratches, burns, stains, soiling, or damages caused by unreasonable use such as wearing jewellery or inappropriate clothing whilst using the equipment.
