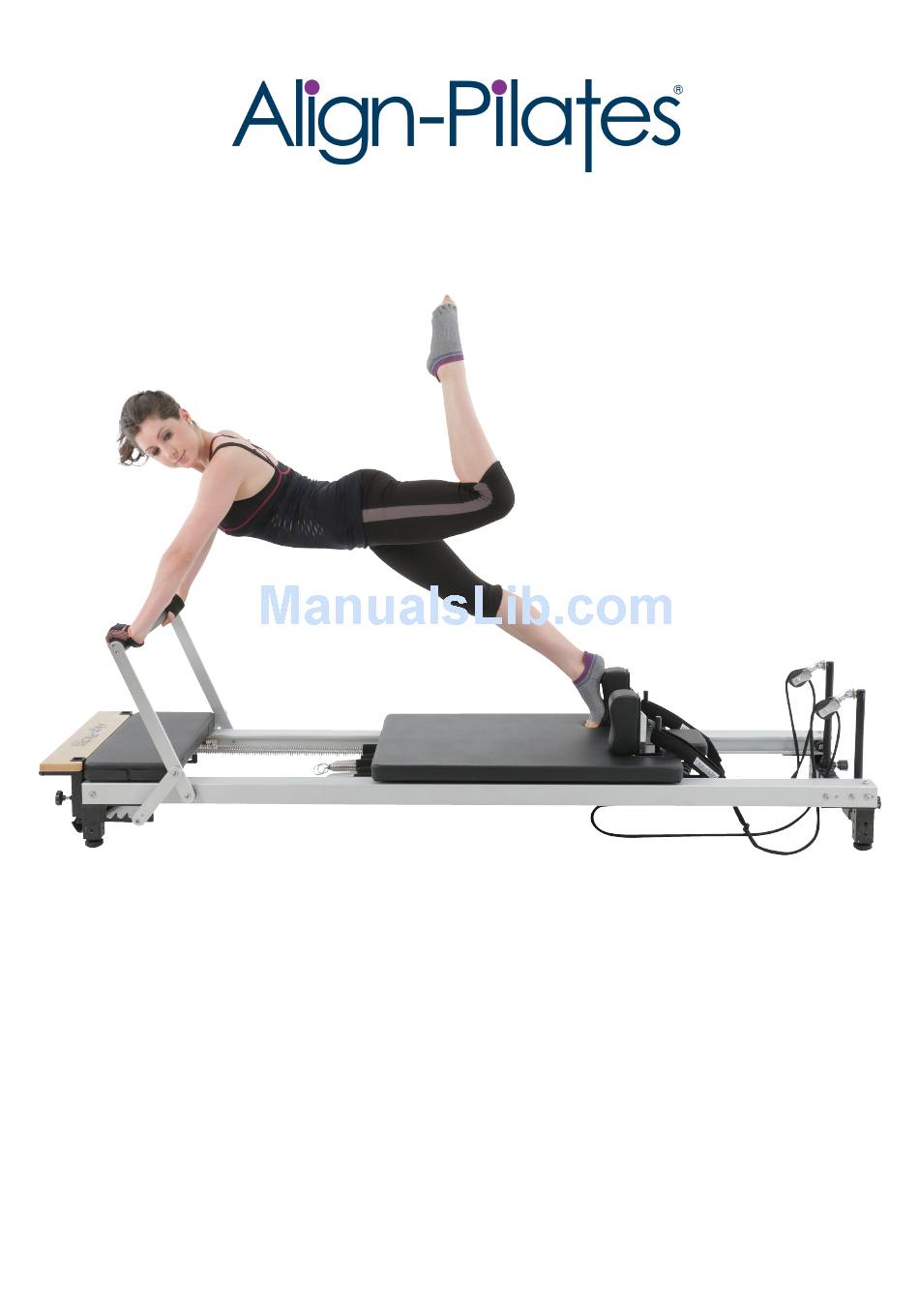

Page 1: Assembly Instructions
Art.Nr. 259 3500 C1-Pro Reformer Assembly Instructions & User Manual V1 C1-Pro October 2016... - Page 2 Assembly 1. Unpacking the C1-Pro reformer Warning: the main box for the C1-Pro reformer weighs around 40kg so at least two people are required to unpack the equipment. You should have 2 outer boxes as shown below. At all times you are responsible for your own safety and those around you. Please unpack the equipment in a clear, clean &...
- Page 3 C1-Pro Reformer Map: Rope Riser Removable Shoulder Rests Adjustment Knob End Stopper Standing Rope Pulley Rope Holder Platform Footbar Silent Straps & Ropes Carriage Bed Rope Riser Footbar Selector Jump Board Fastener Adjustable Feet 2. Attaching the optional extension legs (optional extra) If you have bought extension legs for your C1-Pro it is best to fit these first.
- Page 4 End Stopper 4. Runner stoppers: At the head end of the C1-Pro there are two new end stoppers which screw into the frame for easy access to the runners and for quick removal of the bed for cleaning & maintenance, see Fig.2.
- Page 5 Congratulations! You are now ready to use your C1-Pro Reformer. Now would be a good time to make a note to replace your springs in 2 years or, within 3,000 hours of use, whichever is sooner. We hope that you...
- Page 6 10. Accessories for your C1-Pro Reformer If you have a C1-Pro Reformer, then either an A2 Half Cadillac or C1-Pro Full Cadillac can be used in conjunction with the C1-Pro Leg extensions. Note: only the Half Cadillac can be used with the low leg version of the C1-Pro but neither the Half or Full Cadillac is compatible with the earlier C1 or C1-R models.
- Page 7 However, if you have back or any similar issues you should avoid moving or standing the C1 Pro alone. 13. Stacking your C1-Pro Reformer. For Studio use the C1-Pro reformer has been designed to stack, for when the floor space is required for other purposes. To stack the C1-Pro with low leg extensions you must first remove the shoulder rests and store them in a safe location.
- Page 8 14. Storing the reformer vertically. The C1-Pro reformer can be stood up for space saving storage. Warning: The reformer should only be stood on resilient, level floors in locations where it cannot be accessed by children or risk being knocked over by other activities.
- Page 9 2. Check the runners and wheels are clean and free from dirt and grit 3. Check the wheels and bearings are not damaged. If damaged replace. Exploded diagrams: Note: For larger images of the exploded diagrams and a detailed parts list please download from: https://www.mad-hq.com/align-pilates-resources...
-
Page 11: Warranty Information
6) Upholstery The upholstery fabric on Align-Pilates equipment will be replaced if it fails to give normal wear for 90 days from the date of delivery. Proof of damage may be required. This warranty does not cover cuts, scratches, burns, stains, soiling, or damages caused by unreasonable use such as wearing jewellery or inappropriate clothing whilst using the equipment. - Page 12 www.Align-Pilates.com...
