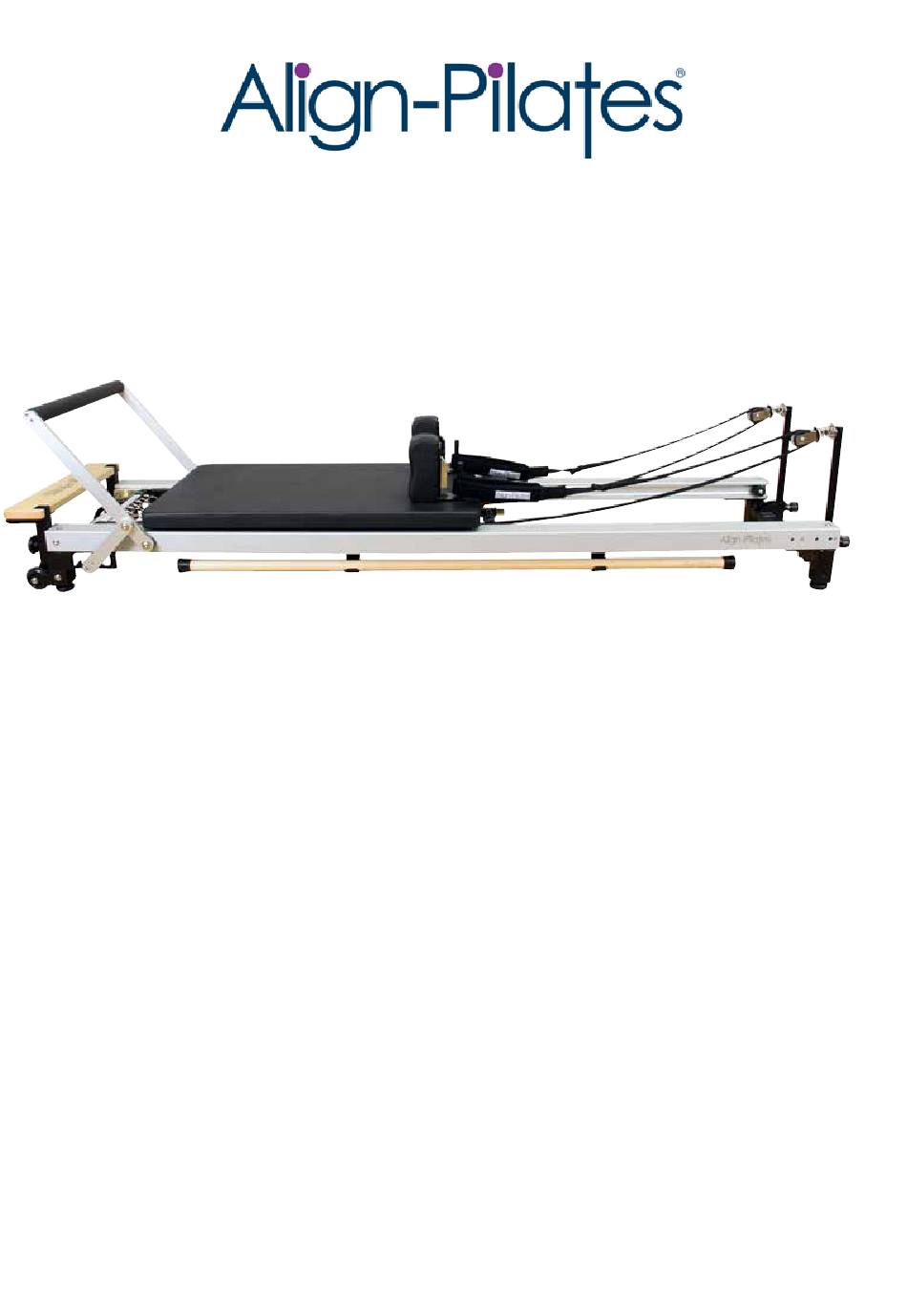

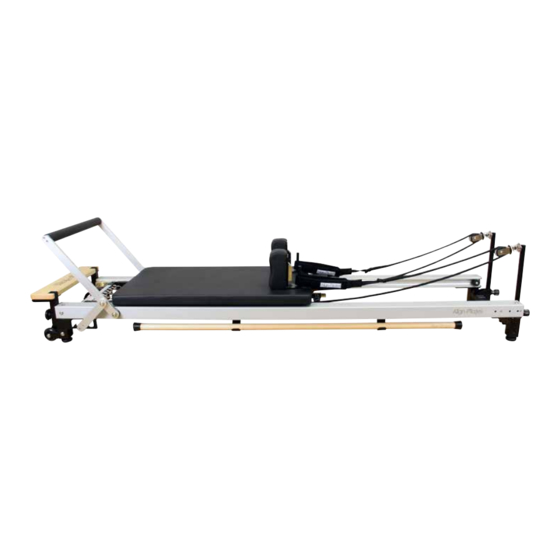

C2-Pro RC Reformer
Assembly Instructions
& User Manual
Note: To check for the latest version of this manual please visit https://align-pilates.com/pilates-equipment-resources/
assembly-user-guides/
For Patents & Patents Pending see www.Align-Pilates.com/Patents-&-IP
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Align-Pilates C Series
Summary of Contents for Align-Pilates C Series
- Page 1 C2-Pro RC Reformer Assembly Instructions & User Manual Note: To check for the latest version of this manual please visit https://align-pilates.com/pilates-equipment-resources/ assembly-user-guides/ For Patents & Patents Pending see www.Align-Pilates.com/Patents-&-IP...
- Page 2 Introduction Thank you for buying a C2 Pro RC reformer, the latest evolution of the popular C Series Reformer. The C2- Pro RC is an incredibly versatile piece of commercial Pilates apparatus and has been designed to grow with your studio. This manual will show you how to build each variant of the C2-Pro RC.
- Page 3 2. Assembling the Foot Bar a) Carefully cut off the cable ties holding the foot bar in the folded position. b) With the aid of another person lift up the standing platform end of the reformer and swing the foot bar out from under the machine. c) Cut off the cable ties holding the chrome Gear bar (#26 - see exploded diagram on page 10) and position it in the 2nd slot away from the end of the reformer.
- Page 4 5. Insert the Reformer Carriage With the reformer back on the floor, firstly remove the 2 rubber carriage stoppers from the end of the runners (Fig. 7). Carefully remove the carriage bed from its packaging. Note: two of the wheels are on floating axles wheels which allow the carriage to self-center, aiding the smooth running of the reformer, remove these two wheels from their seper- ate packaging and insert into the carriage (Fig.
- Page 5 8. Attaching the rope risers: Part screw in the 2 adjustment knobs and insert the riser (Fig.12 & 13), then pull back on the knob and slide the riser to the desired height. When happy with the height let go of the knob and twist to tighten and secure the riser in place (Fig.14).
- Page 6 10. Foot Strap installation: 1) Separate the strap in to 2 parts. Taking one half of the strap, thread the nylon loop through the eyelet on the reformer frame under the jump board (Fig. 21) 2) Now pass the foot strap through the loop and pull tight (Fig. 22) 3) Repeat this process for the other half of the strap (Fig.
- Page 7 Fig.27 15. Maple pole holder A pair of hooks have been added to the underside of one of the runners for the convenient storage of a Gondola pole or shorter maple pole (Fig. 27). Remember; if your reformer is fitted with leg extensions, you should always have a Gondola pole to provide 3 points of contact with the floor, when doing exercises standing on the reformer.
- Page 8 Some of the suggestions here require the removal of the carriage. This is simple, requires no tools and only takes a couple of minutes. The sequence is 1) Remove the rope risers 2) Slide out the T bar & place on the floor with the ris- ers.
- Page 9 Full Cadillac frame (the full cadillac frame can only be used in conjunction with the C2-Pro Leg extensions) making the C2 Pro RC the most adaptable reformer in its class. For the complete range of Align-Pilates apparatus & a complete range of Pilates mat work accessories please visit www.Align-Pilates.com.
- Page 10 Exploded diagrams: Note: For larger images of the exploded diagrams and a detailed parts list please download from: https://www.mad-hq.com/align-pilates-resources...
-
Page 12: Warranty Information
Upholstery The upholstery fabric on Align-Pilates equipment will be replaced if it fails to give normal wear for 90 days from the date of delivery. Proof of damage may be required. This warranty does not cover cuts, scratches, burns, stains, soiling, or damages caused by unreasonable use such as wearing jewellery or inappropriate clothing whilst using the equipment.
