Summary of Contents for Align-Pilates M2-Pro Reformer

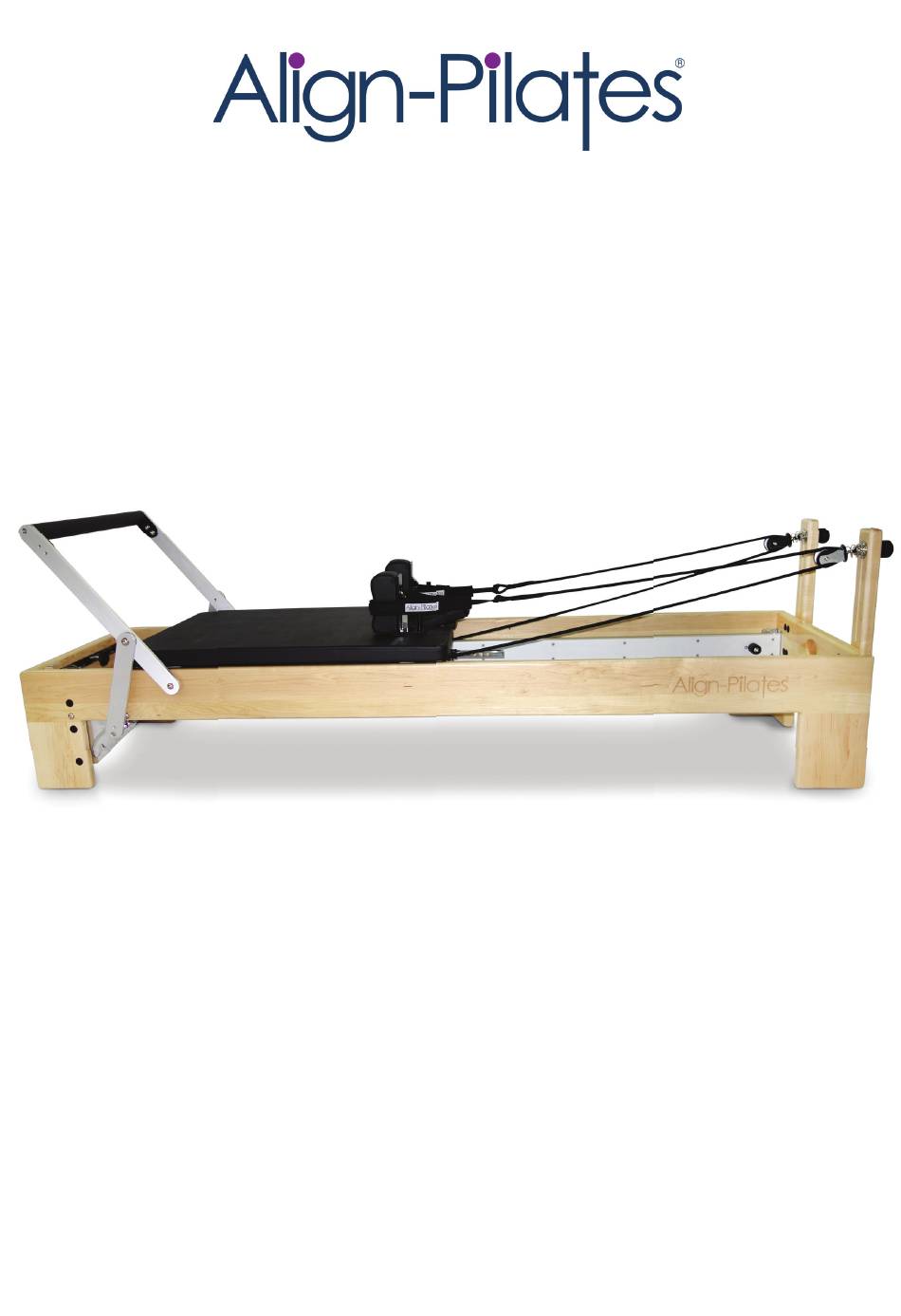

- Page 1 M2-Pro Reformer Assembly Instructions & User Manual...
- Page 2 7 and the M2 Pro explored on page 10. Warning: the main box for the M2-Pro reformer weighs around 85kg so at least two strong people are required to unpack the equipment and correct lifting technique should be used. At all times you are responsible for your own safety and those around you.
- Page 3 d. On the reformer, cut the cable ties, which hold the chrome footbar selector rod in place and remove the protective bag (Fig.3). Note: Box 2 contains the standing platform which we will return to later. Footbar Axles Fig.3 e. Place a nylon washer on the footbar axle (Fig.3) then take one of the aluminium footbar swing arms and place into position (Fig.4 &...
- Page 4 2. Unpacking the second outer box: a. Carefully take off the lid of the carriage bed box and remove the bubble wrap - do not use a knife as you may cut the vinyl - (you will notice there is a second box, please remove and put aside for use later in assembly) see Fig.12.
- Page 5 e. Attach the maple rope risers using 8 of the M8 x 65mm bolts located in the bolt pack (from the main box). The bolts are inserted from the outside of the frame with the larger washer on the outside and small washer on the inside.
- Page 6 Next, thread the end of the rope through the silent pulley from above and then slide the end through the T-Bar rope adjuster, under the carriage, you will need to pull down the locking handle to allow the rope (Fig.23). Fig.23 3.
- Page 7 Your M2-Pro Pilates reformer is now set-up and ready to use. Please read the User Guide information on pages 8-12 Your M2-Pro Pilates reformer is now set-up and ready to use. Please read the User Guide information on pages 8-12 prior to first use.
- Page 8 M2-Pro User Guide 1) Identifying the springs The springs can be identified with the corresponding colour code: Red - Medium x 2 Blue - Light x 2 Green - Strong x 1 2) Adjusting the ropes The M2-Pro includes the Pro Rope Adjusters which allows you to easily & quickly change the rope length of an individual rope, or both together, to offer maximum versatility and convenience.
-
Page 9: Optional Extras
The M2-Pro Reformer has a complete range of optional accessories including: Half Cadillac with bracket, Mat Converter, Jump Board and Standing Platform. For the complete range of Align-Pilates apparatus & a complete range of Pilates mat work accessories please visit www.Align-Pilates.com. - Page 10 • Springs - Inspect for signs of wear, look for deformation, kinks, gaps and corrosion. Springs showing signs of damage must not be used and must be replaced immediately. Springs must be replaced every 2 years or after 3,000 hours, whichever is first, or immediately if showing signs of fatigue or deformation • Footbar - Check all allen bolts securing the padded bar to the aluminium arms and to the footbar selector rod...
- Page 11 13. Do not exceed the maximum user weight for the equipment which is 150kg. Congratulations! You are now ready to use your M2-Pro Reformer. Now would be a good time to make a note to replace your springs in 2 years or, within 3,000 hours of use, whichever is sooner. We hope you enjoy using your new...
-
Page 12: Warranty Information
6) Upholstery The upholstery fabric on Align-Pilates equipment will be replaced if it fails to give normal wear for 90 days from the date of delivery. Proof of damage may be required. This warranty does not cover cuts, scratches, burns, stains, soiling, or damages caused by unreasonable use such as wearing jewellery or inappropriate clothing whilst using the equipment.
