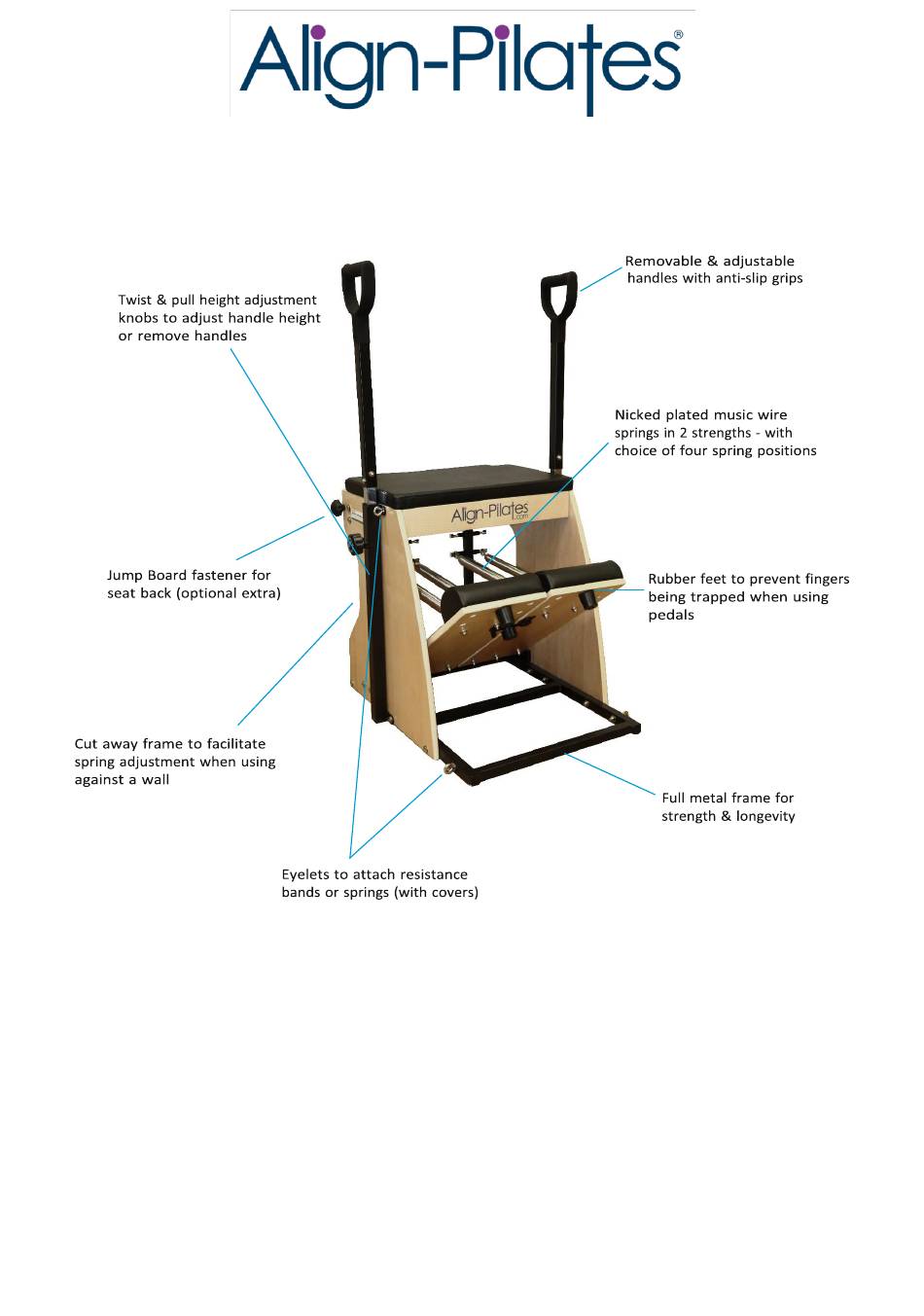

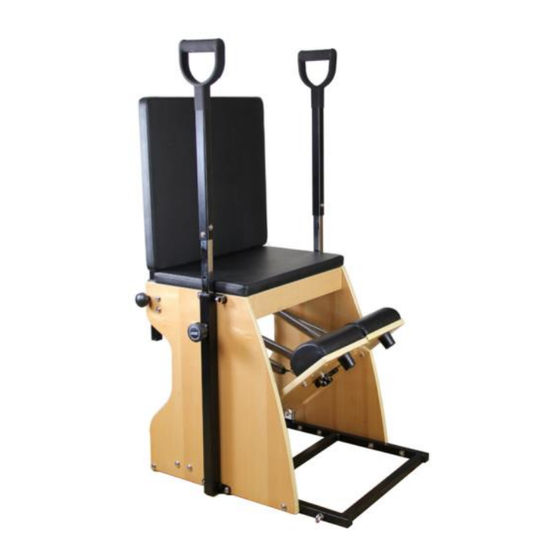

- Page 1 Combo Chair III Assembly Instructions & User Manual...
- Page 2 Exploded Diagram Self Assembly Parts List* *For the pre-assembled parts list, please see the last page. Part No in Exploded Combo Chair II Self Assembly Parts List Image Pack Diagram Knob Pack Rubber Washer Rubber Foot Pedal Stopper Twist & Pull Height Adjustment Knobs Jump Board Fastener Black Plastic Bush...
- Page 3 Screw Pack Short Eyelet Bolt Long Eyelet Bolt Nickel Plated Washer Nickel Plated Nut M6*15 Short bolts with loctite & washers M8*30 Medium bolts with blue loctite & washers (note: 8 of the bolts are for pre-assembled parts so only 8 required for self assembly parts) M8*40 Medium bolts with washers &...
- Page 4 Seat Support Frame Chromed Spring Holder Tree Upholstered Seat Pad Assembly Remove all items from the box and lay out as illustrated in Fig.1 on a clean smooth floor. Note: be sure to put something soft underneath the veneered maple panels to avoid scratching. Fig.1 Attach the 2 x Spring Holder Tree (8) to the Base Frame (6) using 4 x Medium bolts &...
- Page 5 Attach the 2 x Maple Veneered Side Panels (1+2) loosely to the Seat Support Frame (7) with 4 x Medium bolts with blue loctite & washers (47) (2 bolts per side). See Fig.4. Do not fully tighten at this stage. Attach the 2 x Handle Holders (15) using 2 x Long eyelet bolt (38) (in a vertical position) and 2 x Extra long bolt with loctite, nuts &...
- Page 6 Now insert 4 x Long bolts with loctite, nuts & washers (50) (2 bolts for each side panel) to secure side panels in place. Do not fully tighten at this stage.
- Page 7 Insert the 1 x Chrome Pedal Pivot Pole (10) with the now attached Foot Pedals into the bearing housing & axle mounting plate (9) Next attach the 1 x Maple Veneered Front Plate (5) to the Seat Support Frame (7) with 2 x Medium bolts with washers &...
- Page 8 Finally, before first use go over the Combo Chair III and ensure that all bolts have been properly tightened - then your Align-Pilates Combo Chair is ready to use!
- Page 9 Please note: The Jump Board from the A Series reformer fits into the back of your Combo Chair III. This is an optional extra that can be added at a later date. Please read the below information before first use: This combo chair is for indoor use only or an appropriate level surface of a non-slip nature.
- Page 10 Align-Pilates (or their appointed Distributor). The customer is responsible for the cost of return freight to them in the event Align-Pilates decline to make a warranty adjustment. Align-Pilates do not accept responsibility for any items returned without a pre- approved authorization number, which must be clearly marked on the outside of the package.
- Page 11 Handle Holder End Cap Jump Board Receiver Foot Pedal Hinge End Cap Foot Pedal Fastener Jump Board Fastener Cap Align-Pilates Logo Plate Nickel Plated Spring Hook Nickel Plated Washer M6 Nickel Plated Nut M8 Nickel Plated Nut Nickel Plated Screw...
- Page 12 +44(0)1386425923. For further information or queries on the Combo Chair III please call your distributor or alternatively call our UK customer care team on +44(0)1386425923 or email customercare@align-pilates.com or visit our website www.Align-Pilates.com...
