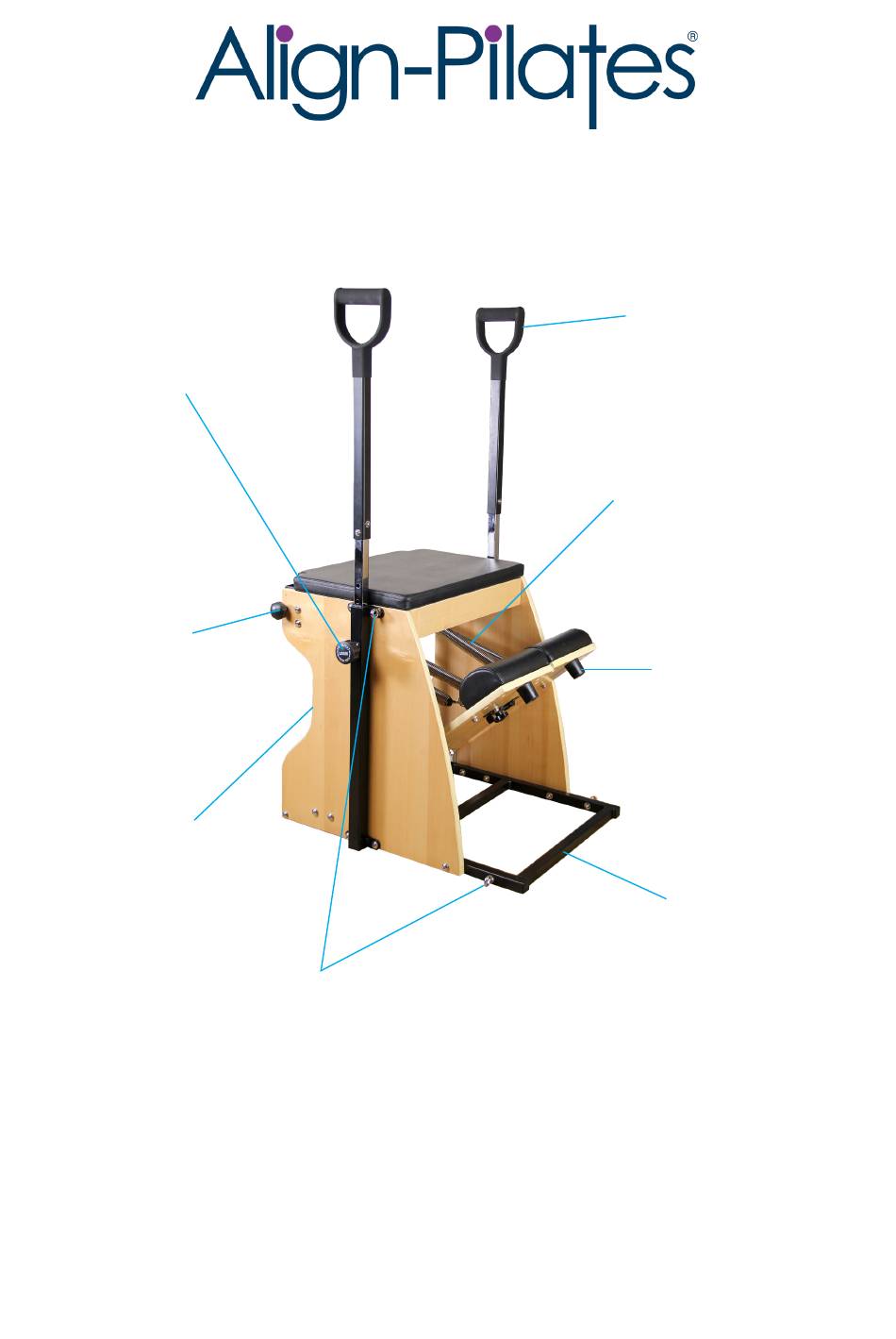

Twist & pull height adjustment
knobs to adjust handle height
or remove handles
Jump Board fastener for
seat back (optional extra)
Cut away frame to facilitate
spring adjustment when using
against a wall
Eyelets to attach resistance
bands or springs (with covers)
Combo Chair II
Assembly Instructions
& User Manual
Removable & adjustable
handles with anti-slip grips
Nicked plated music wire
springs in 2 strengths - with
choice of four spring positions
Rubber feet to prevent fingers
being trapped when using
pedals
Full metal frame for
strength & longevity
Advertisement
Related Manuals for Align-Pilates Combo Chair II
Summary of Contents for Align-Pilates Combo Chair II
-
Page 1: Assembly Instructions
Cut away frame to facilitate spring adjustment when using against a wall Full metal frame for strength & longevity Eyelets to attach resistance bands or springs (with covers) Combo Chair II Assembly Instructions & User Manual... -
Page 2: Exploded Diagram
Contents Exploded Diagram Self Assembly Parts List* Part No in Exploded Combo Chair II Self Assembly Parts List Image Pack Diagram Rubber Washer Knob Pack Rubber Foot Pedal Stopper Twist & Pull Height Adjustment Knobs Jump Board Fastener Black Plastic Bush... - Page 3 Short Eyelet Bolt Screw Pack Long Eyelet Bolt Nickel Plated Washer Nickel Plated Nut M6*15 Short bolts with loctite & washers M8*30 Medium bolts with blue loctite & washers (note: 8 of the bolts are for pre-assembled parts so only 8 required for self assembly parts) M8*40 Medium bolts with washers &...
- Page 4 Assembly 1) Remove all items from the box and lay out as illustrated in Fig.1 on a clean smooth floor. Note: be sure to put something soft underneath the veneered maple panels to avoid scratching. Fig.1 2) Attach the 2 x Spring Holder Tree (8) to the Base Frame (6) using 4 x Medium bolts & nuts without loctite (49) (2 bolts per Spring Holder Tree) and tighten completely, see Fig.2.
- Page 5 5) Insert the black plastic bush (30) into the maple panel as shown in Fig. 4. Attach the 2 x Maple Veneered Side Panels (1+2) loosely to the Seat Support Frame (7) with 4 x Medium bolts with blue loctite & washers (47) (2 bolts per side). See Fig.4. Do not fully tighten at this stage. Black plastic bush (30) Fig.4 6) Attach the 2 x Handle Holders (15) using 2 x Long eyelet bolt (38) (in a vertical position) and 2 x...
- Page 6 7) Now insert 4 x Long bolts with loctite, nuts & washers (50) (2 bolts for each side panel) to secure side panels in place. Do not fully tighten at this stage. 2 x Long bolts with loctite, nuts and washers (50) per side panel Fig.6 8) Whilst the Foot Pedals are still upside down, as in Fig.
- Page 7 9) Insert the 1 x Chrome Pedal Pivot Pole (10) with the now attached Foot Pedals into the 2 x Chrome Pivot Pole Receiving Plates (9). Fig.9 10) Next attach the 1 x Maple Veneered Front Plate (5) to the Seat Support Frame (7) with 2 x Medium bolts with washers &...
- Page 8 Once located at the desired height, tighten the knob to prevent rattle and to fully secure the handles. 16) Finally, before first use go over the Combo Chair II and ensure that all bolts have been properly tightened then your Align-Pilates Combo Chair II is complete!
- Page 9 The Jump Board from the A2 Series can fit into the back of your Combo Chair II. This is an optional extra that can be added at a later date. Please read the below information before first use: This combo chair is for indoor use only or an appropriate level surface of a non-slip nature. Should the floor be slippery a non-slip mat should be used under the chair.
-
Page 10: Warranty Information
Align-Pilates will, at its discretion, repair or replace any parts deemed defective during the warranty period. If we opt to repair or replace your apparatus, this may require that your product is returned for inspection at our premises prior to sending out replacement apparatus. - Page 11 Mon - Fri - simply call us to make an appointment. Please call us for a copy of our brochure on +44(0)1386425923. For further information or queries on the Combo Chair II please call your distributor or alternatively call our UK customer care team on +44(0)1386425923 or email customercare@align-pilates.com or visit our website www.Align-Pilates.com...
- Page 12 No in Exploded Combo Chair II Pre-Assembled Parts List Image Diagram (see page 2) 3 & 4 Foot Pedal Foot Pedal Hinge Locking Plate Receiver Locking Plate 2 Locking Bar Wheel Foot Pedal Pad Handle Holder Cap Handle Holder End Cap...
