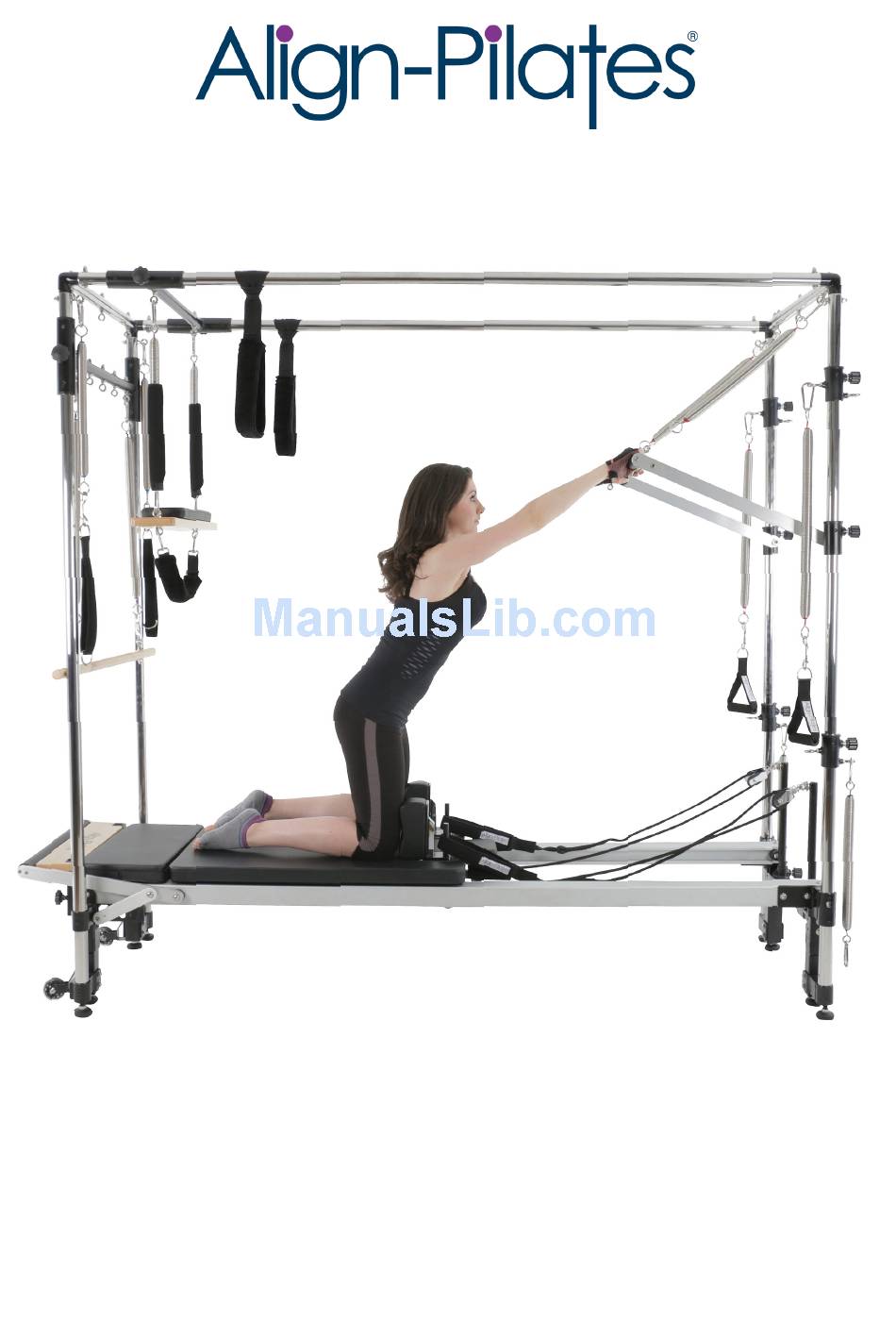

- Page 1 C1 & A2 Full Cadillac Assembly Instructions...
- Page 2 A2 Full Cadillac Assembly 1. Box Contents **IMPORTANT: Before opening any boxes ensure the serial numbers on the 3 boxes match each other** 1. Bed Frame 11. Push through bar risers 21. x8 Double end dog clips 2. Top frame 12.
- Page 3 3. Attaching the legs Begin by inserting the frame into the legs. Ensure that the frame head end and the head end legs are at the same end. These have pre drilled holes as per Fig.1. Attach them using x32 small nuts and washers provided - x8 per corner, x4 on the outside of the frame (Fig.2) at each corner and x4 on the inside of the frame at each corner (Fig.3).
- Page 4 6. Inserting the poles Ensure the grub screws are loose on all four corners to allow the poles to slot into the receptacles, (Fig.8). Once you have done this you can insert the two head end uprights, one at a time, into the receptacles.
- Page 5 8. Attaching push through bar Insert the push through bar onto the push through bar risers and use the nut and washer on each side as per Fig.13 to attach the push through bar. At the head end, attach the horizontal eyelets for the push through bar using the wrench and tighten securely, as per Fig.14.
- Page 6 The Half Cadillac can be attached to the C1-Pro with standard legs or with leg extensions. The half Cadil- lac does not fit on the C1R or original C1 models. The Full Cadillac can only be attached to the C1-Pro with leg extensions and cannot be combined with the low leg variant.
- Page 7 Remove the two black adjustable screw in feet by unscrewing them completely out and then screw these completely into the bottom of the C1-Pro Full Cadillac base bracket. This should result in your reformer looking as per Fig 3 & 4.
- Page 8 Now that the brackets are in place you can insert the upright poles. Please ensure the grub screws on the brackets have all been released to allow the poles to slide in easly. At the head end the two poles with the holes along their length are inserted with the holes at the top and facing outward away from the reformer.
- Page 9 Attach the two knobs into the trapeze frame as in Fig.12. Fig.12 The trapeze springs will have covers on them, at either end attach a karabiner and then attach these to the frame and the trapeze as shown in Fig.13. You can then attach the sling using the dog clips below the trapeze.
- Page 10 Pilates professional prior to use. Fig.17 Fig.18 Before first use, please use the small Allen key provided to tighten the grub screw in the brackets to hold the frame in position. Congratulations you have now completely built your C1-Pro Full Cadillac!!
- Page 11 The C1 & A2 Half and Full Cadillac’s and related accessories are designed for inside use only and on a level floor with suitable clearance around the equipment for safe operation. This free area should be not less than 0,6 m greater than the training area in the directions from which the equipment is accessed.
-
Page 12: Warranty Information
6) Upholstery The upholstery fabric on Align-Pilates equipment will be replaced if it fails to give normal wear for 90 days from the date of deliv- ery. Proof of damage may be required. This warranty does not cover cuts, scratches, burns, stains, soiling, or damages caused by unreasonable use such as wearing jewellery or inappropriate clothing whilst using the equipment. - Page 13 C1-Pro Full Cadillac Parts List Part No. Name Dimensions Part Image Qty. Frame tube Push through cross bar tube T-bar holder T-bar holder Horizontal frame tube Pull down vertical frame tube Pull down cross bar tube Horizontal cross bar Vertical cross bar...
