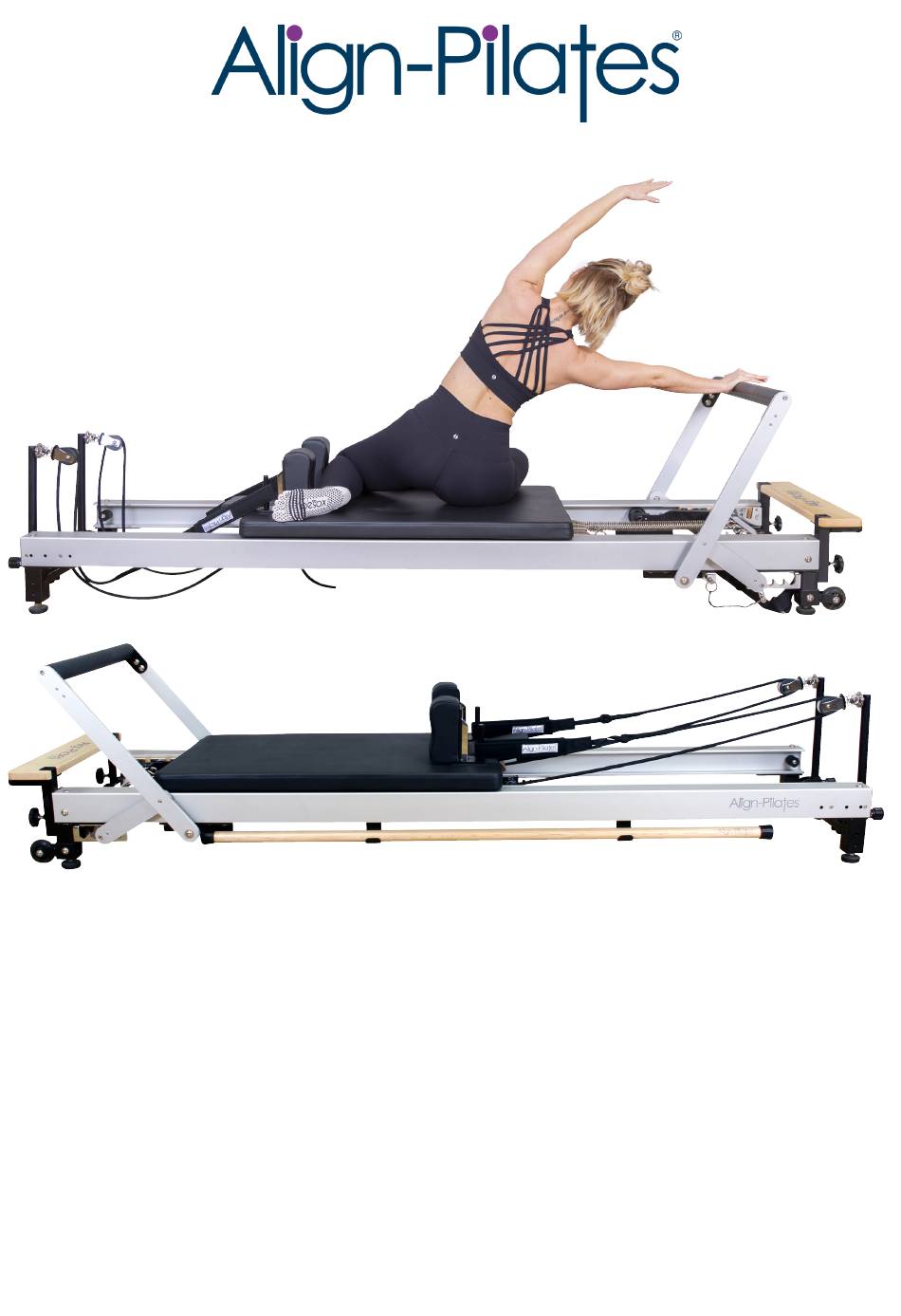

C8-Pro Reformer
Assembly Instructions
& User Manual
Note: To check for the latest version of this manual please visit:
https://align-pilates.com/pilates-equipment-resources/assembly-user-guides/
For Patents & Patents Pending see www.Align-Pilates.com/Patents-&-IP
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Align-Pilates C8-Pro Reformer
Summary of Contents for Align-Pilates C8-Pro Reformer
- Page 1 C8-Pro Reformer Assembly Instructions & User Manual Note: To check for the latest version of this manual please visit: https://align-pilates.com/pilates-equipment-resources/assembly-user-guides/ For Patents & Patents Pending see www.Align-Pilates.com/Patents-&-IP...
- Page 2 Assembly 1. Unpacking the C8-Pro RC reformer Warning: the main box for the C8-Pro reformer weighs around 40kg so at least two people are required to unpack the equipment. You should have 2 outer boxes as shown below. At all times you are responsible for your own safety and those around you. Please unpack the equipment in a clear, clean &...
- Page 3 2. Assembling the foot bar a) Carefully cut off the cable ties holding the foot bar in the folded position on top of the frame. b) Cut off the cable ties holding the chrome Gear bar (#26 - see exploded diagram on page 11) and position it in the 3rd slot away from the end of the reformer.
- Page 4 5. Insert the Reformer Carriage & checking the side wheel adjustment With the reformer back on the floor, firstly remove the 2 rubber carriage stoppers from the end of the runners (Fig. 8). Carefully remove the carriage bed from its packaging.
- Page 5 8. Attaching the rope risers: Part screw in the 2 adjustment knobs and insert the riser (Fig.13 & 14), then pull back on the knob and slide the riser to the desired height. When happy with the height let go of the knob and twist to tighten and secure the riser in place (Fig.15).
- Page 6 13. Working with springs Spring strength is indicated by the coloured anodized nuts on the RC spring bar. Align-Pilates springs are made from nickel plated music wire for the best possible performance and for smooth progressive resistance. Green is strong (100%) , red is medium (75%) and blue is light (50%) - use in a combination to suit the desired exercise.
- Page 7 (Fig. 30). Remember; if your reformer is fitted with leg extensions, you should always have a Gondola pole to provide 3 points of contact with the floor, when doing exercises standing on the reformer for safety reasons. Align-Pilates Gondola and Maple poles are available sepa- Fig.30 rately.
- Page 8 ESSENTIAL SAFETY & MAINTENANCE INFORMATION (read before use) Periodic Maintenance Please check the apparatus before first use and after each of the first few uses to check that all the fittings are securely fastened. Thereafter, it is important to follow a regular maintenance schedule by someone familiar with the equipment and record your maintenance checks.
- Page 9 C8-Pro RC the most adaptable reformer in its class. Please note all the accessories above are the same for all our other C series reformers, including C1, C1R, C1-Pro, C2-Pro & C2-Pro RC. For the complete range of Align-Pilates apparatus & a complete range of Pilates mat work accessories please visit www.Align-Pilates.com.
- Page 10 Exploded diagrams: Note: For larger images of the exploded diagrams and a detailed parts list please download from: https://align-pilates.com/pilates-equipment-resources/...
-
Page 12: Warranty Information
Upholstery The upholstery fabric on Align-Pilates equipment will be replaced if it fails to give normal wear for 90 days from the date of delivery. Proof of damage may be required. This warranty does not cover cuts, scratches, burns, stains, soiling, or damages caused by unreasonable use such as wearing jewellery or inappropriate clothing whilst using the equipment.
