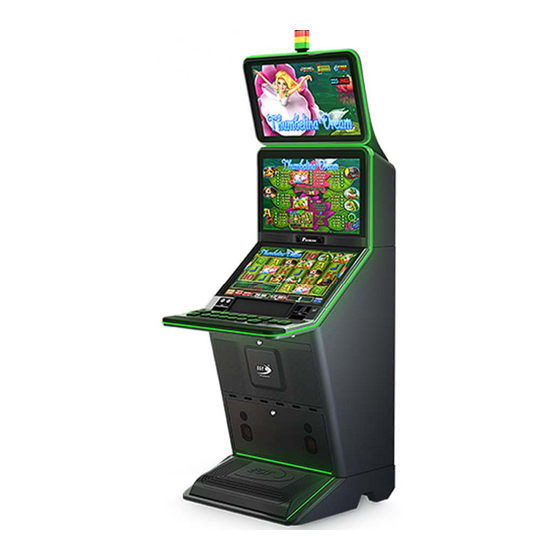

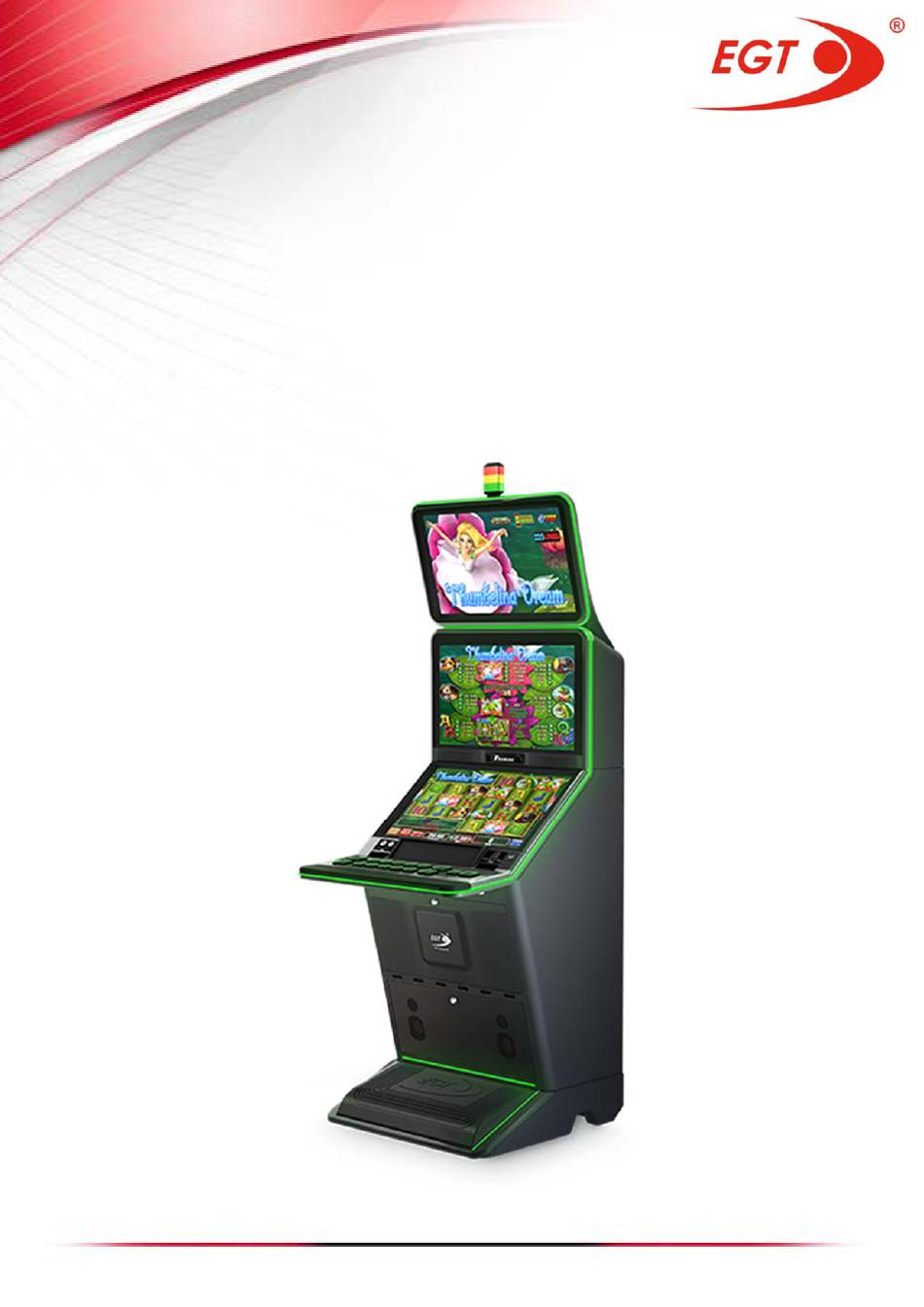

P-27/27 St
Gaming Machine
HARDWARE
USER MANUAL
(rev. 2.0.)
*The manufacturer shall reserve its right to modify and amend the item and this documentation
without prior notification of the customers.
© 2016 - 2017, Euro Games Technology Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P-27 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EGT P-27

Summary of Contents for EGT P-27

  • Page 1 P-27/27 St Gaming Machine HARDWARE USER MANUAL (rev. 2.0.) *The manufacturer shall reserve its right to modify and amend the item and this documentation without prior notification of the customers. © 2016 - 2017, Euro Games Technology Ltd.
  • Page 2 HARDWARE REVISION HISTORY Rev.1.0. - an initial document version Rev. 1.1. - a new version of the document with the following changes:  Added new information regarding Exciter III Gaming Platform on pages 9, 29 and 32  Added tables of contents regarding Exciter III Connectors Board on page 77. Rev.
  • Page 3 HARDWARE SIGNS USED WARNING! Warns about specific conditions or situations of/in the gaming machine, which require due attention. NOTE! Gives important or additional information of the gaming machine, software or the game. © 2016 - 2017, Euro Games Technology Ltd.

  • Page 4: Table Of Contents

    HARDWARE CONTENTS CHAPTER I. INTRODUCTION І.1. General Description…………………………………………………………….. І.2. Technical Specifications and Dimensions……………………………………. І.3. Operating Conditions…………………………………………………………... І.4. Transportation…………………………………………………………………… І.5. Safety and Precaution Measures……………………………………………... CHAPTER II. INSTALLATION ІІ.1. Visual Inspection………………………………………………………………. II.2. Main Door Opening and Closing…………………………………………….. II.3. Top box Door Main Door Opening and Closing……………………………. ІІ.5.
  • Page 5 HARDWARE IV.7. Ticket printer………………………………………………………………….. IV.8. Keyboard Controller and Keyboard Panel…………………………………. IV.9. Meter Module………………………………………………………………….. IV.10. Signal Lights Controller………………………………………………………. IV.11. Decorative Lighting…………………………………………………………… IV.12. Electronic Key Reader……………………………………………………….. IV.13. Speakers………………………………………………………………………. IV.14. Door Switches………………………………………………………………… CHAPTER V. GAMING MACHINE TROUBLESHOOTING V.1. Troubleshooting………………………………………………………………... V.2. Error Messages………………………………………………………………… V.2.1. Events, Only Registered in All Events V.2.2.

  • Page 6: Chapter I. Introduction

    HARDWARE CHAPTER I. INTRODUCTION І.1. General Description…………………………………………………………….. І.2. Technical Specifications and Dimensions……………………………………. І.3. Operating Conditions…………………………………………………………... І.4. Transportation…………………………………………………………………… І.5. Safety and Precaution Measures……………………………………………... © 2016 - 2017, Euro Games Technology Ltd.
  • Page 7 HARDWARE I.1. GENERAL DESCRIPTION P-27/27 St gaming machines (hereinafter so referred to as " Machines" ) are designed for use in casinos and gambling halls. The series is developed on the basis of the Exciter II Gaming Platform or Exciter III Gaming Platform, specially created for Euro Games Technology (EGT) and complied with the newest requirements of the gaming industry.
  • Page 8 Before switching on the machine for the first time, please carefully read and understand this User Manual. I.2. TECHNICAL SPECIFICATIONS AND DIMENSIONS Manufacturer:  EURO GAMES TECHNOLOGY Ltd., Bulgaria Type:  EGT-VS12 Power Supply Voltage:  100 - 240 V ~ Current: 3.5 - 1.5A ...
  • Page 9 HARDWARE Fig. I.2. Dimensions of P-27/27 St Gaming Machine Weight: 170 kg Height with Topper: 2 155 mm Height without Topper: 1 717 mm Width: 711 mm Depth: 829 mm © 2016 - 2017, Euro Games Technology Ltd.
  • Page 10 HARDWARE I.3. OPERATING CONDITIONS P-27/27 St gaming machines are designed and manufactured to keep their operability at the following conditions:  Ambient temperature: from +10° C to +30° C;  Relative humidity: from 20% to 80%;  Vertical operation position;...
  • Page 11 HARDWARE WARNING! The movement of the gaming machine should be done only when all the doors are closed and locked and the machine has to be grasp using the handles provided. (The handles are located on the back of the gaming machine - Pos. 1 in Figure I.3.). If the gaming machine needs to be positioned, all the doors also has to be closed and locked and the gaming machine must not be grasp or press on the...

  • Page 12: Chapter Ii. Installation

    HARDWARE CHAPTER II. INSTALLATION ІІ.1. Visual Inspection………………………………………………………………. II.2. Main Door Opening and Closing…………………………………………….. II.3. Top box Door Main Door Opening and Closing……………………………. ІІ.5. Top Lamp Mounting…………………………………………………………... Gaming Machine Installation Requirements……………………………….. ІІ.5. © 2016 - 2017, Euro Games Technology Ltd.
  • Page 13 HARDWARE II.1. VISUAL INSPECTION Before installation the machine shall be visually inspected for possible transportation damages. WARNING! The Manufacturer shall not bear liability for damages occurred upon transportation of the Gaming Machine. II.2. MAIN DOOR OPENING AND CLOSING Access to the main electronic components of the gaming machine, located in its body, is done by Main Door Opening.
  • Page 14 HARDWARE 3. Grab the door with both hands as it is shown in Fig. II.3. and hold it gently until its completely opened - Fig. II.4. Fig. II.3. Fig. II.4. II.2.2. Main Door Closing Grab the opened main door and pull it down as it id shown in Fig.
  • Page 15 HARDWARE II.3. TOP BOX DOOR OPENING AND CLOSING WARNING! If the sequence, described below, is not followed during opening and closing of the top box door, mechanical damages may occur on the details of the construction and/or damage/smash of the touch screen of the main monitor of the gaming machine.
  • Page 16 HARDWARE II.3.2. Top Box Door Closing Push the levers of the pulled module of the Top Box, as shown in Fig. II.10. to store it in and before it is completely closed. Fig. II.10. Remove your hands from the levers and push the monitor front to close it well. Make sure the top box door is fully closed.
  • Page 17 HARDWARE II.4. TOP LAMP MOUNTING The game machine is transported to the customer with unmounted top light. Below is given the sequence of its mounting: Unlock and open the gaming machine main door. Pull the core through the handle 1 to unlock the Top box.
  • Page 18 HARDWARE Screw 4 pieces "Nuts M3” to projecting dowels, the respective locations of the ceiling of the top box, as shown in Fig. II.15. Fig. II.15. Connect the grounding wire (B) to the ground dowel (C) of the gaming machine by using a " Nut M4” , as shown in Fig.
  • Page 19 The software in the iButton Reader is thought to recognize Dallas electronic keys (see "Service Manual of a Vega Vision Upright Gaming Machine" in the Electronic Keys section or contact the EGT Service);  Insert OWNER key and set up the desired machine and game parameters;...

  • Page 20: Chapter Ііі. Gaming Machine Service

    HARDWARE CHAPTER ІІІ. GAMING MACHINE SERVICE ІІI.1. Control Keys……………………………………………………………………. ІІI.2. Credit Forming…………………………………………………………………. ІІI.3. Credit Clear…………………………………………………………………….. ІІI.4. Jackpot Payout……………………………………………...…………………. ІІI.5. Machine reservation and release……………………………………………. ІІI.6. Signal lights lighting modes………………………………………………….. III.7. Component Maintenance…………………………………………………….. © 2016 - 2017, Euro Games Technology Ltd.
  • Page 21 HARDWARE III.1. CONTROL KEYS Access to the credit forming screen, service functions and accounting of the machine may be preformed by use of either mechanical or electronic keys. The system recognizes 4 types of keys: ATTENDANT - attendant’s mechanical/electronic key by which player’s credit ...
  • Page 22 HARDWARE Fig. III.1. Credit addition can be performed: From the Screen Keyboard:  Dial the necessary number by touching the digit keys on the touchscreen keyboard. If a wrong digit is chosen, press <- ;  Press Add button;  If new Current Credit value is wrong, press Cancel and enter again; ...
  • Page 23 HARDWARE III.3. CREDIT CLEAR Credit zero reset and payout thereof may be performed only if the game is in bet mode after pressing a CASH OUT button. At pressing a CASH OUT button the credit may be paid out by Attendant (handpay), or via thicket printer depending on settings of the gaming machine.
  • Page 24 HARDWARE When the machine won progressive jackpot (CBJS/ VJS or SAS) after the reels stop and the win amount transfers to Win field, a jackpot splash will appear on the lower monitor, where the amount of the won jackpot is shown: III.4.3.
  • Page 25 HARDWARE Splash when Premium Link Splash when Premium Link Progressive Jackpot is won Mystery Jackpot is won The Premium Link Jackpot can work with both gaming platforms Exciter II and Exciter III. III.4.4. LADY’S CARDS Mystery Jackpot Payout LADY’S CARDS mystery jackpot has 4 levels: (CLUBS, DIAMONDS, HEARTS and SPADES), as each of them can be won during a special LADY’S CARDS Feature, the same for all games.
  • Page 26 HARDWARE III.5. MACHINE RESERVATION AND RELEASE If the Attendant key is inserted, the window, shown in the figure below will appear on the screen: Lock and Unlock buttons are used to reserve (LOCK) and release (UNLOCK) the machine. At machine reserving the game picture with RESERVE sign appears on the screen after the EXIT button is pressed.
  • Page 27 HARDWARE III.6. SIGNAL LIGHTS LIGHTING MODES The signal lights are mounted on the top of the machine. Top (Left) Lamp Hand Pay Middle Lamp Open Door Yellow Bottom (Right) Lamp Tilt / Change Green They indicate the following conditions: 1. Lamp 1 - (Hand Pay) This lamp starts blinking at 1 sec.

  • Page 28: Iii.7. Component Maintenance

    Description: Blow the dust away from the fun and the processor radiator us- ing a mighty air stream. Clean only when the power is switched off! For prevention can address to the nearest EGT service. Recommended Maintenance Period: monthly. Cleaning: Clean the dust from the outside of the fan. Use a soft brush and vacuum cleaner.
  • Page 29 HARDWARE Recommended Maintenance Period: Depending on ambient conditions. In normal conditions the cleaning shall be carried out each 6 months. At severe operation conditions, such as polluted, dusty environment, and/or such with high relative humidity or high level of micro-particles, it is recommended to perform cleaning more often.

  • Page 30: Chapter Iv. Hardware Components

    HARDWARE CHAPTER IV. HARDWARE COMPONENTS IV.1. General Description of Components……………………………………….. IV.2. Power Distributor Unit and Power Supply Units…………………………... IV.3. Exciter II Specialized Gaming Platform...………………………………….. IV.4. Exciter III Specialized Gaming Platform...………………………………….. IV.5. Monitors and Touchscreen…………………………………………………... IV.6. Bill Validator…………………………………………………………………... IV.7. Ticket printer………………………………………………………………….. IV.8.

  • Page 31: General Description Of Components

    HARDWARE IV.1. GENERAL DESCRIPTION OF COMPONENTS Fig. IV.1. Overview of P-27/27 St Cabinet with Main door closed © 2016 - 2017, Euro Games Technology Ltd.
  • Page 32 HARDWARE Fig. IV.2. Overview of P-27/27 St Cabinet with Main door opened © 2016 - 2017, Euro Games Technology Ltd.
  • Page 33 HARDWARE DESCRIPTION OF COMPONENTS Signal Lights Bill Validator Door Switch 27" Monitor Bill Stacker Door Left and Right Upper Sound Grids Left and Right Main Speakers 27" Monitor with Touchscreen Drop Box Door Switch Body Drop Box Bill Validator Entrance Drop Box Door Lock Socket of i-Button Reader i-Button Reader...

  • Page 34: Iv.2. Power Distributor Unit And Power Supply Units

    Main Power Supply Unit (PSU): MEAN WELL HRP-300-12 or COSEL PLA300F-12. Power Distributor Units (PDUs):  EGT Distribution Box 220V - “Distribution Box 8-Ports V1.5 Module”;  Distributor 12V & 24 V - “12V & 24V Distributor V 1.2”. IV.2.3. Purpose of Use Main Power Supply Units - supplies power to the components of the gaming machine.

  • Page 35: Exciter Ii Specialized Gaming Platform

    HARDWARE Power Distributor Units  EGT Distribution Box 220V - supplies input voltage to Main Power Supply Units (PSU);  Distributor 12V & 24 V - supplies input voltage to decorative lighting, gaming platform, monitors, cabinet fans and OLED keyboard.

  • Page 36: Exciter Iii Specialized Gaming Platform

    HARDWARE IV.4. EXCITER III - SPECIALIZED GAMING PLATFORM IV.4.1. Location in the Machine: Pos. 29 in Fig. IV.2. IV.4.2. Type: Exciter III Gaming platform Exciter III consists of:  Exciter III Mother Board: DPX-W250;  Back Plane Board;  Gaming Board; IV.4.3.

  • Page 37: Iv.6. Bill Validator

    HARDWARE IV.6. BILL VALIDATOR (OPTIONAL) IV.6.1. Location in the Machine: Bill Validator Entrance - Pos. 6 in Fig. IV.1, Bill Validator Door - Pos. 9 in Fig. IV.1, Bill Validator - Pos. 37 in Fig. IV.2. IV.6.2. Type: CashCode MFL (Fig. IV.3.), JCM UBA-10-SS (JCM UBA-14- SS) or JCM iPro-100-SS (Fig.
  • Page 38 HARDWARE NOTE! The Bill Validator JCM UBA-14-SS can be used as well but it has to support serial interface RS232 and protocol ID-003. In case of using JCM UBA-14-SS an adapter Bill Level Adapter has to be used as well. This adapter converts bipolar signals into unipolar signals. Fig.
  • Page 39 HARDWARE JCM UBA-10-SS Electrical parameters Value Power Supply Voltage: 12V DC ± 5% Standby 0.3 A Current consumption Operating mode 1.6 A Communication Interface RS232 Storage Temperature Environment Parameters -20°C ÷÷Value +60°C Operation Temperature +5°C ÷ +50°C Operating Relative Humidity 30% ÷...
  • Page 40 HARDWARE MEI SC8307 and MEI Advance SCN8347 Electrical parameters Value Power Supply Voltage: 12 ÷ 28V DC ± 5% Standby 0.45 A Current consumption Operating mode 1.25÷3.0 A RS232 Communication Interface Environment Parameters Value Operation Temperature 0°C ÷ +60°C Operating Relative Humidity 5% ÷...
  • Page 41 HARDWARE IV.6.5. Components Fig. IV.8. Fig. IV.9. Components of CashCode MFL Components of JCM UBA-10-SS Fig. IV.10. Components of Ardac Elite © 2016 - 2017, Euro Games Technology Ltd.
  • Page 42 HARDWARE Fig. IV.11. Components of MEI SC8307 Update the software of a MEI SC8307 bill validator by a hand held device Portable Programming Module (PPM). © 2016 - 2017, Euro Games Technology Ltd.
  • Page 43 HARDWARE Fig. IV.12. Components of JCM iVizion - SS A. Acceptor Unit M. Transport Unit Release Lever B. Front Upper Guide Access Lever (Acceptor Unit) N. Power ON LED (Green) C. Bezel (Option) - use from JCM iPro model! O. USB (mini-B) Software Download/...
  • Page 44 HARDWARE IV.6.6. Collecting Bills IV.6.6.1. Collecting bills from CashCode MFL - 1 - - 2 - - 3 - Fig. IV.13. CashCode MFL Collecting Bills Open bill validator door. Push the lever, pointed by the small arrow in Fig. IV.13-1. and pull the cassette out.
  • Page 45 HARDWARE Open Bill validator door. Hold the cassette handle and pull it in direction, pointed by the arrow in Fig. IV.14-1. Open the cover and take the bills (Fig. IV.14-2.). Put back the cassette into the housing. IV.6.7. Removing Jammed Bills IV.6.7.1.
  • Page 46 HARDWARE IV.6.8. Configuring the Bill Validator IV.6.8.1. Configuring CashCode MFL CashCode MFL configuration is done by setting switches, located at the rear end of the validating head, under a transparent plastic cover. Fig. IV.17. CashCode MFL Setting switches location © 2016 - 2017, Euro Games Technology Ltd.
  • Page 47 HARDWARE CashCode MFL operates in two basic modes: validation and service. Defining settings, operating mode and enabled denominations is performed by two groups of switches - SW1 and SW2 (Fig. IV.17., Fig. IV.18. and Fig. IV.19.) Fig. IV.18. CashCode MFL SW1 Setting switches condition The function of the group of four DIP switches (SW2 in Fig.
  • Page 48 HARDWARE Parameters Switch Orientation of the bill SW 2.1 Four-way One-way SW 2.2 Not used Not used Interface communication speed SW 2.3 9600 bps 19,200 bps Operating Mode SW 2.4 Service Mode Validation Mode For additional information on switch features and explanations, please see CashCode MFL User Manual.
  • Page 49 HARDWARE IV.6.8.3. Configuring Ardac Elite Two similar groups Bank 1 and Bank 2 of switches are located, which are shown below (Fig. IV.21) Fig. IV.21. Ardac Elite Setting switches condition To select serial interface RS 232, determine the ID003 Baud Rate - 9600, and enable barcode reading, the following switches have to be in given position: Bank 2, switch 4 - ON, Bank 2, switch 5 - OFF...

  • Page 50: Iv.7. Ticket Printer

    HARDWARE IV.7. TICKET PRINTER (OPTIONAL) IV.7.1. Location in the Machine: Plate Pos. 38 in Fig. IV.2. for Ticket Printer - IV.7.2. Type: Ithaca Epic 950/950L, FutureLogic GEN2, FutureLogic GEN2 Universal or JCM Global GEN5. Fig. IV.24. Ithaca Epic 950 Ticket Printer Fig.
  • Page 51 HARDWARE IV.7.3. Purpose of Use: Prints vouchers and tickets. IV.7.4. Technical Parameters a) Ithaca Epic 950 Ticket Printer parameters: Electrical parameters Value Power Supply Voltage 24V DC ± 10% Current Consumption At 24V and 25% black max 2.2 A Communication interface RS232 Environment Parameters Value...
  • Page 52 HARDWARE c) FutureLogic GEN2 Universal Ticket Printer parameters: Electrical parameters Value Power Supply Voltage 24V DC ± 10% Current Consumption At 24V and 25% black max 2.7A Communication interface RS232 Environment Parameters Value 5°C ÷ 50°C Operation Temperature Storage Temperature -20°C ÷...
  • Page 53 HARDWARE IV.7.5. Loading tickets a) Loading tickets in Ithaca Epic 950 Ticket Printer Fig. IV.27. Loading tickets in Ithaca Epic 950 Ticket Printer 1. Load tickets into the ticket supply tray, making sure that the Black Dot is positioned as shown in Fig. IV.27. 2.

  • Page 54: Iv.8. Keyboard Controller And Keyboard Panel

    HARDWARE IV.8. KEYBOARD CONTROLLER AND KEYBOARD PANEL IV.8.1. Location in the Machine: Keyboard Panel - Pos. 14 in Fig. IV.1. Keyboard Controller - Pos. 27 in Fig. IV.2. IV.8.2. Type: USB Keyboard Controller IV.8.3. Purpose of Use USB Keyboard Controller: ...
  • Page 55 HARDWARE Main functions of the keyboard buttons CASH OUT (B11) - a button for credit cash-out procedure starting. First it ─ transfers the win to the credit meter (ends the game) and then starts the procedure for cash-out the credit; SERVICE (B12) - a button for staff calling;...
  • Page 56 HARDWARE NOTE! Depending on the machine settings, the bet buttons Button B1 ÷ Button B5 can or cannot start a video slot game. (see User manual of Vega Vision+ series gaming machine at P-Series Multigame, version 7.x.). Video poker games: These buttons are active at holding condition (after the initial card deal).
  • Page 57 HARDWARE TAKE WIN (B15) ─ Roulettes: When press it, Complete Bet is placed- placing the bet on all the positions that include the selected number. If the number is only marked without the chip laid on it, when you press this button, on all positions will be placed bets (chips) equal to the selected chip value.

  • Page 58: Iv.9. Meter Module

    HARDWARE  Power Supply Voltage: +24V / 1,15 A  USB2.0 Interface IV.8.4.2.2. Keyboard Description Video buttons of the OLED keyboard repeat the placement and functionality to those of electro-mechanical keyboard (described are above). Two buttons (Cash Out and Service) are exported from the keyboard and they are electro-mechanical buttons.

  • Page 59: Iv.10. Signal Lights Controller

    IV.11.1. Location in the Machine and Type: Includes the following modules:  white lighting of the EGT logo, Premier logo and below bill validator entrance and lighting;  RGB lighting (Pos. 8 in Fig. IV.1.) situated around: the upper monitor, the main door and the cabinet bottom.

  • Page 60: Iv.13. Speakers

    HARDWARE IV.13. SPEAKERS IV.13.1 Location in the Machine: There are two pairs of speakers in the machine - main and additional. The main speakers are located in the drop box of the gaming machine - Left and Right Main Speakers (Pos. 22 in Fig. IV.1). The additional speakers are located just behind the sound grids (Pos.

  • Page 62: Chapter V. Gaming Machine Troubleshooting

    HARDWARE CHAPTER V. GAMING MACHINE TROUBLESHOOTING V.1. Troubleshooting………………………………………………………………. V.2. Error Messages………………………………………………………………. V.2.1. Events, Only Registered in All Events Log……………………………….. V.2.2. Warnings………………………………………………………………………. V.2.3. Non-fatal Errors………………………..………….…………………………. V.2.4. Fatal Errors………………………...………………………………………... © 2016 - 2017, Euro Games Technology Ltd.

  • Page 63: Troubleshooting

    HARDWARE V.1. TROUBLESHOOTING External features Possible cause Solution Fuse burned out Replace fuse Power Cord Replace power cord Nothing lights up Main Power Supply Unit Check PSU LED. Replace PSU. (PSU) Defective button Replace the button Buttons don’t work Problems with connection Check keyboard controller connections.
  • Page 64 HARDWARE Bill 100 accepted - Logged when a bill of par value 100 is accepted. Bill 2 accepted - Logged when a bill of par value 2 is accepted. Bill 20 accepted - Logged when a bill of par value 20 is accepted. Bill 200 accepted - Logged when a bill of par value 200 is accepted.
  • Page 65 HARDWARE Drop door closed - Logged when the drop door is closed. EEPROM data error - Logged when NVRAM is cleared. Gamble entered - Logged when Gamble is entered. The won amount at Gamble entering is logged. Gamble exited - Logged at Gamble exit. The value of the amount won is displayed. Game has ended - Logged when the game is over.
  • Page 66 HARDWARE Power off bill stacker door opened - Logged at bill stacker door opening at machine power off. Date and time of first door opening and opening counts are logged. Power off bill validator door access - Logged at Bill Validator door access at machine power off.

  • Page 67: Warnings

    HARDWARE Touchscreen connection restored - Logged when the connection with Touchscreen controller is restored. Touchscreen lost connection - Solution: Check touchscreen cables. V.2.2. Warnings Warnings are errors, which are displayed on a green rectangle on the game screen. They may be cleared with Attendant key. ©...
  • Page 68 HARDWARE Bill acceptor hardware failure - Solution: Call attendant - Appears when bill validator is damaged. Disconnected counter lamp - Solution: Check counter lamp. Disconnected keyboard lamp - Solution: Check keyboard LEDs. Disconnected top lamp - Solution: Check top lamps. Low backup battery - Discharged Battery of NVRAM - Solution: Change battery.

  • Page 69: Non-Fatal Errors

    HARDWARE V.2.3. Non-fatal Errors Non-fatal errors are displayed on a blue rectangle on the game screen. The error is cleared when its cause is solved. © 2016 - 2017, Euro Games Technology Ltd.
  • Page 70 HARDWARE Bill jammed - Solution: Call attendant. Bill stacker door opened - Solution: Close bill stacker door. Bill stacker jam - Solution: Call attendant. Bill stacker opened - Solution: Close bill stacker. Bill validator door opened - Solution: Close Bill validator door. Card cage opened - Solution: Close card cage.

  • Page 71: Fatal Errors

    General error - Appears at a critical problem in the machine. NOTE! In case of fatal general error it is necessary to connect to the EGT service and report the error code, written in the box and additional information in the lower right corner of the screen.

  • Page 72: Chapter Vi. Attachments

    HARDWARE CHAPTER VI. ATTACHMENTS VI.1. Modular Diagram of Components…………………………………………. VI.2. Electric Wiring Diagram..…..……………………………………………….. VI.3. Connectors of Exciter II Connectors Board ……………………………… VI.4. Connectors of Exciter III Connectors Board …………………………..… © 2016 - 2017, Euro Games Technology Ltd.
  • Page 73 HARDWARE VI.1. MODULAR DIAGRAM OF COMPONENTS © 2016 - 2017, Euro Games Technology Ltd.
  • Page 74 HARDWARE VI.2. ELECTRIC WIRING DIAGRAM © 2016 - 2017, Euro Games Technology Ltd.
  • Page 75 HARDWARE © 2016 - 2017, Euro Games Technology Ltd.
  • Page 76 HARDWARE VI.3. CONNECTORS OF EXCITER II CONNECTORS BOARD EURO DIN41612 2x32 pin a+c male right angle PIN № Signal Name PIN № Signal Name BU+12V BU+12V BU+12V N.C. VCC3 VCC3 VCC3 VCC3 VCC3 VCC3 DOUT0 DOUT1 DOUT2 DOUT3 DOUT4 DOUT5 DOUT6 DOUT7 DIN0...
  • Page 77 HARDWARE POWER INPUT MOLEX 4x2pin mini-fit Straight PIN № Signal Name/Current PIN № Signal Name/Current 12V / 1.33A 12V / 1.33A 12V / 1.33A GND / 1.25A GND / 1.25A GND / 1.25A GND / 1.25A 24V / 1A INTRUSION SWITCHES MOLEX 7x2pin Mini-fit Straight PIN №...
  • Page 78 EGT Progressive Net COM8 RJ45 PIN № Signal Name/ Current EGT NET DATA A LINE EGT NET DATA B LINE EGT NET +12V / 0.5A EGT NET +12V / 0.5A EGT NET GND / 0.5A EGT NET GND / 0.5A...
  • Page 79 HARDWARE Cabinet FAN CviLux CI3103P1V00 PIN № Signal Name/Current GND / 0.15A +12V / 0.15A AUDIO OUTPUTS MOLEX 2x2pin Mini-fit Straight PIN № Signal Name/Current PIN № Signal Name/Current SPKR FL+ / 1.5A SPKR FL- / 1.5A SPKR FR+ / 1.5A SPKR FR- / 1.5A POWER OUTPUT AMP 350211...
  • Page 80 HARDWARE VI.4. CONNECTORS OF EXCITER III CONNECTORS BOARD BH40S 2x20 pin male PIN No Signal Name PIN No Signal Name T RXD4 T TXD4 T RXD7 T TXD7 T RXD5 T TXD5 T RXD6 T TXD6 T RXD2 T TXD2 T RXD3 T TXD3 DIN0...
  • Page 81 HARDWARE INTRUSION SWITCHES MOLEX 7x2pin Mini-fit Straight PIN No Signal Name PIN No Signal Name INTRUSION0# INTRUSION1# INTRUSION2# INTRUSION3# INTRUSION4# INTRUSION5# INTRUSION6# Serial Ticket Printer MOLEX 3x2pin Mini-fit Straight PIN No Signal Name PIN No Signal Name COM9 Rx +24V COM9 Tx EXT_DIN11 (Coin Acc.
  • Page 82 EXT_DIN3# (OUNER) J12, J13 EGT Progressive Net RJ45 PIN No Signal Name EGT NET DATA A LINE EGT NET DATA B LINE EGT NET +12V EGT NET +12V EGT NET GND EGT NET GND © 2016 - 2017, Euro Games Technology Ltd.
  • Page 83 HARDWARE Cabinet FANS CviLux CI3103P1V00 PIN No Signal Name +12V AUDIO OUTPUTS MOLEX 2x2pin Mini-fit Straight PIN No Signal Name PIN No Signal Name SPKR FL+ SPKR FL- SPKR FR+ SPKR FR- POWER OUTPUT AMP 350211 PIN No Signal Name/Current +5V/1.5A +12V/1.5A J202...

  • Page 84: Contacts
