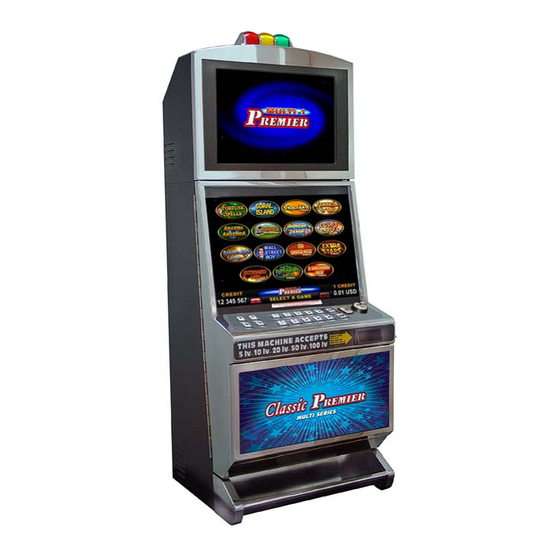

EGT Classic Premier Hardware User Manual

Hide thumbs Also See for Classic Premier:
Table of Contents

Advertisement

Quick Links

Download this manual

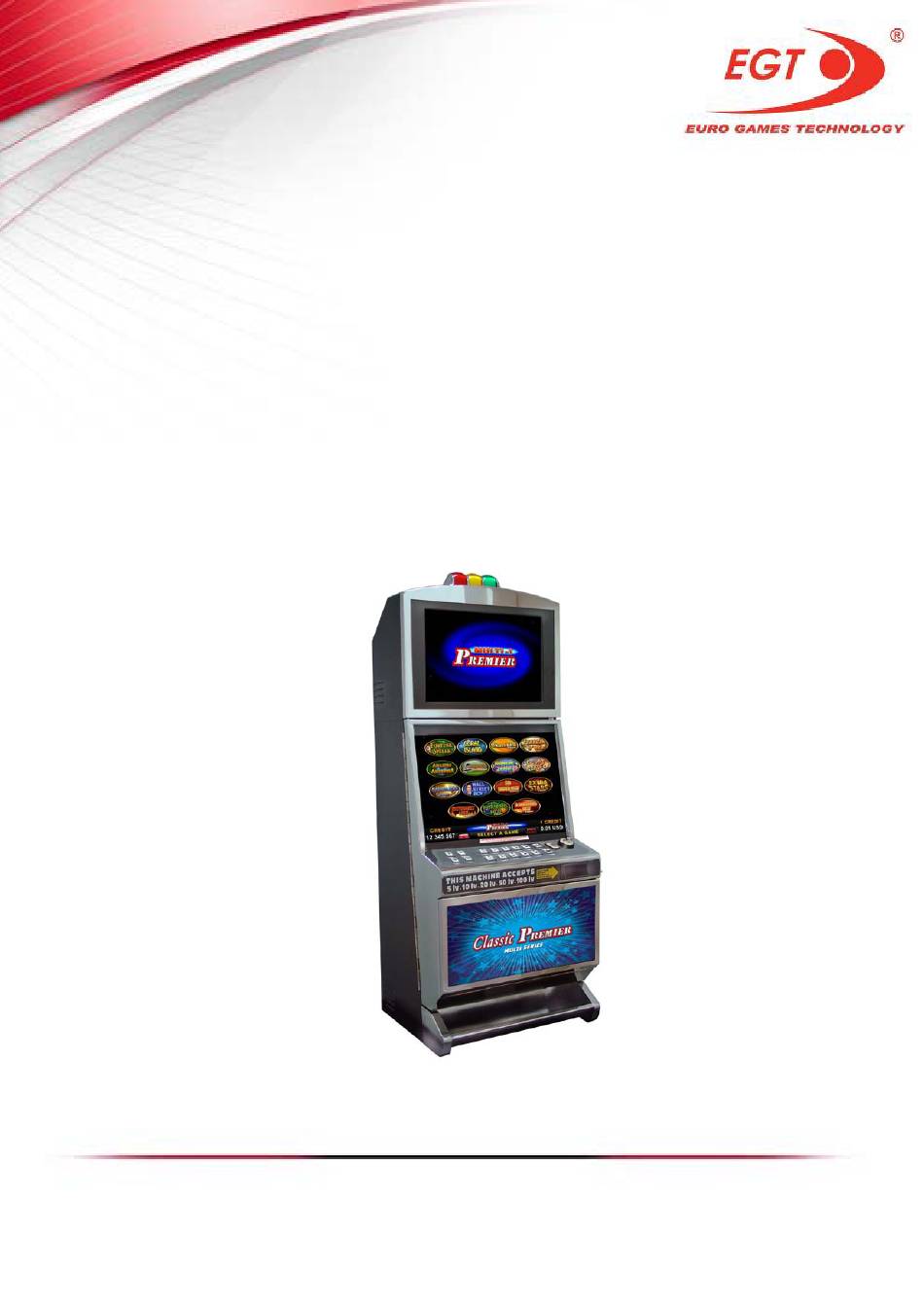

Classic Premier Gaming Machine
HARDWARE
USER MANUAL
(rev. 1.2)
*The manufacturer shall reserve its right to modify and amend the item and this documentation
without prior notification of the customers.
©2013, Euro Games Technology Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Classic Premier and is the answer not in the manual?

Questions and answers

Related Manuals for EGT Classic Premier

Summary of Contents for EGT Classic Premier

  • Page 1 Classic Premier Gaming Machine HARDWARE USER MANUAL (rev. 1.2) *The manufacturer shall reserve its right to modify and amend the item and this documentation without prior notification of the customers. ©2013, Euro Games Technology Ltd.
  • Page 2 Classic Premier Gaming Machine HARDWARE REVISION HISTORY Rev.1.0. - an initial document version Rev.1.1. - a new document version with following changes:  A new functionality of Cash Out и Select Game buttons is described on page 46; Rev.1.2. - a new document version with following changes: ...

  • Page 3: Table Of Contents

    Classic Premier Gaming Machine HARDWARE CONTENTS CHAPTER I. INTRODUCTION І.1. General Description…………………………………………………………….. І.2. Technical Specifications and Dimensions……………………………………. І.3. Operating Conditions…………………………………………………………... І.4. Transportation…………………………………………………………………… І.5. Safety and Precaution Measures……………………………………………... CHAPTER II. INSTALLATION ІІ.1. Visual Inspection………………………………………………………………. Gaming Machine Installation Requirements……………………………….. ІІ.2. CHAPTER ІІІ. GAMING MACHINE SERVICE ІІI.1.
  • Page 4 Classic Premier Gaming Machine HARDWARE IV.14 Door Switches………………………………………………………………… IV.15 Keys and Locks of the Gaming Machine Doors…………………………… CHAPTER V. GAMING MACHINE TROUBLESHOOTING Troubleshooting………………………………………………………………. V.1. V.2. Error Messages………………………………………………………………. V.2.1. Events, Only Registered in All Events Log……………………………….. V.2.2. Warnings………………………………………………………………………. V.2.3. Non-fatal Errors………………………..………….………………………….
  • Page 5 Classic Premier Gaming Machine HARDWARE SIGNS USED WARNING! Warns about specific conditions or situations of/in the gaming machine, which require due attention. NOTE! Gives important or additional information of the gaming machine, software or the game. ©2013, Euro Games Technology Ltd.

  • Page 6: Chapter I. Introduction

    Classic Premier Gaming Machine HARDWARE CHAPTER I. INTRODUCTION І.1. General Description…………………………………………………………….. І.2. Technical Specifications and Dimensions……………………………………. І.3. Operating Conditions…………………………………………………………... І.4. Transportation…………………………………………………………………… І.5. Safety and Precaution Measures……………………………………………... ©2013, Euro Games Technology Ltd.
  • Page 7 "Machines") are designed for use in casinos and gambling halls. The series is developed on the basis of the Exciter II Gaming Platform, specially created for Euro Games Technology (EGT) and complied with the newest requirements of the gaming industry. Among the most important technical characteristics of Exciter II are low energy consumption and operation on only one power voltage.
  • Page 8 Classic Premier Gaming Machine HARDWARE WARNING! Before switching on the machine for the first time, please carefully read and understand this User Manual. I.2. TECHNICAL SPECIFICATIONS AND DIMENSIONS Manufacturer:  EURO GAMES TECHNOLOGY Ltd., Bulgaria Type:  EGT-VS2-4 Power Supply Voltage: ...
  • Page 9 Classic Premier Gaming Machine HARDWARE Fig.I.2 Dimensions of Classic Premier Gaming Machine Weight: 100 kg Height: 1380 mm Width: 548 mm Depth: 462 mm ©2013, Euro Games Technology Ltd.
  • Page 10 Classic Premier Gaming Machine HARDWARE I.3. OPERATING CONDITIONS Classic Premier gaming machines are designed and manufactured to keep their operability at the following conditions: Ambient temperature: from +10С° to +30С°  Relative humidity: from 20% to 80%  Vertical operation position ...
  • Page 11 Classic Premier Gaming Machine HARDWARE Do not: Operate the machine in the open or in premises with high humidity.  Install and use the machine in premises, where it can be exposed on  water drops or sprinkles. Operate close to heating units or expose to direct sunlight.

  • Page 12: Chapter Ii. Installation

    Classic Premier Gaming Machine HARDWARE CHAPTER II. INSTALLATION Visual Inspection………………………………………………………………. ІІ.1. ІІ.2. Gaming Machine Installation Requirements……………………………….. ©2013, Euro Games Technology Ltd.
  • Page 13 Classic Premier Gaming Machine HARDWARE II.1. VISUAL INSPECTION Before installation the machine shall be visually inspected for possible transportation damages. WARNING! The Manufacturer shall not bear liability for damages occurred upon transportation of the Gaming Machine. II.2. GAMING MACHINE INSTALLATION REQUIREMENTS...

  • Page 14: Ііi.1. Control Keys

    Classic Premier Gaming Machine HARDWARE CHAPTER ІІІ. GAMING MACHINE SERVICE ІІI.1. Control Keys……………………………………………………………………. ІІI.2. Credit Forming…………………………………………………………………. ІІI.3. Credit Clear…………………………………………………………………….. ІІI.4. Jackpot Payout……………………………………………...…………………. ІІI.5. Machine reservation and release……………………………………………. ІІI.6. Signal lights lighting modes………………………………………………….. III.7. Component Maintenance…………………………………………………….. ©2013, Euro Games Technology Ltd.
  • Page 15 Classic Premier Gaming Machine HARDWARE III.1. CONTROL KEYS Access to the credit forming screen, service functions and accounting of the machine may be preformed by use of either mechanical or electronic keys. The system recognizes 4 types of keys: ATTENDANT - attendant’s mechanical/electronic key by which player’s credit ...
  • Page 16 Classic Premier Gaming Machine HARDWARE Fig. III.1 Credit addition can be performed: From the Screen Keyboard: 1. Dial the necessary number by touching the digit keys on the touchscreen keyboard. If a wrong digit is chosen, press <- ; 2. Press Add button;...
  • Page 17 Classic Premier Gaming Machine HARDWARE III.3. CREDIT CLEAR Credit zero reset and payout thereof may be performed only if the game is in bet mode after pressing a CASH OUT button. At pressing a CASH OUT button the credit may be paid out by Attendant (handpay), via hopper or via thicket printer depending on settings of the gaming machine.
  • Page 18 Classic Premier Gaming Machine HARDWARE This splash is only greeting. Depending on machine settings it may automatically disappear or be cleared by Attendant key. If a Jackpot Handpay splash is appeared after this greeting splash, then the amount won has to be paid by hand (handpay), otherwise it is inserted to the credit.
  • Page 19 Classic Premier Gaming Machine HARDWARE III.6. SIGNAL LIGHTS LIGHTING MODES The signal lights are mounted on the top of the machine. They indicate the following conditions: Top ( Left ) Lamp Hand Pay Middle Lamp Open Door Yellow Bottom ( Right ) Lamp...

  • Page 20: Iii.7. Component Maintenance

    Description: Blow the dust away from the fun and the processor radiator using a mighty air stream. Clean only when the power is switched off! For prevention can address to the nearest EGT service . Recommended Maintenance Period: monthly. Cleaning: Clean the dust from the outside of the fan. Use a soft brush and vacuum cleaner.
  • Page 21 Classic Premier Gaming Machine HARDWARE Cleaning: The cleaning shall be performed with a piece of soft cloth, which shall not leave lint on surfaces, soaked with 90% isopropylene alcohol. Clean only when the power is switched off! III.7.5. Keyboard Panel Description: The system controls the condition of button LED’s (if the test is...

  • Page 22: Chapter Iv. Hardware Components

    Classic Premier Gaming Machine HARDWARE CHAPTER IV. HARDWARE COMPONENTS IV.1. General Description of Components……………………………………….. IV.2. Power Distributor Unit and Power Supply Units…………………………... IV.3. Exciter II Motherboard……………………………………………………….. IV.4. Exciter II Connectors Board…………………………………………………. IV.5. Monitors and Touchscreen…………………………………………………... IV.6. Bill Validator……………………………………………………………………. IV.7. Coin/Token Acceptor (optional)……………………………………………….

  • Page 23: Iv.1. General Description Of Components

    Classic Premier Gaming Machine HARDWARE IV.1. GENERAL DESCRIPTION OF COMPONENTS Fig.IV.1. Overview of Classic Premier Cabinet with Closed Doors DESCRIPTION OF COMPONENTS 1. Signal lights 14. Bill Stacker Door 2. Topper 15. Monitor 3. Body 16. Cabinet Fans 4. Main Door 17.
  • Page 24 Classic Premier Gaming Machine HARDWARE The machine consists of three main parts: Body, Main Door, and Topper. The access to the main parts of the gaming machine is limited by means of a mechanical locking system on both doors (Main Door and Bill Validator Door) and it can be controlled by means of push-pull switches even, if the machine power is switched off.

  • Page 25: Iv.2. Power Distributor Unit And Power Supply Units

    IV.2.1. Location in the Machine: (pos. 10, 11 and 17, Figure IV.1). IV.2.2. Type: Main Power Supply Unit (PSU): Mean Well RD-125-1224; TFT Monitors Power Supply Adapters: Mean Well FM90C12-P1M; Power Distributor Unit (PDU): EGT Distribution Box. IV.2.3. Purpose of Use: Main Power Supply Unit - powers the following components: ...

  • Page 26: Iv.3. Exciter Ii Motherboard

    Attachment VII.3., are located on its board: Moreover, some additional machine control elements are located on the Exciter II Connectors Board, such as:  Galvanically separated RS485 interface for EGT Jackpot Network;  Class D stereo audio amplifier 2 x 8 W; ...

  • Page 27: Iv.6. Bill Validator

    Classic Premier Gaming Machine HARDWARE IV.5. MONITORS AND TOUCHSCREEN IV.5.1. Location in the Machine: Pos. 8 and 15, Figure IV.1 IV.5.2. Type: Monitors: ET1938L-0CWA - 19" TFT (pos. 15, Figure IV.1). ET1938L-8CWA - 19" TFT Touch 19" TFT with built-in touchscreen (pos. 8, Figure IV.1).
  • Page 28 Classic Premier Gaming Machine HARDWARE Fig.IV.2 Fig.IV.3 Cashcode MFL JCM UBA-1X-SS Fig.IV.4 Fig.IV.5 MEI SC8307 Ardac Elite WARNING! MEI SC8307 bill validator is supplied separately from the rest electronics components. Must use the separate power supply unit which is counted in the equipment.
  • Page 29 Classic Premier Gaming Machine HARDWARE IV.6.4. Technical Parameters CashCode MFL Electrical parameters Value Power Supply Voltage: 12V DC ± 10% Standby 0.2 А Current consumption Operating mode max 2 А Standby 2.4 W Power consumption Operating mode 12 W Communication Interface...
  • Page 30 Classic Premier Gaming Machine HARDWARE ARDAC ELITE Electrical parameters Value Power Supply Voltage: 12 VDC or 24 VDC Standby 0.150 A 1.8W Current consumption Operating mode 3.0 A Communication Interface RS232 Environment Parameters Value Operation Temperature 0…….60ºC Operating Relative Humidity...
  • Page 31 Classic Premier Gaming Machine HARDWARE IV.6.5. Components Fig.IV.6 Fig.IV.7 Components of CashCode MFL Components of JCM UBA-10- Fig.IV.8 Components of Ardac Elite ©2013, Euro Games Technology Ltd.
  • Page 32 Classic Premier Gaming Machine HARDWARE Fig.IV.9 Components of MEI SC8307 Update the software of a MEI SC8307 bill validator by a hand held device Portable Programming Module (PPM). ©2013, Euro Games Technology Ltd.
  • Page 33 Classic Premier Gaming Machine HARDWARE IV.6.6. Collecting Bills IV.6.6.1. Collecting bills from CashCode MFL - 1 - - 2 - - 3 - Fig.IV.10 CashCode MFL Collecting Bills Open bill validator door. Push the lever, pointed by the small arrow on Fig.IV.10-1 and pull the cassette out.
  • Page 34 Classic Premier Gaming Machine HARDWARE Open Bill validator door. Hold the cassette handle and pull it in direction, pointed by the arrow on Fig. IV.11-1. Open the cover and take the bills (Fig. IV.11-2). Put back the cassette into the housing.
  • Page 35 Classic Premier Gaming Machine HARDWARE Depending on the situation encountered jammed bills must be removed as shown on Fig.IV.13 IV.6.8. Configuring the Bill Validator IV.6.8.1. Configuring CashCode MFL CashCode MFL configuration is done by setting switches, located at the rear end of the validating head, under a transparent plastic cover.
  • Page 36 Classic Premier Gaming Machine HARDWARE CashCode MFL operates in two basic modes: validation and service. Defining settings, operating mode and enabled denominations is performed by two groups of switches - SW1 and SW2 (Fig.IV.14, Fig.IV.15 and Fig.IV.16) Fig.IV.15 CashCode MFL SW1 Setting switches condition...
  • Page 37 Classic Premier Gaming Machine HARDWARE Parameters Switch Orientation of the bill SW 2.1 Four-way One-way SW 2.2 Not used Not used Interface communication speed SW 2.3 9600 bps 19,200 bps Operating Mode SW 2.4 Service Mode Validation Mode For additional information on switch features and explanations, please see CashCode MFL User Manual.
  • Page 38 Classic Premier Gaming Machine HARDWARE IV.6.8.3. Configuring Ardac Elite Two similar groups Bank 1 and Bank 2 of switches are located, which are shown below (Fig.18) Fig.IV.18 Ardac Elite Setting switches condition To select serial interface RS 232, determine the ID003 Baud Rate - 9600,...

  • Page 39: Iv.7. Coin/Token Acceptor

    Classic Premier Gaming Machine HARDWARE IV.7. COIN/TOKEN ACCEPTOR (OPTIONAL) IV.7.1. Type: Money Controls ‘‘Condor Premier or ‘MC62’ Fig.IV.19 Condor Premier Coin/Token Acceptor Fig.IV.20 MC62Coin/Token Acceptor ©2013, Euro Games Technology Ltd.
  • Page 40 Classic Premier Gaming Machine HARDWARE IV.7.2. Purpose of Use Accepts coins or tokens. The diverter under the acceptor diverts coins to hop- per or to drop box. IV.7.3. Technical Parameters Condor Premier Coin/Token Acceptors Parameters Value Power Supply Voltage: 12V ÷ 24V DC...

  • Page 41: Iv.8. Ticket Printer

    Classic Premier Gaming Machine HARDWARE IV.8. TICKET PRINTER (OPTIONAL) IV.8.1. Тype: Ithaca Epic 950/950L, FutureLogic GEN2 or FutureLogic GEN2 Universal Fig.IV.21 Ithaca Epic 950 Ticket Printer Fig.IV.22 FutureLogic GEN2 Ticket Printer Fig.IV.23 FutureLogic GEN2 Universal Ticket Printer ©2013, Euro Games Technology Ltd.
  • Page 42 Classic Premier Gaming Machine HARDWARE IV.8.2. Purpose of Use: Prints vouchers and tickets. IV.8.3. Technical Parameters a) Ithaca Epic 950 Ticket Printer parameters: Electrical parameters Value Power Supply Voltage 24V DC ± 10% Current Consumption At 24V and 25% black max 2.2 А...
  • Page 43 Classic Premier Gaming Machine HARDWARE Print Parameters Value Direct Thermal, Top Coated, Print Method Fanfolded and Perforated Print Speed (monochrome, in text mode) 90 mm/sec 203dpi x 203dpi Resolution Print Width 62 mm Tickets capacity Ticket Parameters Value Ticket Width...
  • Page 44 Classic Premier Gaming Machine HARDWARE IV.8.4. Loading tickets a) Loading tickets in Ithaca Epic 950 Ticket Printer Fig.IV.24 Loading tickets in Ithaca Epic 950 Ticket Printer 1. Load tickets into the ticket supply tray, making sure that the Black Dot is positioned as shown in Fig.IV.24.

  • Page 45: Iv.9. Keyboard Controller And Keyboard Panel

    Classic Premier Gaming Machine HARDWARE IV.9. KEYBOARD CONTROLLER AND KEYBOARD PANEL IV.9.1. Location in the Machine Keyboard Controller: Fig. IV.1 - Pos. 20; Keyboard Panel: Fig. IV.1 - Pos. 6. IV.9.2. Type: USB Keyboard Controller IV.9.3. Purpose of Use Keyboard Controller: ...
  • Page 46 Classic Premier Gaming Machine HARDWARE CASH OUT (B11) - а button for credit cash-out procedure starting. First it ─ transfers the win to the credit meter (ends the game) and then starts the procedure for cash-out the credit. SERVICE - a button for staff calling;...
  • Page 47 Classic Premier Gaming Machine HARDWARE GAMBLE/SELECT BET (B18)  Video slot games: Button for placing the bet (at line video slot games) or bet multiplier (at ─ Reel Ways Pay (Extra Reel Ways Pay) series video slot games) by fixed schemes.
  • Page 48 Classic Premier Gaming Machine HARDWARE Keno Universe: Button L1 ÷ Button L5 buttons are not used and they are not active. ─ Button B1 ÷ Button B5 (PLAY BET/ HOLD) (B5-B10) ─ Video slot games: Bet selection buttons. Each of Button B1 ÷ Button B5 buttons has its fixed ─...

  • Page 49: Iv.10 Meter Module

    Classic Premier Gaming Machine HARDWARE IV.10. METER MODULE IV.10.1. Location in the Machine: Accounting Zone: Pos. 12, Figure IV.1; Counters and Signal Lamps Controller: Pos. 9, Figure IV.1 IV.10.2. Type: Counters Controller IV.10.3. Purpose of Use:  counts the impulses, transferred by the control platform to the appropriate mechanical meters;...

  • Page 50: Iv.13 Speakers

    Classic Premier Gaming Machine HARDWARE IV.13. SPEAKERS IV.13.1. Location in the Machine: Pos. 26, Figure IV.1 IV.13.2. Purpose of Use: Play stereo sound. IV.13.3. Technical Parameters:  Broadband;  Impedance : 8 Ω;  Power : 20W. IV.14. DOORS SWITCHES IV.14.1.
  • Page 51 Classic Premier Gaming Machine HARDWARE Figure ІІІ.27 Location of the Classic Premier gaming machine door locks ©2013, Euro Games Technology Ltd.

  • Page 52: Chapter V. Gaming Machine Troubleshooting

    Classic Premier Gaming Machine HARDWARE CHAPTER V. GAMING MACHINE TROUBLESHOOTING V.1. Troubleshooting………………………………………………………………. V.2. Error Messages………………………………………………………………. V.2.1. Events, Only Registered in All Events Log……………………………….. V.2.2. Warnings………………………………………………………………………. V.2.3. Non-fatal Errors………………………..………….…………………………. V.2.4. Fatal Errors………………………...………………………………………... ©2013, Euro Games Technology Ltd.

  • Page 53: Troubleshooting

    Classic Premier Gaming Machine HARDWARE V.1. TROUBLESHOOTING External features Possible cause Solution Fuse burned out Replace fuse Power Cord Replace power cord Nothing lights up Main Power Supply Unit Check PSU LED. Replace PSU. (PSU) Defective button Replace the button Buttons don’t work...
  • Page 54 Classic Premier Gaming Machine HARDWARE Bill 100 accepted - Logged when a bill of par value 100 is accepted. Bill 2 accepted - Logged when a bill of par value 2 is accepted. Bill 20 accepted - Logged when a bill of par value 20 is accepted.
  • Page 55 Classic Premier Gaming Machine HARDWARE Gamble entered - Logged when Gamble is entered. The won amount at Gamble entering is logged. Gamble exited - Logged at Gamble exit. The value of the amount won is displayed. Drop door closed - Logged when the drop door is closed.
  • Page 56 Classic Premier Gaming Machine HARDWARE Pic soft reset - Logged when the communication with Intrusion processor is lost for 3 sec. Date and time are logged. Power off bill stacker door access - Logged when there is access to bill stacker door at machine power off.

  • Page 57: Warnings

    Classic Premier Gaming Machine HARDWARE Super mystery win - Logged when Super Mystery is won. The value of the amount won is displayed. Ticket transfer complete - Logged when ticket transfer is complete. The amount, type, and bar code of the voucher are logged.

  • Page 58: Non-Fatal Errors

    Classic Premier Gaming Machine HARDWARE The battery is checked once per 24 hours and each time when the machine is turned on. After the check, in case of low battery this warning appears. All data inside NVRAM can be stored up to 1 year from the first appearance of the warning message on the screen.

  • Page 59: Fatal Errors

    Classic Premier Gaming Machine HARDWARE Card cage opened - Solution = Close card cage. Coin in tilt - Solution = Remove tilted coin - appears, when there is a tilted coin in Coin Acceptor. Coin out tilt - Solution = Remove tilted coin - appears, when there is a tilted coin in Hopper.
  • Page 60 General error - Appears at a critical problem in the machine NOTE! In case of fatal general error it is necessary to connect to the EGT service and report the error code, written in the box and additional information in the lower right corner of the screen.

  • Page 62: Chapter Vi. Attachments

    Classic Premier Gaming Machine HARDWARE CHAPTER VI. ATTACHMENTS VI.1. Modular Diagram of Components…………………………………………. VI.2. Electric Wiring Diagram..…..……………………………………………….. VI.3. Connectors of Exciter II Connectors Board ……………………………… ©2013, Euro Games Technology Ltd.
  • Page 63 Classic Premier Gaming Machine HARDWARE VI.1. MODULAR DIAGRAM OF COMPONENTS ©2013, Euro Games Technology Ltd.

  • Page 64: Vi.2. Electric Wiring Diagram

    Classic Premier Gaming Machine HARDWARE VI.2. ELECTRIC WIRING DIAGRAM ©2013, Euro Games Technology Ltd.
  • Page 65 Classic Premier Gaming Machine HARDWARE МEI SC8307 Bill Validator Connection to the Machine - Electric Wiring Diagram Supplement ©2013, Euro Games Technology Ltd.

  • Page 66: Vi.3. Connectors Of Exciter Ii Connectors Board

    Classic Premier Gaming Machine HARDWARE VI.3. CONNECTORS OF EXCITER II CONNECTORS BOARD EURO DIN41612 2x32 pin a+c male right angle PIN № Signal Name PIN № Signal Name BU+12V BU+12V BU+12V N.C. VCC3 VCC3 VCC3 VCC3 VCC3 VCC3 DOUT0 DOUT1...
  • Page 67 Classic Premier Gaming Machine HARDWARE POWER INPUT MOLEX 4x2pin mini-fit Straight Signal Name/Current PIN № Signal Name/Current № 12V / 1.33A 12V / 1.33A 12V / 1.33A GND / 1.25A GND / 1.25A GND / 1.25A GND / 1.25A 24V / 1A...
  • Page 68 Classic Premier Gaming Machine HARDWARE Serial Bill Acceptor COM6 MOLEX 2x2pin Mini-fit Straight Signal Name/Current PIN № Signal Name/Current № COM6 Rx GND / 1.5A COM6 Tx +12V / 1.5A Serial Card Reader COM10 MOLEX 2x2pin Mini-fit Straight Signal Name/Current PIN №...
  • Page 69 Classic Premier Gaming Machine HARDWARE J12,J13 EGT Progressive Net COM8 RJ45 PIN № Signal Name/Current EGT NET DATA A LINE EGT NET DATA B LINE EGT NET +12V / 0.5A EGT NET +12V / 0.5A EGT NET GND / 0.5A EGT NET GND / 0.5A...

  • Page 70: Contacts
