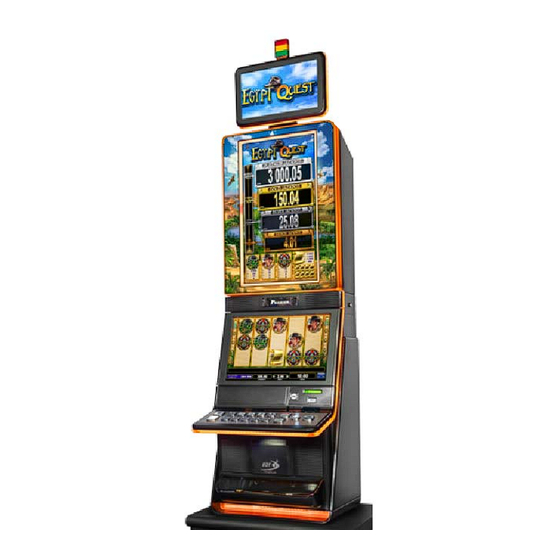

EGT EGYPT QUEST P-24/32V Up EQ User Manual

Jackpot machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

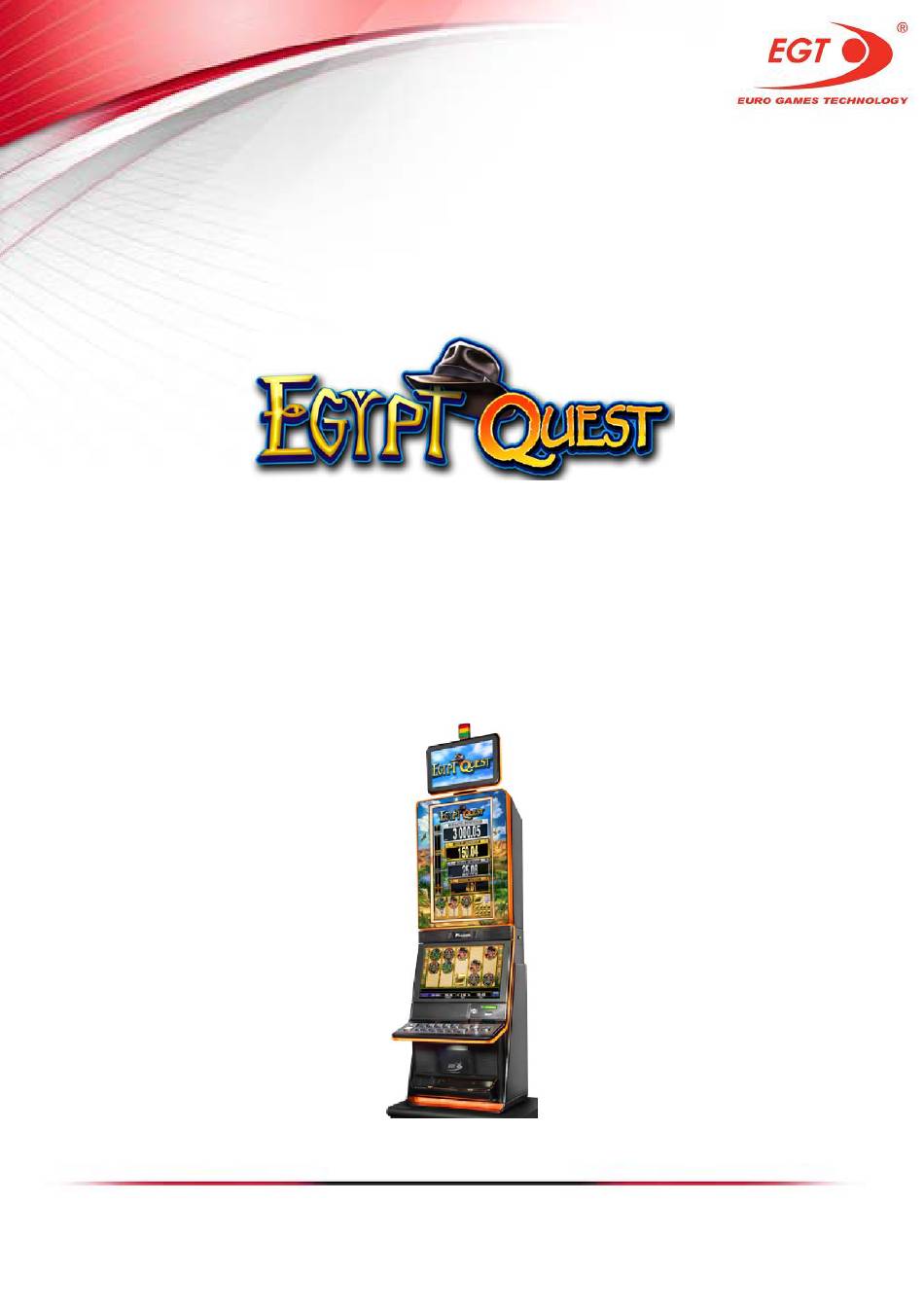

P-24/32V Up EQ JACKPOT MACHINE
HARDWARE
USER MANUAL
(rev. 1.1.)
*The manufacturer shall reserve its right to modify and amend the item and this documentation
without prior notification of the customers.
©2014, Euro Games Technology Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EGYPT QUEST P-24/32V Up EQ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EGT EGYPT QUEST P-24/32V Up EQ

Summary of Contents for EGT EGYPT QUEST P-24/32V Up EQ

  • Page 1 P-24/32V Up EQ JACKPOT MACHINE HARDWARE USER MANUAL (rev. 1.1.) *The manufacturer shall reserve its right to modify and amend the item and this documentation without prior notification of the customers. ©2014, Euro Games Technology Ltd.
  • Page 2 P-24/32V Up EQ Jackpot Machine HARDWARE REVISION HISTORY Rev.1.0. - an initial document version Rev.1.1. - a new document version with following changes:  The picture of the machine on page 1 and 7 is changed with an actual one; ...

  • Page 3: Table Of Contents

    P-24/32V Up EQ Jackpot Machine HARDWARE CONTENTS CHAPTER I. INTRODUCTION І.1. General Description…………………………………………………………….. І.2. Technical Specifications and Dimensions……………………………………. І.3. Operating Conditions…………………………………………………………... І.4. Transportation…………………………………………………………………… І.5. Safety and Precaution Measures……………………………………………... CHAPTER II. INSTALLATION Visual Inspection………………………………………………………………. ІІ.1. ІІ.2. Topper Premier Mounting…………………………………………………….. Gaming Machine Installation Requirements……………………………….. ІІ.3.
  • Page 4 P-24/32V Up EQ Jackpot Machine HARDWARE IV.12. Signal Lights Controller………………………………………………………. IV.13. Decorative Lighting…………………………………………………………… IV.14. Electronic Key Reader……………………………………………………….. IV.15. Speakers………………………………………………………………………. IV.16. Door Switches………………………………………………………………..IV.17. Topper Premier……………………………………………………………….. CHAPTER VI. GAMING MACHINE TROUBLESHOOTING VI.1. Troubleshooting………………………………………………………………. VI.2. Error Messages………………………………………………………………. V.2.1. Events, Only Registered in All Events Log……………………………….. V.2.2.
  • Page 5 P-24/32V Up EQ Jackpot Machine HARDWARE SIGNS USED WARNING! Warns about specific conditions or situations of/in the gaming machine, which require due attention. NOTE! Gives important or additional information of the gaming machine, software or the game. ©2014, Euro Games Technology Ltd.

  • Page 6: Chapter I. Introduction

    P-24/32V Up EQ Jackpot Machine HARDWARE CHAPTER I. INTRODUCTION І.1. General Description…………………………………………………………….. І.2. Technical Specifications and Dimensions……………………………………. І.3. Operating Conditions…………………………………………………………... І.4. Transportation…………………………………………………………………… І.5. Safety and Precaution Measures……………………………………………... ©2014, Euro Games Technology Ltd.
  • Page 7 The series is developed on the basis of the Exciter II Gaming Platform, specially created for EGT and complied with the newest requirements of the gaming industry. Among the most important technical characteristics of Exciter II are low energy consumption and operation on only one power voltage.
  • Page 8 P-24/32V Up EQ Jackpot Machine HARDWARE I.2. TECHNICAL SPECIFICATIONS AND DIMENSIONS Manufacturer: EURO GAMES TECHNOLOGY Ltd., Bulgaria Type: EGT-VS10 - 2 Power Supply Voltage: 100 - 240 V ~ Current: 3.9 - 1.6 А Consumption: 385 W Frequency: 50 - 60 Hz Fuses: Т6.3А...
  • Page 9 P-24/32V Up EQ Jackpot Machine HARDWARE Fig.I.2 Dimensions of P-24/32V Up EQ Weight : 190 kg Height: 2317 mm Width: 630 mm Depth: 610 mm ©2014, Euro Games Technology Ltd.
  • Page 10 P-24/32V Up EQ Jackpot Machine HARDWARE I.3. OPERATING CONDITIONS P-24/32V Up EQ are designed and manufactured to keep their operability at the following conditions: Ambient temperature: from +10С° to +30С°  Relative humidity: from 20% to 80%  Vertical operation position ...
  • Page 11 P-24/32V Up EQ Jackpot Machine HARDWARE The power cord of the gaming machine shall always be disconnected from the socket, when any repairs or servicing are performed at open main door. In case of power cord damage, it shall be replaced by a special cord or cord set, supplied by the Manufacturer or its representative.

  • Page 12: Chapter Ii. Installation

    P-24/32V Up EQ Jackpot Machine HARDWARE CHAPTER II. INSTALLATION ІІ.1. Visual Inspection………………………………………………………………. ІІ.2. Topper Premier Mounting Instruction……………………………………….. ІІ.3. Gaming Machine Installation Requirements……………………………….. ©2014, Euro Games Technology Ltd.
  • Page 13 P-24/32V Up EQ Jackpot Machine HARDWARE II.1. VISUAL INSPECTION Before installation the machine shall be visually inspected for possible transportation damages. WARNING! The Manufacturer shall not bear liability for damages occurred upon transportation of the Gaming Machine. II.2. TOPPER PREMIER MOUNTING INSTRUCTION Open the top box door and if there is a mounted top lamp remove it and the plate where the top lamp is mounted on the top box .
  • Page 14 P-24/32V Up EQ Jackpot Machine HARDWARE 4. Place the Monitor Controlling Board (PCB) of the Topper Premier on the plate mounted at the top box back and fix it to the pins, pointed in green on the pic- ture, by 4 pieces M3 bolts: II.3.
  • Page 15 P-24/32V Up EQ Jackpot Machine HARDWARE  Place the power cable and connect it to the power mains;  Turn the main power switch on and wait the appearing of picture on the screen;  Insert OWNER key and set up the desired machine and game parameters;...

  • Page 16: Ііi.1. Control Keys

    P-24/32V Up EQ Jackpot Machine HARDWARE CHAPTER ІІІ. GAMING MACHINE SERVICE ІІI.1. Control Keys……………………………………………………………………. ІІI.2. Credit Forming…………………………………………………………………. ІІI.3. Credit Clear…………………………………………………………………….. ІІI.4. Jackpot Payout……………………………………………...…………………. ІІI.5. Machine reservation and release……………………………………………. ІІI.6. Signal lights lighting modes………………………………………………….. III.7. Component Maintenance…………………………………………………….. ©2014, Euro Games Technology Ltd.
  • Page 17 P-24/32V Up EQ Jackpot Machine HARDWARE III.1. CONTROL KEYS Access to the credit forming screen, service functions and accounting of the machine may be preformed by use of either mechanical or electronic keys. The system recognizes 4 types of keys: ATTENDANT - attendant’s mechanical/electronic key by which player’s credit ...
  • Page 18 P-24/32V Up EQ Jackpot Machine HARDWARE Fig. III.1 Credit addition can be performed: From the Screen Keyboard: 1. Dial the necessary number by touching the digit keys on the touchscreen keyboard. If a wrong digit is chosen, press <- ; 2.
  • Page 19 P-24/32V Up EQ Jackpot Machine HARDWARE III.3. CREDIT CLEAR Credit zero reset and payout thereof may be performed only if the game is in bet mode after pressing a CASH OUT button. At pressing a CASH OUT button the credit may be paid out by Attendant (handpay), via hopper or via thicket printer depending on settings of the gaming machine.
  • Page 20 P-24/32V Up EQ Jackpot Machine HARDWARE III.4.2. Classic Blend (Vega) Mystery Jackpot Payout The program supports mystery jackpots, which are controlled by Classic Blend (Vega) Jackpot Server. Up to 3 independent mystery jackpots (Mini, Middle and Super) with different settings are available. When the machine receives information from the CBJS (VJS) Server, that it wins a Mystery Jackpot, a message, containing information of the won Mystery Jackpot and its amount with the bank currency code appears in upper right corner of...
  • Page 21 P-24/32V Up EQ Jackpot Machine HARDWARE Lock and Unlock buttons are used to reserve (LOCK) and release (UNLOCK) the machine. At machine reserving the game picture with RESERVE sign appears on the screen after the EXIT button is pressed. In this mode the machine is locked for playing or credit change until being unlocked.

  • Page 22: Iii.7. Component Maintenance

    Description: Blow the dust away from the fun and the processor radiator using a mighty air stream. Clean only when the power is switched off! For prevention can address to the nearest EGT service . Recommended Maintenance Period: monthly. Cleaning: Clean the dust from the outside of the fan. Use a soft brush and vacuum cleaner.
  • Page 23 P-24/32V Up EQ Jackpot Machine HARDWARE III.7.5. Hopper, Coin/Token Acceptor Description: The maintenance of these devices shall be performed in accordance with the instructions of the device manufacturer. III.7.6. Ticket printer Description: Upon normal operation accumulation of dust on the paper might reduce printing quality.

  • Page 24: Chapter Iv. Hardware Components

    P-24/32V Up EQ Jackpot Machine HARDWARE CHAPTER IV. HARDWARE COMPONENTS IV.1. General Description of Components……………………………………….. IV.2. Power Distributor Unit and Power Supply Units…………………………... IV.3. Exciter II Motherboard……………………………………………………….. IV.4. Exciter II Connectors Board…………………………………………………. IV.5. Monitors and Touchscreen…………………………………………………... IV.6. Bill Validator…………………………………………………………………... IV.7. Coin/Token Acceptor………………………………………………………….

  • Page 25: General Description Of Components

    P-24/32V Up EQ Jackpot Machine HARDWARE IV.1. GENERAL DESCRIPTION OF COMPONENTS Fig.IV.1. Main outdoor components of P-24/32V Up EQ ©2014, Euro Games Technology Ltd.
  • Page 26 P-24/32V Up EQ Jackpot Machine HARDWARE Fig.IV.2. P-24/32V Up EQ with Opened Doors - Components ©2014, Euro Games Technology Ltd.
  • Page 27 Touchscreen 24. Main Power Supply Units12V Ticket Printer Exit 25. Door Switch Bill Validator Entrance 26. Hopper (optional) Advertisement Panel - EGT 27. Power Distributor Unit (PDU) Logo 28. Main Switch 10. Main Door 29. Control Computer (Exciter II) 11. Keyboard Panel 30.

  • Page 28: Iv.2. Power Distributor Unit And Power Supply Units

    HRP-200-12 - powers the lower monitor, touch-screen and the whole cabinet lighting. Power Distributor Unit : EGT Distribution Box - pos. 27 - supplies input voltage to Main Power Supply Units (PSUs), and upper monitor. ©2014, Euro Games Technology Ltd.

  • Page 29: Exciter Ii Motherboard

    P-24/32V Up EQ Jackpot Machine HARDWARE IV.2.4. Technical Parameters Main Power Supply Units (PSUs) Parameters Value Input Voltage 100 ÷ 240V AC 50 ÷ 60 Hz Mean Well SP-150-12 - Rated output voltage and current 12V DC Mean Well SP-100-24 - Rated output voltage and current 24V DC 4.16A Power Distribution Unit (PDU)

  • Page 30: Iv.6. Bill Validator

    P-24/32V Up EQ Jackpot Machine HARDWARE  Galvanically separated RS485 interface for EGT Jackpot Network;  Class D stereo audio amplifier 2 x 8 W;  Digital input and output protection circuits;  Secondary PSUs for 5V and 3.3V. IV.5. MONITORS AND TOUCHSCREEN IV.5.1.
  • Page 31 P-24/32V Up EQ Jackpot Machine HARDWARE Fig.IV.3 Fig.IV.5 Cashcode MFL JCM UBA-1X-SS or JCM iPro-100-SS Fig.IV.5 Fig.IV.7 Ardac Elite MEI SC8307 or MEI Advance SCN8347 WARNING! MEI SC8307 bill validator is supplied separately from the rest electronics components. Must use the separate power supply unit which is counted in the equipment.
  • Page 32 P-24/32V Up EQ Jackpot Machine HARDWARE Fig.IV.7 JCM iVision - SS IV.6.4. Technical Parameters CashCode MFL Electrical parameters Value Power Supply Voltage: 12V DC ± 10% Standby 0.2 А Current consumption Operating mode max 2 А Standby 2.4 W Power consumption Operating mode 12 W RS232...
  • Page 33 P-24/32V Up EQ Jackpot Machine HARDWARE JCM UBA-10-SS Electrical parameters Value Power Supply Voltage: 12V DC ± 5% Standby 0.3 А Current consumption Operating mode 1.6 А Communication Interface RS232 Communication Interface Storage Temperature Environment Parameters -20°C ÷÷Value +60°C Operation Temperature +5°C ÷...
  • Page 34 P-24/32V Up EQ Jackpot Machine HARDWARE MEI SC8307 Electrical parameters Value Power Supply Voltage: 12 ÷ 28V DC ± 5% Standby 0.45 А Current consumption Operating mode 1.25÷3.0 А Communication Interface RS232 Environment Parameters Value Operation Temperature 0°C ÷ +60°C Operating Relative Humidity 5% ÷...
  • Page 35 P-24/32V Up EQ Jackpot Machine HARDWARE IV.6.5. Components Fig.IV.8 Fig.IV.9 Components of CashCode MFL Components of JCM UBA-10-SS Fig.IV.10 Components of Ardac Elite ©2014, Euro Games Technology Ltd.
  • Page 36 P-24/32V Up EQ Jackpot Machine HARDWARE Fig.IV.11 Components of MEI SC8307 Update the software of a MEI SC8307 bill validator by a hand held device Portable Programming Module (PPM). ©2014, Euro Games Technology Ltd.
  • Page 37 P-24/32V Up EQ Jackpot Machine HARDWARE Fig.IV.12 Components of JCM iVision - SS A. Acceptor Unit M. Transport Unit Release Lever B. Front Upper Guide Access Lever (Acceptor Unit) N. Power ON LED (Green) C. Bezel (Option) - use from JCM iPro model! O.
  • Page 38 P-24/32V Up EQ Jackpot Machine HARDWARE IV.6.6. Collecting Bills IV.6.6.1. Collecting bills from CashCode MFL - 1 - - 2 - - 3 - Fig.IV.13 CashCode MFL Collecting Bills Open bill validator door. Push the lever, pointed by the small arrow on Fig.IV.13-1 and pull the cassette out.
  • Page 39 P-24/32V Up EQ Jackpot Machine HARDWARE Open Bill validator door. Hold the cassette handle and pull it in direction, pointed by the arrow on Fig. IV.14-1. Open the cover and take the bills (Fig. IV.14-2). Put back the cassette into the housing. IV.6.7.
  • Page 40 P-24/32V Up EQ Jackpot Machine HARDWARE IV.6.8. Configuring the Bill Validator IV.6.8.1. Configuring CashCode MFL CashCode MFL configuration is done by setting switches, located at the rear end of the validating head, under a transparent plastic cover. Fig.IV.17 CashCode MFL Setting switches location ©2014, Euro Games Technology Ltd.
  • Page 41 P-24/32V Up EQ Jackpot Machine HARDWARE CashCode MFL operates in two basic modes: validation and service. Defining settings, operating mode and enabled denominations is performed by two groups of switches - SW1 and SW2 (Fig.IV.17, Fig.IV.18 and Fig.IV.19) Fig.IV.18 CashCode MFL SW1 Setting switches condition Switch SW 1.1 Denomination 1 enabled...
  • Page 42 P-24/32V Up EQ Jackpot Machine HARDWARE Parameters Switch Four-way One-way Orientation of the bill SW 2.1 SW 2.2 Not used Not used Interface communication speed SW 2.3 9600 bps 19,200 bps Service Mode Validation Mode Operating Mode SW 2.4 For additional information on switch features and explanations, please see CashCode MFL User Manual.
  • Page 43 P-24/32V Up EQ Jackpot Machine HARDWARE IV.6.8.3. Configuring Ardac Elite Two similar groups Bank 1 and Bank 2 of switches are located, which are shown below (Fig.21) Fig.IV.21 Ardac Elite Setting switches condition To select serial interface RS 232, determine the ID003 Baud Rate - 9600, and enable barcode reading, the following switches have to be in given position: Bank 2, switch 4 - ON, Bank 2, switch 5 - OFF...

  • Page 44: Iv.7. Coin/Token Acceptor

    P-24/32V Up EQ Jackpot Machine HARDWARE IV.7. COIN/TOKEN ACCEPTOR (OPTIONAL) IV.7.1. Type: Money Controls ‘Condor Plus’, ‘Condor Premier or ‘MC62’ Fig.IV.24 Condor Plus and Condor Premier Coin/Token Acceptor Fig.IV.25 MC62Coin/Token Acceptor ©2014, Euro Games Technology Ltd.
  • Page 45 P-24/32V Up EQ Jackpot Machine HARDWARE IV.7.2. Purpose of Use Accepts coins or tokens. The diverter under the acceptor diverts coins to hop- per or to drop box. IV.7.3. Technical Parameters Condor Plus and Condor Premier Coin/Token Acceptors Parameters Value Power Supply Voltage: 12V ÷...

  • Page 46: Iv.8. Hopper

    P-24/32V Up EQ Jackpot Machine HARDWARE IV.8. HOPPER (OPTIONAL) IV.8.1. Location in the Machine: Fig.IV.2 - Pos.26. IV.8.2. Тype: SUZO Excel™ Hopper Fig.IV.26 Excel™ Hopper IV.8.3. Purpose of Use Pays out coins/tokens to the player in case of a winning. IV.8.4.

  • Page 47: Iv.9. Ticket Printer

    P-24/32V Up EQ Jackpot Machine HARDWARE IV.9. TICKET PRINTER (OPTIONAL) IV.9.1. Location in the Machine: Fig. IV.2 - Pos. 21. IV.9.2. Тype: Ithaca Epic 950/950L, FutureLogic GEN2 or FutureLogic GEN2 Universal Fig.IV.27 Ithaca Epic 950 Ticket Printer Fig.IV.28 FutureLogic GEN2 Ticket Printer Fig.IV.29 FutureLogic GEN2 Universal Ticket Printer ©2014, Euro Games Technology Ltd.
  • Page 48 P-24/32V Up EQ Jackpot Machine HARDWARE IV.9.3. Purpose of Use: Prints vouchers and tickets. IV.9.4. Technical Parameters a) Ithaca Epic 950 Ticket Printer parameters: Electrical parameters Value Power Supply Voltage 24V DC ± 10% At 24V and 25% black max 2.2 А Current Consumption Communication interface RS232...
  • Page 49 P-24/32V Up EQ Jackpot Machine HARDWARE Print Parameters Value Direct Thermal, Top Coated, Print Method Fanfolded and Perforated Print Speed (monochrome, in text mode) 90 mm/sec Resolution 203dpi x 203dpi Print Width 62 mm Tickets capacity Value Ticket Parameters Ticket Width 66 mm Ticket Length (between perforations) 156 ±...
  • Page 50 P-24/32V Up EQ Jackpot Machine HARDWARE IV.9.5. Loading tickets a) Loading tickets in Ithaca Epic 950 Ticket Printer Fig.IV.30 Loading tickets in Ithaca Epic 950 Ticket Printer 1. Load tickets into the ticket supply tray, making sure that the Black Dot is positioned as shown in Fig.IV.30.

  • Page 51: Iv.10. Keyboard Controller And Keyboard Panel

    P-24/32V Up EQ Jackpot Machine HARDWARE IV.10. KEYBOARD CONTROLLER AND KEYBOARD PANEL IV.10.1. Location in the Machine Keyboard Controller: Fig. IV.2 - Pos. 31; Keyboard Panel: Fig. IV.1 - Pos. 11 IV.10.2. Type USB Keyboard Controller IV.10.3. Purpose of Use USB Keyboard Controller: ...

  • Page 52: Iv.11. Meter Module

    P-24/32V Up EQ Jackpot Machine HARDWARE Main Functions of Keyboard Panel Buttons CASH OUT (В11) - а button for credit cash-out procedure starting. First it ─ transfers the win to the credit meter (ends the game) and then starts the procedure for cash-out the credit;...

  • Page 53: Iv.13. Decorative Lighting

    IV.14. ELECTRONIC KEY READER AND SOCKET IV.14.1. Location in the Machine: : Fig.IV.1 - Pos.5. Pos.19 - Fig.IV.2 IV.14.2. Type: EGT iButton Reader (pos. 19) and DS9092 Socket (pos.5) IV.14.3. Purpose of Use Allows access of the authorized staff to settings, service functions and reports of the Gaming Machine.

  • Page 54: Iv.16. Door Switches

    P-24/32V Up EQ Jackpot Machine HARDWARE IV.16. DOOR SWITCHES IV.16.1. Location in the Machine: Fig. IV.2, pos. 25. IV.16.2. Type: Push-Pull. IV.16.3. Purpose of Use The switches detect openings and closings of all doors. IV.17. TOPPER PREMIER IV.17.1. Location in the Machine: see. fig. IV.1 pos. 34 IV.17.2.

  • Page 56: V.2.1. Events, Only Registered In All Events Log

    P-24/32V Up EQ Jackpot Machine HARDWARE CHAPTER V. GAMING MACHINE TROUBLESHOOTING V.1. Troubleshooting………………………………………………………………. V.2. Error Messages………………………………………………………………. V.2.1. Events, Only Registered in All Events Log……………………………….. V.2.2. Warnings………………………………………………………………………. V.2.3. Non-fatal Errors………………………..………….…………………………. V.2.4. Fatal Errors………………………...………………………………………... ©2014, Euro Games Technology Ltd.
  • Page 57 P-24/32V Up EQ Jackpot Machine HARDWARE V.1. TROUBLESHOOTING External features Possible cause Solution Fuse burned out Replace fuse Power Cord Replace power cord Nothing lights up Main Power Supply Unit Check PSU LED. Replace PSU. (PSU) Defective button Replace the button Buttons don’t work Problems with connection to Check keyboard controller con-...
  • Page 58 P-24/32V Up EQ Jackpot Machine HARDWARE Bill 100 accepted - Logged when a bill of par value 100 is accepted. Bill 2 accepted - Logged when a bill of par value 2 is accepted. Bill 20 accepted - Logged when a bill of par value 20 is accepted. Bill 200 accepted - Logged when a bill of par value 200 is accepted.
  • Page 59 P-24/32V Up EQ Jackpot Machine HARDWARE Drop door closed - Logged when the drop door is closed. Each change is logged separately. EEPROM data error - Logged when NVRAM is cleared. Empty hopper clear - Logged when an event “empty hopper” is cleared. Game has ended - Logged when the game is over.
  • Page 60 P-24/32V Up EQ Jackpot Machine HARDWARE Pic soft reset - Logged when the communication with Intrusion processor is lost for 3 sec. Date and time are logged. Power off bill stacker door access - Logged when there is access to bill stacker door at machine power off.
  • Page 61 P-24/32V Up EQ Jackpot Machine HARDWARE Super mystery win - Logged when Super Mystery is won. The value of the amount won is displayed. Ticket transfer complete - Logged when ticket transfer is complete. The amount, type, and bar code of the voucher are logged. Touchscreen connection restored - Logged when the connection with Touchscreen controller is restored.
  • Page 62 P-24/32V Up EQ Jackpot Machine HARDWARE The battery is checked once per 24 hours and each time when the machine is turned on. After the check, in case of low battery this warning appears. All data inside NVRAM can be stored up to 1 year from the first appearance of the warning message on the screen.
  • Page 63 P-24/32V Up EQ Jackpot Machine HARDWARE Card cage opened - Solution = Close card cage. Coin in tilt - Solution = Remove tilted coin - appears, when there is a tilted coin in Coin Acceptor. Coin out tilt - Solution = Remove tilted coin - appears, when there is a tilted coin in Hopper. Counters lost connection - Solution = Check communication cables.
  • Page 64 General error - Appears at a critical problem in the machine NOTE! In case of fatal general error it is necessary to connect to the EGT service and report the error code, written in the box and additional information in the lower right corner of the screen.

  • Page 66: Chapter Vii. Attachments

    P-24/32V Up EQ Jackpot Machine HARDWARE CHAPTER VI. ATTACHMENTS VI.1. Modular Diagram of Components…………………………………………. VI.2. Electric Wiring Diagram..…..……………………………………………….. VI.3. Connectors of Exciter II Connectors Board ……………………………… ©2014, Euro Games Technology Ltd.
  • Page 67 P-24/32V Up EQ Jackpot Machine HARDWARE VI.1. MODULAR DIAGRAM OF COMPONENTS ©2014, Euro Games Technology Ltd.
  • Page 68 P-24/32V Up EQ Jackpot Machine HARDWARE VI.2. ELECTRIC WIRING DIAGRAM ©2014, Euro Games Technology Ltd.
  • Page 69 P-24/32V Up EQ Jackpot Machine HARDWARE ©2014, Euro Games Technology Ltd.
  • Page 70 P-24/32V Up EQ Jackpot Machine HARDWARE МEI SC8307 Bill Validator Connection to the Machine - Electric Wiring Diagram Supplement ©2014, Euro Games Technology Ltd.
  • Page 71 P-24/32V Up EQ Jackpot Machine HARDWARE VI.3. CONNECTORS OF EXCITER II CONNECTORS BOARD EURO DIN41612 2x32 pin a+c male right angle PIN № Signal Name PIN № Signal Name BU+12V BU+12V BU+12V N.C. VCC3 VCC3 VCC3 VCC3 VCC3 VCC3 DOUT0 DOUT1 DOUT2 DOUT3...
  • Page 72 P-24/32V Up EQ Jackpot Machine HARDWARE POWER INPUT MOLEX 4x2pin mini-fit Straight Signal Name/Current PIN № Signal Name/Current № 12V / 1.33A 12V / 1.33A 12V / 1.33A GND / 1.25A GND / 1.25A GND / 1.25A GND / 1.25A 24V / 1A INTRUSION SWITCHES MOLEX 7x2pin Mini-fit Straight...
  • Page 73 P-24/32V Up EQ Jackpot Machine HARDWARE Serial Bill Acceptor COM6 MOLEX 2x2pin Mini-fit Straight Signal Name/Current PIN № Signal Name/Current № COM6 Rx GND / 1.5A COM6 Tx +12V / 1.5A Serial Card Reader COM10 MOLEX 2x2pin Mini-fit Straight Signal Name/Current PIN №...
  • Page 74 J12,J13 EGT Progressive Net COM8 RJ45 PIN № Signal Name/Current EGT NET DATA A LINE EGT NET DATA B LINE EGT NET +12V / 0.5A EGT NET +12V / 0.5A EGT NET GND / 0.5A EGT NET GND / 0.5A...
