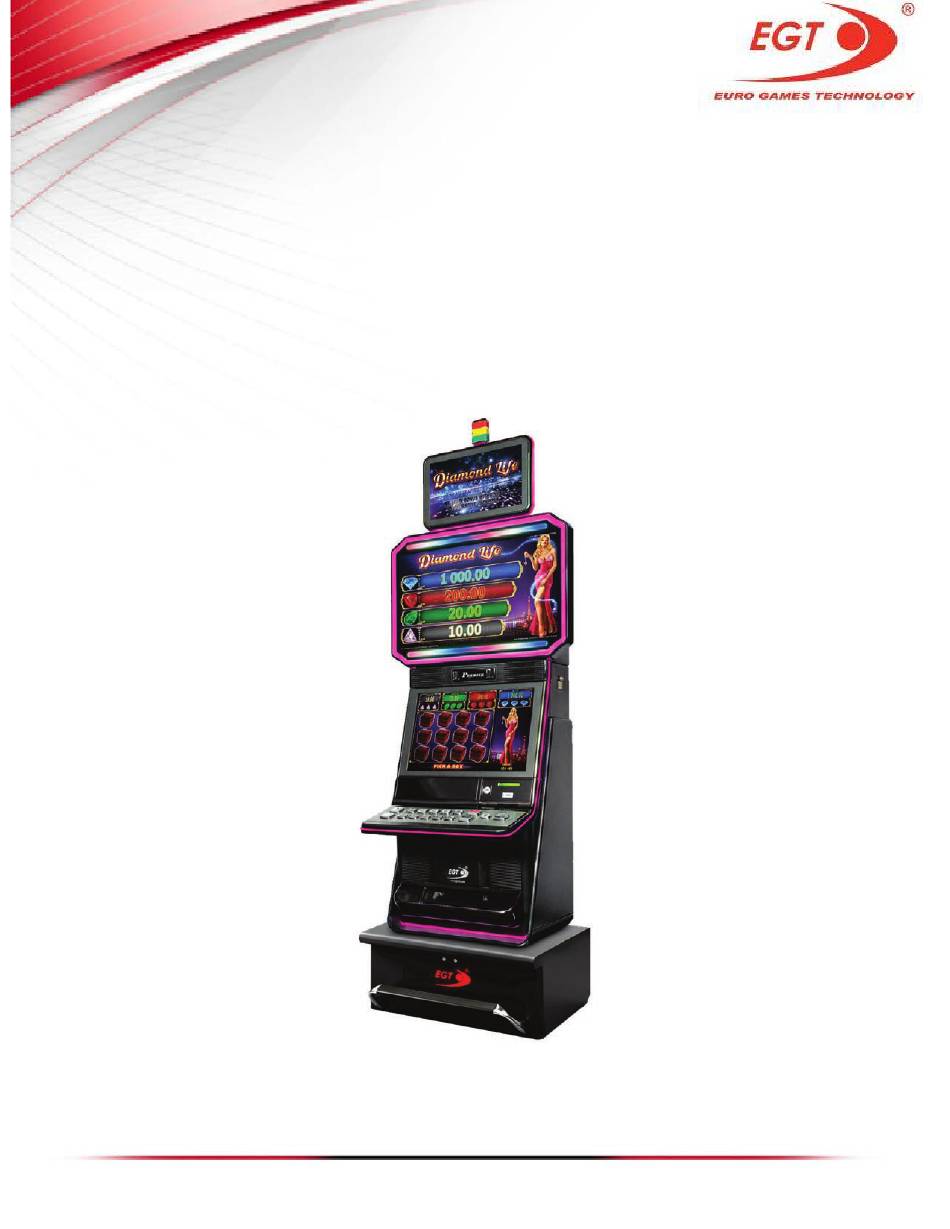

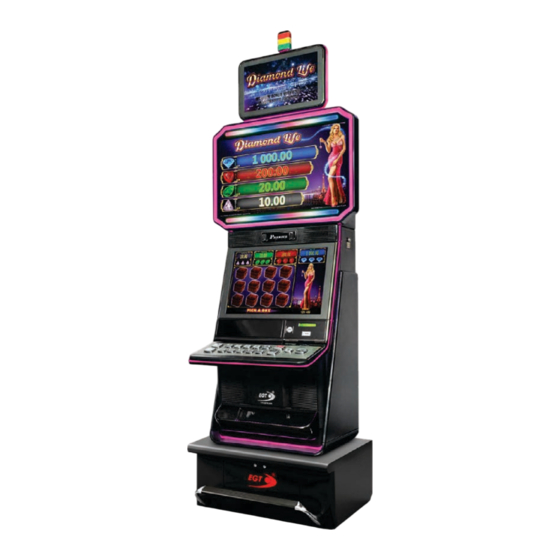

GAMING MACHINE
P - 24/32 H Up DL
HARDWARE
USER MANUAL
Rev. 1.1.
4 "Maritsa" str, "Vrana-Lozen-Triugulnika" region, Sofia 1151, Bulgaria,
phone: + 359 | 2 | 890 24 00
www.egt-bg.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P-24 H Up DL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EGT P-24 H Up DL

Summary of Contents for EGT P-24 H Up DL

  • Page 1 GAMING MACHINE P - 24/32 H Up DL HARDWARE USER MANUAL Rev. 1.1. 4 ”Maritsa” str, ”Vrana-Lozen-Triugulnika” region, Sofia 1151, Bulgaria, phone: + 359 | 2 | 890 24 00 www.egt-bg.com...
  • Page 2 P-24/32 H Up DL Gaming Machine HARDWARE REVISION HISTORY Rev. 1.0. - An initial version of the document. Rev. 1.1. - New version of the document with the following changes:  An additional warning, regarding the mechanism for opening the main door as well as a safety measure on p. ...

  • Page 3: Table Of Contents

    P-24/32 H Up DL Gaming Machine HARDWARE CONTENTS CHAPTER I INTRODUCTION I.1. GENERAL DESCRIPTION................7 I.2. TECHNICAL SPECIAFICATINS AND DIMENTIONS........8 I. 3. GENERAL TERMS OF USE……..............10 I. 4. TRANSPORTATION..................11 I.5. SAFETY MEASURES………................ 12 CHAPTER II. INSTALLATION II. 1. GENERAL OVERVIEW……............... 14 II.2.
  • Page 4 P-24/32 H Up DL Gaming Machine HARDWARE CONTENTS CHAPTER IV. HARDWARE COMPONENTS IV. 1. GENERAL DESCRIPTION OF COMPONENTS…………………………. 30 IV. 2. POWER DISTRIBUTIOR AND POWER SUPPLIES…………………….. 34 IV. 3. EXCITER II MOTHERBOARD……………………………………………… 35 IV. 4. EXCITER II CONNECTORS BOARD……………………………………… 36 IV.
  • Page 5 P-24/32 H Up DL Gaming Machine HARDWARE IMPORTANT SIGNS Warning! Warns for a special occasion or situation of the gaming machine. In that cases, one should approach the situation with caution. Note! Gives an additional and important information for the gaming machine, software or the game.

  • Page 6: Chapter I Introduction

    P-24/32 H Up DL Gaming Machine HARDWARE CHAPTER I INTRODUCTION I.1. GENERAL DESCRIPTION................7 I.2. TECHNICAL SPECIAFICATINS AND DIMENTIONS........8 I. 3. GENERAL TERMS OF USE……..............10 I. 4. TRANSPORTATION..................11 I.5. SAFETY MEASURES………................ 12 ©2015, Euro Games Technology Ltd.

  • Page 7: General Description

    The gaming machines are based on high-tech gaming platform Exciter II. It is created specially for Euro Games Technology (EGT). This is the answer of the company on the demands of the industry. As a result of the efforts, Exciter II has low power consumption and needs just one power supply.

  • Page 8: Technical Speciaficatins And Dimentions

    P-24/32 H Up DL Gaming Machine HARDWARE I.2. TECHNICAL DATA AND DIMENTIONS Manufacturer: Euro Games Technology Ltd., Bulgaria Type: EGT-VS11-1 Supply Voltage: 100 - 240 V ~ Current: 3.0 - 1.25 А Consumption: 280 W Frequency: 50 - 60 Hz Safety fuses: F1, F2 - Т6.3А...
  • Page 9 P-24/32 H Up DL Gaming Machine HARDWARE Fig. 1. Dimensions of the gaming machine. Weight without topper: 141 kg Weight with topper: 149 kg Height: 2048 mm Width: 800 mm Depth: 610 mm ©2015, Euro Games Technology Ltd.

  • Page 10: 3. General Terms Of Use

    P-24/32 H Up DL Gaming Machine HARDWARE I. 3. GENERAL TERMS OF USE P-24/32H Up DL gaming machines are designed to work best at precise conditions: Air temperature - +10С° - +30С°  Humidity - 20% - 80%;  Operate only vertically; ...

  • Page 11: 4. Transportation

    P-24/32 H Up DL Gaming Machine HARDWARE I. 4. TRANSPORTATION In order to move the gaming machine, unplug the supply cord. During the transportation, the gaming machine must be vertical. Furthermore, it should be protected of any potential damages during the moving. Warning! Moving the machine from cold to warm premises requires at least two hours of acclimatization.

  • Page 12: Safety Measures

    P-24/32 H Up DL Gaming Machine HARDWARE I.5. SAFETY MEASURES The gaming machine is executed as protection class I device in terms of protection against electric shock hazard in accordance of the requirements, provided by EN 60335-1. The machine shall be connected only to a two-pole power socket with protective neutral earthing or grounding of the electric wiring.

  • Page 13: Chapter Ii. Installation

    P-24/32 H Up DL Gaming Machine HARDWARE CHAPTER II. INSTALLATION II. 1. GENERAL OVERVIEW……............... 14 II.2. INSTALLATION REQUIREMENTS…………………………………....15 ©2015, Euro Games Technology Ltd.
  • Page 14 P-24/32 H Up DL Gaming Machine HARDWARE II. 1. OVERVIEW The gaming machine should be carefully examined before installation. Always check for damages, caused during the transportation. Warning! The manufacturer is not responsible for any damages, caused during the transporta- tion of the gaming machine.

  • Page 15: Ii.2. Installation Requirements

    P-24/32 H Up DL Gaming Machine HARDWARE II.2. INSTALLATION REQUIREMENTS In order to ensure proper operation of the machine the preliminary operations, described below shall be performed:  Place the machine in vertical position;  Upon installation ensure at least 10 cm cooling space behind the back of the ma- chine;...

  • Page 16: Chapter Iii. Maintainance

    P-24/32 H Up DL Gaming Machine HARDWARE CHAPTER III. MAINTAINANCE III. 1. ELECTRONIC KEYS……..…..............17 III. 2. CREDIT SETUP………………………………..........18 III. 3. CREDIT RESET…………................20 III. 4. JACKPOT PAYOUT……………..............21 III. 5. RESERVE AND UNLOCK THE MACHINE…………………...... 23 III. 6. TOP LAMP MODE……………………............24 III.

  • Page 17: 1. Electronic Keys

    P-24/32 H Up DL Gaming Machine HARDWARE III. 1. ELECTRONIC KEYS Access to the credit forming screen, service functions and accounting of the machine may be preformed by use of either mechanical or electronic keys. The system recognizes 4 types of keys: ATTENDANT - attendant’s mechanical/electronic key by which player’s credit is forming ...

  • Page 18: 2. Credit Setup

    P-24/32 H Up DL Gaming Machine HARDWARE III. 2. CREDIT FORMING In order to start a game, it is necessary to form a credit, from which the player’s bets are deducted. This may be done in several ways: By tokens or coins, which the player inserts into the appropriate slot on the machine key- ...
  • Page 19 P-24/32 H Up DL Gaming Machine HARDWARE From the Machine Keyboard: This is an alternative way to form credit, in which Button B1, Button B2, and Button B3 buttons are used. Each pressing of these buttons adds an amount, defined in the setup to the credit.

  • Page 20: 3. Credit Reset

    P-24/32 H Up DL Gaming Machine HARDWARE III. 3. CREDIT CLEAR Credit zero reset and payout thereof may be performed only if the game is in bet mode after pressing a CASH OUT button. At pressing a CASH OUT button the credit may be paid out by Attendant (handpay), via hopper or via thicket printer depending on settings of the gaming machine.

  • Page 21: 4. Jackpot Payout

    P-24/32 H Up DL Gaming Machine HARDWARE III. 4. JACKPOT PAYOUT Diamond Life Jackpot Feature is a mystery jackpot with 4 level of winnings. They are as follow: 1.White level 2.Green level 3.Red level 4.Blue level The jackpot server determines when the jackpot bonus Diamond Life is triggered in the gaming machine.
  • Page 22 P-24/32 H Up DL Gaming Machine HARDWARE Animation and melody mark the end of the bonus. The congratulatory splash appears on the screen and reads: The splash may be cleared up depending on the settings of the machine. This is only a congratulatory splash.

  • Page 23: 5. Reserve And Unlock The Machine

    P-24/32 H Up DL Gaming Machine HARDWARE III. 5. RESERVE AND UNLOCK THE GAMING MACHINE The gaming machine could be reserved and unlocked by Attendant key. The following image appears on the screen: Fig. III. 5. Screen during reserving or unlocking of the machine. Buttons LOCK and UNLOCK are at the bottom of the screen.

  • Page 24: 6. Top Lamp Mode

    P-24/32 H Up DL Gaming Machine HARDWARE III. 6. MODE OF TOP LAMP Top lamps are installed on the very top of the gaming machine. They have three colors, to indicate different states during the operating of the gaming machine: Top Lamp Hand Pay Middle Lamp...

  • Page 25: 7. Open And Close The Main Door

    P-24/32 H Up DL Gaming Machine HARDWARE III. 7. OPEN AND CLOSE THE MAIN DOOR Access to the main components of the gaming machine, located in its corpus, trough the Main Door. The access is restricted via locking system with mechanical lock, that is controlled even when the power of the gaming machine is off.
  • Page 26 P-24/32 H Up DL Gaming Machine HARDWARE III.7.2. Closing the Main Door 1. Again place your hands on the upper part of the main monitor. Pull the door firmly back to its previous position. ©2015, Euro Games Technology Ltd.

  • Page 27: 8. Maintainance Of The Components

    Description: Blow the dust away from the fun and the processor radiator using a mighty air stream. Clean only when the power is switched off! For prevention can address to the near- est EGT service . Recommended Maintenance Period: monthly.
  • Page 28 P-24/32 H Up DL Gaming Machine HARDWARE Recommended Maintenance Period: Depending on ambient conditions. In normal conditions the cleaning shall be carried out each 6 months. At severe operation conditions, such as polluted and/or dusty environment, it is recommended to perform cleaning more often. At severe operation conditions, such as polluted and dusty environment, it is to perform cleaning more often.
  • Page 29 P-24/32 H Up DL Gaming Machine HARDWARE CHAPTER IV. HARDWARE IV. 1. GENERAL DESCRIPTION OF COMPONENTS…………………………. 30 IV. 2. POWER DISTRIBUTIOR AND POWER SUPPLIES…………………….. 34 IV. 3. EXCITER II MOTHERBOARD……………………………………………… 35 IV. 4. EXCITER II CONNECTORS BOARD……………………………………… 36 IV. 5. MONITORS AND TOUCH SCREEN…………………………………..37 IV.

  • Page 30: 1. General Description Of Components

    P-24/32 H Up DL Gaming Machine HARDWARE IV. 1. GENERAL DESCRIPTION Fig. IV. 1. General view of the cabinet P 24/32 H Up DL. ©2015, Euro Games Technology Ltd.
  • Page 31 P-24/32 H Up DL Gaming Machine HARDWARE Fig. IV. 2. Gaming machine P24/32 Up DL with main door opened. ©2015, Euro Games Technology Ltd.
  • Page 32 5. Socket for electromechanical keys 6. Main Screen 24‘‘ 7. Ticket printer exit 8. Bill validator entrance 9. Lighting strip 10. Safe Door 11.Footboard 12.EGT Logo 13.Main Door 14.Keyboard Panel 15.Left Loudspeaker 16.Premier Logo 17.Topper 18.Interior of the Counting Module 19.Switch of bill validator door...
  • Page 33 P-24/32 H Up DL Gaming Machine HARDWARE The gaming machine consists of three main parts. They are body, main door and top box. 1. Body The body is the main part of the gaming machine. All electrical equipment is placed in the corpus of the gaming machine. The access is restricted by locking system. It is working even when the gaming machine is unplugged.

  • Page 34: 2. Power Distributior And Power Supplies

    34 and 35. There are two optional main supplies. They are HRP-200-12 and SYS1443 -5012-T3. The power distributor is EGT Distribution Box. It is at position 24 Fig. IV. 2. 3. Usage 3. 1. Main power supply unit feeds the following items: The adapter at position 34 (Fig.

  • Page 35: 3. Exciter Ii Motherboard

    P-24/32 H Up DL Gaming Machine HARDWARE IV.3. EXCITER II MOTHERBOARD 1.Position in the gaming machine: Fig. IV. 2, position 26. 2.Type: Exciter II Platform MB-EG780. 3.Usage Exciter II Motherboard is a special gaming platform. Exciter II Motherboard has one main connector, that links it with Exciter II Connectors Board.

  • Page 36: 4. Exciter Ii Connectors Board

    Appendix VI. 3. Furthermore, there are additional items on Exciter II Connectors Board. They are as follow: Galvanic divided RS485 interface for EGT jackpot network Stereo sound amplifier, class “D”, 2x8W; Scheme for defense of digital inputs and outputs Secondary power supply for 5 V and 3.3 V.

  • Page 37: 5. Monitors And Touchscreen

    P-24/32 H Up DL Gaming Machine HARDWARE IV.5. MONITORS AND TOUCHSCREEN 1. Position in gaming machine: They are situated at positions 2 and 6 of Fig. IV. 1. 2. Type 24" TFT monitor - It’s located on position 6 of Fig. IV. 1. It has a build-in touchscreen. 32"...

  • Page 38: 6. Billvalidators

    P-24/32 H Up DL Gaming Machine HARDWARE IV.6. BILLVALIDATORS (Optional) 1. Position in the gaming machine Position 8 of Fig. IV. 1. 2. Type: CashCode MFL (Fig. IV. 3), JCM UBA-10-SS (JCM UBА-14-SS), JCM iPro-100- SS (Fig. IV. 4), Ardac Elite (Fig. IV. 6), MEI SC8307 or MEI Advance SCN8347 (Fig. IV. 5. ), JCM iVizion (Fig.
  • Page 39 P-24/32 H Up DL Gaming Machine HARDWARE Warning! MEI SC8307 has a separate power supply. It’s obligatory for this bill validator to use its own power supply, which is provided in the set. Note! This gaming machine could operate with bill validator JCM UBА-14-SS. It has serial interface RS232 and protocol ID-003.
  • Page 40 P-24/32 H Up DL Gaming Machine HARDWARE CashCode MFL Specifications Value Operating Voltage 12V DC ± 10% Standby 0.2 А Current Consumption Operating Mode max 2 А Idle Mode 2.4 W Power Consumption Validation Mode 12 W Interface RS232 Environmental Value Operating Temperature 0°C ÷...
  • Page 41 P-24/32 H Up DL Gaming Machine HARDWARE JCM UBA-10-SS Specifications Value Operating Mode 12V DC ± 5% Standby 0.3 А Current Consumption Operating Mode 1.6 А Idle Mode Power Consumption Validation Mode Interface RS232 Environmental Value Operating Temperature +5°C ÷ +50°C Humidity (Operating Mode) 30% ÷...
  • Page 42 P-24/32 H Up DL Gaming Machine HARDWARE ARDAC ELITE Specifications Value Operating Voltage 12 VDC or 24 VDC Standby 0.150 A Current Consumption Operating Mode 3.0 A Idle Mode 1.8W Power Consumption Validation Mode Interface RS232 Environmental Value Operating Temperature 0 - + 60ºC Humidity (Operating Mode) 0 - 95% RH...
  • Page 43 P-24/32 H Up DL Gaming Machine HARDWARE MEI SC8307 Specifications Value Operating Voltage 12 ÷ 28V DC ± 5% В чакащ режим 0.45 А Current Consumption В работен режим 1.25÷3.0 А В чакащ режим Power Consumption В работен режим Interface RS232 Environmental Value...
  • Page 44 P-24/32 H Up DL Gaming Machine HARDWARE JCM iVizion -100-SS Specifications Value 12V DC - 5% до 24V DC +10% Operating Voltage Standby 24V DC - 0.2 А, 12V DC - 0.2 А Current Consumption 24V DC - 1.3 А, 12V DC - 2.3 А Operating Mode 24V DC - 3.2 А, 12V DC - 3.0 А...
  • Page 45 P-24/32 H Up DL Gaming Machine HARDWARE Fig. IV. 10. Items of Ardac Elite. Validating Head Validating Head Bill Stacker Chassis Cashbox Fig. IV. 11. Elements of MEI SC8307 ©2015, Euro Games Technology Ltd.
  • Page 46 P-24/32 H Up DL Gaming Machine HARDWARE The software of MEI SC8307 has to be updated with mobile device called Portable Programming Module. Fig. IV. 12. Components of JCM iVizion - 100 - SS. ©2015, Euro Games Technology Ltd.
  • Page 47 P-24/32 H Up DL Gaming Machine HARDWARE A. Acceptor Unit L Front Panel Bezel JPL Connector B. Front Upper Guide Access Lever (Acceptor M. Transport Unit Release Lever Unit) N. Power ON LED (Green) C. Bezel (Optional) USB (Mini-USB), Software Download/ D.
  • Page 48 P-24/32 H Up DL Gaming Machine HARDWARE 2. Collecting bills from JCM UBA-10-SS Fig.IV.14 Collecting bills from JCM UBA-10-SS 1. Open Bill Validator Door 2. Pull the handle to release the cash box from the frame. 3. Open it and collect all bills (Fig. IV.14-2); 4.
  • Page 49 P-24/32 H Up DL Gaming Machine HARDWARE Clearing Bill Jam from JCM UBA-10 SS Fig.IV.16. Removing jammed bills from JCM UBA-10-SS. Jammed bills should be removed the way shown on the picture above. 6. Typical DIP Switches and Jumpers Setting DIP Switches and Jumpers Setting To access the switches and jumpers on CPU pull put the Validating Head.
  • Page 50 P-24/32 H Up DL Gaming Machine HARDWARE ON State OFF State Fig.IV.18. States of the DIP switches. DIP Switch ON State OFF State SW1.1 Denomination 1 Enable Denomination 1 Disable SW1.2 Denomination 2 Enable Denomination 2 Disable SW1.3 Denomination 3 Enable Denomination 3 Disable SW1.4 Denomination 4 Enable...
  • Page 51 P-24/32 H Up DL Gaming Machine HARDWARE Specification DIP Switches Enable Disable Bill Orientation SW 2.1 Four Ways One Way SW 2.2 Reserved Reserved Speed of the interface SW 2.3 9600 bit/s 19 200 bit/s Mode SW 2.4 Service mode On state mode There is additional information on DIP switches in Cash Code MFL user’s manual.
  • Page 52 P-24/32 H Up DL Gaming Machine HARDWARE DIP Switch Switch ON Switch OFF Accepting bar code vouchers is dis- Accepting bar code vouchers is en- abled. abled. Denomination 1 disabled Denomination 1 enabled Denomination 2 disabled Denomination 2 enabled Denomination 3 disabled Denomination 3 enabled Denomination 4 disabled Denomination 4 enabled...
  • Page 53 P-24/32 H Up DL Gaming Machine HARDWARE To chose interface RS 232, determine ID003 protocol - 9600 and enable reading of the bar code, switches should be in the following positions: Bank 2, Switch 4 - ON  Bank 2, Switch 5 - OFF ...

  • Page 54: 7. Ticket Printer

    P-24/32 H Up DL Gaming Machine HARDWARE IV.7. TICKET PRINTER (OPTIONAL) 1. Position in gaming machine machine: Position 32 on Fig. IV. 1. 2. Type: Ithaca Epic 950, FutureLogic GEN2 or FutureLogic GEN2 Universal. Fig.IV.24. General view of Ithaca Epic 950 Ticket Printer. Fig.IV.25.
  • Page 55 P-24/32 H Up DL Gaming Machine HARDWARE Fig.IV.26 Overview of FutureLogic GEN2 Universal Ticket Printer 3. Usage: When player wins, this device prints a voucher with the winning. 4.Technical Specifications а) Technical Specifications of Ithaca Epic 950 ticket printer: Power Requirements Value Operating Voltage 24V DC ±...
  • Page 56 P-24/32 H Up DL Gaming Machine HARDWARE Printing Characteristics Value Printing Method Thermal Printing Speed (text mode) 125 mm/sec Resolution 203dpi x 203dpi Print zone (width): 62 mm Capacity 400 vouchers Voucher Dimensions Value Width 65 ± 1mm Length (and Perforations) 156 ±...
  • Page 57 P-24/32 H Up DL Gaming Machine HARDWARE Dimensions of FutureLogic GEN2 ticket printer Power Requirements Value Operating Voltage 24V DC ± 10% Current Consumption 24V and 25% black max 2.7А Interface RS232 Environmental Value Temperature (Operating mode) 0°C ÷ 70°C Temperature (Storage) -20°C ÷...
  • Page 58 P-24/32 H Up DL Gaming Machine HARDWARE Dimensions of FutureLogic GEN2 Universal ticket printer Power Requirements Value Operating Voltage 24V DC ± 10% Current Consumption 24V and 25% black max 2.7А Interface RS232 Environmental Value Temperature (Operating) 5°C ÷ 50°C Temperature (Storage) -20°C ÷...
  • Page 59 P-24/32 H Up DL Gaming Machine HARDWARE 5. Loading paper Loading paper in Ithaca Epic 950 ticket printer Fig. IV. 27. Loading paper in Ithaca Epic 950 Ticket Printer 1. Place paper stack in the printer as indicated on the above picture. 2.
  • Page 60 P-24/32 H Up DL Gaming Machine HARDWARE Switches Position ©2015, Euro Games Technology Ltd.

  • Page 61: 8. Keyboard Controllers And Keyboard Panel

    P-24/32 H Up DL Gaming Machine HARDWARE IV.8. KEYBOARD CONTROLLER AND KEYBOARD PANEL 1. Keyboard with electro-mechanical buttons 1.1. Position in the gaming machine Keyboard controller - Fig.IV.2, position 23; Key- board panel - position. 14 of Fig. IV.1 1.2. Type: USB Keyboard Controller 1.3.
  • Page 62 P-24/32 H Up DL Gaming Machine HARDWARE payout in the credit (ends game) then shows the main select game screen. Button L1 ÷ Button L5 (LINES) (B1-B5) - Five buttons for line choice. They are used for selection of the active lines by fixed scheme. It is determined in the machine setup and it’s different for every game.
  • Page 63 P-24/32 H Up DL Gaming Machine HARDWARE During the game, on the buttons of the OLED keypad or on part of them, it is written a rele- vant inscription on the current language (chosen for the game). The inscriptions change dynami- cally, depending on the type of the chosen game and its status.

  • Page 64: 9. Counter Module

    P-24/32 H Up DL Gaming Machine HARDWARE IV.9. COUNTER MODULE 1.Position in the gaming machine: Position 27 on Fig. IV. 2. 2. Type: Counters Vega 3.. Usage It counts the impulses from the managing platform to the particular mechanical counters; Sends information for the status of the electro-mechanical counters;...

  • Page 65: 10. Decorative Lighting

    P-24/32 H Up DL Gaming Machine HARDWARE IV.10. DECORATIVE LIGHTING 1. Position in the gaming machine Look at Fig. IV.1. There are 3 RGB strips (position 9). They are installed around upper screen, main door be- low bill validator’s bezel. 2.

  • Page 66: 11. Electonic Key Reader

    P-24/32 H Up DL Gaming Machine HARDWARE IV.11. iBUTTON READER 1. Position in the gaming machine: Position 5 on Fig. IV.1. 2. Type: iButton Reader and socket DS9092 3. Use Allows staff to easily access the service functions as well as the accounting of the gaming machine.

  • Page 67: 12. Loudspeakers

    P-24/32 H Up DL Gaming Machine HARDWARE IV.12. LOUDSPEAKERS 1. Position in the gaming machine machine: Grille of the loudspeakers is on position 15 of Fig. IV.1 and position 4 of Fig. IV.1. 2. Use - Loudspeakers produce stereophonic sound. 3.

  • Page 68: 13. Door Switches

    P-24/32 H Up DL Gaming Machine HARDWARE IV.13. DOOR SWITCHES 1.Position in the gaming machine machine: Fig. IV.1 on position 19 - switch on the bill validator’s door, Fig IV.2 on position 25 - main door switch. 2.Type: Push-Pull. 3. Usage Switches register the time someone opens and/or closes a door.
  • Page 69 P-24/32 H Up DL Gaming Machine HARDWARE CHAPTER V. POSSIBLE MALFUNCTIONS DURING EXPLATATION OF THE GAMING MACHINE V.1. POSSIBLE MALFUNCTIONS AND ELIMINATING THEM………..…….. 70 V.2. ERROR REPORTS…………………………………………………...………. 71 V.2.1.OCCURRENCES, ONLY REGISTERED IN ALL EVENTS LOG……..71 V.2.2. WARNINGS ................... 75 V.2.3.

  • Page 70: Possible Malfunctions And Eliminating Them

    P-24/32 H Up DL Gaming Machine HARDWARE V.1. POSSIBLE MALFUNCTIONS AND TROUBLESHOOTING External Indications Possible Reason Troubleshooting 1. Burnt fuse 1. Replace the burnt fuse Nothing Lights Up 2. Power cord 2. Replace the cord 3. Main power supply 3. Check the LED of the main power supply.

  • Page 71: Error Reports

    P-24/32 H Up DL Gaming Machine HARDWARE V.2. ERROR REPORTS V.2.1.EVENTS, ONLY REGISTERED IN ALL EVENTS LOG 1. Events only registered in All Events Log AC power applied - Logs when gaming machine receives power supply. It registers the date and time. AC power lost - Logs when gaming machine machine don’t have power supply.
  • Page 72 P-24/32 H Up DL Gaming Machine HARDWARE CBJS wait prog info splash cleared - Log when “Waiting for progressive information” splash is cleared. Change lamp off - Logs when after the signal lamps are turned off. Logs event Change Lamp on. Change lamp on - Logs when a player calls out Attendant with Cash Out button.
  • Page 73 P-24/32 H Up DL Gaming Machine HARDWARE Jackpot splash. It could appear when Handpay is cleared up. The amount is always logged. . Intrusion communication error - If an error in the intrusion appears, it logs it as an event. Intrusion communication error cleared - Logs when the intrusion error is cleared.
  • Page 74 P-24/32 H Up DL Gaming Machine HARDWARE no power supply. Logs the date and time, as well. Power off drop door opened - Logs when the drop door’s opened, while machine has no power supply. Logs the date and time, as well. Power off Gaming machine door access - Logs when someone accesses the main door, even the gaming machine has no power supply.

  • Page 75: Warnings

    P-24/32 H Up DL Gaming Machine HARDWARE V.2.2. WARNINGS Warnings appear in a green rectangle. They can be cleared by Attendant Key. Fig. V. 2. 2. - 1. Screen when warning appears. Bill acceptor hardware failure Disconnected counter lamp - Warns for disconnected counter lamp. Troubleshooting: Replace the counter lamp.
  • Page 76 P-24/32 H Up DL Gaming Machine HARDWARE Replace the lamp. Short circuited keyboard lamp - Warns for a short circuited keyboard lamp. Troubleshooting: Replace the lamp. Short circuited top lamp - Warns for a short circuited top lamp. Troubleshooting: Replace the lamp.

  • Page 77: Nonfatal Errors

    P-24/32 H Up DL Gaming Machine HARDWARE V.2.3. NON FATAL ERRORS Non fatal errors appear in a blue rectangle on the main screen of the game. The error code is shown in white text. It’s cleared up, then the reason is gone. Fig.
  • Page 78 P-24/32 H Up DL Gaming Machine HARDWARE Troubleshooting: Close the drop door. Keyboard lost connection - There is no connection with the keyboard controller. Troubleshooting: Check out the connectors. Short counter - There is short circuit in the counter. Troubleshooting: Replace the counter.

  • Page 79: General Errors

    Fig. V.2.4. - 1. Screen of the game, when a fatal error occurs. Note! If a general error occurs, immediately contact EGT service. Tell the code error to the support staff. The code is in the lower left corner on the screen.

  • Page 80: Chapter Vi. Appendix

    P-24/32 H Up DL Gaming Machine HARDWARE CHAPTER VI. APPENDIX VI.1. FLOWCHART OF THE COMPONENTS………………………………….. 81 VI.2. ELECTRIC CIRCUIT DIAGRAM…………………………………………… 82 VI.3. EXCITER II CONNECTORS BOARD……………………………………… 85 ©2015, Euro Games Technology Ltd.

  • Page 81: Vi.1. Flowchart Of The Components

    P-24/32 H Up DL Gaming Machine HARDWARE VI.1. FLOWCHART OF THE COMPONENTS ©2015, Euro Games Technology Ltd.

  • Page 82: Vi.2. Electric Circuit Diagram

    P-24/32 H Up DL Gaming Machine HARDWARE VI.2. ELECTRIC CIRCUIT DIAGRAM ©2015, Euro Games Technology Ltd.
  • Page 83 P-24/32 H Up DL Gaming Machine HARDWARE ©2015, Euro Games Technology Ltd.
  • Page 84 P-24/32 H Up DL Gaming Machine HARDWARE Connection between bill validator МEI SC8307 and the gaming machine machine - in addi- tion to the electric circuit diagram. ©2015, Euro Games Technology Ltd.

  • Page 85: Vi.3. Exciter Ii Connectors Board

    P-24/32 H Up DL Gaming Machine HARDWARE VI.3. EXCITER II CONNECTORS BOARD EURO DIN41612 2x32 pin a+c male right angle PIN № Signal Name Signal Name PIN № BU+12V BU+12V BU+12V N.C. VCC3 VCC3 VCC3 VCC3 VCC3 VCC3 DOUT0 DOUT1 DOUT2 DOUT3 DOUT4...
  • Page 86 P-24/32 H Up DL Gaming Machine HARDWARE POWER INPUT MOLEX 4x2pin mini-fit Straight Signal Name/Current Signal Name/Current № № 12V / 1.33A 12V / 1.33A 12V / 1.33A GND / 1.25A GND / 1.25A GND / 1.25A 4 GND / 1.25A 24V / 1A INTRUSION SWITCHES MOLEX 7x2pin Mini-fit Straight...
  • Page 87 P-24/32 H Up DL Gaming Machine HARDWARE Serial Ticket Printer COM9 MOLEX 3x2pin Mini-fit Straight Signal Name/Current Signal Name/Current № № COM9 Rx +24V / 2A COM9 Tx EXT_DIN11 (Ticket Pr.BUSY) GND / 2A GND / 2A Serial Bill Acceptor COM6 MOLEX 2x2pin Mini-fit Straight Signal Name/Current...
  • Page 88 P-24/32 H Up DL Gaming Machine HARDWARE Casino Net 1 COM4 MOLEX 2x2pin Mini-fit Straight Signal Name/Current Signal Name/Current № № COM4 Rx GND / 0.5A COM4 Tx +12V / 0.5A Casino Net 2 COM5 MOLEX 2x2pin Mini-fit Straight Signal Name/Current Signal Name/Current №...
  • Page 89 P-24/32 H Up DL Gaming Machine HARDWARE ccTalk and DIGITAL I/O COM7 MOLEX 2x2pin Mini-fit Straight Signal Name/Current Signal Name/Current № № GND / 0.5A GND / 0.5A CCT-DAT (COM7) CCT-DAT (COM7) +12V / 0.5A +12V / 0.5A +12V / 0.1A +12V / 0.1A OC0 (BILL ENABLE LIGHT) GND / 0.1A...
  • Page 90 J12, J13 EGT Progressive Net COM8 RJ45 PIN № Signal Name/Current EGT NET DATA A LINE EGT NET DATA B LINE EGT NET +12V / 0.5A EGT NET +12V / 0.5A EGT NET GND / 0.5A EGT NET GND / 0.5A...
  • Page 91 P-24/32 H Up DL Gaming Machine HARDWARE AUDIO OUTPUTS MOLEX 2x2pin Mini-fit Straight PIN № Signal Name/Current SPKR FL+ / 1.5A SPKR FR+ / 1.5A SPKR FL- / 1.5A SPKR FR- / 1.5A POWER OUTPUT AMP 350211 PIN № Signal Name/Current +12V AUDIO OUTPUT CviLuX CI2204P1V00...

  • Page 92: Contacts

    Euro Games Technology Ltd Head Office BULGARIA Sofia 1151, 4 Maritsa Str. Vrana-Lozen-Triugulnika, Pancharevo Region EGT Technical Support - Head office Phone: +359 2 890 24 68 Fax: +359 2 890 24 88 Mobile: +359 896 71 02 72 e-mail: service@egt-bg.com; parts@egt-bg.com...
