EGT P-24/24 Up Hardware User Manual

Gaming machine
Hide thumbs Also See for P-24/24 Up:
Table of Contents

Advertisement

Quick Links

Download this manual

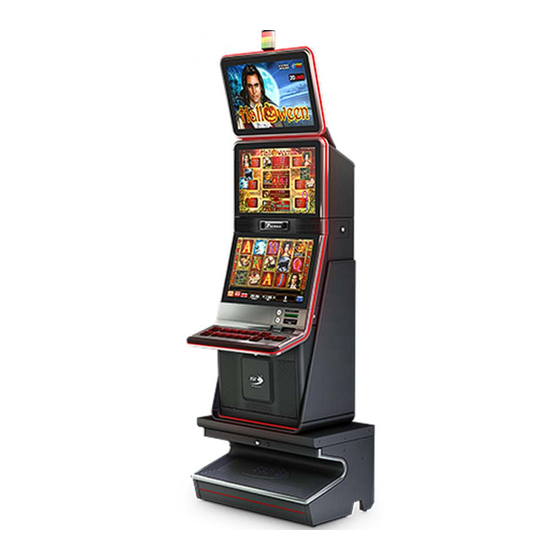

P-24/24 Up
Gaming Machine
HARDWARE
USER MANUAL
(rev. 2.0.)
*The manufacturer shall reserve its right to modify and amend the item and this
documentation without prior notification of the customers.
© 2013 - 2017, Euro Games Technology Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P-24/24 Up and is the answer not in the manual?

Questions and answers

Related Manuals for EGT P-24/24 Up

Summary of Contents for EGT P-24/24 Up

  • Page 1 P-24/24 Up Gaming Machine HARDWARE USER MANUAL (rev. 2.0.) *The manufacturer shall reserve its right to modify and amend the item and this documentation without prior notification of the customers. © 2013 - 2017, Euro Games Technology Ltd.
  • Page 2 HARDWARE REVISION HISTORY Rev.1.0. - an initial document version Rev.1.1. - a new document version with following changes:  A new point II.2. TOP LAMP MOUNTING is added to CHAPTER ІІ. INSTALLATION on pages 13-14.  A new functionality of Cash Out and Select Game buttons is described on page 50; Rev.1.2.
  • Page 3 HARDWARE SIGNS USED WARNING! Warns about specific conditions or situations of/in the gaming machine, which require due attention. NOTE! Gives important or additional information of the gaming machine, software or the game. © 2013 - 2017, Euro Games Technology Ltd.

  • Page 4: Table Of Contents

    HARDWARE CONTENTS CHAPTER I. INTRODUCTION І.1. General Description…………………………………………………………….. І.2. Technical Specifications and Dimensions……………………………………. І.3. Operating Conditions…………………………………………………………... І.4. Transportation…………………………………………………………………… І.5. Safety and Precaution Measures……………………………………………... CHAPTER II. INSTALLATION ІІ.1. Visual Inspection………………………………………………………………. ІІ.2. Main Door Opening and Closing…………………………………………….. II.3. Top Box Door Opening and Closing………………………………………… Top Lamp Mounting…………………………………………………………...
  • Page 5 HARDWARE IV.7. Coin/Token Acceptor and Hopper.…………………………………………. IV.8. Ticket printer………………………………………………………………….. IV.9. Keyboard Controller and Keyboard Panel…………………………………. IV.10. Meter Module……………………………...………………………………….. IV.11. Signal Lights Controller………………………………………………………. IV.12. Decorative Lighting…………………………………………………………… IV.13. Electronic Key Reader……………………………………………………….. IV.14. Speakers………………………………………………………………………. IV.15. Door Switches………………………………………………………………… CHAPTER V. GAMING MACHINE TROUBLESHOOTING V.1. Troubleshooting……………………………………………………………….

  • Page 6: Chapter I. Introduction

    HARDWARE CHAPTER I. INTRODUCTION І.1. General Description…………………………………………………………….. І.2. Technical Specifications and Dimensions……………………………………. І.3. Operating Conditions…………………………………………………………... І.4. Transportation…………………………………………………………………… І.5. Safety and Precaution Measures……………………………………………... © 2013 - 2017, Euro Games Technology Ltd.
  • Page 7 The Stereo sound, 24" LCD monitors and built-in touchscreen offer a high level of interactivity. Fig. I.1. Main Overview of the P-24/24 Up Gaming Machine © 2013 - 2017, Euro Games Technology Ltd.
  • Page 8 Before switching on the machine for the first time, please carefully read and understand this User Manual. I.2. TECHNICAL SPECIFICATIONS AND DIMENSIONS Manufacturer:  EURO GAMES TECHNOLOGY Ltd., Bulgaria Type:  EGT-VS8 Power Supply Voltage:  100 - 240 V ~ Current:  3.5 - 1.5 А Consumption: ...
  • Page 9 HARDWARE Fig. I.2 Dimensions of Premier P-24/24 Up Gaming Machine Weight: 110 kg Height with Topper: 1 980 mm Height without Topper: 1 570 mm Width: 620 mm Depth: 610 mm © 2013 - 2017, Euro Games Technology Ltd.
  • Page 10 HARDWARE I.3. OPERATING CONDITIONS P-24/24 Up gaming machines are designed and manufactured to keep their operability at the following conditions: Ambient temperature: from +10° C to +30° C  Relative humidity: from 20% to 80%  Vertical operation position ...
  • Page 11 HARDWARE The fuses may be replaced only by new ones, complying with the parameters of the original fuses. The power cord of the gaming machine shall always be disconnected from the socket, when any repairs or servicing are performed at open main door. Lift/move the cabinet only when the main door is closed.

  • Page 12: Chapter Ii. Installation

    HARDWARE CHAPTER II. INSTALLATION ІІ.1. Visual Inspection………………………………………………………………. ІІ.2. Main Door Opening and Closing…………………………………………….. II.3. Top Box Door Opening and Closing………………………………………… ІІ.4. Top Lamp Mounting…………………………………………………………... II.5. Gaming Machine Installation Requirements………………………………... © 2013 - 2017, Euro Games Technology Ltd.
  • Page 13 HARDWARE II.1. VISUAL INSPECTION Before installation the machine shall be visually inspected for possible transportation damages. WARNING! The Manufacturer shall not bear liability for damages occurred upon transportation of the Gaming Machine. II.2. MAIN DOOR OPENING AND CLOSING The access to the gaming machine main electronic components which are located inside the body can be done by main door opening.
  • Page 14 HARDWARE WARNING! Before completing the next step, make sure that the Top box door is closed. 3. Hold the door by hands as it is shown in the picture below and push it up to its full opening. Fig. II.3. III.7.2.
  • Page 15 HARDWARE II.3. TOP BOX DOOR OPENING AND CLOSING WARNING! If the sequence, described below, is not followed during opening and clos- ing of the top box door, mechanical damages may occur on the details of the construction and/or damage/smash of the touch screen of the main monitor of the gaming machine.
  • Page 16 HARDWARE Unlock the blocking mechanism of the top box by pulling the handle (1), placed into the body (Fig. II.7.). Fig. II.7. Close the main door fully. Carefully pull the top box door towards you (until locking of the blocking mechanism in opened state (Fig.
  • Page 17 HARDWARE II.3.2. Top box door closing Close the door of the top box pushing the levers on the both side of the blocking mechanism as shown in Fig. I I . 4. and before its full closing remove your hands from the levers and press the upper monitor frontally to close the top box well.
  • Page 18 HARDWARE II.4. TOP LAMP MOUNTING The game machine is transported to the customer with unmounted top light. Below is given the sequence of its mounting: Unlock and open the gaming machine main door. Pull the core through the handle 1 to unlock the Top box. (there are two types of cores - see Fig.
  • Page 19 HARDWARE Screw 4 pieces "Nuts M3” to projecting dowels, the respective locations of the ceiling of the top box, as shown in Fig. II.15. Fig. II.15. Connect the grounding wire to the ground dowel of the gaming machine by using a "Nut M4”, as shown in Fig. II.16.

  • Page 20: Ii.5. Gaming Machine Installation Requirements

     The software in the iButton Reader is thought to recognize Dallas electronic keys (see "Service Manual of a Vega Vision Upright Gaming Machine" in the Electronic Keys section or contact the EGT Service);  Insert OWNER key and set up the desired machine and game parameters;...

  • Page 22: Chapter Ііі. Gaming Machine Service

    HARDWARE CHAPTER ІІІ. GAMING MACHINE SERVICE ІІI.1. Control Keys……………………………………………………………………. ІІI.2. Credit Forming…………………………………………………………………. ІІI.3. Credit Clear…………………………………………………………………….. ІІI.4. Jackpot Payout……………………………………………...…………………. ІІI.5. Machine reservation and release……………………………………………. ІІI.6. Signal lights lighting modes………………………………………………….. III.7. Component Maintenance…………………………………………………….. © 2013 - 2017, Euro Games Technology Ltd.
  • Page 23 HARDWARE III.1. CONTROL KEYS Access to the credit forming screen, service functions and accounting of the machine may be preformed by use of either mechanical or electronic keys. The system recognizes 4 types of keys: ATTENDANT - attendant’s mechanical/electronic key by which player’s credit ...
  • Page 24 HARDWARE Fig. III.1. Credit addition can be performed: From the Screen Keyboard:  Dial the necessary number by touching the digit keys on the touchscreen keyboard. If a wrong digit is chosen, press <- ;  Press Add button;  If new Current Credit value is wrong, press Cancel and enter again; ...
  • Page 25 HARDWARE III.3. CREDIT CLEAR Credit zero reset and payout thereof may be performed only if the game is in bet mode after pressing a CASH OUT button. At pressing a CASH OUT button the credit may be paid out by Attendant (handpay), via hopper or via thicket printer depending on settings of the gaming machine.
  • Page 26 HARDWARE When the machine won progressive jackpot (CBJS/ VJS or SAS) after the reels stop and the win amount transfers to Win field, a jackpot splash will appear on the lower monitor, where the amount of the won jackpot is shown: III.4.3.
  • Page 27 HARDWARE Splash when Premium Link Splash when Premium Link Progressive Jackpot is won Mystery Jackpot is won The Premium Link Jackpot can work with both gaming platforms Exciter II and Exciter III. III.4.4. LADY’S CARDS Mystery Jackpot Payout LADY’S CARDS mystery jackpot has 4 levels: (CLUBS, DIAMONDS, HEARTS and SPADES), as each of them can be won during a special LADY’S CARDS Feature, the same for all games.
  • Page 28 HARDWARE III.5. MACHINE RESERVATION AND RELEASE If the Attendant key is inserted, the window, shown in the figure below will appear on the screen: Lock and Unlock buttons are used to reserve (LOCK) and release (UNLOCK) the machine. At machine reserving the game picture with RESERVE sign appears on the screen after the EXIT button is pressed.
  • Page 29 HARDWARE III.6. SIGNAL LIGHTS LIGHTING MODES The signal lights are mounted on the top of the machine. Top (Left) Lamp Hand Pay Middle Lamp Open Door Yellow Bottom (Right) Lamp Tilt / Change Green They indicate the following conditions: 1. Lamp 1 - (Hand Pay) a) This lamp starts blinking at 1 sec.

  • Page 30: Iii.7. Component Maintenance

    Description: Blow the dust away from the fun and the processor radiator using a mighty air stream. Clean only when the power is switched off! For prevention can address to the nearest EGT service. Recommended Maintenance Period: monthly. Cleaning: Clean the dust from the outside of the fan. Use a soft brush and vacuum cleaner.
  • Page 31 HARDWARE Recommended Maintenance Period: Depending on ambient conditions. In normal conditions the cleaning shall be carried out each 6 months. At severe operation conditions, such as polluted, dusty environment, and/or such with high relative humidity or high level of micro-particles, it is recommended to perform cleaning more often.

  • Page 32: Chapter Iv. Hardware Components

    HARDWARE CHAPTER IV. HARDWARE COMPONENTS IV.1. General Description of Components……………………………………….. IV.2. Power Distributor Unit and Power Supply Units…………………………... IV.3. Exciter II - Specialized Gaming Platform…………………………………..IV.4. Exciter III - Specialized Gaming Platform……………...……………………. IV.5. Monitors and Touchscreen…………………………………………………... IV.6. Bill Validator…………………………………………………………………... IV.7. Coin/Token Acceptor and Hopper.…………………………………………. IV.8.

  • Page 33: Iv.1. General Description Of Components

    HARDWARE IV.1. GENERAL DESCRIPTION OF COMPONENTS Fig. IV.1. Overview of P-24/24 Up Cabinet with Closed Main Door © 2013 - 2017, Euro Games Technology Ltd.
  • Page 34 HARDWARE Fig. IV.2. Overview of Premier P-24/24 Up Cabinet with Opened Main Door © 2013 - 2017, Euro Games Technology Ltd.
  • Page 35 HARDWARE DESCRIPTION OF COMPONENTS Signal Lights 18. Keyboard Controller Topper 19. Control Computer (Exciter II/ Exciter III) 24" Monitor 20. Touchscreen Controller RGB Lighting 21. Fans Right Speaker 22. Signal Lights Controller Socket of Electronic Keys 23. iButton Reader 24" Monitor with Touchscreen 24.

  • Page 36: Iv.2. Power Distributor Unit And Power Supply Units

    Main Power Supply Units (PSUs): Mean Well SP-150-12/ Delta PMC-12V150W1BA Mean Well SP-100-24/ Delta PMC-24V150W1BA Mean Well HRP-200-12; Power Distributor Unit 220 V (PDU): EGT Distribution Box. Distributor Unit 12V. IV.2.3. Purpose of Use:  Main Power Supply Units - powers the following components: ...

  • Page 37: Iv.3. Exciter Ii - Specialized Gaming Platform

    HARDWARE  Power Distributor Unit 220V - supplies input voltage to: the Main Power Supply Units (PSU);  Power Distributor Unit 12V - - supplies input voltage to: cabinet fans, decorative lighting and signal lights. IV.2.4. Technical Parameters Main Power Supply Units (PSUs) Parameter Value Input Voltages...

  • Page 38: Iv.4. Exciter Iii - Specialized Gaming Platform

    HARDWARE IV.4. EXCITER III - SPECIALIZED GAMING PLATFORM IV.4.1. Location in the Machine: Pos.19 in Fig. IV.2. IV.4.2. Type: Exciter III Gaming platform Exciter III consists of:  Exciter III Mother Board: DPX-W250;  Back Plane Board;  Gaming Board; IV.4.3.

  • Page 39: Iv.6. Bill Validator

    HARDWARE IV.6. BILL VALIDATOR (OPTIONAL) IV.6.1. Location in the Machine: Bill Validator Entrance - Pos.11 in Fig. IV.1., Bill Validator - Pos. 27 in Fig. IV.2. IV.6.2. Type: CashCode MFL (Fig. IV.3.), JCM UBA-10-SS (JCM UBA-14- SS) or JCM iPro-100-SS (Fig. IV.4.), Ardac Elite (Fig. IV.5.), MEI SC8307 or MEI Advance SCN8347 (Fig.
  • Page 40 HARDWARE NOTE! The Bill Validator JCM UBA-14-SS can be used as well but it has to support serial interface RS232 and protocol ID-003. In case of using JCM UBA-14-SS an adapter Bill Level Adapter has to be used as well. This adapter converts bipolar signals into unipolar signals.
  • Page 41 HARDWARE JCM UBA-10-SS Electrical parameters Value Power Supply Voltage: 12V DC ± 5% Standby 0.3 А Current consumption Operating mode 1.6 А Communication Interface RS232 Storage Temperature Environment Parameters -20°C ÷÷Value +60°C Operation Temperature +5°C ÷ +50°C Operating Relative Humidity 30% ÷...
  • Page 42 HARDWARE MEI SC8307 and MEI Advance SCN 8347 Electrical parameters Value Power Supply Voltage: 12 ÷ 28V DC ± 5% Standby 0.45 А Current consumption Operating mode 1.25÷3.0 А Communication Interface RS232 Environment Parameters Value Operation Temperature 0°C ÷ +60°C Operating Relative Humidity 5% ÷...
  • Page 43 HARDWARE IV.6.5. Components Fig. IV.8. Fig. IV.9. Components of CashCode MFL Components of JCM UBA-10-SS Fig. IV.10. Components of Ardac Elite © 2013 - 2017, Euro Games Technology Ltd.
  • Page 44 HARDWARE Fig. IV.11. Components of MEI SC8307 Update the software of a MEI SC8307 bill validator by a hand held device Portable Programming Module (PPM). © 2013 - 2017, Euro Games Technology Ltd.
  • Page 45 HARDWARE Fig. IV.12. Components of JCM iVizion - SS A. Acceptor Unit M. Transport Unit Release Lever B. Front Upper Guide Access Lever (Acceptor Unit) N. Power ON LED (Green) C. Bezel (Option) - use from JCM iPro model! O. USB (mini-B) Software Download/...
  • Page 46 HARDWARE IV.6.6. Collecting Bills IV.6.6.1. Collecting bills from CashCode MFL - 1 - - 2 - - 3 - Fig. IV.13. CashCode MFL Collecting Bills Open bill validator door. Push the lever, pointed by the small arrow in Fig. IV.13-1 and pull the cassette out.
  • Page 47 HARDWARE Open Bill validator door. Hold the cassette handle and pull it in direction, pointed by the arrow in Fig. IV.14-1. Open the cover and take the bills (Fig. IV.14-2). Put back the cassette into the housing. IV.6.7. Removing Jammed Bills IV.6.7.1.
  • Page 48 HARDWARE IV.6.8. Configuring the Bill Validator IV.6.8.1. Configuring CashCode MFL CashCode MFL configuration is done by setting switches, located at the rear end of the validating head, under a transparent plastic cover. Fig. IV.17. CashCode MFL Setting switches location © 2013 - 2017, Euro Games Technology Ltd.
  • Page 49 HARDWARE CashCode MFL operates in two basic modes: validation and service. Defining settings, operating mode and enabled denominations is performed by two groups of switches - SW1 and SW2 (Fig. IV.17, Fig. IV.18 and Fig. IV.19) Fig. IV.18. CashCode MFL SW1 Setting switches condition The function of the group of four DIP switches (SW2 in Fig.
  • Page 50 HARDWARE Parameters Switch Orientation of the bill SW 2.1 Four-way One-way SW 2.2 Not used Not used Interface communication speed SW 2.3 9600 bps 19,200 bps Operating Mode SW 2.4 Service Mode Validation Mode For additional information on switch features and explanations, please see CashCode MFL User Manual.
  • Page 51 HARDWARE IV.6.8.3. Configuring Ardac Elite Two similar groups Bank 1 and Bank 2 of switches are located, which are shown below (Fig. IV.21.). Fig. IV.21. Ardac Elite Setting switches condition To select serial interface RS 232, determine the ID003 Baud Rate - 9600, and enable barcode reading, the following switches have to be in given position: Bank 2, switch 4 - ON Bank 2, switch 5 - OFF...

  • Page 52: Iv.7. Coin/Token Acceptor And Hopper

    HARDWARE IV.7. COIN/TOKEN ACCEPTOR AND HOPPER (OPTIONAL) Another type of Belly door is used when the Coin/ Token Acceptor and the Hopper are installed in the gaming machine. The Coin/ Token Tray is mounted on the outside of the Belly Door - Pos. 1 in Fig. IV.24. Fig.
  • Page 53 HARDWARE IV.7.1. Coin/Token Acceptor IV.7.1.1. Location in the Machine: Coin/Token Acceptor - Pos. 1 in Fig. IV.25. and Hopper - Pos. 2 in Fig. IV.25. IV.7.1.2. Type: Money Controls ‘Condor Plus’, ‘Condor Premier or ‘MC62’ Fig. IV.24. Coin/Token Acceptors Condor Plus Condor Premier Fig.
  • Page 54 HARDWARE IV.7.1.3. Purpose of Use Accepts coins or tokens. The diverter under the acceptor diverts coins to hop- per or to drop box. IV.7.1.4. Technical Parameters a) Condor Plus and Condor Premier Coin/Token Acceptors Parameters Value Power Supply Voltage: 12V ÷ 24V DC Rated 70 mA / 50 mA Current Consumption...
  • Page 55 HARDWARE IV.7.2. Hopper Pos. 2 in Fig. IV.25. IV.7.2.1. Location in the Machine: IV.7.2.2. Type: SUZO Excel™ Hopper Fig. IV.26. SUZO Excel™ Hopper IV.7.2.3. Purpose of Use Pays out coins/tokens to the player in case of a winning. IV.7.2.4. Technical Parameters Parameters Value Power Supply Voltage:...

  • Page 56: Iv.8. Ticket Printer

    HARDWARE IV.8. TICKET PRINTER (OPTIONAL) IV.8.1. Location in the Machine: Ticket Printer Exit - Pos. 9 in Fig. IV.1. and Ticket Printer - Pos. 26 in Fig. IV.2. IV.8.2. Тtype: Ithaca Epic 950/950L, FutureLogic GEN2, FutureLogic GEN2 Universal or JCM Global GEN5. Fig.
  • Page 57 HARDWARE IV.8.3. Purpose of Use: Prints vouchers and tickets. IV.8.4. Technical Parameters a) Ithaca Epic 950 Ticket Printer parameters: Electrical parameters Value Power Supply Voltage 24V DC ± 10% Current Consumption At 24V and 25% black max 2.2 А Communication interface RS232 Environment Parameters Value...
  • Page 58 HARDWARE c) FutureLogic GEN2 Universal Ticket Printer parameters: Electrical parameters Value Power Supply Voltage 24V DC ± 10% Current Consumption At 24V and 25% black max 2.7А Communication interface RS232 Environment Parameters Value 5°C ÷ 50°C Operation Temperature Storage Temperature -20°C ÷...
  • Page 59 HARDWARE IV.8.5. Loading tickets a) Loading tickets in Ithaca Epic 950 Ticket Printer Fig. IV.32. Loading tickets in Ithaca Epic 950 Ticket Printer 1. Load tickets into the ticket supply tray, making sure that the Black Dot is positioned as shown in Fig. IV.32. 2.

  • Page 60: Iv.9. Keyboard Controller And Keyboard Panel

    HARDWARE IV.9. KEYBOARD CONTROLLER AND KEYBOARD PANEL IV.9.1. Location in the Machine: Keyboard Panel: - Pos. 13 in Fig. IV.1.; Keyboard Controller: - Pos. 18 in Fig. IV.2. IV.9.2. Type: USB Keyboard Controller IV.9.3. Purpose of Use USB Keyboard Controller: ...
  • Page 61 HARDWARE Main functions of the buttons of the keyboard panel SERVICE (B12) - a button for staff calling; ─ CASH OUT (B11) - а button for credit cash-out procedure starting. First it ─ transfers the win to the credit meter (ends the game) and then starts the procedure for cash-out the credit.
  • Page 62 HARDWARE NOTE! Depending on the machine settings, the bet buttons Button B1 ÷ Button B5 can or cannot start a video slot game. (see User manual of Vega Vision+ series gaming machine at P-Series Multigame, version 7.x.). Video poker games: These buttons are active at holding condition (after the initial card deal).
  • Page 63 HARDWARE TAKE WIN (B15) ─ Roulettes: When press it, Complete Bet is placed- placing the bet on all the positions that include the selected number. If the number is only marked without the chip laid on it, when you press this button, on all positions will be placed bets (chips) equal to the selected chip value.

  • Page 64: Iv.10. Meter Module

    HARDWARE  Power Supply Voltage: +24V / 1,15 A  USB2.0 Interface IV.9.4.2.2. Keyboard Description Video buttons of the OLED keyboard repeat the placement and functionality to those of electro-mechanical keyboard (described are above). Two buttons (Cash Out and Service) are exported from the keyboard and they are electro-mechanical buttons.

  • Page 65: Iv.11. Signal Lights Controller

    IV.12. DECORATIVE LIGHTING IV.12.1. Location in the Machine and Type: Includes - the EGT logo lighting, Premier logo lighting and Bill Validator Entrance lighting and RGB lighting (Pos. 4 in Fig. IV.1.) around: the upper monitor, the left middle, the right middle, the main door, and the cabinet bottom.

  • Page 66: Iv.14. Speakers

    HARDWARE IV.14. SPEAKERS IV.14.1. Location in the Machine: Left sound grid - Pos.16 in Fig. IV.1, and Right sound grid - pos.5 in Fig. IV.1. The sound boxes are situated behind the grids in the Top box of the gaming machine. IV.14.2.

  • Page 68: Troubleshooting

    HARDWARE CHAPTER V. GAMING MACHINE TROUBLESHOOTING Troubleshooting………………………………………………………………. V.1. Error Messages………………………………………………………………. V.2. V.2.1. Events, Only Registered in All Events Log……………….……………….. V.2.2. Warnings………………………………………………………………………. V.2.3. Non-fatal Errors………………………..………….…………………………. V.2.4. Fatal Errors………………………...………………………………..………... © 2013 - 2017, Euro Games Technology Ltd.

  • Page 69: Troubleshooting

    HARDWARE V.1. TROUBLESHOOTING External features Possible cause Solution Fuse burned out Replace fuse Power Cord Replace power cord Nothing lights up Main Power Supply Unit Check PSU LED. Replace PSU. (PSU) Defective button Replace the button Buttons don’t work Problems with connection Check keyboard controller connec- to keyboard controller tions.
  • Page 70 HARDWARE Bill 2 accepted - Logged when a bill of par value 2 is accepted. Bill 20 accepted - Logged when a bill of par value 20 is accepted. Bill 200 accepted - Logged when a bill of par value 200 is accepted. Bill 5 accepted - Logged when a bill of par value 5 is accepted.
  • Page 71 HARDWARE Disconnected keyboard lamp - Solution: Check keyboard LEDs. Disconnected top lamp - Solution: Check top lamps. Display meters or attendant menu has been entered - Logged at entering the machine service function by Owner, Admin or Cashier keys when the credit is more than 0. Display meters or attendant menu has been exited - Logged at exit the machine service function by Owner, Admin or Cashier keys when the credit is more than 0.
  • Page 72 HARDWARE Pic soft reset - Logged when the communication with Intrusion processor is lost for 3 sec. Date and time are logged. Diverter actuated - Logged when the normal work of the diverter is restored. Power off bill stacker door access - Logged when there is access to bill stacker door at machine power off.

  • Page 73: Warnings

    HARDWARE Short circuited keyboard lamp - Solution: Check keyboard LEDs. Short circuited top lamp - Solution: Check top lamps. Slot door closed - Logged when the slot door is closed. Super mystery win - Logged when Super Mystery is won. The value of the amount won is displayed.
  • Page 74 HARDWARE Bill acceptor hardware failure - Solution: Call attendant - Appears when bill validator is damaged. Coin Alarm - Solution: Call attendant - Appears at trying to pull out already dropped coin. Disconnected counter lamp - Solution: Check counter lamp. Disconnected keyboard lamp - Solution: Check keyboard LEDs.

  • Page 75: Non-Fatal Errors

    HARDWARE Reverse coin in detected error - Logged when reverse coin is detected. Short circuited counter lamp - Solution: Check counter lamp. Short circuited keyboard lamp - Solution: Check keyboard LEDs. Short circuited top lamp - Solution: Check top lamps. Touchscreen lost connection - Solution: Check touchscreen cables.
  • Page 76 HARDWARE Bill jammed - Solution: Call attendant. Bill stacker door opened - Solution: Close bill stacker door. Bill stacker jam - Solution: Call attendant. Bill stacker opened - Solution: Close bill stacker. Bill validator door opened - Solution: Close Bill validator door. Card cage opened - Solution: Close card cage.

  • Page 77: Fatal Errors

    General error - Appears at a critical problem in the machine NOTE! In case of fatal general error it is necessary to connect to the EGT service and report the error code, written in the box and additional information in the lower right corner of the screen.

  • Page 78: Chapter Vi. Attachments

    HARDWARE CHAPTER VI. ATTACHMENTS VI.1. Modular Diagram of Components…………………………………………. VI.2. Electric Wiring Diagram..…..……………………………………………….. VI.3. Connectors of Exciter II Connectors Board ……………………………… VI.4. Connectors of Exciter III Connectors Board……...……………………… © 2013 - 2017, Euro Games Technology Ltd.
  • Page 79 HARDWARE VI.1. MODULAR DIAGRAM OF COMPONENTS © 2013 - 2017, Euro Games Technology Ltd.
  • Page 80 HARDWARE VI.2. ELECTRIC WIRING DIAGRAM © 2013 - 2017, Euro Games Technology Ltd.
  • Page 81 HARDWARE © 2013 - 2017, Euro Games Technology Ltd.
  • Page 82 HARDWARE VI.3. CONNECTORS OF EXCITER II CONNECTORS BOARD EURO DIN41612 2x32 pin a+c male right angle PIN № Signal Name PIN № Signal Name BU+12V BU+12V BU+12V N.C. VCC3 VCC3 VCC3 VCC3 VCC3 VCC3 DOUT0 DOUT1 DOUT2 DOUT3 DOUT4 DOUT5 DOUT6 DOUT7 DIN0...
  • Page 83 HARDWARE POWER INPUT MOLEX 4x2pin mini-fit Straight PIN № Signal Name/Current PIN № Signal Name/Current 12V / 1.33A 12V / 1.33A 12V / 1.33A GND / 1.25A GND / 1.25A GND / 1.25A GND / 1.25A 24V / 1A INTRUSION SWITCHES MOLEX 7x2pin Mini-fit Straight PIN №...
  • Page 84 HARDWARE Serial Bill Acceptor COM6 MOLEX 2x2pin Mini-fit Straight PIN № Signal Name/Current PIN № Signal Name/Current COM6 Rx GND / 1.5A COM6 Tx +12V / 1.5A Serial Card Reader COM10 MOLEX 2x2pin Mini-fit Straight PIN № Signal Name/Current PIN № Signal Name/Current COM10 Rx GND / 1A...
  • Page 85 EGT Progressive Net COM8 RJ45 PIN № Signal Name/ Current EGT NET DATA A LINE EGT NET DATA B LINE EGT NET +12V / 0.5A EGT NET +12V / 0.5A EGT NET GND / 0.5A EGT NET GND / 0.5A...
  • Page 86 HARDWARE VI.4. CONNECTORS OF EXCITER III CONNECTORS BOARD BH40S 2x20 pin male PIN No Signal Name PIN No Signal Name T RXD4 T TXD4 T RXD7 T TXD7 T RXD5 T TXD5 T RXD6 T TXD6 T RXD2 T TXD2 T RXD3 T TXD3 DIN0...
  • Page 87 HARDWARE INTRUSION SWITCHES MOLEX 7x2pin Mini-fit Straight PIN No Signal Name PIN No Signal Name INTRUSION0# INTRUSION1# INTRUSION2# INTRUSION3# INTRUSION4# INTRUSION5# INTRUSION6# PULSE COIN ACCEPTOR MOLEX 5x2pin Mini-fit Straight PIN No Signal Name PIN No Signal Name EXT_DIN4 (COIN ALARM) COIN ENABLE (DOUT7) COIN ENABLE# (DOUT7#) COIN DIVERTOR OUT# (DOUT4)
  • Page 88 HARDWARE 12V OUT MOLEX 2x2pin Mini-fit Straight PIN No Signal Name/Current PIN No Signal Name/Current N.C. GND / 1A N.C. +12V / 1A Casino Net 1 MOLEX 2x2pin Mini-fit Straight PIN No Signal Name/Current PIN No Signal Name/Current COM4 Rx GND / 0.5A COM4 Tx +12V / 0.5A...
  • Page 89 HARDWARE J12, J13 EGT Progressive Net RJ45 PIN No Signal Name EGT NET DATA A LINE EGT NET DATA B LINE EGT NET +12V EGT NET +12V EGT NET GND EGT NET GND Cabinet FANS CviLux CI3103P1V00 PIN No Signal Name...
  • Page 90 HARDWARE AUDIO INPUT CviLuX CI2203P1V00 PIN No Signal Name Line Left Input Line Right Input 12V UPS OUT MOLEX 2x2pin Mini-Fit Straight PIN No Signal Name 12V UPS 12V UPS © 2013 - 2017, Euro Games Technology Ltd.

  • Page 91: Contacts

    Head Office Address 4 Maritsa Str. Vrana-Lozen-Triugulnika Pancharevo Region 1151 Sofia, BULGARIA EGT Technical Support - Head Office Phone: +359 2 890 24 68 Fax: +359 2 890 24 88 Mobile: +359 896 71 02 72 e-mail: service@egt-bg.com; parts@egt-bg.com EGT Sales - Head Office...
