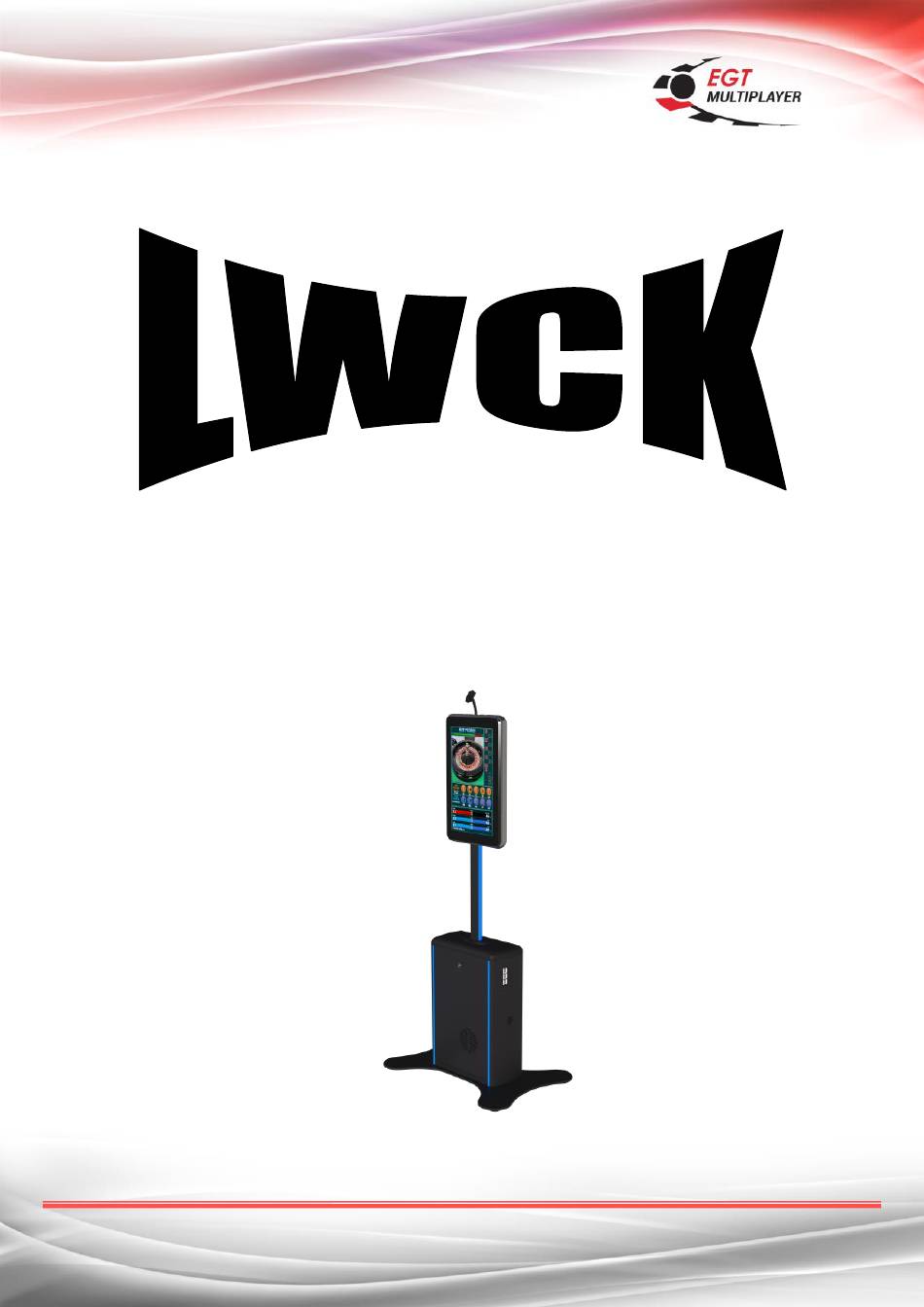

LWCK
User Manual
Live Wheel Connection Kit
USER MANUAL
The manufacturer retains its right to make changes
on the product and the documentation without prior notice.
www.egt-multiplayer.com
www.egt-multiplayer.com
©2020, EGT Multiplayer Ltd.
©2020, EGT Multiplayer Ltd.
Rev.1.0
07.10.2020
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LWCK and is the answer not in the manual?

Questions and answers

Related Manuals for EGT LWCK

Summary of Contents for EGT LWCK

  • Page 1 LWCK User Manual USER MANUAL Live Wheel Connection Kit Rev.1.0 07.10.2020 The manufacturer retains its right to make changes on the product and the documentation without prior notice. www.egt-multiplayer.com www.egt-multiplayer.com ©2020, EGT Multiplayer Ltd. ©2020, EGT Multiplayer Ltd.
  • Page 2 LWCK User Manual Revision History: Rev.1.0. Initial version of document. www.egt-multiplayer.com ©2020, EGT Multiplayer Ltd.
  • Page 3 The current user manual provides all the necessary information for proper and safe usage of the presented hardware and/or software product. The following document refers to Live Wheel Connection Kit also referred to as LWCK.  The table of contents at the beginning of the user manual indicates where the respective ...

  • Page 4: Table Of Contents

    3.9. Power Supply Unit (PSU) ....................21 3.10. HDMI Splitter ........................22 3.11. Router ..........................22 3.12 Power Distribution Box....................... 22 4. Software 4.1. Software ..........................23 5. Troubleshooting 5.1. Troubleshooting ........................27 6. Contacts 6.1. Contacts ..........................28 www.egt-multiplayer.com ©2020, EGT Multiplayer Ltd.

  • Page 5: Introduction

    CHAPTER 1. INTRODUCTION 1.1. GENERAL DESCRIPTION The Live Wheel Connection Kit (also referred to as LWCK, Fig.1.1.1.) is a semi- automated system for EGT Multiplayer’s Roulette game - Single Zero (37 numbers) or Double Zero (38 numbers). It is characterized by stylish design combined with modern technology.

  • Page 6: Technical Data

    Consumption: 200 W Location of Identification Details: All technical data is specified and indicated on the Identification Badge, affixed on the side of the device (Fig.1.2.3). Fig.1.2.2. Identification Badge Fig.1.2.1. Live Wheel Connection Kit (LWCK) www.egt-multiplayer.com ©2020, EGT Multiplayer Ltd.
  • Page 7 LWCK User Manual 1.2.2. LWCK Dimensions The LWCK has the following dimensions (Fig.1.2.4.): Fig.1.2.4 Dimensions of Live Wheel Connection Kit (LWCK) Height: 1 919 mm Width: 850 mm Depth: 600 mm www.egt-multiplayer.com ©2020, EGT Multiplayer Ltd.

  • Page 8: General Conditions Of Use

    LWCK User Manual 1.3. GENERAL CONDITIONS OF USE The LWCK is designed and constructed in a way that keeps its efficiency under the following conditions: Temperature of environment from 0С° to +30С°;  Humidity from 0% to 85%;  Vertical working position;...

  • Page 9: Installation And Exploitation

    100 ÷ 240 V; 50 - 60 Hz  The electrical connections from and to the device should only be performed by EGT Multiplayer Ltd. specialists, their authorized representatives, or specialists, who have undertaken proper training;...

  • Page 10: Safety Precautions

    Children should not to be allowed to play on the device;  www.egt-multiplayer.com ©2020, EGT Multiplayer Ltd.
  • Page 11 - caution, risk of electric shock - it identifies the welding power source, that has risk of electric shock If the equipment is not working disconnect it from the power socket.  www.egt-multiplayer.com ©2020, EGT Multiplayer Ltd.

  • Page 12: Hardware

    LWCK User Manual CHAPTER 3. HARDWARE 3.1. GENERAL DESCRIPTION OF COMPONENTS Fig.3.1.1. Live Wheel Connection Kit (LWCK)- overview at closed doors DESCRIPTION OF COMPONENTS ( Fig.3.1.1) 1 Camera 5 ELO Monitor 10’’ 2 SVS II 23’’ 6 mCORE 3 Electromechanical Counters...
  • Page 13 LWCK User Manual Main door opened: Fig.3.1.2. Live Wheel Connection Kit (LWCK)- overview at opened main door DESCRIPTION OF COMPONENTS ( Fig.3.1.2) 9 Pushbutton Interlock Switch - Cherry 12 Loudspeaker 10 Electromechanical Counters 13 mCORE 11 Axis Main Unit www.egt-multiplayer.com...
  • Page 14 LWCK User Manual Service door opened: Fig.3.1.3. Live Wheel Connection Kit (LWCK)- overview at opened service door DESCRIPTION OF COMPONENTS ( Fig.3.1.3) 14 Power Supply Unit (PSU) 17 Power Distribution Box 15 HDMI Splitter 18 RGB Controller 16 Router www.egt-multiplayer.com...

  • Page 15: Video Control System

    Power over Ethernet or DC power 3.3. STATISTICS SCREEN EGT SVS II 23” complements any roulette table by displaying results, statistics and promotional material in pin-sharp high definition. The screen can be either one-sided or double-sided (both sides display the same information).

  • Page 16: Electro-Mechanical Counters

    Maintains communication with the Game platform; Tests the counters to detect if interruption or short circuit exist. Characteristics of the mechanical counters module: Specially designed by EGT Multiplayer Ltd.  specialists (Fig. 3.4.2); Fig. 3.4.2. Mechanical counters module Supports 6 mechanical counters;...

  • Page 17: Loudspeakers

    Viewing Angle - Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total;  Power;  Option 1: USB Type-C Input range: 5V±5% 3A/9V±5% 3A/15V±5% 1.8A/20V±5% 1.35A Option 2: External DC Adapter 12V/36W in box Fig. 3.5.1. Loudspeakers www.egt-multiplayer.com ©2020, EGT Multiplayer Ltd.

  • Page 18: Mcore - Control Platform

    – Player terminals, Game (Roulette) centers, Jackpot Servers, etc. EGT Multiplayer uses Linux OS in all of its equipment. mCore is assembled by EGT Multiplayer and has four main components (III.4.): Mini-ITX motherboard;...
  • Page 19 Remove the NVRAM Clear Cfast Card; Put again the Game Card; Close the door of the Gaming Platform, turn on the power and complete the settings of the gaming platform. Pos. 1 Fig.3.7.2. Master Slot Location www.egt-multiplayer.com ©2020, EGT Multiplayer Ltd.
  • Page 20 Fig.3.7.3. Settings screen To make sure that the device is completely set, you can open the menu Settings/Not Set Parameters and check if there are other not configured menus (Fig.3.7.4). Fig.3.7.4. Settings/Not Set Parameters screen www.egt-multiplayer.com ©2020, EGT Multiplayer Ltd.

  • Page 21: Pushbutton Interlock Switch - Cherry

    Model: SP-200-12 (Fig. 3.9.1) Fig. 3.9.1. Power Supply Unit Technical specifications: Main Power Supply Unit SP-200-12 Parameters Value 85 ÷ 264V AC 47 ÷ 63 Hz Input 120 ÷ 370V DC Output 12V DC 12.5A www.egt-multiplayer.com ©2020, EGT Multiplayer Ltd.

  • Page 22: Hdmi Splitter

    Fig. 3.11.1 MikroTik Router 3.12. POWER DISTRIBUTION BOX The EGT Distribution Box (Fig. 3.12.1.) distributes the power supply voltage of 240 V between the machine components. There are two outputs at the distribution box - Out 1 and Out 2 - 115/ 230 V, 2.0 A, which are supplied even if the main power switch is...

  • Page 23: Software

    In order the personnel of the gaming hall to start using the device, the necessary PIN code should be entered. Every user should have a unique code, as the two types of users are: Administrator;  Croupier.  www.egt-multiplayer.com ©2020, EGT Multiplayer Ltd.
  • Page 24 7. Log Out - Exit of the system. ATTENTION! All buttons, except those from the main screen, should be pressed twice! www.egt-multiplayer.com ©2020, EGT Multiplayer Ltd.
  • Page 25 Number Confirmation: Fig. 6.3 Number Confirmation In case the displayed number coincides with the number from the Live Roulette Wheel, the operator should press the “Confirm Number” button. ATTENTION! The button should be pressed twice! www.egt-multiplayer.com ©2020, EGT Multiplayer Ltd.
  • Page 26 The operator should either select the correct number or announce “Invalid Game” by pressing the respective button. The “Cancel Game” button is optional as it could be enabled or disabled in the settings of the respective Roulette Center. ATTENTION! All buttons should be pressed twice! www.egt-multiplayer.com ©2020, EGT Multiplayer Ltd.

  • Page 27: Troubleshooting

    CHAPTER 5. TROUBLESHOOTING 5.1. TROUBLESHOOTING In table 5.1 different problems that may take place are presented. For each problem there is a proposed solution. If a problem persists, get in touch with EGT Multiplayer Ltd. Problem Possible causes Solution The power cable is unplugged.

  • Page 28: Contacts

    User Manual CHAPTER 6. CONTACTS 6.1. CONTACTS www.egt-multiplayer.com For more information visit the WEB address: For other areas visit the WEB address to locate EGT www.egt-multiplayer.com/contacts Multiplayer’s local office, distributer or licensee: EGT Multiplayer’s 24/7 Support is available at the www.egt-multiplayer.com/support WEB address: www.egt-multiplayer.com...
