- Page 1 Chimney Centrifugal fan Kamin USER'S MANUAL...
-
Page 2: Table Of Contents
Kamin www.blaubergventilatoren.de CONTENTS Safety requirements ..................................3 Purpose ........................................ 5 Delivery set ......................................5 Designation key ....................................6 Technical data ....................................7 Operating logic ....................................9 Mounting and set-up .................................. 13 Connection to power mains ..............................16 Technical maintenance ................................17 Storage and transportation regulations .......................... -
Page 3: Safety Requirements
Kamin www.blaubergventilatoren.de SAFETY REQUIREMENTS All user’s manual requirements as well as the provisions of all the applicable local and national construction, electrical, and technical norms and standards must be observed when installing and operating the unit. Disconnect the unit from the power supply prior to any connection, servicing, maintenance, and repair operations. - Page 4 Kamin www.blaubergventilatoren.de This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
-
Page 5: Purpose
Kamin www.blaubergventilatoren.de PURPOSE THE UNIT SHOULD NOT BE OPERATED BY CHILDREN OR PERSONS WITH REDUCED PHYSICAL, MENTAL, OR SENSORY CAPACITIES, OR THOSE WITHOUT THE APPROPRIATE TRAINING. THE UNIT MUST BE INSTALLED AND CONNECTED ONLY BY PROPERLY QUALIFIED PERSONNEL AFTER THE APPROPRIATE BRIEFING. THE CHOICE OF UNIT INSTALLATION LOCATION MUST PREVENT UNAUTHORISED ACCESS BY UNATTENDED CHILDREN. -
Page 6: Designation Key
Kamin www.blaubergventilatoren.de OPTIONAL ACCESSORIES FOR FANS • Air duct on the air inlet side: BlauFlex AN 125, 140, 150 or 160. Fire-resistant (М0) semi-flexible 3 m long air duct. • Insulated air duct on the air outlet side: BlauFlex Iso-N 127/7.6, BlauFlex Iso-N 152/7.6 or BlauFlex Iso-N 182/7.6. Fire-resistant (M0/ M1) heat and sound insulated flexible air duct. -
Page 7: Technical Data

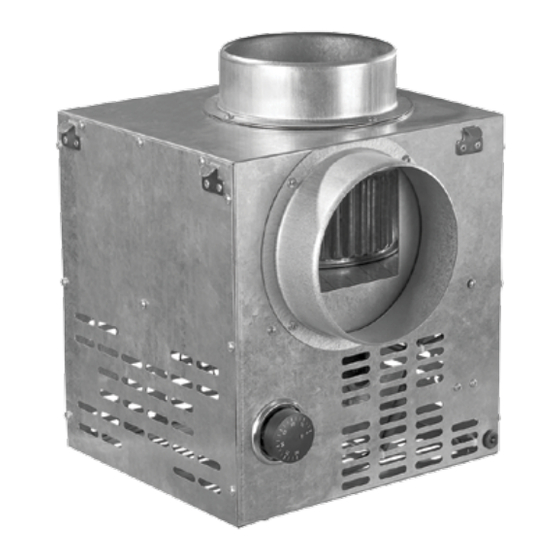

Kamin www.blaubergventilatoren.de TECHNICAL DATA Kamin, Kamin-ER, Kamin-ERD 1 – fan casing 2 – inlet flange 3 – terminal box 4 – outlet flange 5 – temperature controller 6 – impeller 7 – speed switch (for Kamin-ERD) Kamin-ER ByPass 1 – fan casing 2 –... - Page 8 Kamin www.blaubergventilatoren.de Kamin with KF damper 1 – Kamin fan 2 – outlet flange 3 – terminal box 4 – temperature controller 5 – speed switch (for Kamin-ERD) 6 – mixing chamber 7 – inlet flange 8 – temperature control damper 9 –...
-
Page 9: Operating Logic
Overall and connecting dimensions [mm] Model Weight [kg] A, mm B, mm C, mm D, mm H, mm h, mm Kamin 125 Kamin 140 Kamin 150 Kamin 160 Kamin-ER ByPass 125 Kamin-ER ByPass 140 Kamin-ER ByPass 150 Kamin-ER ByPass 160 Kamin-ER 150 max... - Page 10 Kamin www.blaubergventilatoren.de Kamin, Kamin-ER, Kamin-ERD Ó Ó Ó Ó Kamin with AF filter Ó Ó Ó Ó Kamin-ER ByPass Ó Ó Ó Ó...
- Page 11 Kamin www.blaubergventilatoren.de Ó Ó Kamin with KF damper Ó Ó Ó Ó...
- Page 12 Kamin www.blaubergventilatoren.de Kamin with GF damper (bypass system) Ó Ó Ó Ó Example of installation and operation of Kamin and Kamin fans with an AF filter in the fireplace system Reverse air duct: 1. Hot air removed by the temperature control damper. 2.
-
Page 13: Mounting And Set-Up
Kamin www.blaubergventilatoren.de MOUNTING AND SET-UP BEFORE MOUNTING MAKE SURE THE CASING DOES NOT CONTAIN ANY FOREIGN OBJECTS (E.G. FOIL, PAPER). WHILE INSTALLING THE UNIT ENSURE CONVENIENT ACCESS FOR SUBSEQUENT MAINTENANCE AND REPAIR. After unpacking the fan make sure of no damages in the power supply line and no cuts and crack in the cable insulation, check the fan casing for no hollows and other distortions. - Page 14 Kamin www.blaubergventilatoren.de POSSIBLE OPTIONS OF INSTALLING THE FAN AND CONNECTING IT INTO THE SYSTEM Attic. One-storey house. Attic. Two-storey house. Basement – ground floor. The fan can also be installed in a garage, bathroom, etc. FIXING FLEXIBLE AIR DUCTS TO CONNECTING ELEMENTS Slide out about 5 cm of the heat and sound insulation layer and the external contour of the duct.
- Page 15 Kamin www.blaubergventilatoren.de It is most preferable to use Y-joints instead of T-joints. This will reduce the air resistance of the duct system. During installation, the air ducts should be straightened and stretched as much as possible. Do not allow duct deflection. Reduce the number of turns, this will reduce the air resistance of the duct system.
-
Page 16: Connection To Power Mains
Kamin www.blaubergventilatoren.de CONNECTION TO POWER MAINS DISCONNECT THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. CONNECTION OF THE UNIT TO POWER MAINS IS ALLOWED BY A QUALIFIED ELECTRICIAN WITH A WORK PERMIT FOR THE ELECTRIC UNITS UP TO 1000 V AFTER CAREFUL READING OF THE PRESENT USER’S MANUAL. -
Page 17: Technical Maintenance
Kamin www.blaubergventilatoren.de SETTING THE THERMOSTAT (0-90 °C) Run the heating unit (fireplace) with medium flame intensity (at medium temperature) for some time. The factory setting of the thermostat is +45 °C. The fan will start running when the air temperature passing through the fan reaches +45 °C. At a lower thermostat setting (e.g. - Page 18 Kamin www.blaubergventilatoren.de Kamin-ER ByPass Kamin with AF filter Kamin with KF damper Kamin with GF damper...
- Page 19 Kamin www.blaubergventilatoren.de POSSIBLE MALFUNCTIONS AND THEIR ELIMINATION Problem Possible reasons Elimination The fan will not start. No power supply. Check the mains switch. Check the electrical connections against the wiring diagram. Jammed motor. Carefully check the fan impeller for possible seizure and eliminate it, if necessary.
-
Page 20: Storage And Transportation Regulations
Kamin www.blaubergventilatoren.de The fan supplies less air than Wrong calculation of the ventilation network and Re-calculate the network parameters and select a expected. wrong selection of the fan. matching fan. The network resistance exceeds the design Re-arrange the ventilation network to decrease its calculations. -
Page 21: Manufacturer's Warranty
Kamin www.blaubergventilatoren.de MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC. -
Page 22: Certificate Of Acceptance
Kamin www.blaubergventilatoren.de CERTIFICATE OF ACCEPTANCE Unit Type Chimney centrifugal fan Model Kamin___________________________________ Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. - Page 23 Kamin www.blaubergventilatoren.de...
- Page 24 www.blaubergventilatoren.de B15EN-08...
