- Page 1 Wind Service instruction...

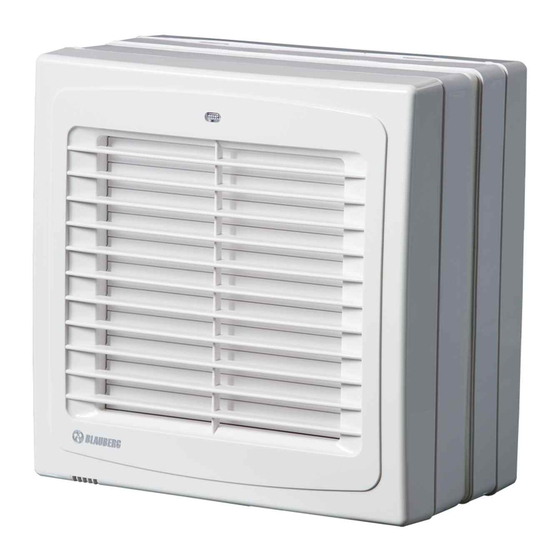

- Page 2 BLAUBERG Company is happy to offer your attention the window axial Blauberg Wind fan. The solid team of high-qualified professionals with many years of working experience, technological innovations in design and production, high-quality components and materials from the top worldwide producers have become the precondition for the best fan in its class.
- Page 3 BASIC CHARACTERISTICS The fan designations, parameters, outer view, overall and connecting dimensions are shown in tables 1, 2, 3 and in fig. 1 -3. Table 1 Max. Noise level, Rated power Type air capacity [min ] 3 m [dBA] [m /h] Wind 125 2400 Wind K 125...
- Page 4 Fig. 1 Wind 125/150 1 - cover, 2 - casing, 3 - motor, 4 - impeller, 5 - inner flange, 6 - sealing gasket, 7 - outer flange. Fig. 2 Wind-K 125 1 - cover, 2 - casing, 3 - motor, 4 - impeller, 5 - inner flange, 6 - sealing gasket, 7 - outer flange, 8 - hood.
- Page 5 Table 3 Dimensions [mm] Weight Type [kg] 1,15 Wind 125 Wind K 125 1,25 Wind 150 1,50 Fig. 3 OPERATION RULES The fan is rated for connection to 220...240 V / 50 Hz power mains and is designed for continuous operation always connected to power mains.
- Page 6 SAFETY RULES All operations related to the fan electrical connections, servicing and repair works are allowed only after the fan disconnection from power mains. All mounting and servicing operations are allowed for duly qualified electricians with valid electrical work permit for electric operations at the units up to 1000 V after careful study of the present user's manual.
- Page 7 MOUNTING AND SETUP The fan is designed for mounting on a glass plate in the wall (fig. 4-5) or on a thin partition (fig. 6-7) and air extraction outside or to an adjacent room. The fan mounting sequence is shown in fig. 8-9. The fan wiring diagrams are shown in fig.
- Page 8 Table 4 Fig. 8 Hole diameter Type d, mm Wind 125 Wind-K 125 Wind 150 Fig. 9...
- Page 9 WIRING DIAGRAMS AND FAN OPERATING LOGIC S - external switch QF - automatic switch Fig. 10 Wind ___ Fan does not run Switch is closed Fan runs Switch is opened Fig. 11 Fan does not run Wind ___ S Pull cord switch Fan runs Pull cord...
- Page 10 Fig. 12 Wind ___ T Fan does not run Switch is closed Fan runs Switch is opened Turn-off delay timer starts (2 to 30 min) Wind ___ ST Fig. 13 Fan does not run Pull cord switch Fan runs Pull cord switch Turn-off delay timer starts (2 to 30 min)
- Page 11 Fig. 14 Wind ___ H Fan does not run Switch is closed Humidity exceeds set point Fan runs Fan does not run Switch is opened Humidity is below set point Humidity exceeds set point Turn-off delay timer starts (2 to 30 min) Fan runs Humidity is below set point...
- Page 12 Fig. 15 Wind ___ SH Fan does not run Pull cord switch Humidity exceeds set point Fan runs Fan runs Pull cord switch Humidity is below set point Humidity exceeds set point Turn-off delay timer starts (2 to 30 min) Fan runs Humidity is below set point...
- Page 13 Fig. 16 Wind ___ IR Fan does not run Motion is detected Fan runs No motion detected Turn-off delay timer starts (2 to 30 min) Fig. 17 WARNING! The timer circuit is under mains voltage! Disconnect the fan from power mains prior to any adjustment operations.
- Page 14 MAINTENANCE Any servicing and maintenance operations of the fan are allowed after it is disconnected from power mains only. Maintenance means regular cleaning of the fan surfaces from dirt and dust. To clean the fan, wipe its surfaces with a cloth wetted in a mild soap solution, then wipe the surfaces dry.
- Page 15 MANUFACTURER'S WARRANTY The fan complies with the requirements according to the EU norms and directives, to the relevant EU-Low Voltage Equipment Directives, EU-Directives on Electromagnetic Compatibility. We hereby declare that the following product complies with the essential protection requirements of Electromagnetic Council Directive 2004/108/EC, 89/336/EEC and Low Voltage Directive 2006/95/EC, 73/23/EEC and CE-marking Directive 93/68/EEC on the approximation of the laws of the Member States relating to electromagnetic compatibility.
- Page 16 model is recognized as serviceable. Wind 125 Wind-K 125 Wind 150 SALES DATE SOLD MANUFACTURED ON (DATE): APPROVAL MARK WIND_DE-EN-02...
