Carlisle Binks DeVILBISS HAR-511 Service Manual

SERVICE MANUAL
EN
NOTE
IMPORTANT:
Read and follow all instructions
and SAFETY PRECAUTIONS before
using this equipment.
Retain for future reference.
WARNING
!
Risk of personal injury.
Risk of property damage.
Except as otherwise specified by the
manufacturer, this product is
specifically designed for compressed
air service and use with any other fluid
(liquid or gas) is a misapplication.
For example, use with or injection of
certain hazardous gases in the system
(such as oxygen or liquid pertroleum
gas) could be harmful to the unit or
result in a combustible condition that
may cause fire or explosion.
Manufacturer's warranties are void in
the event of misapplication and
manufacturer assumes no
responsibility for any resulting loss.
WARNING
!
Risk of injury.
Release all air pressure from system
before servicing system. Be sure to
read and understand all Service
Bulletins on the separate components
before using the system. Use only
specified Binks parts.
ITEM PART
NO. NO.
1 — SCREW,
2 — COVER ..........................................1
3 — SPRING BUTTON ............................1
4 — DIAPHRAGM SPRING ......................1
5 — BODY ............................................1
6 — PIPE PLUG,
7 — BOTTOM PLUG ...............................1
77-2781-R12 (3/2021)

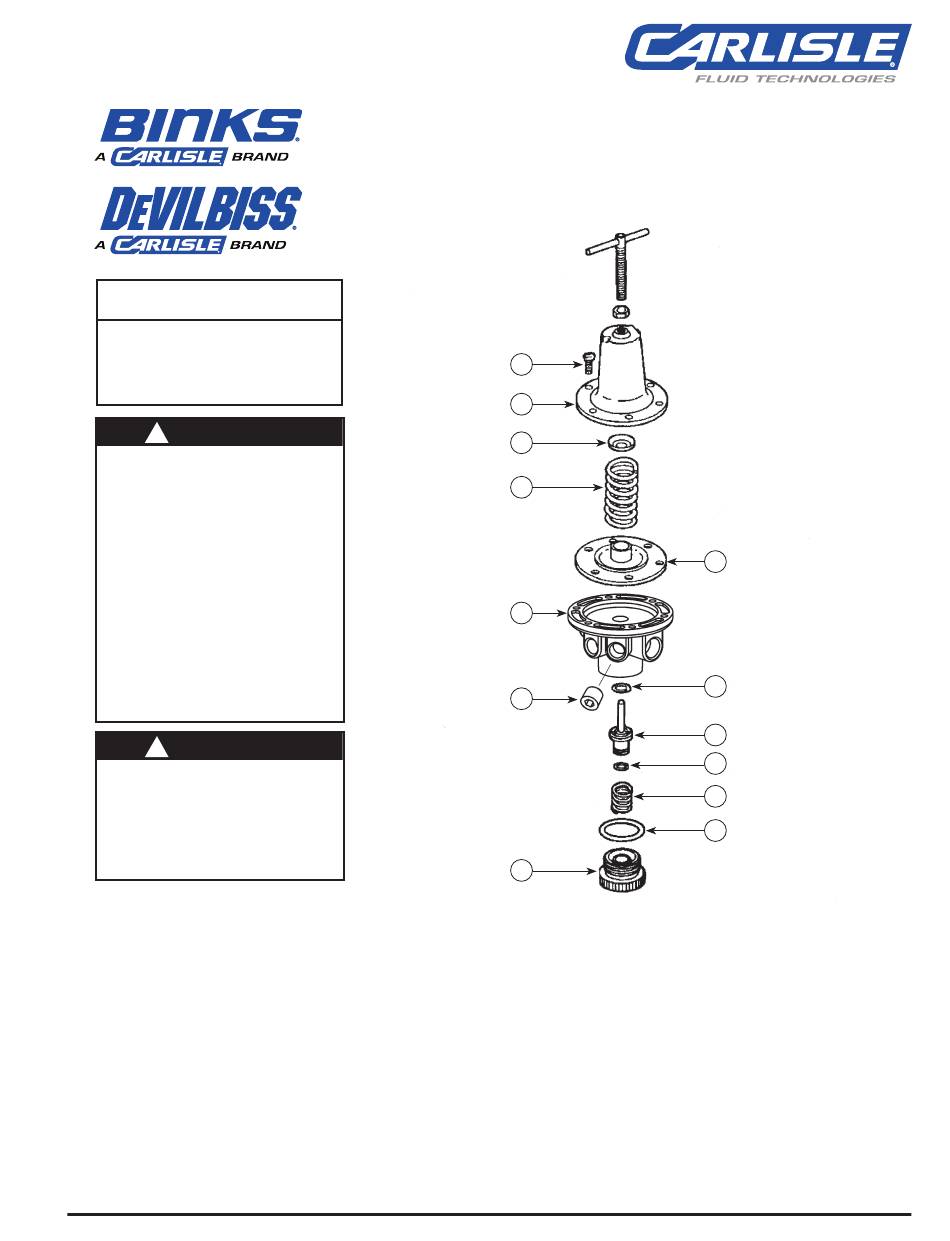

MODEL HAR-511 AIR REGULATOR
PARTS LIST
When ordering, please specify Part No.
DESCRIPTION
.......6
#10-32X9/16 FILLISTER HD.
.....................1
1/4" NPT(M)
1
2
3
4
5
6
7
ITEM PART
QTY. NO. NO.
8* —
9* —
10* —
11* —
12* —
13* —
* Available only as part of KK-4977 Repair Kit; order separately.
1 / 4
8
9
10
11
12
13
DESCRIPTION
DIAPHRAGM ASSY. .........................1
O-RING .........................................1
VALVE ...........................................1
O-RING .........................................1
SPRING .........................................1
O-RING .........................................1
www.carlisleft.com
QTY.
