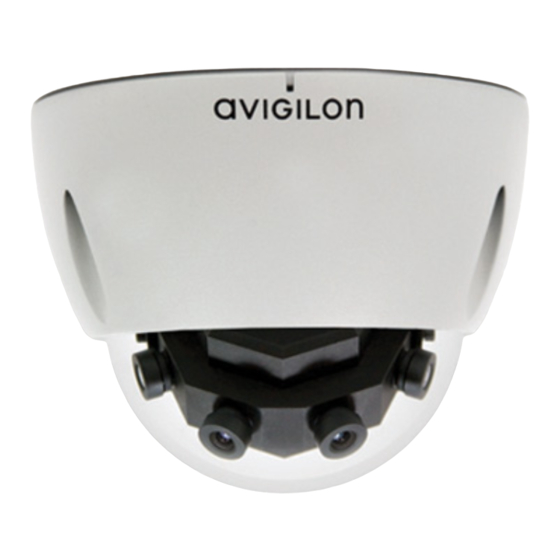

  • Page 1 Installation Guide Avigilon™ Panoramic High Definition IP Dome Camera Model: 8.0MP-HD-DOME-180...
  • Page 2 Do not expose to rain or moisture. For indoor use only. If used outdoors, an approved outdoor mounting adapter or enclosure is required. Consult with Avigilon for more information. Installation must be performed by qualified personnel only, and must conform to all local codes.
  • Page 3 Changes or modifications made to this equipment not expressly approved by Avigilon Corporation or parties authorized by Avigilon Corporation could void the user’s authority to operate this equipment.
  • Page 4 The absence of the symbols ™ and ® in proximity to each trademark in this document is not a disclaimer of ownership of the related trademark. Avigilon Corporation protects its innovations with patents issued in the United States of America and other jurisdictions worldwide: avigilon.com/patents.
  • Page 5: Table Of Contents

    Table of Contents Overview Cover View Bottom View Front View Rear View Heater View Installation Required Tools and Materials Camera Package Contents Installation Steps Removing the Dome Cover Mounting the Dome Camera Connecting External Power Aiming the Dome Camera Connecting to the Network Video Recorder IP Address Selection Cable Connections Connecting to External Devices...
  • Page 6: Overview

    Overview Cover View 1. Dome cover Vandal resistant dome cover. 2. Tamper resistant screws Torx captive screws to fix the dome cover to the base. Overview...
  • Page 7: Bottom View

    Bottom View 1. Cable entry hole An entry hole for the cables required for camera operation. 2. Dome mounting slot Mounting points for the camera. 3. Serial number tag Device information, product serial number and part number label. Bottom View...
  • Page 8: Front View

    Front View 1. Power connector block Accepts a terminal block with either an AC or DC power connection. DC input can be either polarity. Only required when Power over Ethernet is not available. 2. Audio I/O connector Accepts a mini-jack connector (3.5 mm). 3.
  • Page 9: Rear View

    Rear View 1. Tilt lock thumb screw Provides a locking mechanism for the image tilt adjustment. 2. Connection status LED Provides information about camera operation. For more information, see LED Indicators on page 12. 3. Image rotation switch Rotates the image by 180˚. Rear View...
  • Page 10: Heater View

    Heater View 1. Heater Provides heat for the camera to extend the operating temperature range. The heater is not included with all models. Heater View...
  • Page 11: Installation

    Small slotted screwdriver with 5/64” or 2 mm blade width — for connecting power when not using Power over Ethernet. Camera Package Contents Ensure the package contains the following: Avigilon™ Panoramic High Definition IP Dome Camera Terminal block T20 Torx key 3 screws and anchors for solid walls...
  • Page 12: Connecting External Power

    1. Using the drill template, drill three mounting holes and one cable entry hole in the ceiling/ wall. If using a dome camera mounting accessory, this step is not necessary. 2. Drive three screws into mounting holes and leave 6 mm (¼”) between the screw head and the ceiling/wall surface.
  • Page 13: Aiming The Dome Camera

    Important: To avoid networking problems, only use network switches recommended by Avigilon. Connect the dome camera to the same network as the server running the Avigilon™ Control Center software. An IP address is automatically assigned to the device, and will be detected by the software.
  • Page 14 If this fails, an IP address will be selected using Zeroconf (APIPA). If the IP address is set using Zeroconf, the IP address will be in the 169.254.* subnet. A static IP address can be set from the Avigilon Control Center software, consult the software user guide for details.
  • Page 15: Cable Connections

    Cable Connections Connecting to External Devices External devices are connected to the camera through the I/O terminal block. The pinout for the I/O terminal block is shown in the following diagram: Figure 1: Example application. 1. GND 2. RS-485 RX/TX+ — Half-duplex RS-485 interface for controlling external equipment. 3.
  • Page 16: Connecting To Microphones And Speakers

    Connecting to Microphones and Speakers The dome camera can be connected to an external microphone and speaker through the audio connector. The audio connector is a 3.5 mm (1/8”) input for a mono microphone or a line-in mono signal. The left channel of the stereo signal is used.
  • Page 17: Led Indicators

    LED Indicators Once connected to the network, the Connection Status LED will display the progress in connecting to the Network Video Management software. The following table describes what the LEDs indicate: Connection Status Connection State Description One short flash every Obtaining IP Address Attempting to obtain an IP address.
  • Page 18: Resetting To Factory Default Settings

    Resetting to Factory Default Settings If the camera no longer functions as expected, you can choose to reset the camera to its factory default settings. Use the firmware revert button to reset the camera. The firmware revert button is shown in the following diagram: 1.
  • Page 19: Cleaning

    Cleaning Dome Bubble If the video image becomes blurry or smudged in areas, it may be because the dome bubble requires cleaning. To clean the dome bubble: Use hand soap or a non-abrasive detergent to wash off dirt or fingerprints. Use a microfiber cloth or non-abrasive fabric to dry the dome bubble.
  • Page 20: Specifications

    Specifications Network Network 100Base-TX Cabling Type CAT5 Connector RJ-45 Security Protocols UDP, TCP, SOAP, DHCP, Zeroconf Mechanical Dimensions ØxH 149.9mm x 121.3mm (5.9” x 4.8”) Weight 0.91 kg (2.0 lbs) without lens Dome Bubble Polycarbonate, clear Body Aluminum Housing Surface mount, vandal resistant Finish Powder coat, cool gray 2 Electrical...
  • Page 21 IK10 Impact Rating Environmental Meets IP66 Weather Rating FCC Part 15 Subpart B Class A EN 55032 Class A Electromagnetic IC ICES-003 Class A Emissions EN 61000-6-3 EN 61000-3-2 EN 61000-3-3 Electromagnetic EN 55024 Immunity EN 61000-6-1 Specifications...
  • Page 22: Limited Warranty And Technical Support

    Limited Warranty and Technical Support Avigilon warranty terms for this product is provided at avigilon.com/warranty. Warranty service and technical support can be obtained by contacting Avigilon Technical Support: avigilon.com/contact-us/. Limited Warranty and Technical Support...
