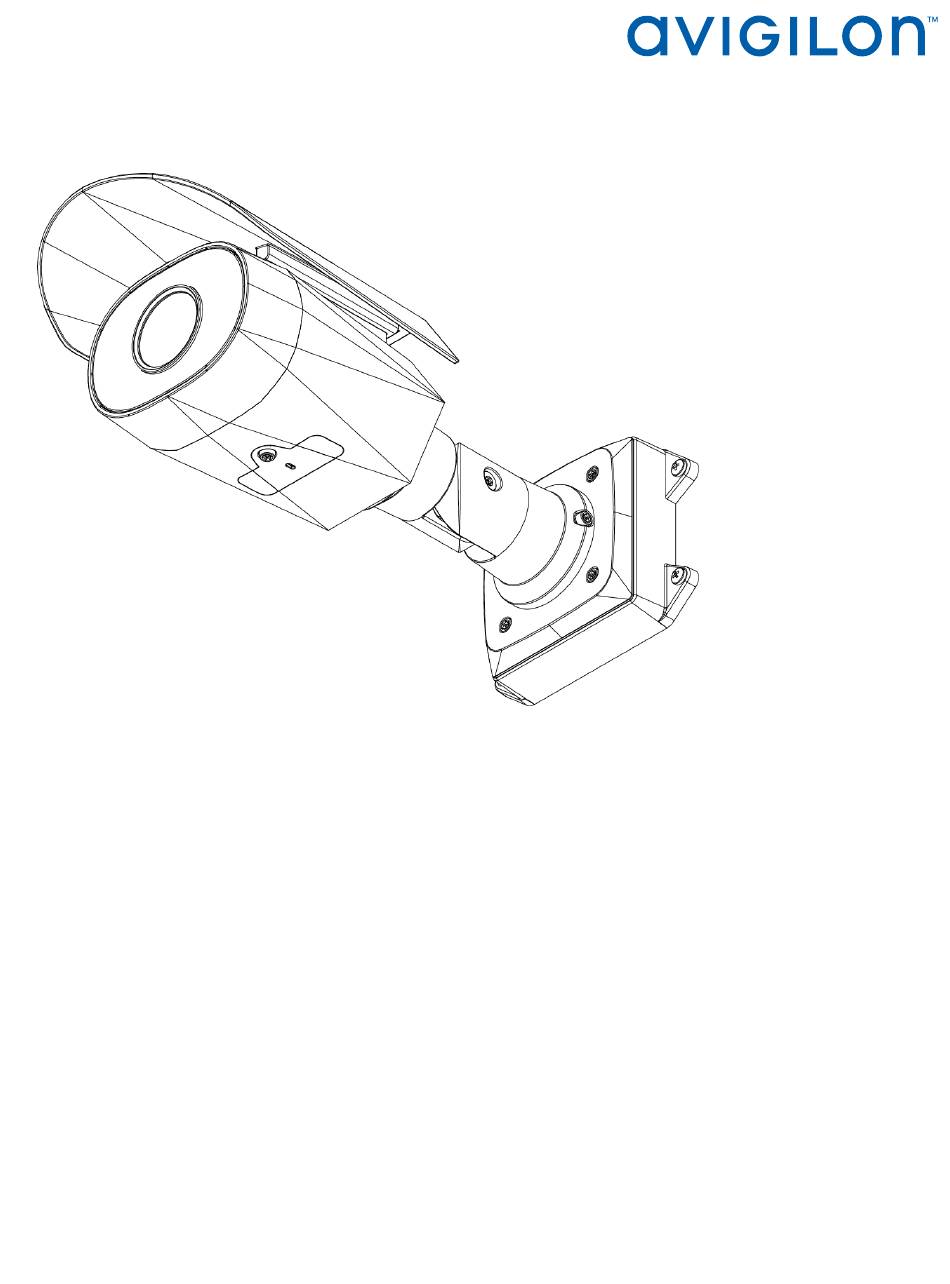

- Page 1 Installation Guide Avigilon H5A Bullet Camera Models: 2.0C-H5A-BO1-IR 2.0C-H5A-BO2-IR 4.0C-H5A-BO1-IR 4.0C-H5A-BO2-IR 5.0C-H5A-BO2-IR 6.0C-H5A-BO1-IR 8.0C-H5A-BO1-IR ...
- Page 2 The absence of the symbols ™ and ® in proximity to each trademark in this document or at all is not a disclaimer of ownership of the related trademark. Avigilon Corporation protects its innovations with patents issued in the United States of America and other jurisdictions worldwide (see avigilon.com/patents).
- Page 3 “Limited Power Source” with output rated 12 VDC or 24 VAC, 13 W min. or Power over Ethernet (PoE), rated 48 VDC, 13 W min. Any external power supply connected to this product may only be connected to another Avigilon product of the same model series. External power connections must be properly insulated. ...
- Page 4 Avigilon Corporation could void the user’s authority to operate this equipment. To meet the requirements of the EN 50121-4 Railway Applications Standard, use an external power supply or POE injector that is also compliant with EN 50121-4. Please contact Avigilon for assistance regarding supporting equipment.
- Page 5 This symbol means that according to local laws and regulations your product should be disposed of separately from household waste. When this product reaches its end of life, take it to a collection point designated by local authorities. Some collection points accept products for free. The separate collection and recycling of your product at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.
-
Page 6: Table Of Contents
Table of Contents Overview Mounting Bracket View Rear View Front View Configuration Panel View Side View Installation Camera Package Contents Installation Steps Mounting and Aiming Video Analytics Cameras Installing the Mounting Bracket (Optional) Removing the Sun Shroud Reinstalling the Sun Shroud Connecting Cables Mounting the Camera Removing the Configuration Panel Cover... -
Page 7: Overview
Overview Mounting Bracket View 1. Camera mounts Points for installing the camera to the mounting bracket. 2. Mounting hook slots Points to hold the camera to the mounting bracket while connecting the required cables. 3. Mounting holes Holes for securing the mounting bracket to the mounting surface. Overview... -
Page 8: Rear View
Rear View 1. Ethernet port Accepts an Ethernet connection to a network. Server communication and image data transmission occurs over this connection. Also receives power when it is connected to a network that provides Power over Ethernet. 2. Camera mounting screws Screws for mounting the camera to the mounting bracket. -
Page 9: Front View
Front View 1. IR illuminator Provides scene illumination in the IR spectrum. 2. Configuration panel cover Covers the configuration panel. For more information on the configuration panel, see the Configuration Panel View on the next page. Front View... -
Page 10: Configuration Panel View
Green LED provides information about device operation. For more information, see Connection Status LED Indicator on page 17. 4. Micro USB port Accepts a micro USB to USB adapter. Only required when using the Avigilon USB Wi-Fi Adapter. Configuration Panel View... -
Page 11: Side View
Side View 1. Sun shroud An adjustable cover to help protect the lens against glare from the sun. 2. Mount arm Adjustable mount arm for positioning the camera. 3. Adjustment screws Provides a locking mechanism for the mount arm. Side View... -
Page 12: Installation
The camera should be mounted to a stable surface to minimize the physical movement of the camera after installation. For more details, see Designing a Site for Video Analytics. The document is available on the Avigilon website. Installing the Mounting Bracket If the cables for the camera will not be provided from inside the mounting surface, install the junction box first (H4-BO-JBOX). -
Page 13: (Optional) Removing The Sun Shroud
1. Use the mounting template to drill four mounting holes into the mounting surface. 2. Drill the cable entry hole into the mounting surface then pull the required cables through the cable entry hole. 3. Fasten the mounting bracket or the junction box to the mounting surface. Note: It is recommended that silicone sealant be applied around the edge of the mounting bracket or junction box to prevent moisture from entering the mounting surface. -
Page 14: Reinstalling The Sun Shroud
Reinstalling the Sun Shroud 1. Use a T20 Pin-In star-shaped driver to screw on the sun shroud mount. 2. Align one side of the sun shroud to the mount. 3. Press down on the center of the sun shroud and flex the edges up, then lower it into place. Connecting Cables Before connecting any cables, ensure that the cable connections are properly protected from moisture and corrosion. -
Page 15: Mounting The Camera
Power over Ethernet (PoE) Class 3 — If PoE is available, the camera LEDs will turn on. External Power — Connect an external 12 V DC or 24 V AC power source through the brown and blue auxiliary power cables. Important: Be careful not to connect power to the audio input cable, doing so will permanently damage the camera. -
Page 16: Removing The Configuration Panel Cover
If the camera is in the factory default state you will be redirected to the Add a new user page to create the first user. For more information, see the Avigilon High Definition H4 and H5 IP Camera Web Interface User Guide. -
Page 17: (Optional) Using The Usb Wi-Fi Adapter
Tip: If you are connecting your Avigilon camera to a 3rd party VMS, you will need to set up the first user through the camera's Web Interface, USB Wifi Adapter, or Camera Configuration Tool before you connect to the 3rd party VMS. -
Page 18: Accessing The Live Video Stream
Web browser interface: http://< camera IP address>/. Network Video Management software application (for example, the Avigilon Control Center software). Note: Depending on the manufacture date of your camera, you will have one of the two options below to log in for the first time: ... -
Page 19: Zooming And Focusing The Camera
4. Tighten the adjustment screws on the mount arm to secure the camera’s position. 5. In the camera web browser interface or the Avigilon Control Center software adjust the camera’s Image and Display settings. You can set the zoom position, focus and change the image rotation. -
Page 20: Configuring The Camera
For more information, see the Avigilon Camera Configuration Tool User Guide. If the camera is connected to the Avigilon Control Center system, you can use the client software to configure the camera. For more information, see the Avigilon Control Center Client User Guide. ... -
Page 21: Connecting To Power And External Devices
Connecting to Power and External Devices Important: Be careful not to connect auxiliary power to the audio input wire or the camera will be damaged. Although both the audio input wire and auxiliary power wire are brown, the auxiliary power wire is distinguished by its thicker wire gauge and AUX PWR label. If PoE is not available, the camera may be powered through the auxiliary power cable using either 12 V DC or 24 V AC. - Page 22 3. Green — Audio Output (line level) 4. Grey — Ground 5. Red — Digital Input 6. Pink — Digital Output 7. Purple — Reserved Wire, do not connect. 8. White — Reserved Wire, do not connect. * — Relay ...
-
Page 23: Connection Status Led Indicator
ACC™ Server. The default connected setting can be changed to Off using the camera's web user interface. For more information see the Avigilon High Definition H4 and H5 IP Camera Web Interface User Guide. Troubleshooting Network Connections and LED Behavior Note: For any of the below LED behaviors, ensure that the camera is getting power and is using a good network cable before trying another solution. - Page 24 LED Behavior Suggested Solution Both LEDs are blinking several Perform a factory reset of the camera using the physical times at the same time, then firmware revert button. Resetting through the camera's web pause and repeat the blinking interface will not produce the desired result. ...
-
Page 25: Resetting To Factory Default Settings
Resetting to Factory Default Settings If the device no longer functions as expected, you can choose to reset the device to its factory default settings. Use the firmware revert button to reset the device. The firmware revert button is shown in the following diagram: For models that feature an SD card slot, resetting the camera will not affect video that has been recorded to the SD card. -
Page 26: Setting The Ip Address Using The Arp/Ping Method
For more information, see the Avigilon High Definition H4 and H5 IP Camera Web Interface User Guide. 1. Locate and make note of the MAC Address (MAC) listed on the Serial Number Tag for reference. -
Page 27: Limited Warranty And Technical Support
Limited Warranty and Technical Support Avigilon warranty terms for this product are provided at avigilon.com/warranty. Warranty service and technical support can be obtained by contacting Avigilon Technical Support: avigilon.com/contact. Limited Warranty and Technical Support...
